Split Bedroom Ranch House Plan

Plan 62620DJ

  • 1,412

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • Just the right size for a starter home or for retirees, this one level Ranch house offers split bedrooms.
  • The open layout maximizes the square footage making the home feel larger.

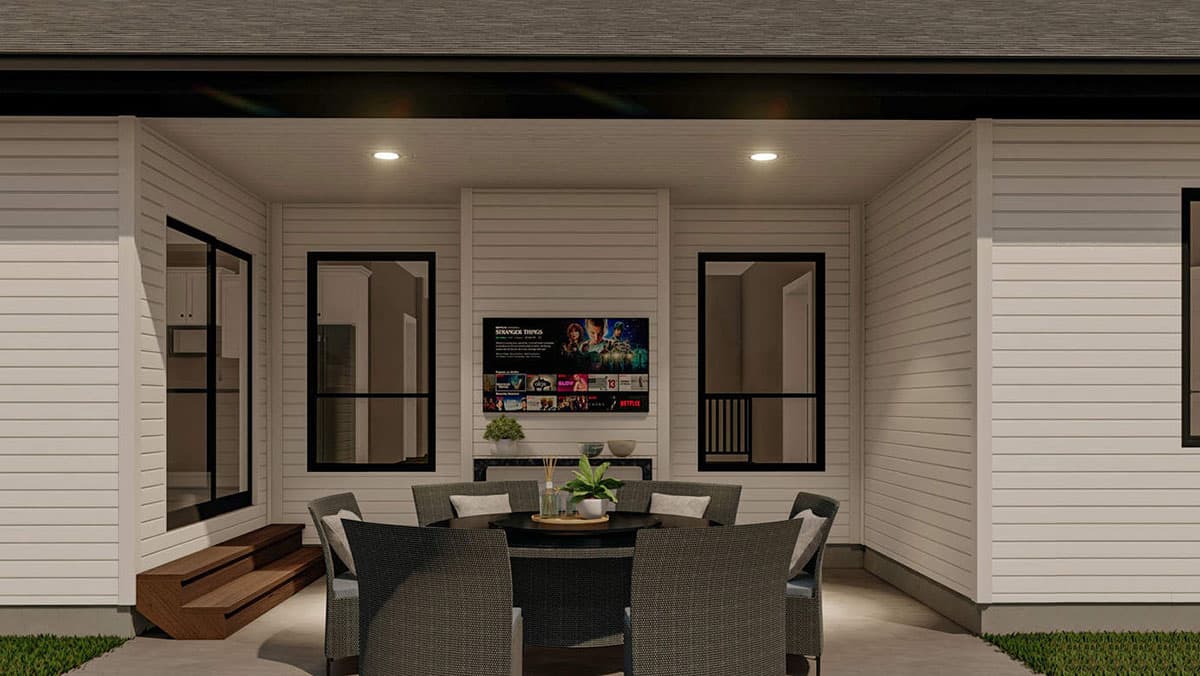

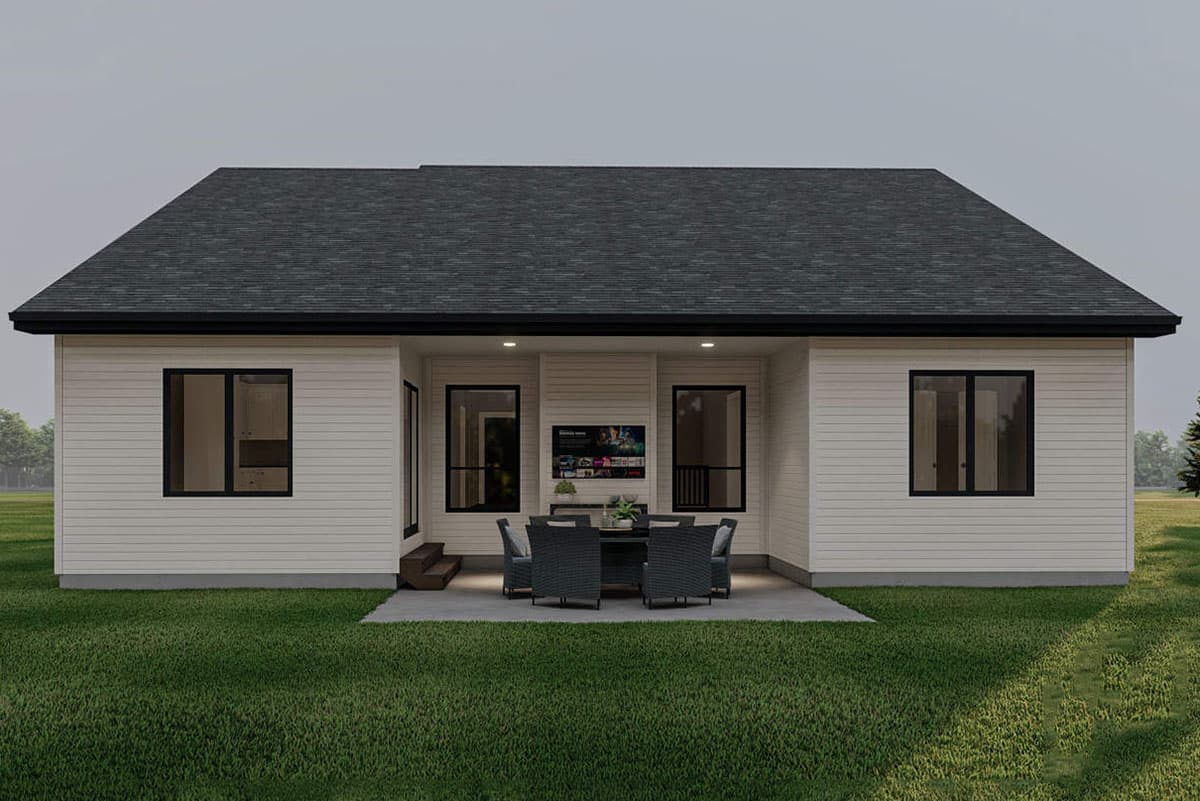

  • Sliding glass door in the dining area take you out to the rear covered porch.
  • A big fireplace is the focal point of the great room that comes with a 12' high ceiling.
  • Two family bedrooms lie on the left side of the home and the master suite faces front with windows on two sides.

See What's Included in this Plan...

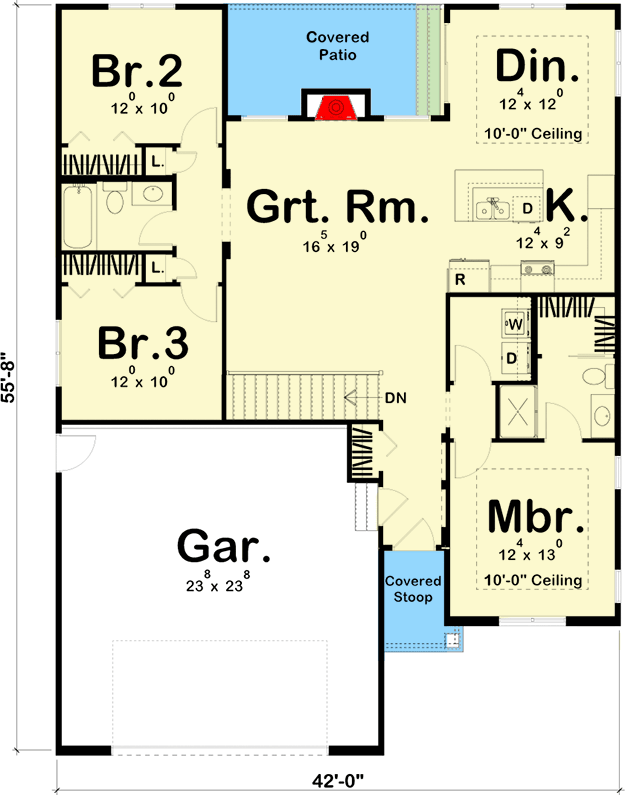

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,412 sq. ft.
  • 1st Floor: 1,412 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Dimensions

  • Width: 42' 0"
  • Depth: 56' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 579 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Basement

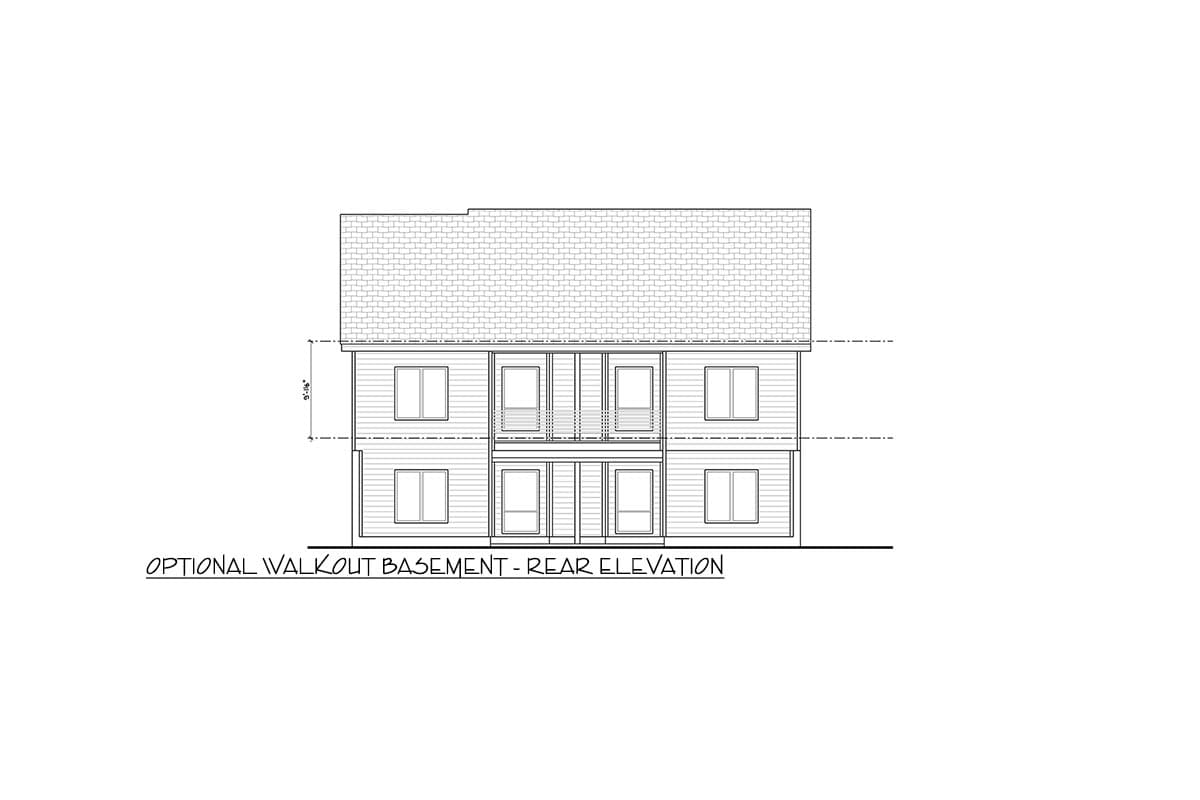

  • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 10 on 12
