Split Bedroom Rustic Ranch Home Plan Just Under 1500 Square Feet

Plan 365025PED

  • 1,499

    Heated s.f.

  • 2-4

    Beds

  • 2 - 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • This rustic ranch home plan gives you 2 beds and 2 baths in a split bedroom layout and 1,499 square feet of heated living space.
  • On the right, the master bedroom suite has a walk-in closet with a five-fixture bath with a generously sized walk-in shower. Across the home, Bed 2 has access to the hall bath.
  • The middle of the home gives you an open floor plan with the vaulted great room having access to the covered and vaulted patio through sliding doors.
  • Expand and build out the optional lower level and gain 1,299 square feet of living space with two additional bedrooms - each with their own bath - and a large rec space.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor

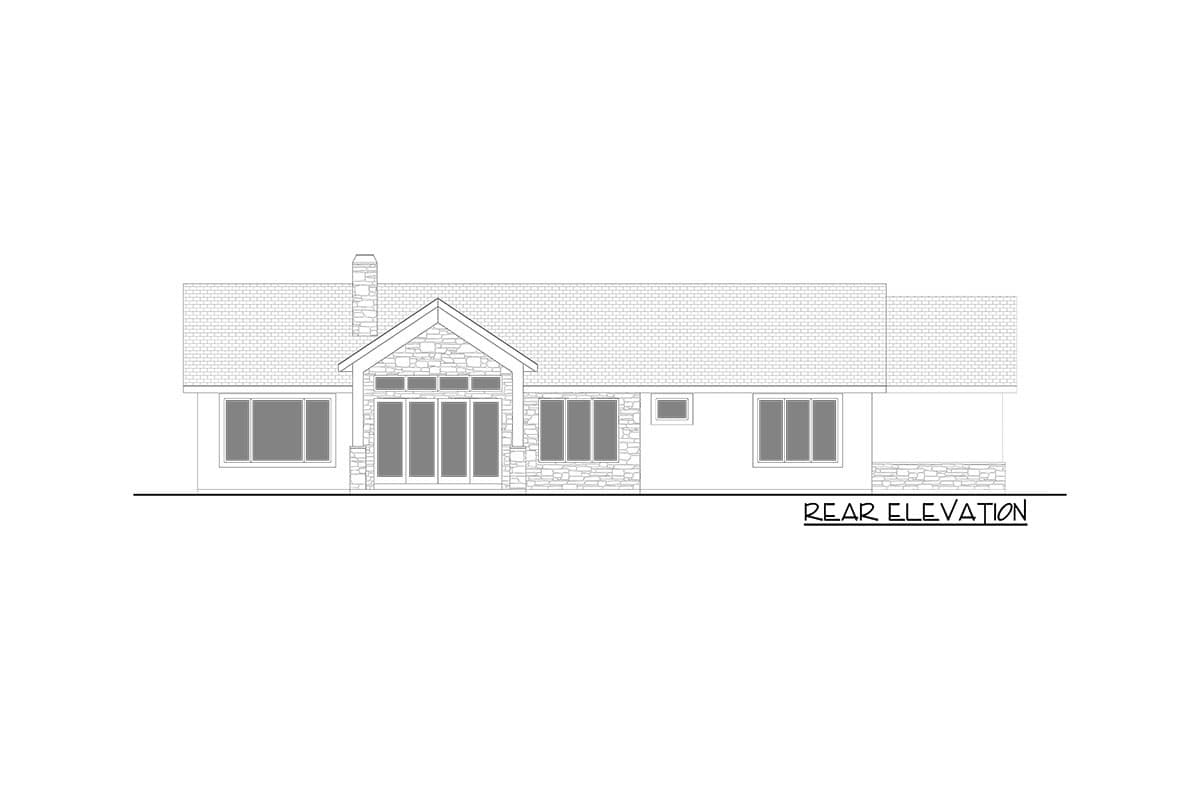

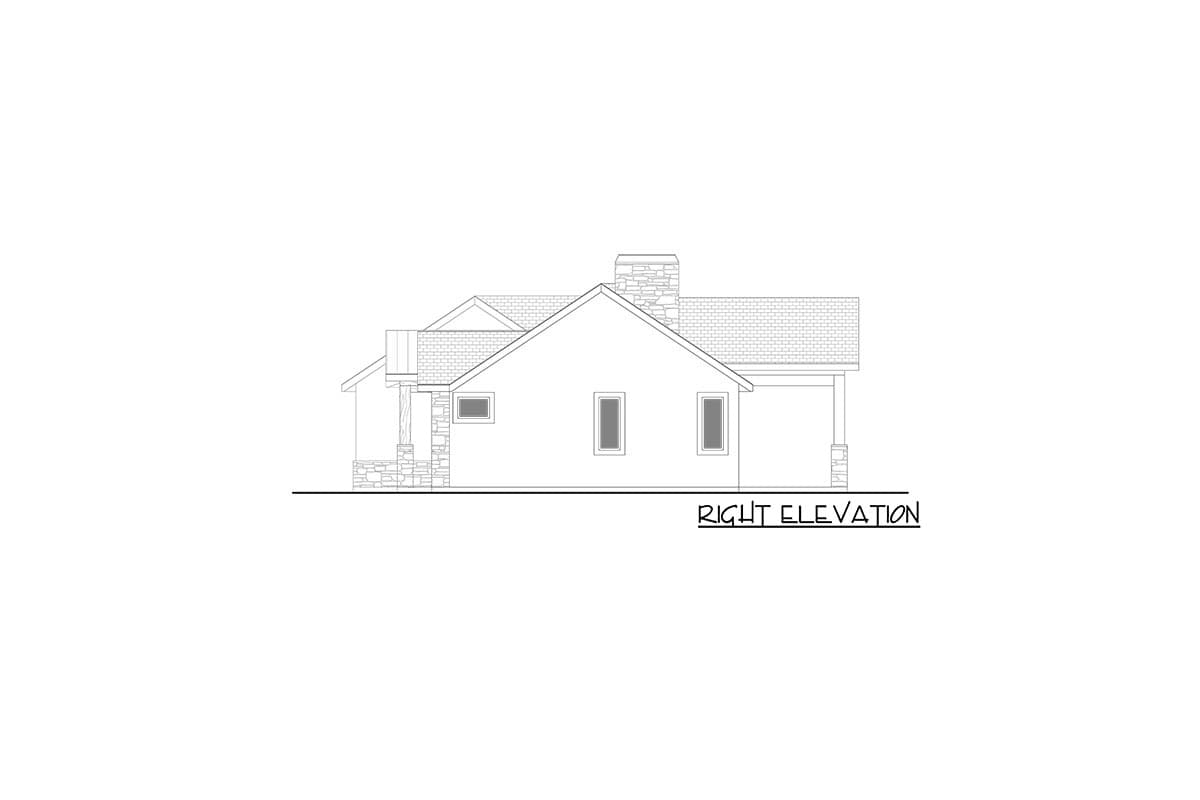

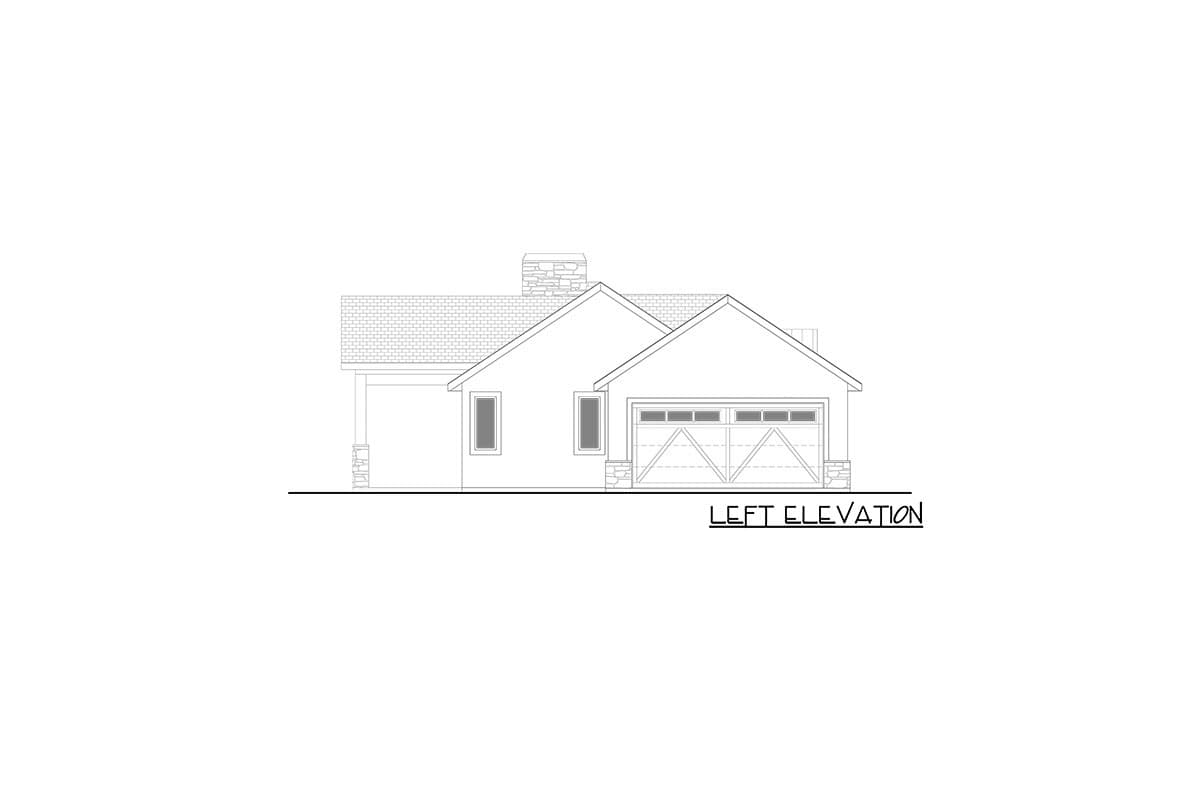

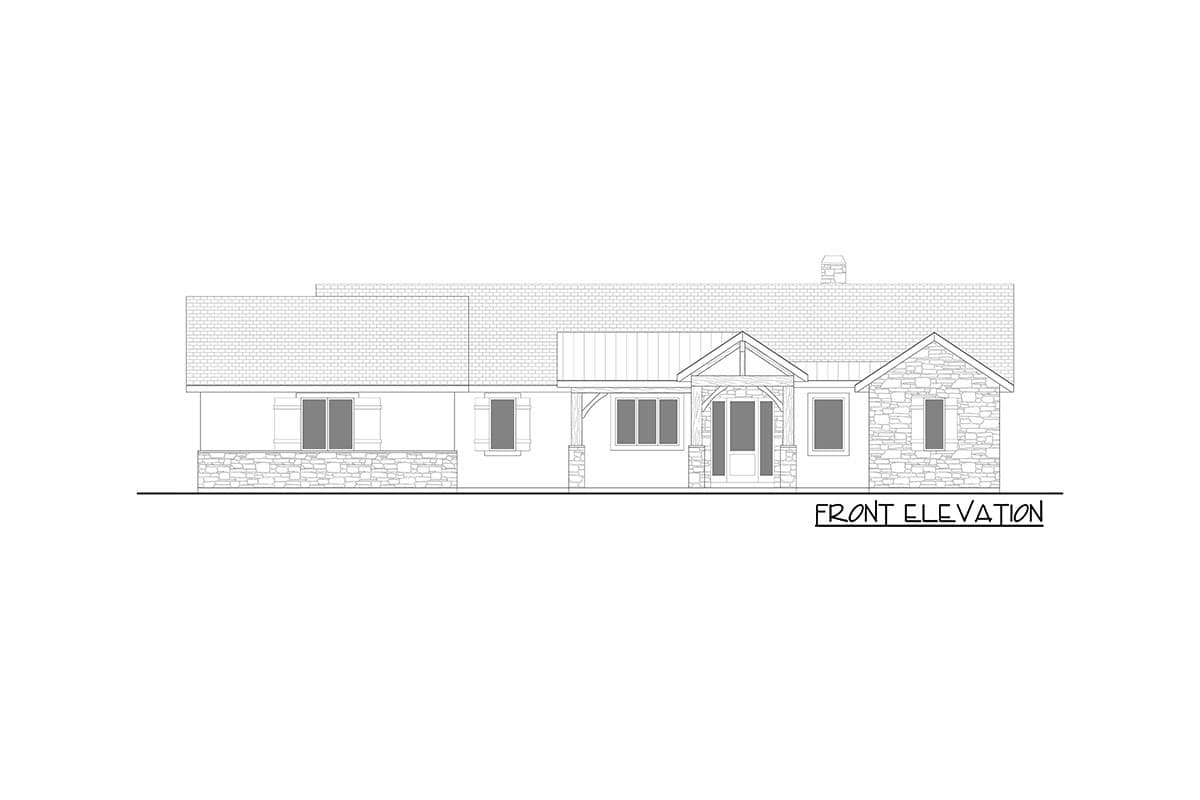

  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

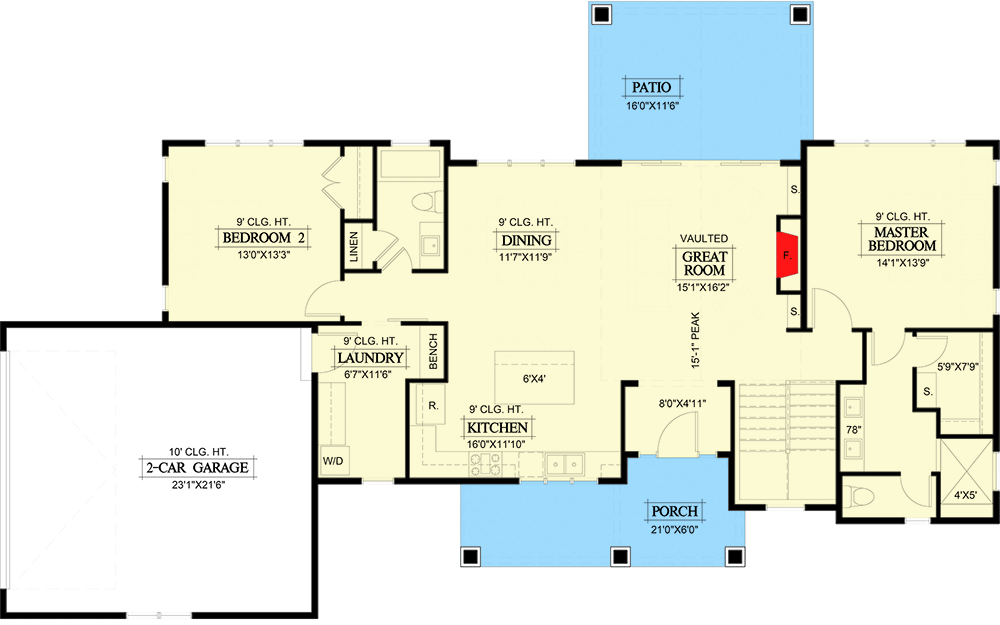

Split Bedroom Rustic Ranch Home Plan Just Under 1500 Square Feet - 365025PED floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

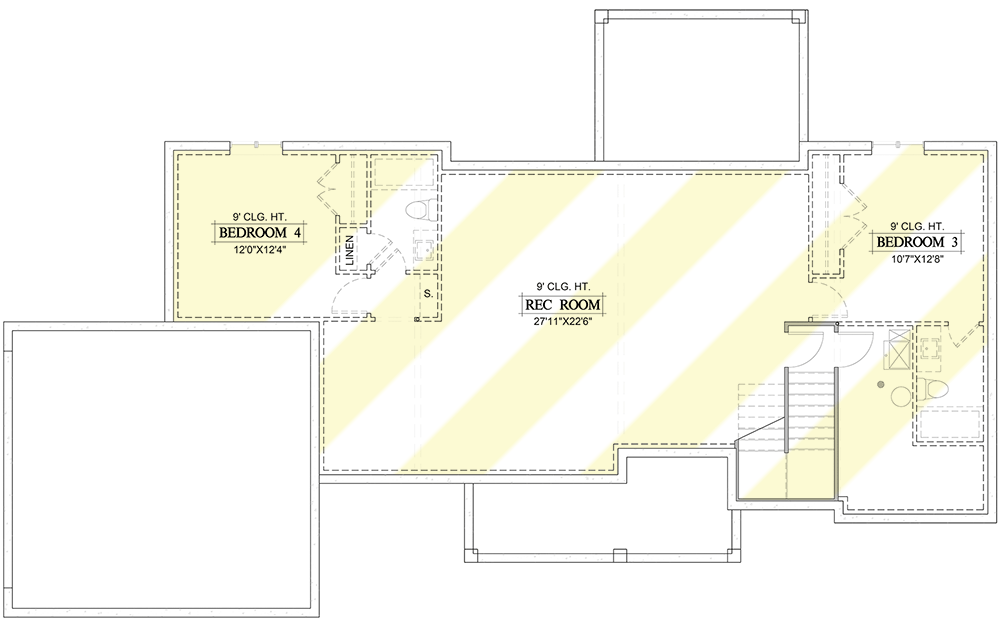

Split Bedroom Rustic Ranch Home Plan Just Under 1500 Square Feet - 365025PED floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,499 sq. ft.
  • 1st Floor: 1,499 sq. ft.
  • Covered Patio: 203 sq. ft.
  • Porch, Front: 148 sq. ft.
  • Optional Lower Level: 1,299 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 6"
  • Depth: 46' 2"
  • Max ridge height: 19' 10"

Garage

  • Type: Attached
  • Area: 539 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Split Bedroom Rustic Ranch Home Plan Just Under 1500 Square Feet

  • 1,499

    Heated s.f.

  • 2-4

    Beds

  • 2 - 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,497
  • CAD + PDF - Single Build $2,197
  • View all purchase option online

About This Plan

  • This rustic ranch home plan gives you 2 beds and 2 baths in a split bedroom layout and 1,499 square feet of heated living space.
  • On the right, the master bedroom suite has a walk-in closet with a five-fixture bath with a generously sized walk-in shower. Across the home, Bed 2 has access to the hall bath.
  • The middle of the home gives you an open floor plan with the vaulted great room having access to the covered and vaulted patio through sliding doors.
  • Expand and build out the optional lower level and gain 1,299 square feet of living space with two additional bedrooms - each with their own bath - and a large rec space.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,499 sq. ft.
  • 1st Floor: 1,499 sq. ft.
  • Covered Patio: 203 sq. ft.
  • Porch, Front: 148 sq. ft.
  • Optional Lower Level: 1,299 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 6"
  • Depth: 46' 2"
  • Max ridge height: 19' 10"

Garage

  • Type: Attached
  • Area: 539 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 365025PED
View this and more for this plan by visiting www.architechtecturaldesigns.com/365025PED
|
Need Help? 800-854-7852
|
