Split Bedroom Rustic Ranch House Plan with L-Shaped Back Porch

Heated S.F.
2,344
Beds
4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 777068MTL

Main Level
Main Level
Wall Framing Section
Wall Framing Section

Plan 777068MTL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

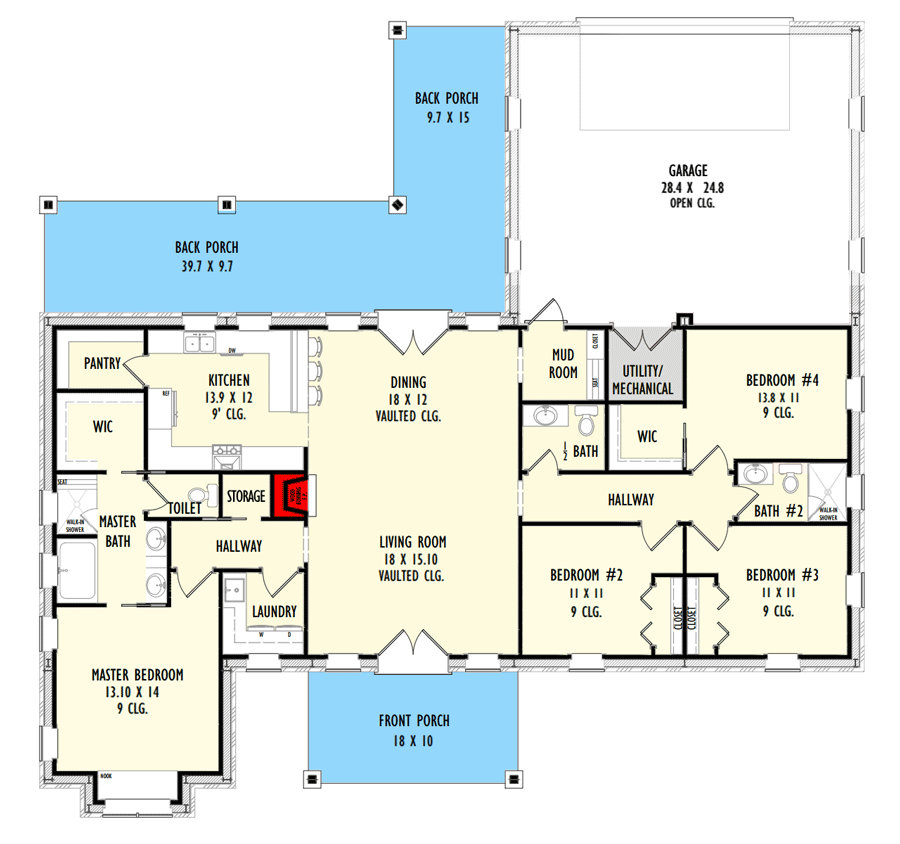

Plan 777068MTL: Split Bedroom Rustic Ranch House Plan with L-Shaped Back Porch - Floor Plan - Main Level - Country, Craftsman, Mountain, Ranch, Rustic

Wall Framing Section

Plan 777068MTL: Split Bedroom Rustic Ranch House Plan with L-Shaped Back Porch - Floor Plan - Wall Framing Section - Country, Craftsman, Mountain, Ranch, Rustic

Plan Details

  • French doors open off the 10'-deep front porch and take you into an open concept living space beneath a vaulted ceiling with a matching set of doors taking you to the L-shaped back porch.
  • There's seating for three at the peninsula in the kitchen. A double sink is set beneath windows looking out back and a true walk-in pantry gives you great storage.
  • The bedrooms are in a split layout maximizing your privacy.
  • A large (770 square foot) 2-car garage is accessible from the back. A mechanical closet is located in back and there's access to the clutter-reducing mud room.
  • This house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,344 sq. ft.

1st Floor

2,344 sq. ft.

Porch, Front

188 sq. ft.

Porch, Rear

523 sq. ft.

Porch, Combined

711 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

67' 6"

Max Ridge Height

17' 6"

Garage

Type

Attached

Area

770 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

PEMB & Stick

Architectural Style

Country

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,344 sq. ft.

1st Floor

2,344 sq. ft.

Porch, Front

188 sq. ft.

Porch, Rear

523 sq. ft.

Porch, Combined

711 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

67' 6"

Max Ridge Height

17' 6"

Garage

Type

Attached

Area

770 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

PEMB & Stick

Architectural Style

Country

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
