Split Bedroom Shingle Manor with Angled Garage - 2759 Sq Ft

Heated S.F.
2,759
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 275001CMM

Main Level
Main Level

Plan 275001CMM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

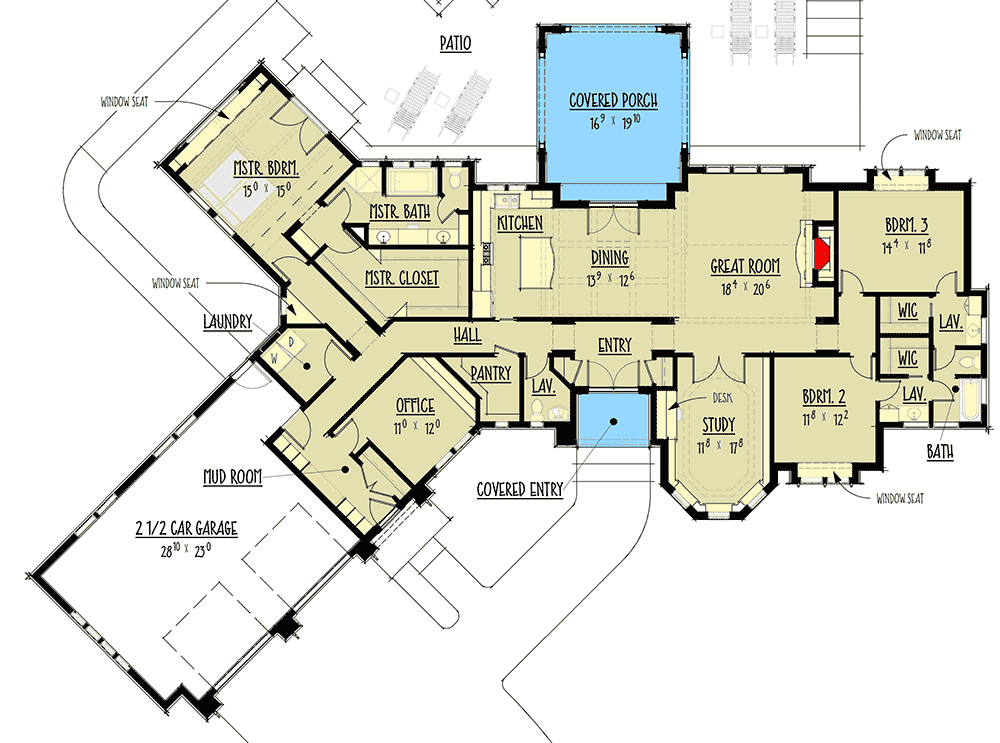

Plan 275001CMM: Split Bedroom Shingle Manor with Angled Garage - 2759 Sq Ft - Floor Plan - Main Level - Cottage, Craftsman, European, Ranch, Shingle, Traditional, Vacation

Plan Details

  • This 3 bedroom house plan maximizes your privacy with a split bedroom layout placing your spacious vaulted master suite - with rear patio access - off in its own wing creating a great retreat.
  • Closets flank the entry helping minimize clutter. Steps away you'll find your vaulted entertaining room with fireplace, built-ins, great views outside and views all the way across to the kitchen.
  • The kitchen is spacious and has seating at the island and it is mere steps to the eating area.
  • A covered outdoor living room is open on three sides and accessible from the dining area.
  • A private study has a built-in desk, tray ceiling and three windows in the bay.
  • Two bedrooms share a Jack-and-Jill bath in the right wing of the home plan.
  • A large work area off the garage can be put to many uses and there is more storage - and a laundry room - to help keep the home tidy.

What's Included

This house plan includes the following details:
  • Cover Sheet with General Notes
  • Exterior Perspective Views
  • Foundation Plan with dimensions and notes
  • Main Level Floor Plan with dimensions and notes
  • Exterior Elevations
  • Exterior Elevations
  • Exterior Elevations
  • Exterior Elevations
  • Building Sections
  • Building Sections
  • Building Sections
  • Details
  • Interior Elevations
  • Roof Plan
  • Room & Door & Window Schedules

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,759 sq. ft.

1st Floor

2,759 sq. ft.

Porch, Rear

324 sq. ft.

Porch, Combined

376 sq. ft.

Entry

52 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

108' 4"

Depth

78' 4"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

745 sq. ft.

Count

2 Cars

Entry Location

Courtyard, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

European

Ranch

Shingle

Traditional

Vacation

Special Features

Angled Garage

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,759 sq. ft.

1st Floor

2,759 sq. ft.

Porch, Rear

324 sq. ft.

Porch, Combined

376 sq. ft.

Entry

52 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

108' 4"

Depth

78' 4"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

745 sq. ft.

Count

2 Cars

Entry Location

Courtyard, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

European

Ranch

Shingle

Traditional

Vacation

Special Features

Angled Garage

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
