Split Bedroom Southern Ranch Home Plan

Heated S.F.
1,631
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 62147V

Main Level
Main Level

Plan 62147V

M-F 9am-5pm EST |

1-203-761-8500

Main Level

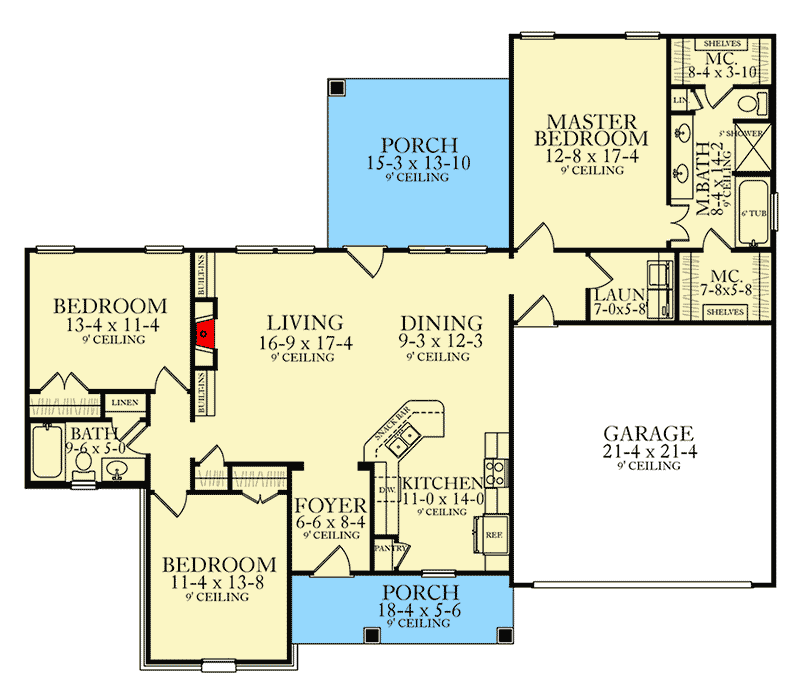

Plan 62147V: Split Bedroom Southern Ranch Home Plan - Floor Plan - Main Level - Cottage, Country, Ranch, Southern, Traditional

Plan Details

  • A graceful hip roof adds good looks to this Southern Ranch house plan.
  • Just the right size, the home is easy to clean and maintain.
  • Extra storage comes from the built-ins on either side of the fireplace.
  • Porches front and back give you outdoor living.
  • In the large master bedoom suite, homeowners get two walk-in closets and a large private bathroom with two sinks.
  • The split bedroom layout separates the bedrooms so they are on opposite sides of the home.

What's Included

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,631 sq. ft.

1st Floor

1,631 sq. ft.

Porch, Combined

302 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

52' 6"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,631 sq. ft.

1st Floor

1,631 sq. ft.

Porch, Combined

302 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

52' 6"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
