Plan 81709AB
Split Bedrooms and an Optional Finished Lower Level
Heated S.F.
2,530
Beds
3-5
Baths
1.5 - 2.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

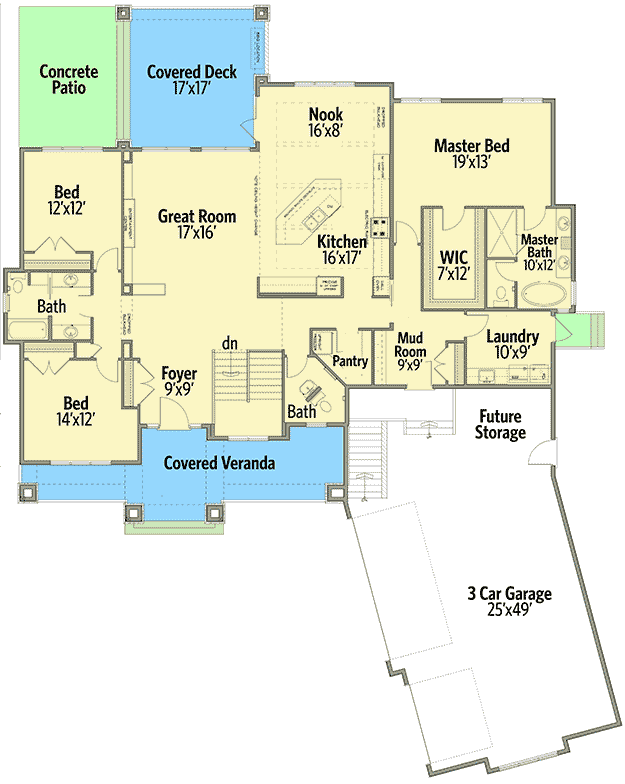

Main Level
Reverse Floor Plan
Split Bedrooms and an Optional Finished Lower Level - 81709AB floor plan - Main Level

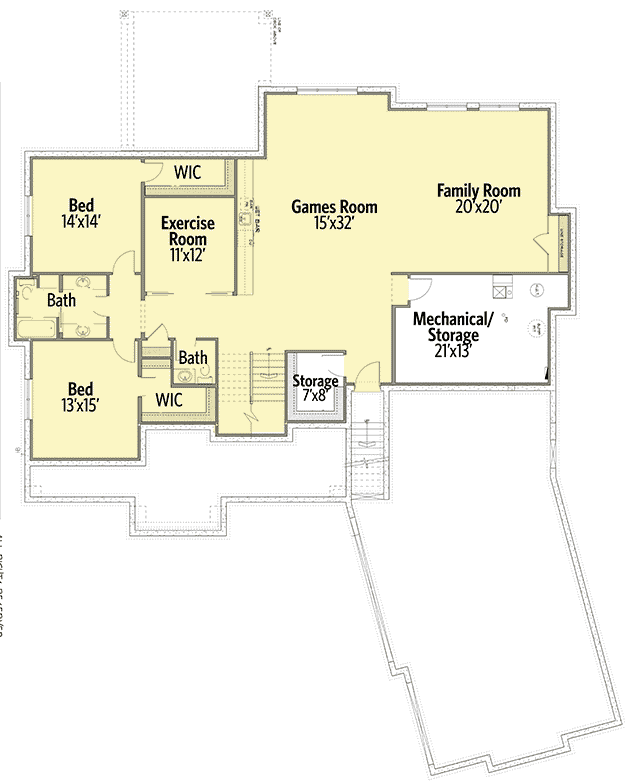

Optional Finished Lower Level
Reverse Floor Plan
Split Bedrooms and an Optional Finished Lower Level - 81709AB floor plan - Optional Finished Lower Level
Plan Details
  • Designed for a lot that slopes to the rear, this one level Northwest house plan gives you a spacious, open floor plan and a split bedroom layout.
  • The great room, kitchen and nook form one large space where the whole family can be in sight.
  • Step out to the covered deck or soak up the sunshine on the concrete patio.
  • The master bedroom is a generous size and features a huge walk-in closet.
  • Two other family bedrooms lie across the house.
  • Expand when you are ready by finishing the optional lower level that adds an extra 1,898 square feet of living space.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
