Plan 60615ND

Split Floor Plans With Angled Garage

Heated S.F.
2,279
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
2

Floor Plan

Plan 60615ND

Main Level
Main Level

Plan 60615ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

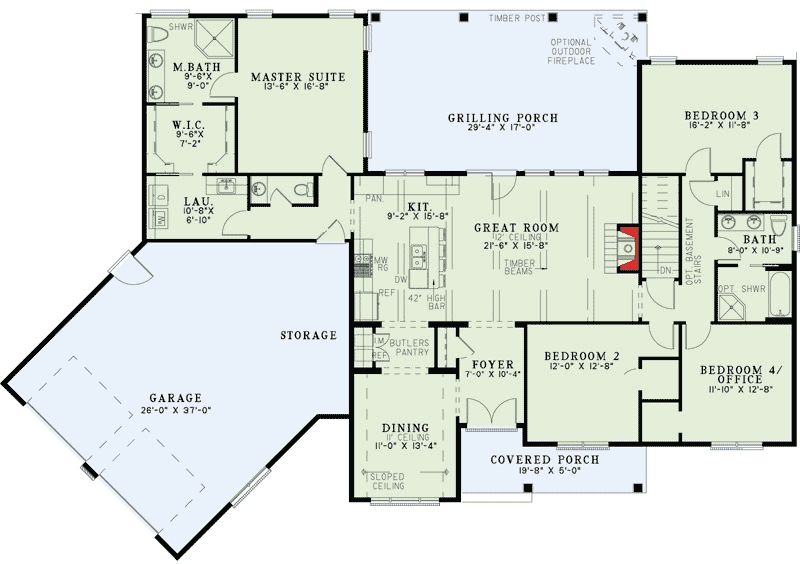

Plan 60615ND: Split Floor Plans With Angled Garage - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Once you walk through the foyer of this beautiful split bedroom home plan, you'll be welcomed by the great room and its impressive 12' ceiling. It is open to the kitchen which features an eat-at island bar.
  • The master suite boasts plenty of room and a large walk-in closet with a very convenient sliding door to the laundry room. The suite located to maximize the owner's privacy.
  • On the other side of the house are bedrooms 2 and 3 and a full bath and an office that could double as a 4th bedroom.
  • The grilling porch in the back can be accessed from the great room.
  • The double car garage is at a 45 degree angle and allows for loads of storage space.
  • The stick framed roof has an 8:12 pitch.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,279 sq. ft.

1st Floor

2,279 sq. ft.

Porch, Combined

621 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 9"

Depth

59' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

825 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Angled Garage

Bedrooms - Split

Home Office

Jack & Jill Bath

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,279 sq. ft.

1st Floor

2,279 sq. ft.

Porch, Combined

621 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 9"

Depth

59' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

825 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Angled Garage

Bedrooms - Split

Home Office

Jack & Jill Bath

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office
