Split-Level Prairie Home Plan with Lower Level Garage

Plan 720013DA

  • 2,431

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Designed for a lot that slopes to the front and side, this house plan is a split level design with a modern prairie exterior. The front door is framed by two slender posts creating a welcoming front porch.
  • Inside, the foyer immediately presents two directions. Heading down leads to the home’s partial basement. A mud hall is furnished with a bench and drop zone and provides access to a mechanical room, under stair storage, and the two car garage.
  • Back at the foyer, heading up brings you to the main living area. The great room fills the right side of the floor plan. Living room, dining room, and kitchen are all open to each other allowing conversations and people to move freely.
  • Off the great room there are two patios; the one off the dining room making a great grilling patio. The left side of the floor plan is filled with the laundry room, a den, and the plan’s three bedrooms including the owners’ suite.
  • The owners’ suite is a spacious retreat featuring a private bathroom with walk-in shower, plus a walk-in closet.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

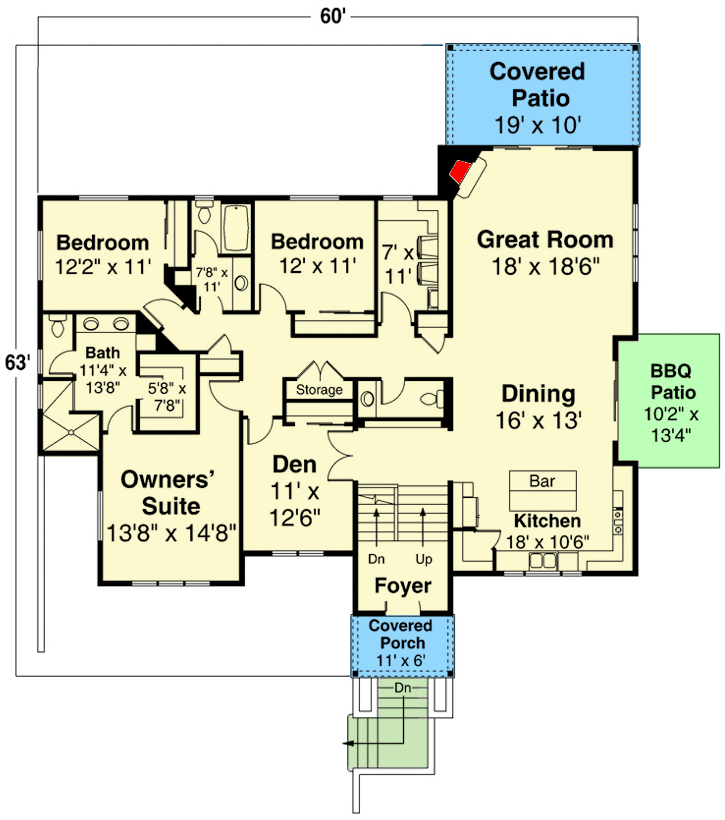

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split-Level Prairie Home Plan with Lower Level Garage - 720013DA floor plan - Main Level

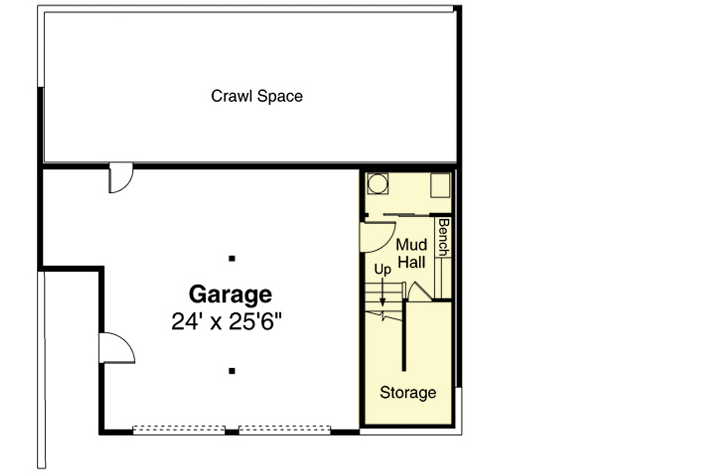

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split-Level Prairie Home Plan with Lower Level Garage - 720013DA floor plan - Lower Level
