Sprawling 5-Bed Home Plan with Sports Court, Media Room, and 5-Car Garage

Plan 290155IY

  • 6,349

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 5

    Cars

  • This sprawling, 5-bedroom home plan presents castle-like exterior features, while inside, multiple gathering rooms create the perfect space to entertain.
  • The luxury kitchen design includes a prep island surrounded by a second angled island that overlooks the dining area and generous family room.
  • The master bedroom spoils the homeowner with three fireplaces; one in the bedroom, on the private master porch, and a double-sided fireplace in the bathroom and adjacent sitting area.
  • Take the spiral staircase upstairs to find three sizable bedroom suites, a sitting nook, and a laundry room.
  • Don't forget about the lower level when entertaining, which features a media room, sports court, exercise room, two bedrooms, loads of storage, and more!

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

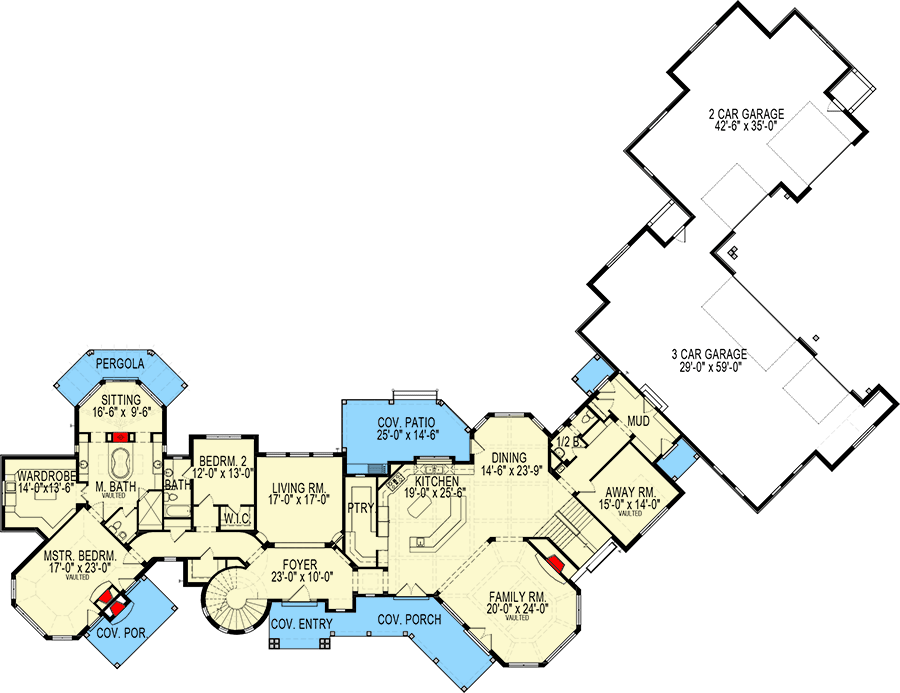

Sprawling 5-Bed Home Plan with Sports Court, Media Room, and 5-Car Garage - 290155IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

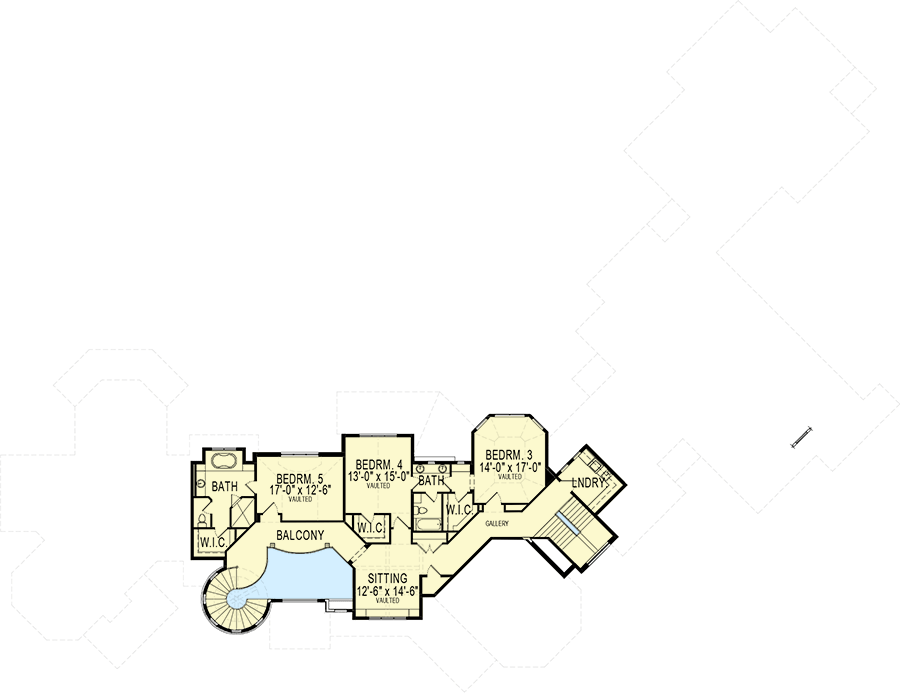

Sprawling 5-Bed Home Plan with Sports Court, Media Room, and 5-Car Garage - 290155IY floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

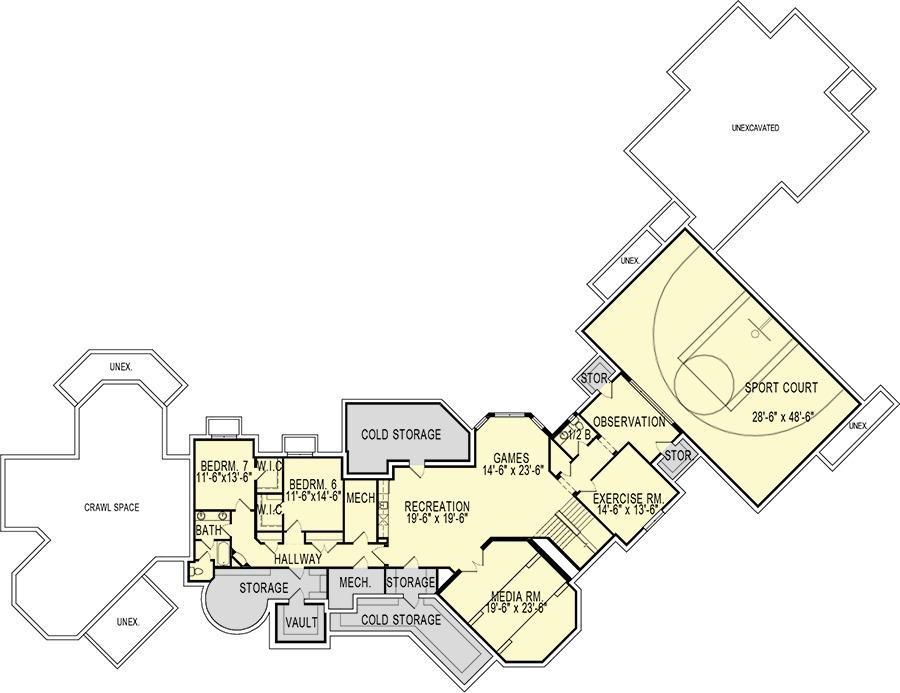

Sprawling 5-Bed Home Plan with Sports Court, Media Room, and 5-Car Garage - 290155IY floor plan - Lower Level

Sprawling 5-Bed Home Plan with Sports Court, Media Room, and 5-Car Garage

  • 6,349

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 6,349 sq. ft.
  • Lower Level: 1,890 sq. ft.
  • 1st Floor: 4,444 sq. ft.
  • 2nd Floor: 1,904 sq. ft.

Dimensions

  • Width: 177' 10"
  • Depth: 136' 9"
  • Max ridge height: 36' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2949 sq. ft.
  • Count: 5 Cars
  • Entry Location: Rear, Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
