Plan 36560TX Sprawling French Country House Plan with Main-Level Master

4,589 5 4 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Sprawling French Country House Plan with Main-Level Master

Plan 36560TX

  • 4,589

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This luxurious, French Country house plan provides a timeless brick exterior, large arched windows, and fireplaces in five rooms providing a sense of comfort throughout the home.
  • Upon entering, the statement-making foyer showcases a custom, curved stairway, along with a study and formal dining room, with a double-sided fireplace serving as the only separation.
  • The sizable family room and breakfast nook are open to one another, and a counter connects the kitchen, keeping the chef included in the conversation.
  • A lavish master suite awaits through french doors, and boasts a tray ceiling, access to the covered porch, and a double-sided fireplace serving the bathroom as well. The spa-like ensuite features a separate tub and shower, two vanities, a private toilet room, and a sprawling wardrobe.
  • A second bedroom can also be found on the main level, with access to a full bath.
  • Upstairs, a large bonus room sits above the 3-car garage, and includes two dormers and a Juliet balcony overlooking the foyer. A large game room leads to three additional bedrooms: two share a Jack-and-Jill bath, and the third includes a full bathroom.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

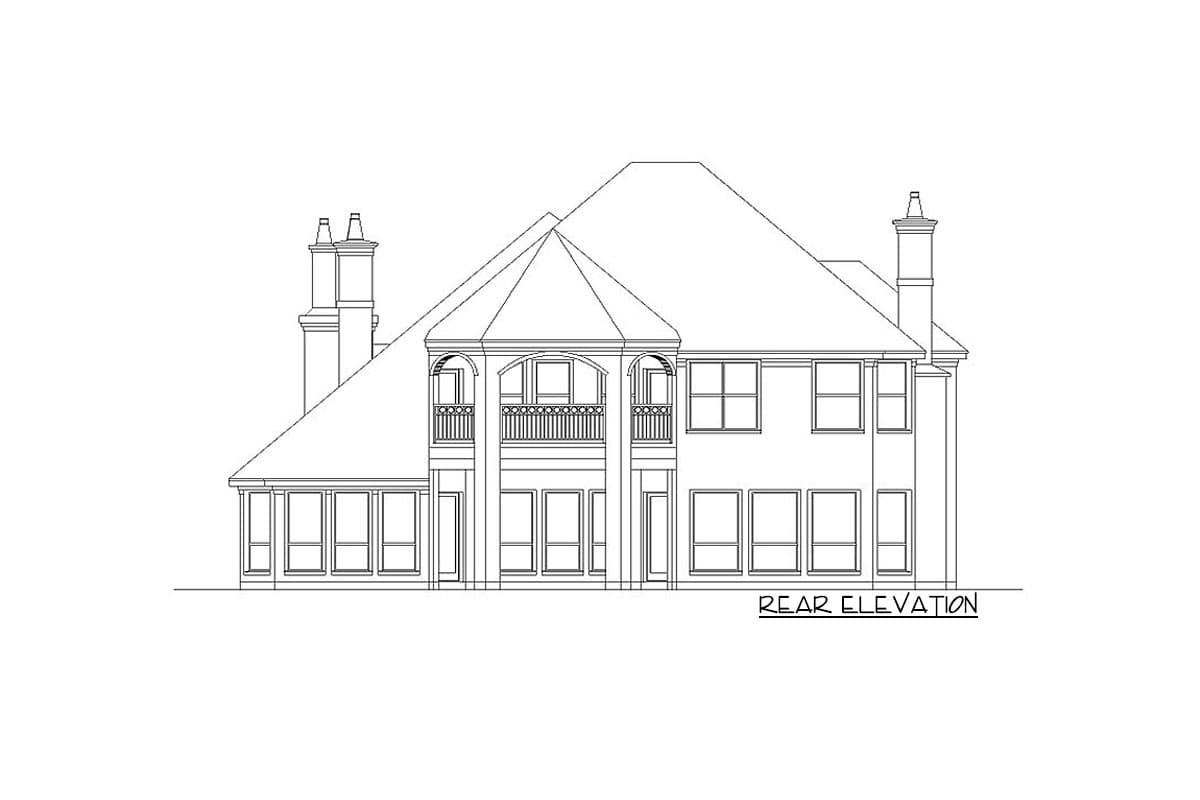

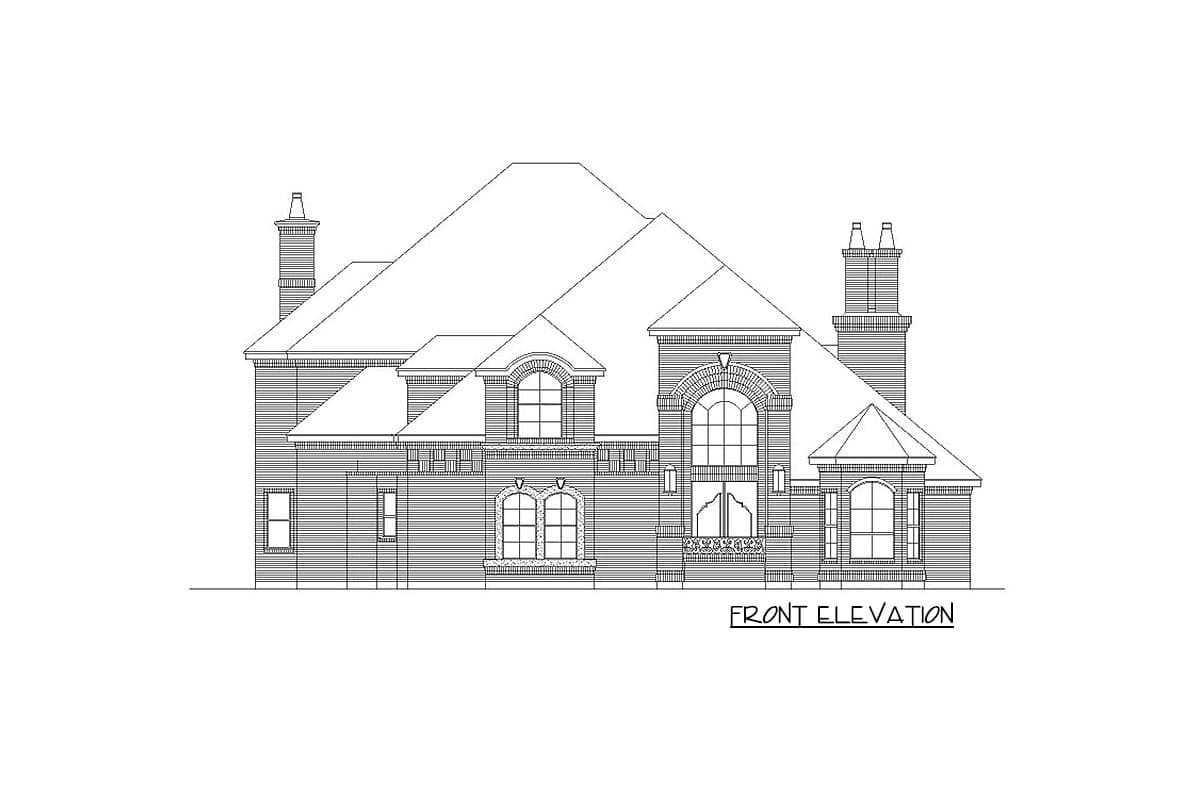

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

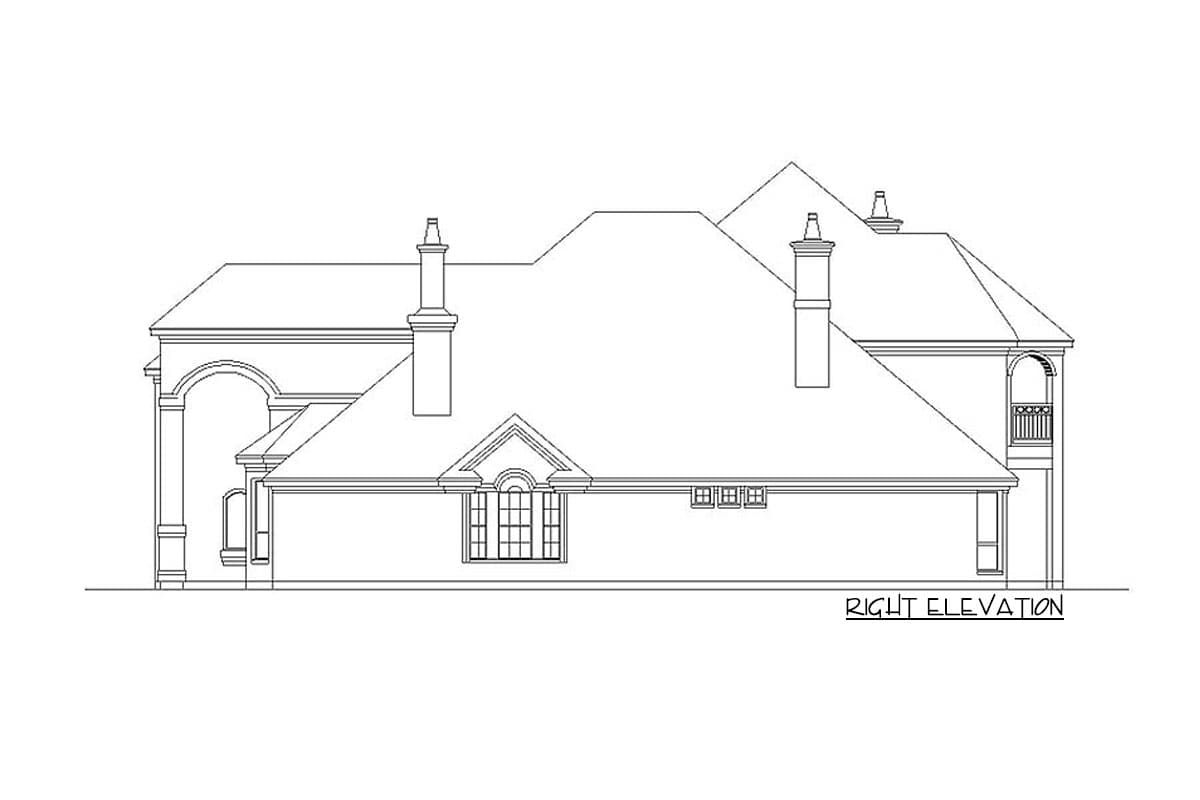

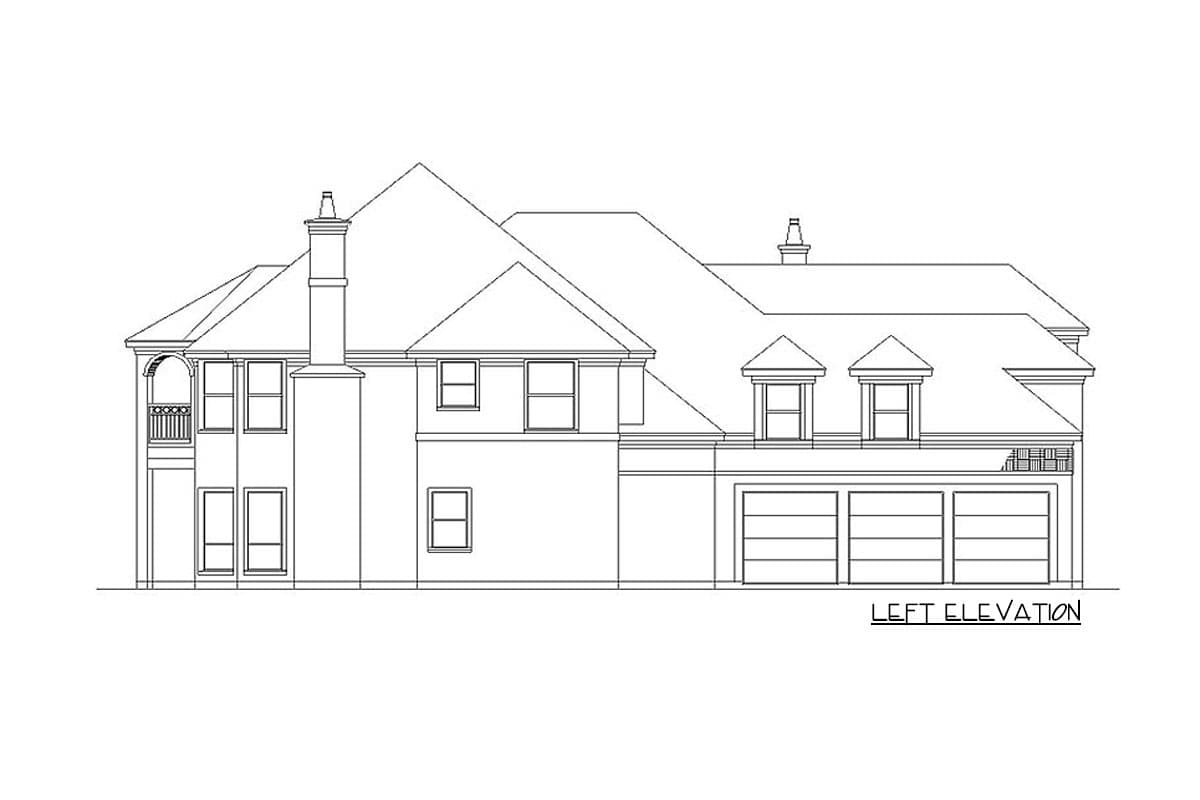

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

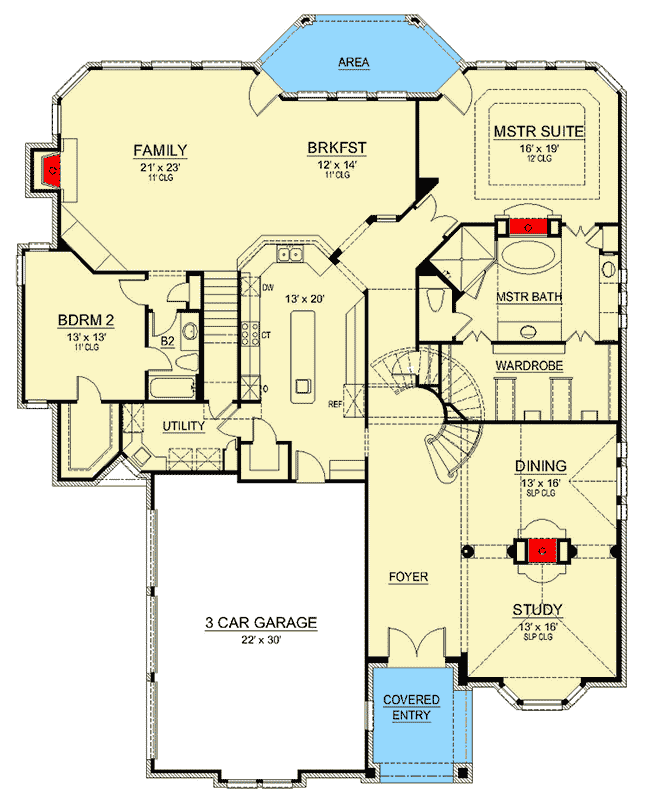

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sprawling French Country House Plan with Main-Level Master - 36560TX floor plan - Main Level

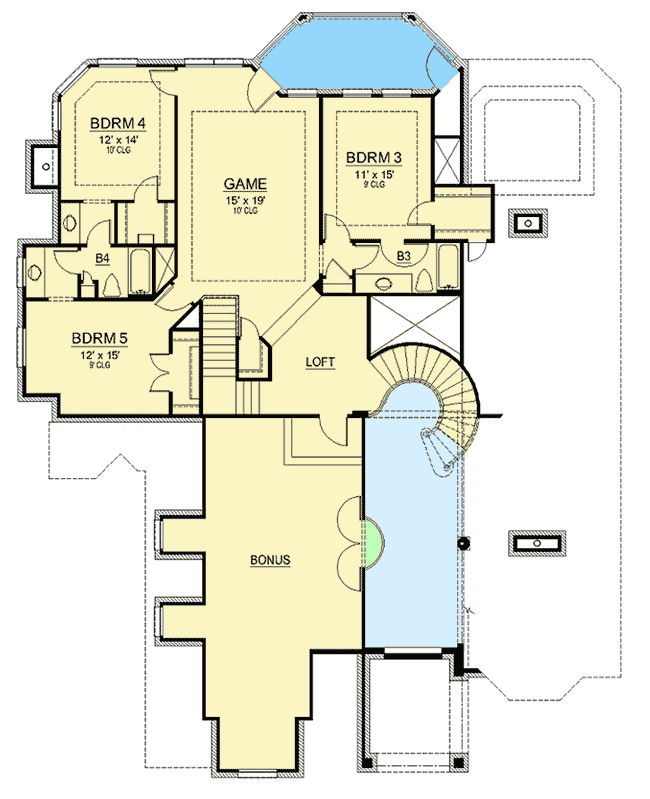

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sprawling French Country House Plan with Main-Level Master - 36560TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,589 sq. ft.
  • 1st Floor: 3,210 sq. ft.
  • 2nd Floor: 1,379 sq. ft.
  • Bonus: 626 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 0"
  • Depth: 81' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 722 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Sprawling French Country House Plan with Main-Level Master

  • 4,589

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets $1,850
  • CAD + PDF - Single Build $2,475
  • View all purchase option online

About This Plan

  • This luxurious, French Country house plan provides a timeless brick exterior, large arched windows, and fireplaces in five rooms providing a sense of comfort throughout the home.
  • Upon entering, the statement-making foyer showcases a custom, curved stairway, along with a study and formal dining room, with a double-sided fireplace serving as the only separation.
  • The sizable family room and breakfast nook are open to one another, and a counter connects the kitchen, keeping the chef included in the conversation.
  • A lavish master suite awaits through french doors, and boasts a tray ceiling, access to the covered porch, and a double-sided fireplace serving the bathroom as well. The spa-like ensuite features a separate tub and shower, two vanities, a private toilet room, and a sprawling wardrobe.
  • A second bedroom can also be found on the main level, with access to a full bath.
  • Upstairs, a large bonus room sits above the 3-car garage, and includes two dormers and a Juliet balcony overlooking the foyer. A large game room leads to three additional bedrooms: two share a Jack-and-Jill bath, and the third includes a full bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,589 sq. ft.
  • 1st Floor: 3,210 sq. ft.
  • 2nd Floor: 1,379 sq. ft.
  • Bonus: 626 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 0"
  • Depth: 81' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 722 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"
Plan 36560TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36560TX
|
