Plan 54245HU

Sprawling Mountain Modern Home Plan with Ample Outdoor Living Space

Name: Plan 54245HU: Sprawling Mountain Modern Home Plan with Ample Outdoor Living Space
Brand: Architectural Designs
SKU: 54245HU
Price: 2195.0 USD
Availability: InStock

Heated S.F.

4,682

Beds

Baths

5.5

Stories

Cars

Floor Plan

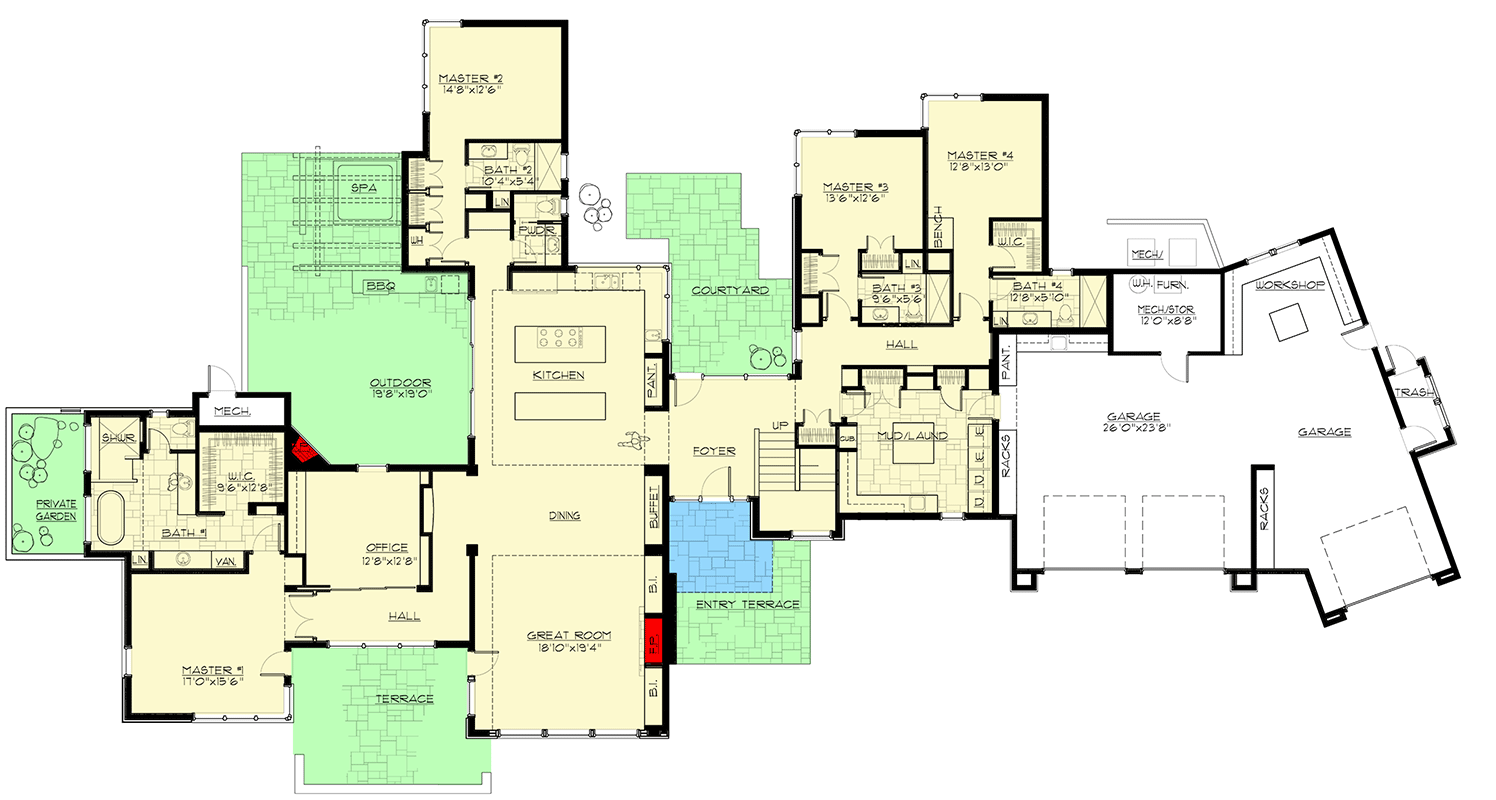

Main Level

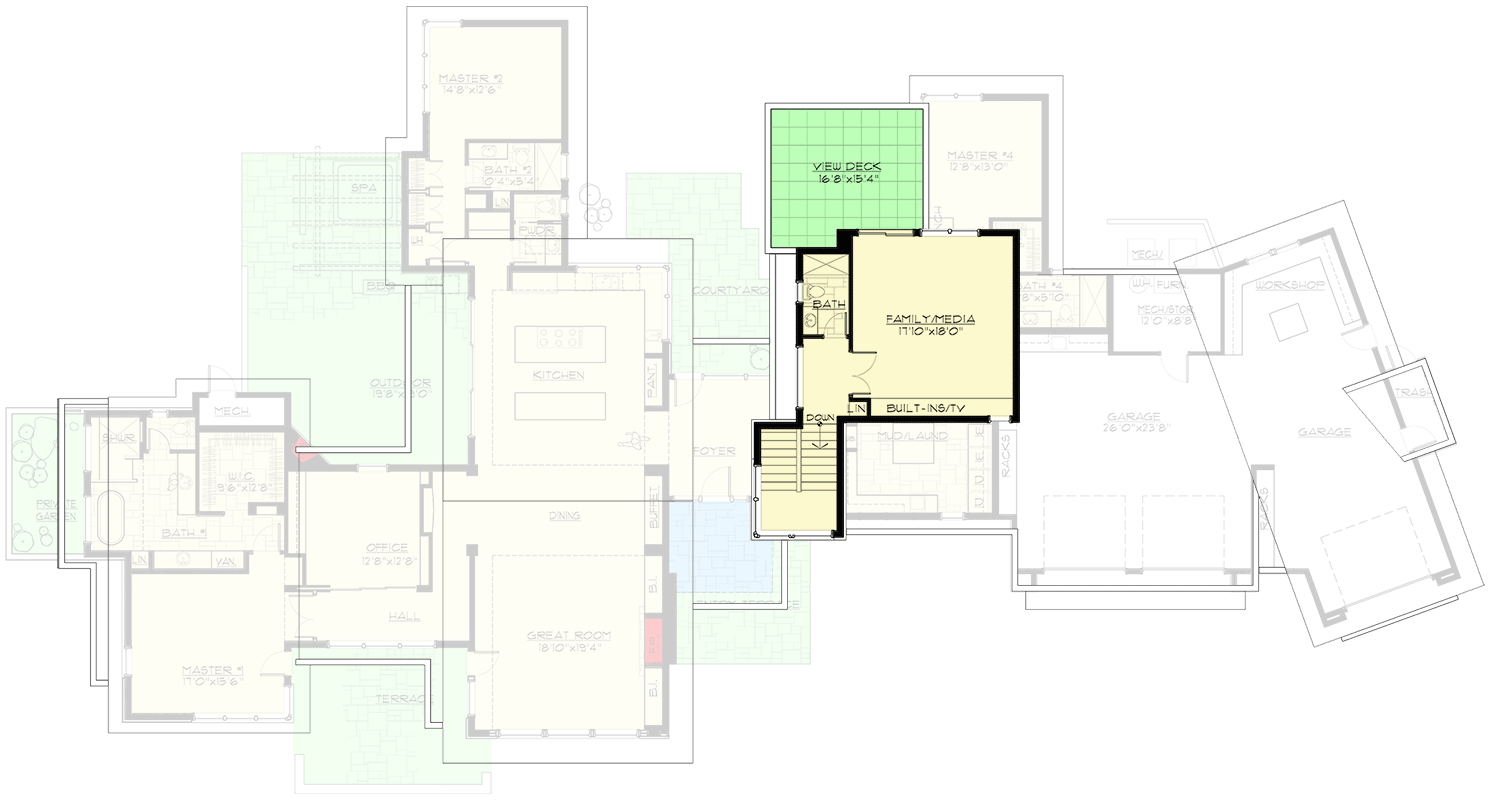

2nd Floor

Plan Details

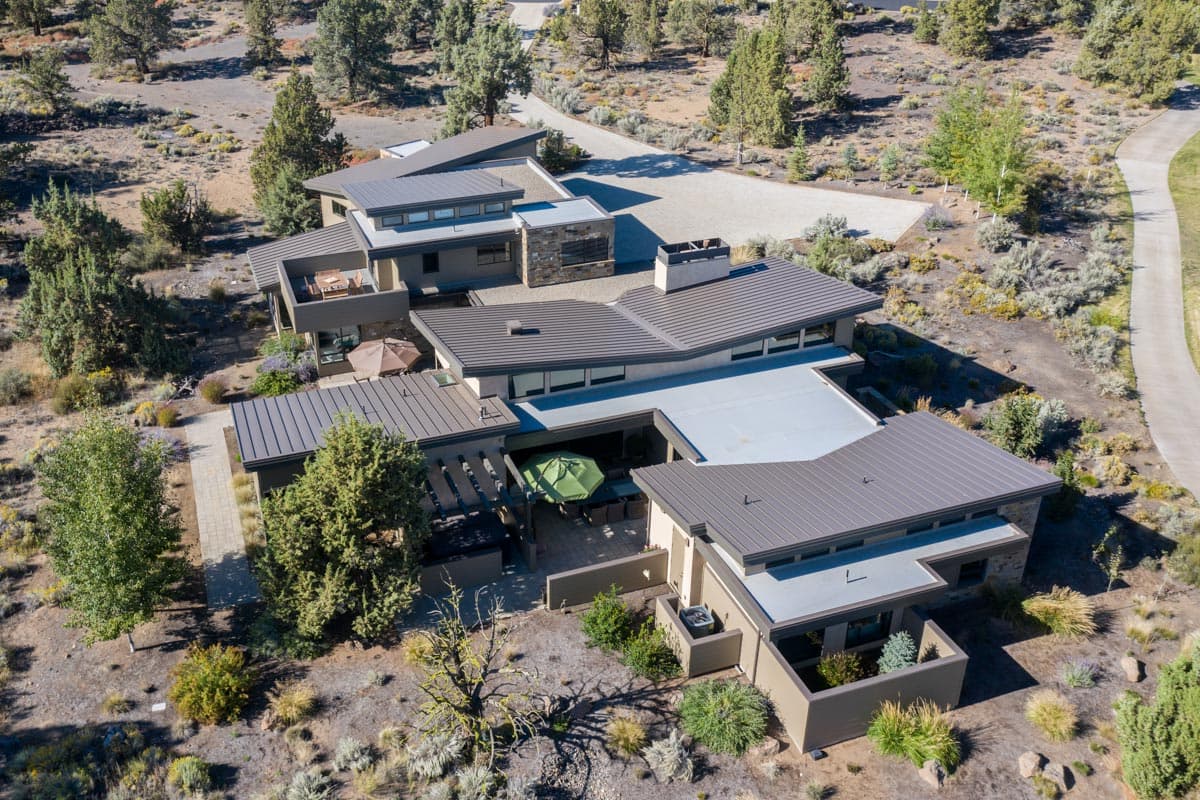

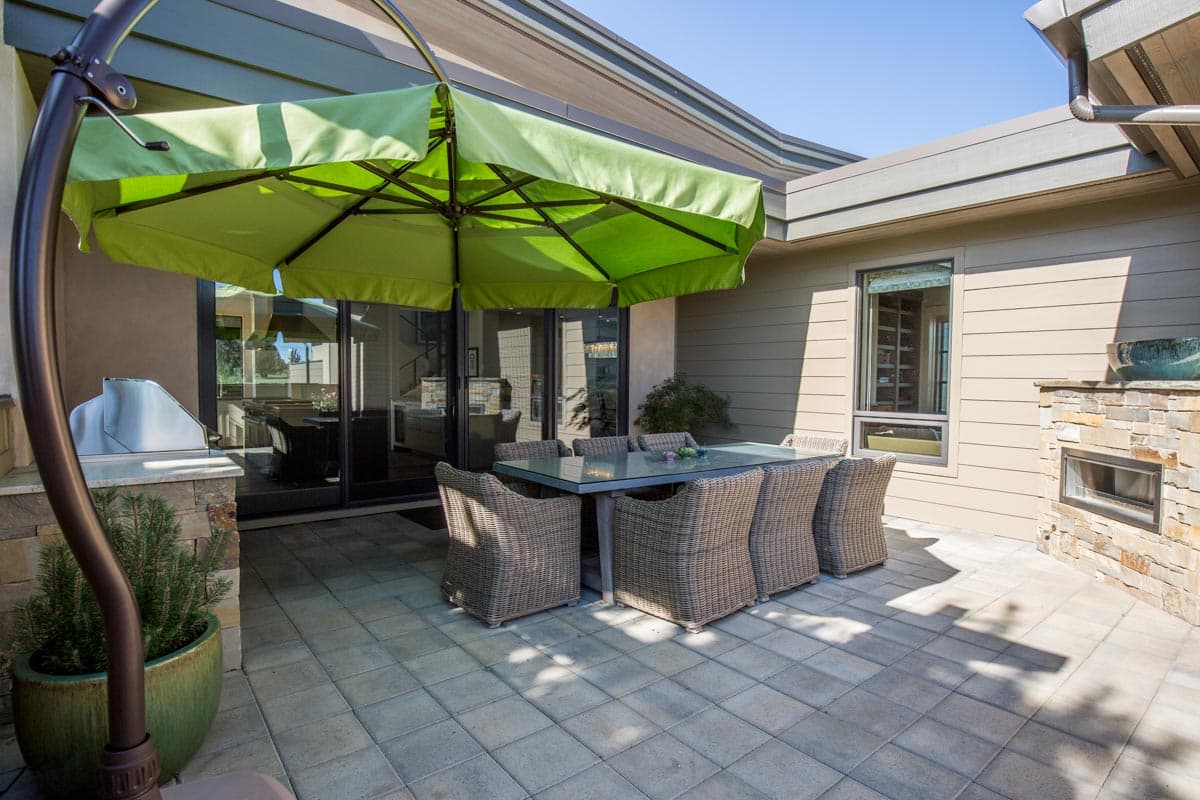

With terraces, courtyards, gardens, and a summer kitchen, this Mountain Modern home plan delivers a variety of spaces for outdoor lovers.

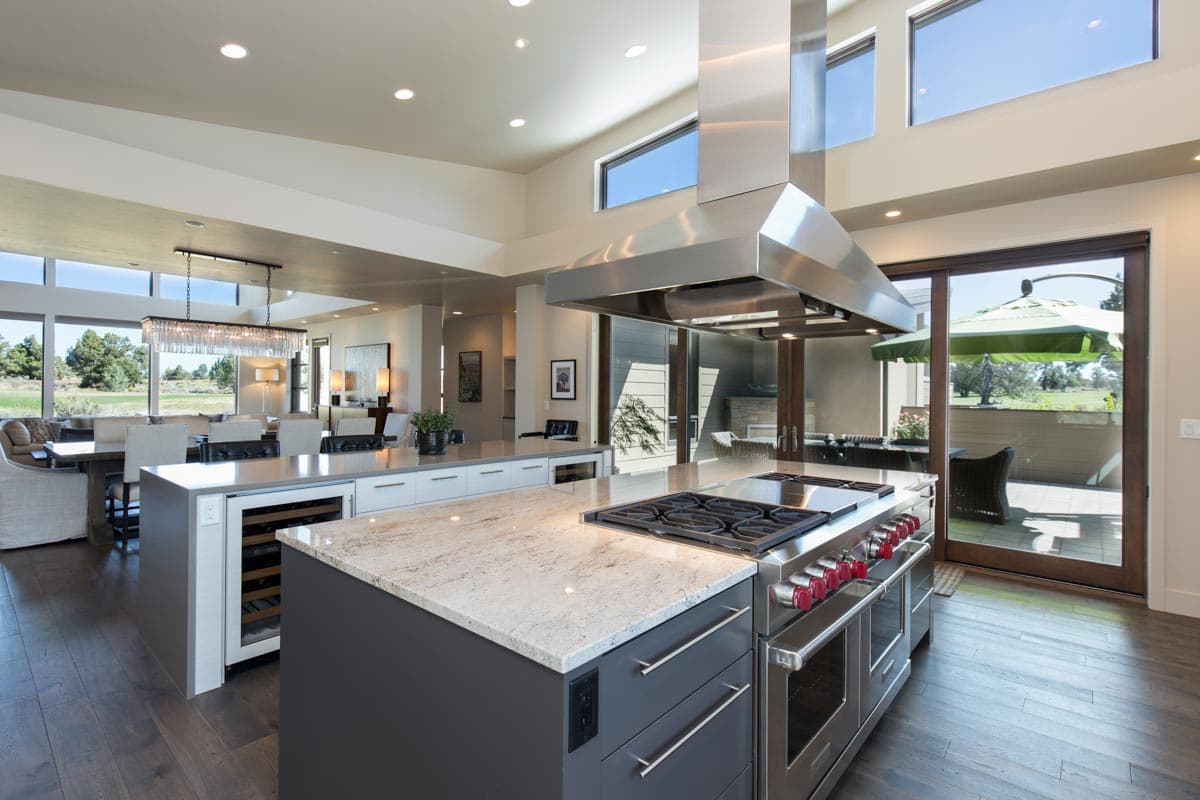

The heart of the home is central and boasts two islands along with an open layout that flows into the dining area and great room.

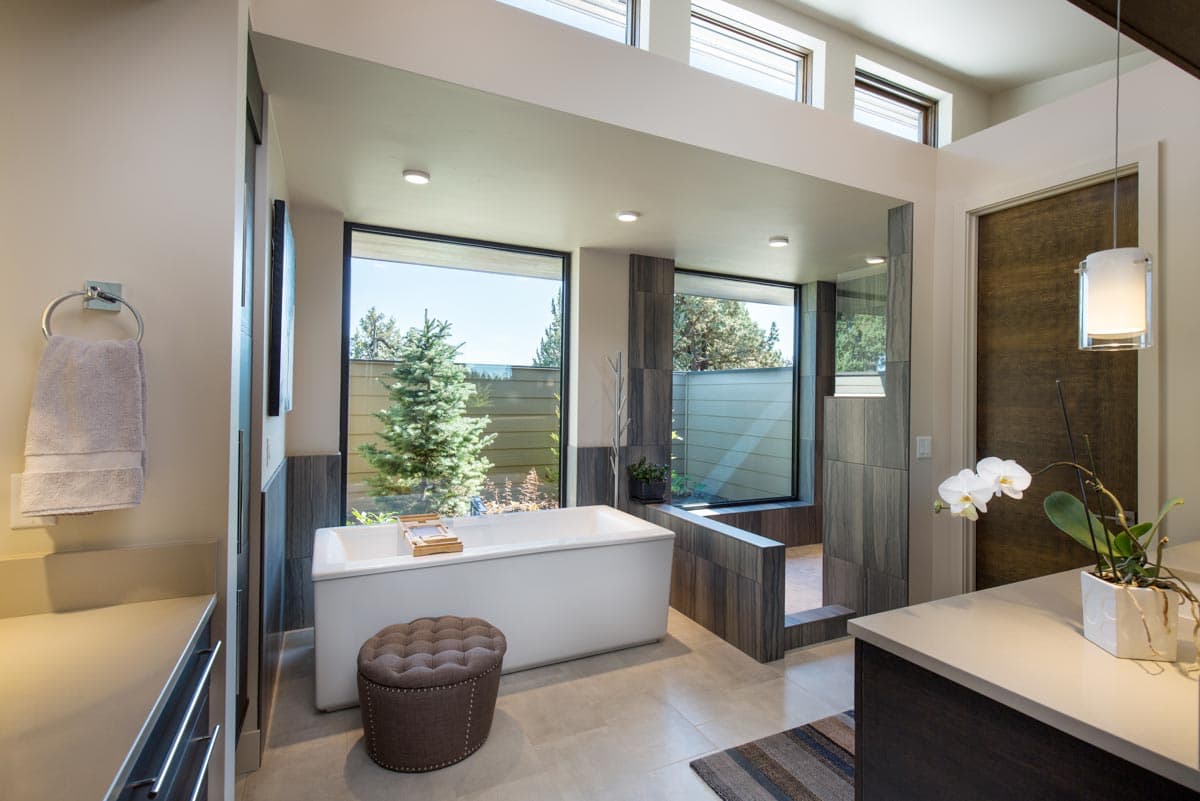

The left wing of the design hosts an office and master bedroom, complete with a deluxe ensuite that overlooks a private garden.

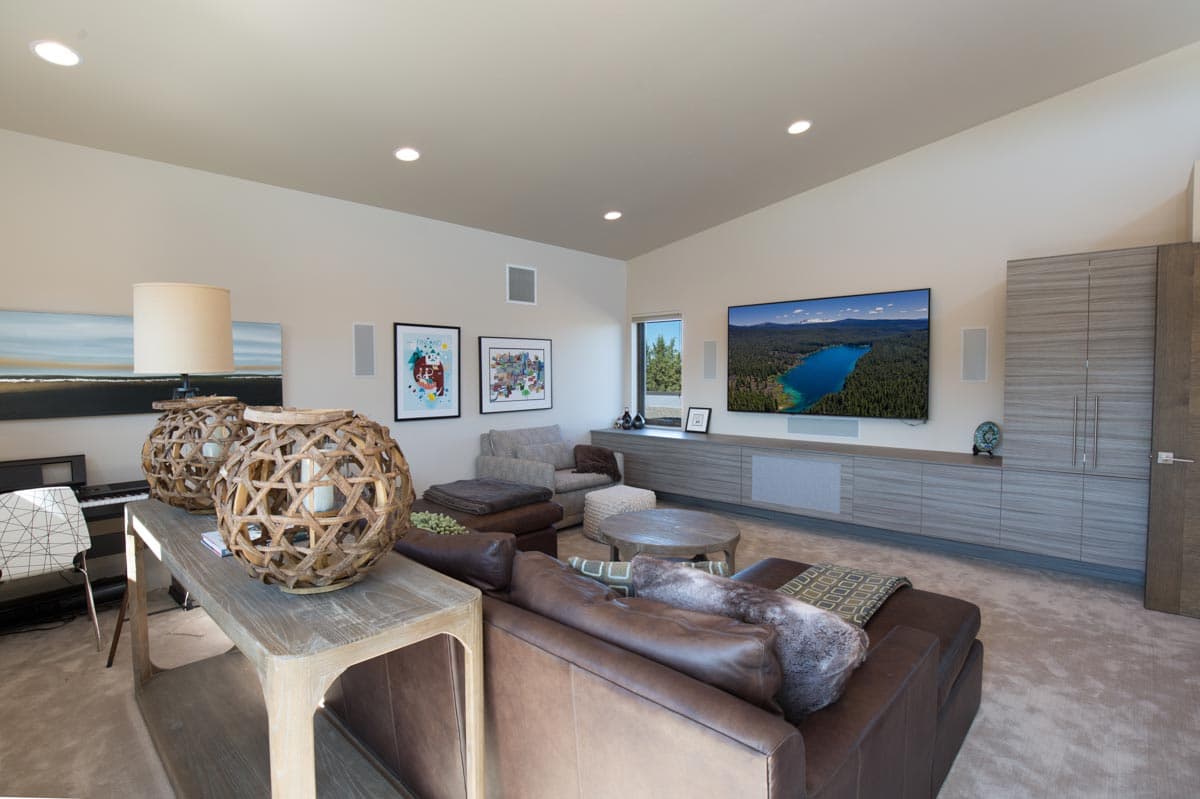

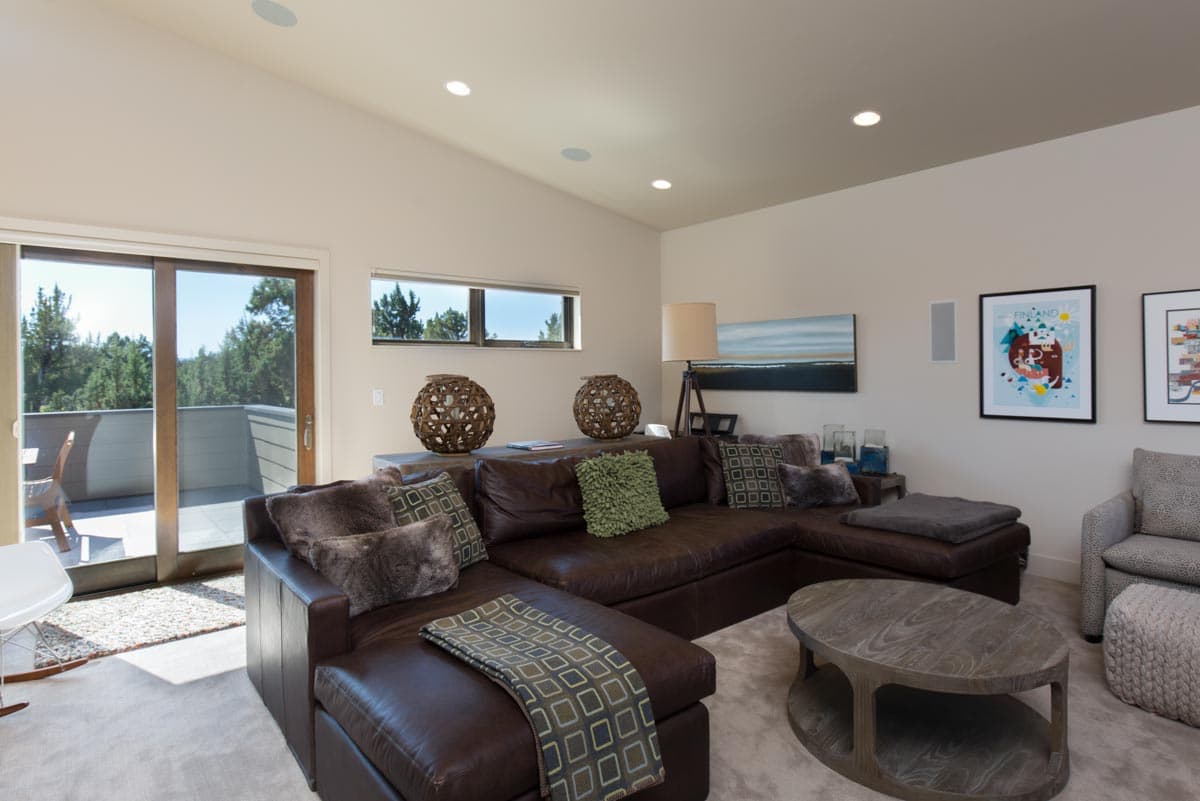

Other family members and guests will appreciate the additional master suites for the utmost comfort, while upstairs, a family / media room opens onto a sun deck and lends a versatile space to entertain.
Hobbyists will enjoy the workshop in the 3-car garage, and a sizable mud / laundry room features an island, cabinetry, and coat closets.

What's Included

Cover sheet with renderings or photos
Site plan from original project for reference, with floor areas and drawing index
Main level architectural plan
Upper level architectural plan

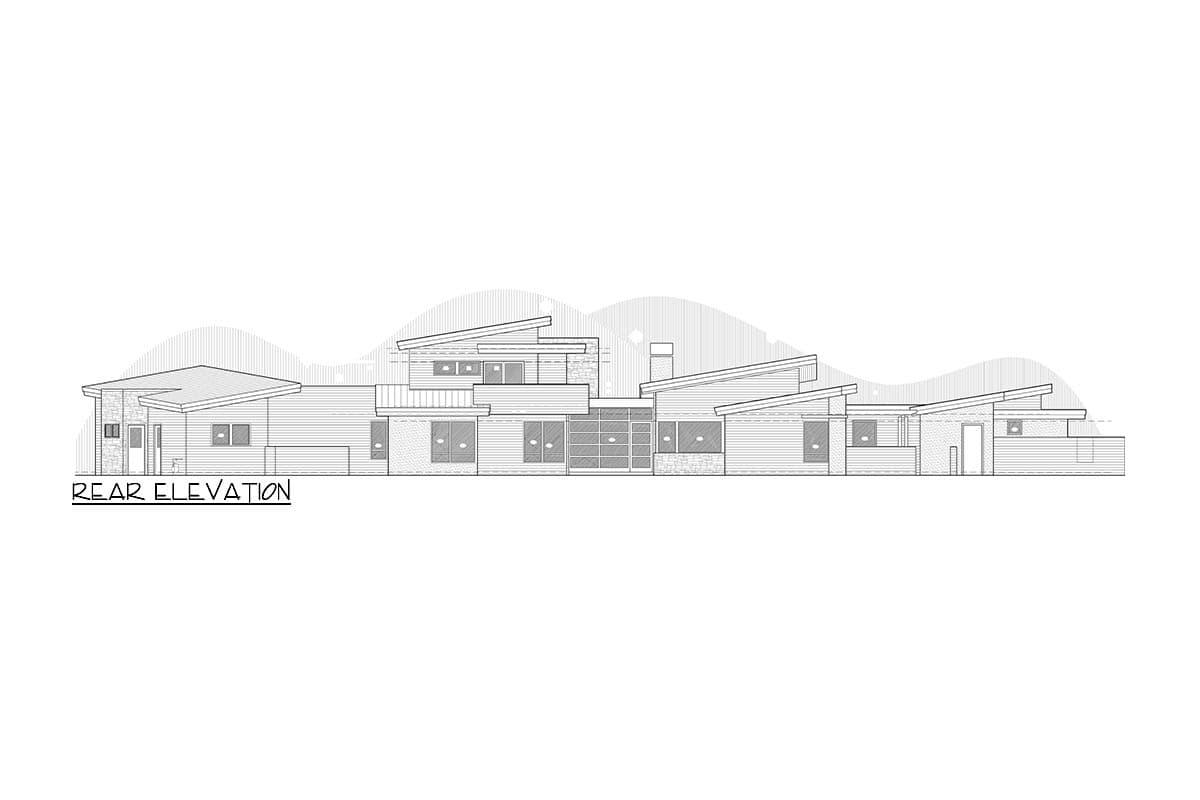

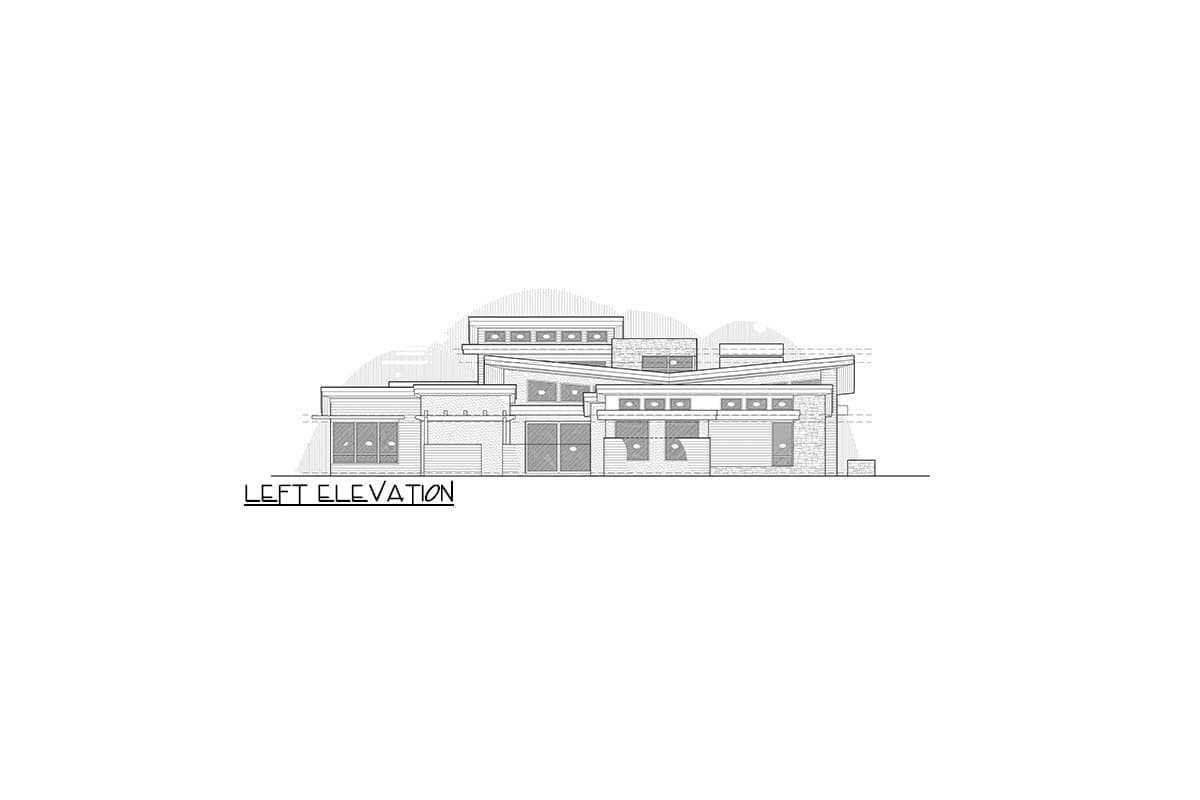

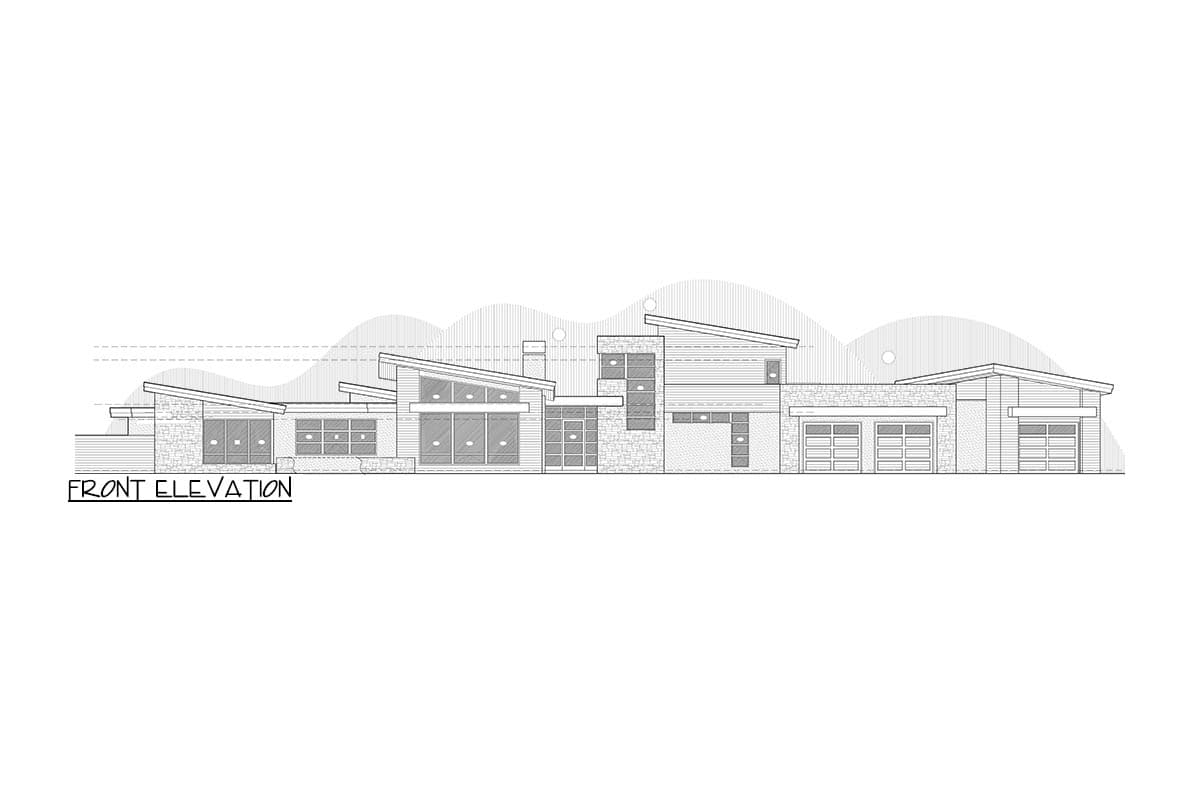

Elevations of four sides
Section drawings at ¼” scale
Typical construction details and framing details
Foundation and floor framing plan
Upper level floor and lower roof framing plan
Upper roof framing plan
Basic lighting plans for main and upper levels available for some plans. Check availability.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
