Sprawling Multi-Generational Farmhouse Plan Under 5000 Square Feet

Name: Plan 52329WM: Sprawling Multi-Generational Farmhouse Plan Under 5000 Square Feet
Brand: Architectural Designs
SKU: 52329WM
Price: 1285.0 USD
Availability: InStock

Heated S.F.

4,952

Beds

Baths

4.5

Stories

Cars

Floor Plan

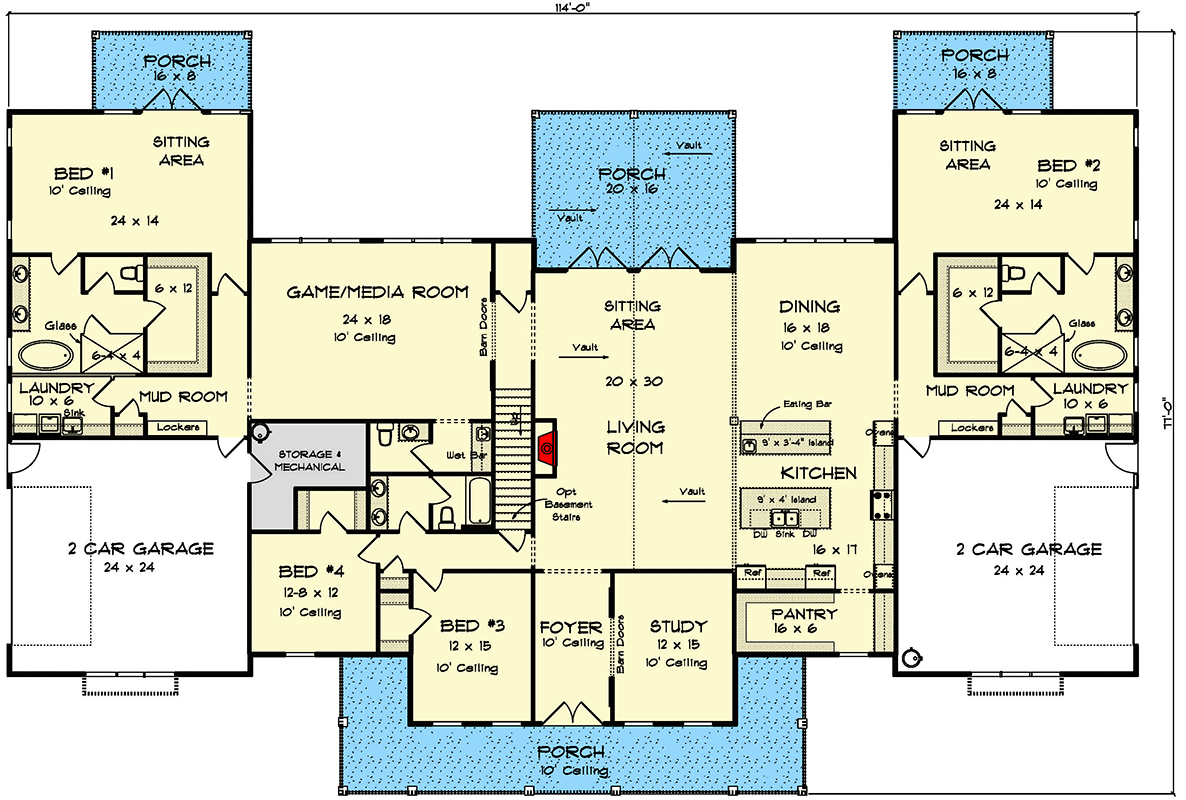

Main Level

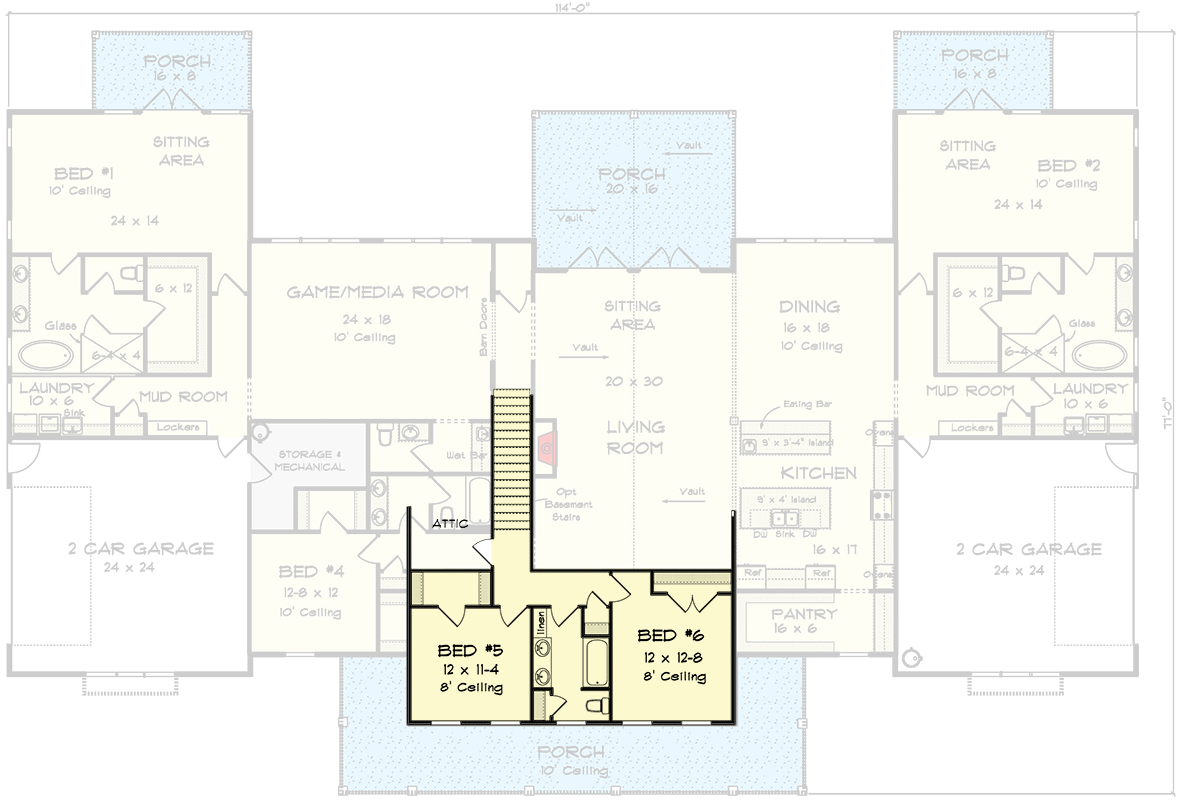

2nd Floor

Plan Details

This sprawling country farmhouse plan is designed to serve multi-generational needs. Roughly divided down the center, it gives you a 3-bed home on the left and a 1-bed home on the right that share the central living room, dining room and kitchen.
Each side of the home has a 2-car garage and its own laundry and mud rooms.
The shared space in the middle of the home includes a kitchen with two islands open to the dining area with windows on the back wall and a vaulted living room with fireplace and two sets of French doors taking you to a 20' by 16' vaulted porch.
Open the barn doors and gain access to the game/media room with a wet bar by the half bath.

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
