Plan 83868JW

Sprawling Southern House Plan

Pageloader

Sprawling Southern House Plan

Plan 83868JW

  • 2,954

    Heated s.f.

  • 4

    Beds

  • 3 - 4

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • A 34' wide covered front porch shelters your entry into this sprawling Southern house plan.
  • Once inside, the open layout gives you amazing views and makes the home feel huge.
  • 10' high ceilings expand the space and a big fireplace becomes the focal point.
  • Outdoor space consists of covered and uncovered choices.
  • The family bedroom wing is on the right side of the home while the master suite gains privacy by being off by itself on the back of the left side of the home.
  • Homeowners get two giant walk-in closets and a spacious bathroom that opens directly into the laundry area.
  • The optional bonus room is designed with a full bathroom in case you want to add an extra bedroom.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details



Sprawling Southern House Plan

  • 2,954

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $995
  • Reproducible Set $995
  • 5 Sets $1,045
  • 8 Sets $1,145
  • PDF - multi-use $1,645
  • CAD $1,845
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • A 34' wide covered front porch shelters your entry into this sprawling Southern house plan.
  • Once inside, the open layout gives you amazing views and makes the home feel huge.
  • 10' high ceilings expand the space and a big fireplace becomes the focal point.
  • Outdoor space consists of covered and uncovered choices.
  • The family bedroom wing is on the right side of the home while the master suite gains privacy by being off by itself on the back of the left side of the home.
  • Homeowners get two giant walk-in closets and a spacious bathroom that opens directly into the laundry area.
  • The optional bonus room is designed with a full bathroom in case you want to add an extra bedroom.

Floor Plans

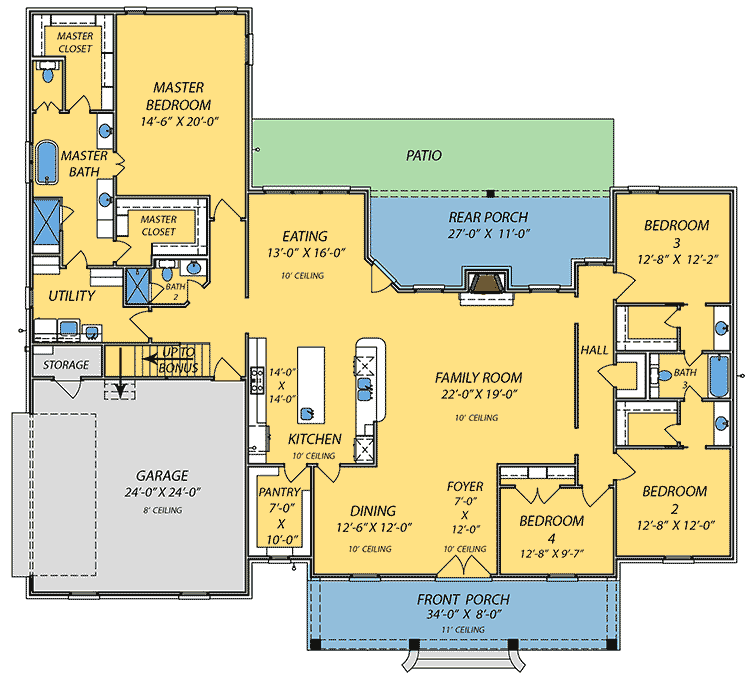

  • Main Level

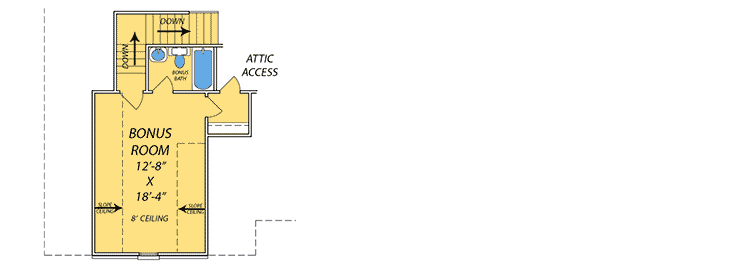

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,954 sq. ft.
  • 1st Floor: 2,954 sq. ft.
  • Bonus: 364 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 0"
  • Depth: 72' 0"

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
