Sprawling Spanish Ranch House Plan with Courtyard and Three Bedrooms

Heated S.F.
3,557
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 150036HRP

Floor Plan 1

Plan 150036HRP

M-F 9am-5pm EST |

1-203-761-8500

Plan 150036HRP: Sprawling Spanish Ranch House Plan with Courtyard and Three Bedrooms - Floor Plan - - Ranch, Spanish

Plan Details

  • This expansive 3,557 finished sq ft Spanish-style ranch home features 3 bedrooms, 2.5 baths, and an integrated 819 sq ft 3-car garage.
  • The striking exterior entry welcomes guests into a thoughtfully designed layout that balances privacy with open-concept living.
  • Inside, the living and dining rooms boast impressive 16-foot beamed ceilings that anchor the home and create an airy, voluminous atmosphere for daily life.
  • A split-bedroom floor plan ensures maximum privacy for the primary suite, which is tucked away from the two secondary bedrooms.
  • Dedicated functional spaces include a private home office for remote work, a convenient mudroom, and a large walk-in pantry to keep the kitchen organized.
  • The home excels at outdoor living with a massive 711 sq ft front porch, a 592 sq ft rear porch, an outdoor fireplace, and a full outdoor kitchen for alfresco dining.
  • Versatile bonus areas, including a game room, provide flexible square footage that can adapt to a home theater, gym, or hobby space.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

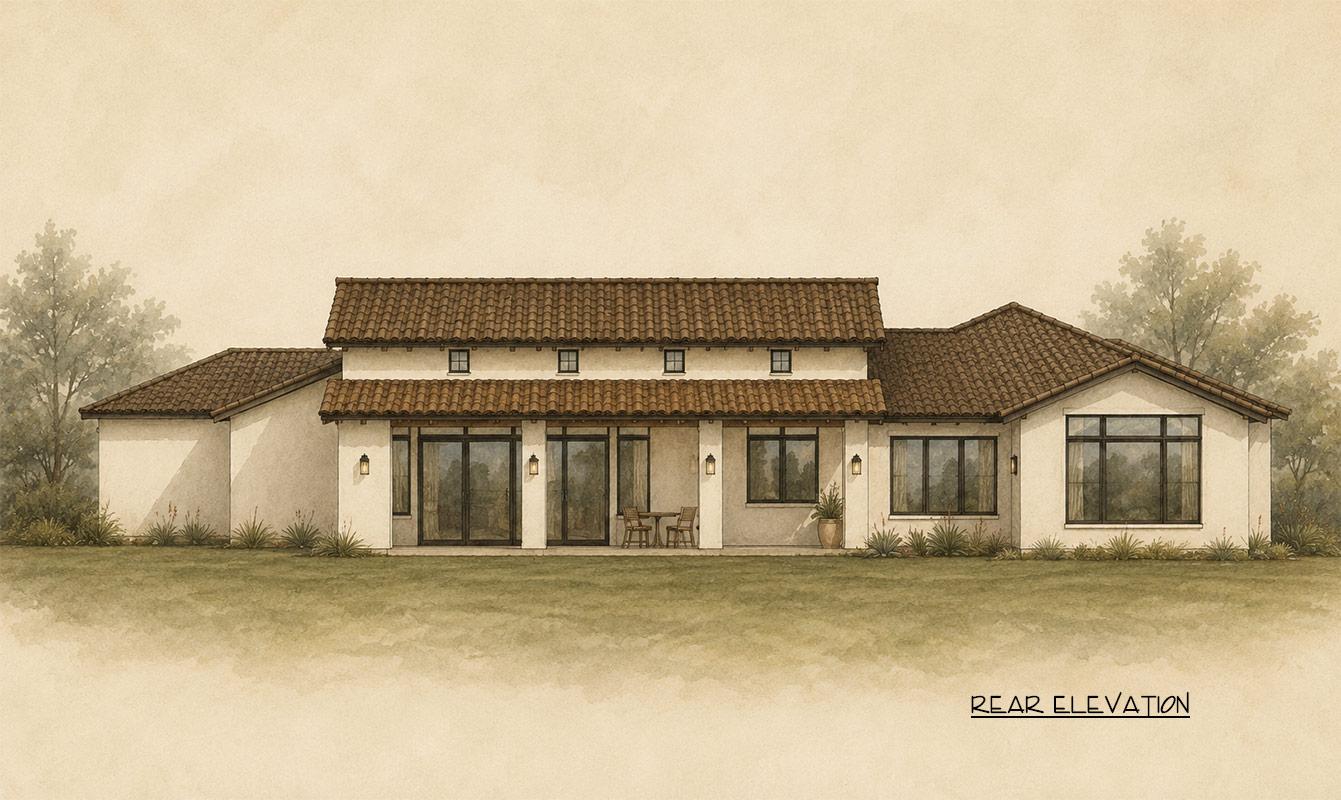

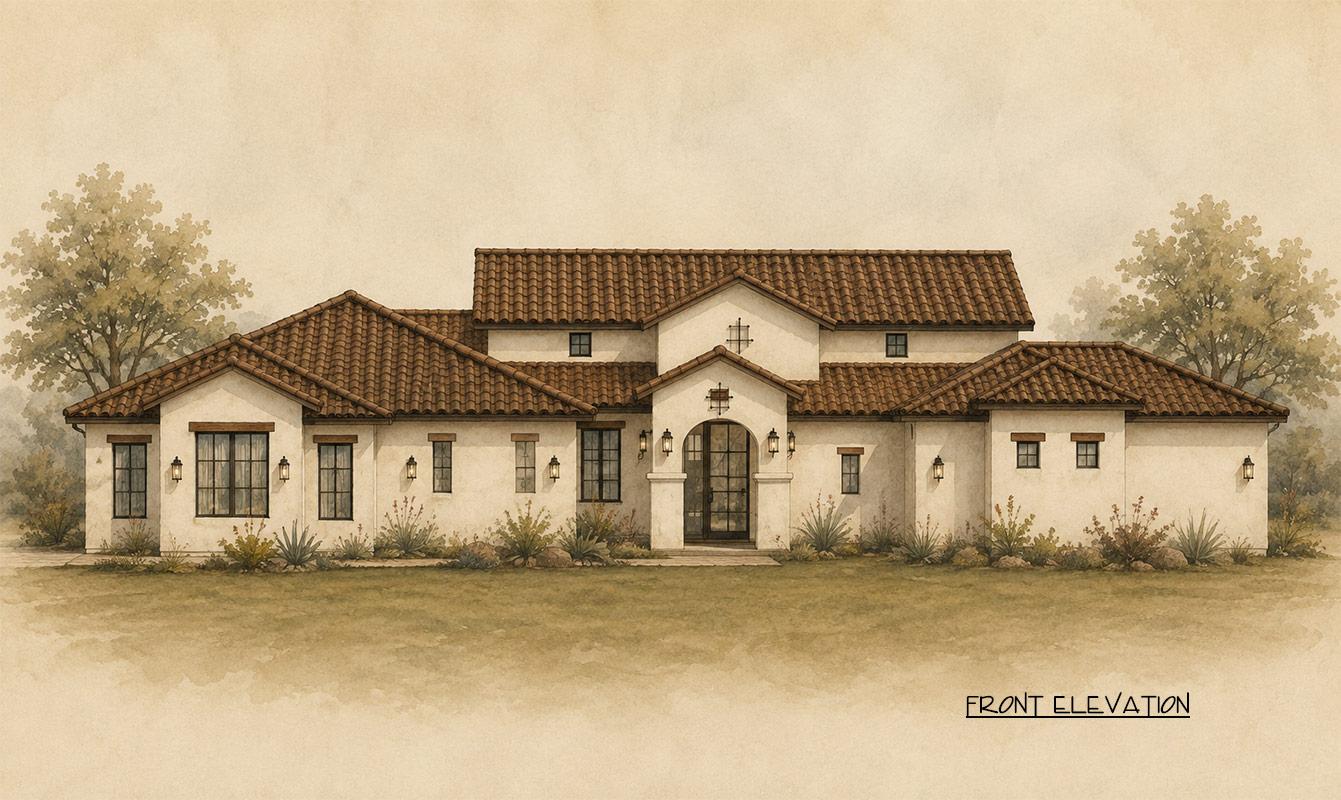

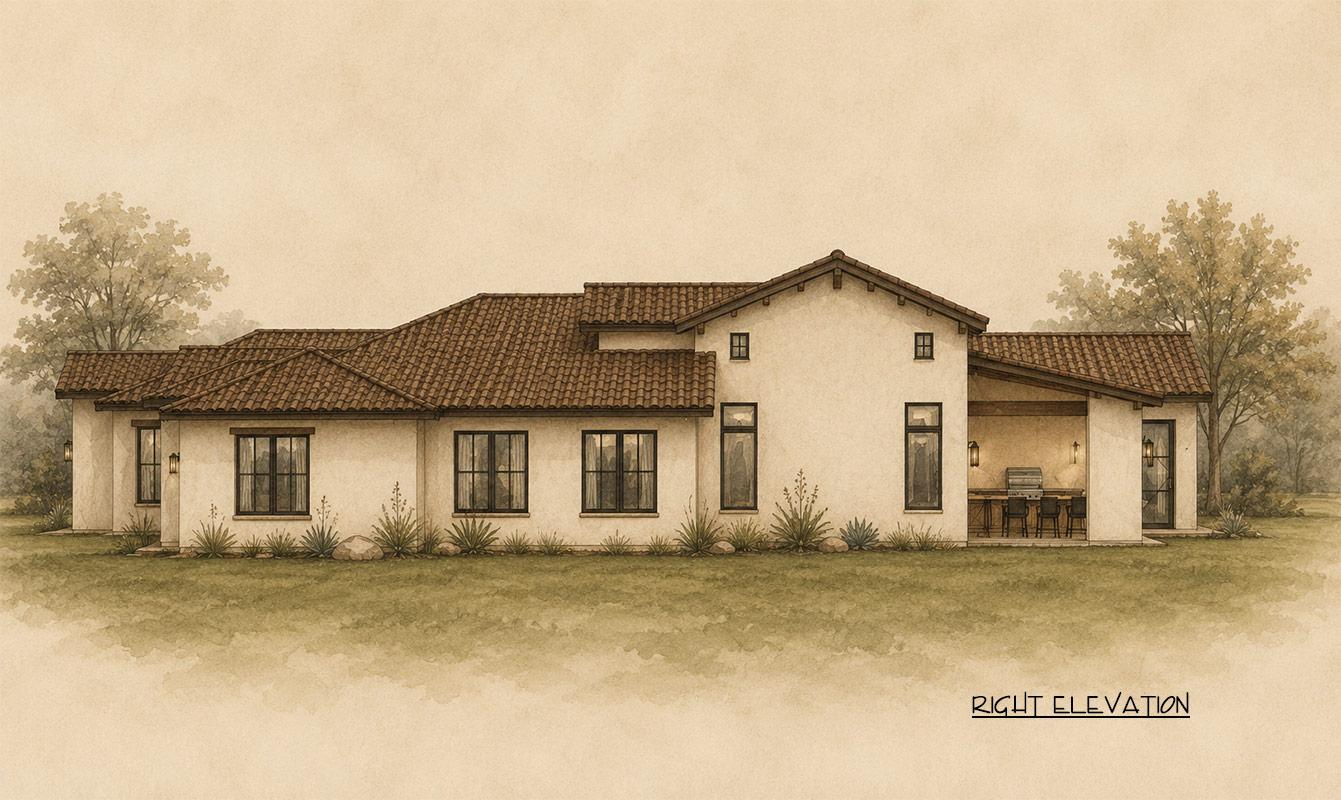

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

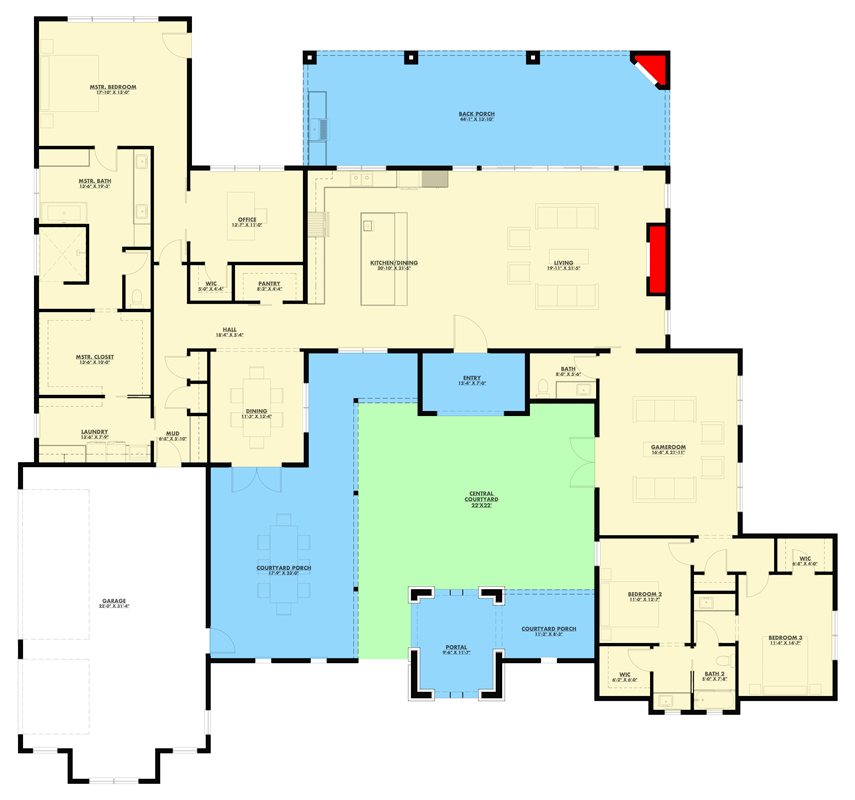

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,557 sq. ft.

1st Floor

3,557 sq. ft.

Porch, Front

711 sq. ft.

Porch, Rear

592 sq. ft.

Entry

151 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

98' 0"

Depth

92' 0"

Max Ridge Height

21' 2"

Garage

Type

Standard

Area

819 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Beamed

16' 0''

Dining Room

Beamed

16' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Ranch

Spanish

Special Features

Bedrooms - Split

Courtyard

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,557 sq. ft.

1st Floor

3,557 sq. ft.

Porch, Front

711 sq. ft.

Porch, Rear

592 sq. ft.

Entry

151 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

98' 0"

Depth

92' 0"

Max Ridge Height

21' 2"

Garage

Type

Standard

Area

819 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Beamed

16' 0''

Dining Room

Beamed

16' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Ranch

Spanish

Special Features

Bedrooms - Split

Courtyard

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Exclusive
