Plan 72679DA

Starter Or Empty Nester Craftsman Home Plan

1,608 2-3 2 1 2
Print
Compare
...
Pageloader

Starter Or Empty Nester Craftsman Home Plan

Plan 72679DA

  • 1,608

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • An expansive great room and linked gathering areas give a surprising sense of spaciousness to this compact Craftsman-style home plan. Measuring in at slightly more than 1600 square feet, it makes an ideal starter home. At the same time, being a single level home plan, it is also well-suited to empty nesters who wish to age in place while downsizing their maintenance responsibilities.
  • Craftsman accents include the iconic gridded window uppers, a matching door, and three low-profile front-facing gables. The porch is easily large enough for a relaxing porch swing or other outdoor furniture.
  • From the entry vestibule, you can proceed directly ahead into the great room, or hang a right into the richly windowed nook. A sliding door offers separation between the nook and kitchen, when desired. Counters wrap around four sides of the kitchen, which is open to the dining area, across a peninsular counter with a raised eating bar.
  • Natural light washes into the dining room through a set of Craftsman windows on the right, as well as the wide sliding glass doors at the rear. These offer access to a partially covered patio. The left side of the dining room is entirely open to the great room, where more light spills in through wide windows that fill most of the rear wall.
  • Closets for coats, general storage, and linen line the hallway leading to the bedrooms and a pass-through utility room with garage access. The owners' suite boasts a two-section bathroom and a walk-in closet.
  • The roof has a 6 on 12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

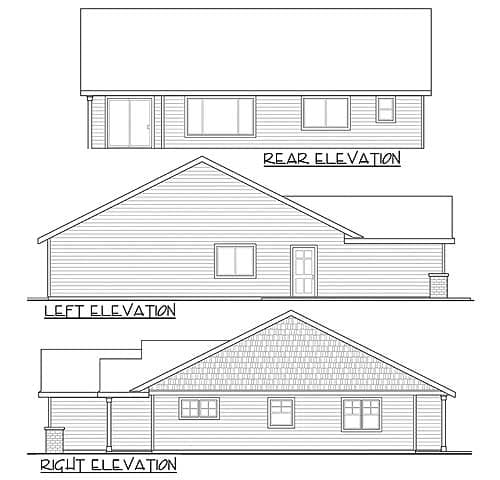

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

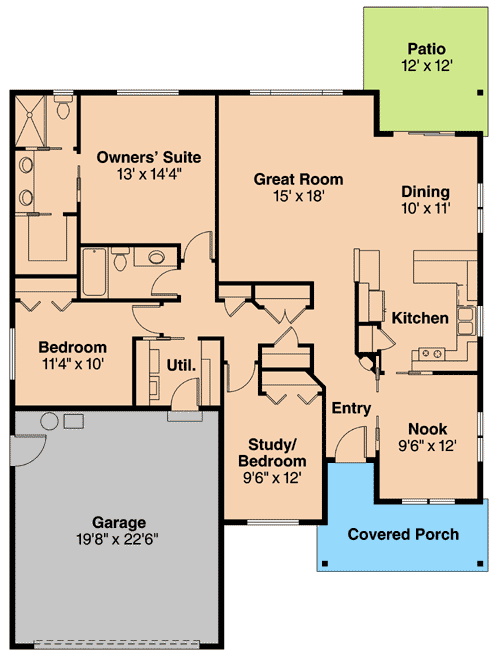

Floor Plan

Main Level

Pinit white
Reverse Floor Plan
Starter Or Empty Nester Craftsman Home Plan - 72679DA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,608 sq. ft.
  • 1st Floor: 1,608 sq. ft.
  • Porch, Front: 119 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 8"
  • Depth: 54' 0"
  • Max ridge height: 19' 7"

Garage

  • Type: Attached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features



Starter Or Empty Nester Craftsman Home Plan

  • 1,608

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • An expansive great room and linked gathering areas give a surprising sense of spaciousness to this compact Craftsman-style home plan. Measuring in at slightly more than 1600 square feet, it makes an ideal starter home. At the same time, being a single level home plan, it is also well-suited to empty nesters who wish to age in place while downsizing their maintenance responsibilities.
  • Craftsman accents include the iconic gridded window uppers, a matching door, and three low-profile front-facing gables. The porch is easily large enough for a relaxing porch swing or other outdoor furniture.
  • From the entry vestibule, you can proceed directly ahead into the great room, or hang a right into the richly windowed nook. A sliding door offers separation between the nook and kitchen, when desired. Counters wrap around four sides of the kitchen, which is open to the dining area, across a peninsular counter with a raised eating bar.
  • Natural light washes into the dining room through a set of Craftsman windows on the right, as well as the wide sliding glass doors at the rear. These offer access to a partially covered patio. The left side of the dining room is entirely open to the great room, where more light spills in through wide windows that fill most of the rear wall.
  • Closets for coats, general storage, and linen line the hallway leading to the bedrooms and a pass-through utility room with garage access. The owners' suite boasts a two-section bathroom and a walk-in closet.
  • The roof has a 6 on 12 pitch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,608 sq. ft.
  • 1st Floor: 1,608 sq. ft.
  • Porch, Front: 119 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 8"
  • Depth: 54' 0"
  • Max ridge height: 19' 7"

Garage

  • Type: Attached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Plan 72679DA
