Plan 23799JD

Stately 5-Bed House Plan with Two Master Beds and Outdoor Kitchen

Pageloader

Stately 5-Bed House Plan with Two Master Beds and Outdoor Kitchen

Plan 23799JD

  • 6,692

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

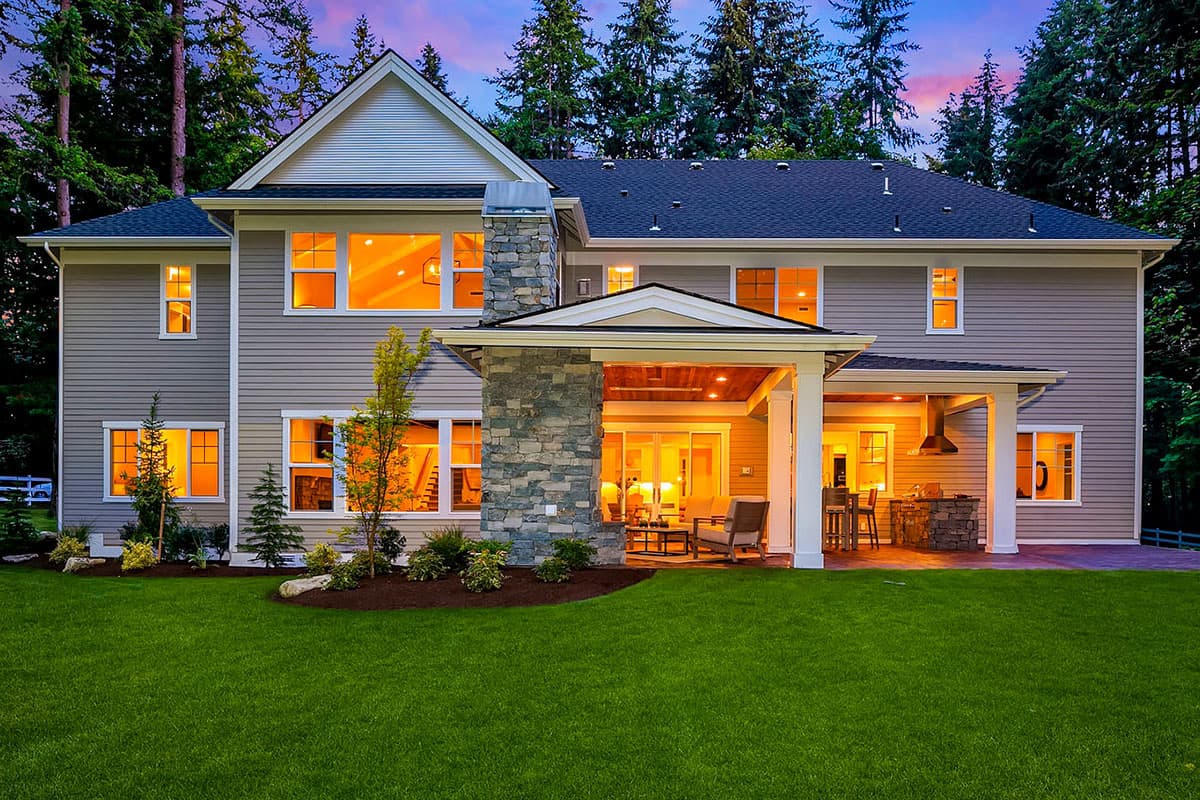

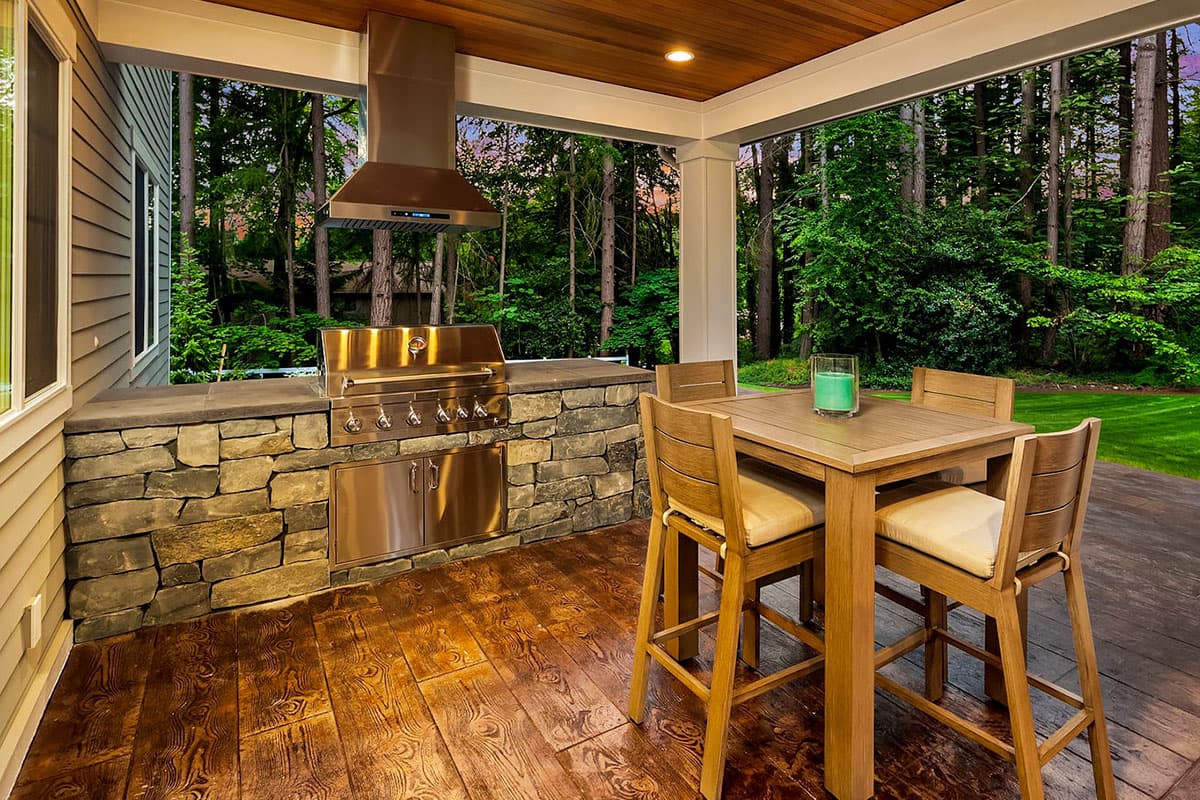

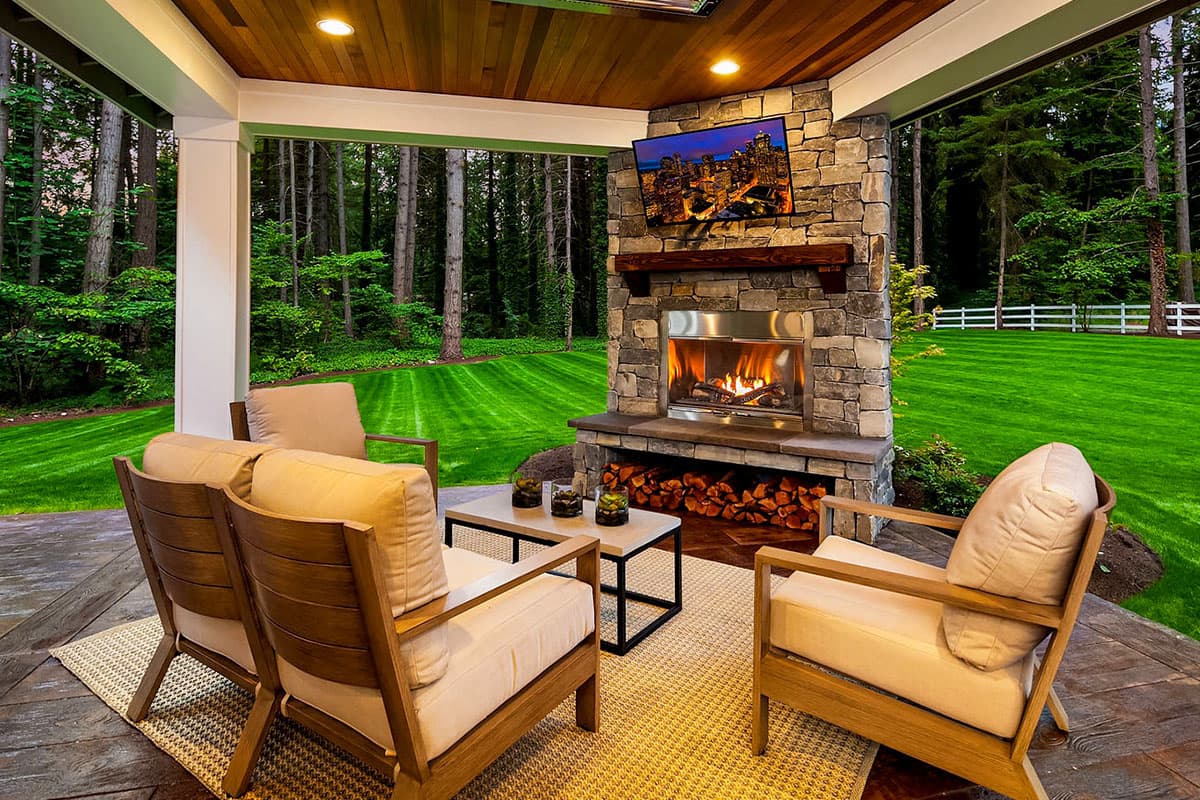

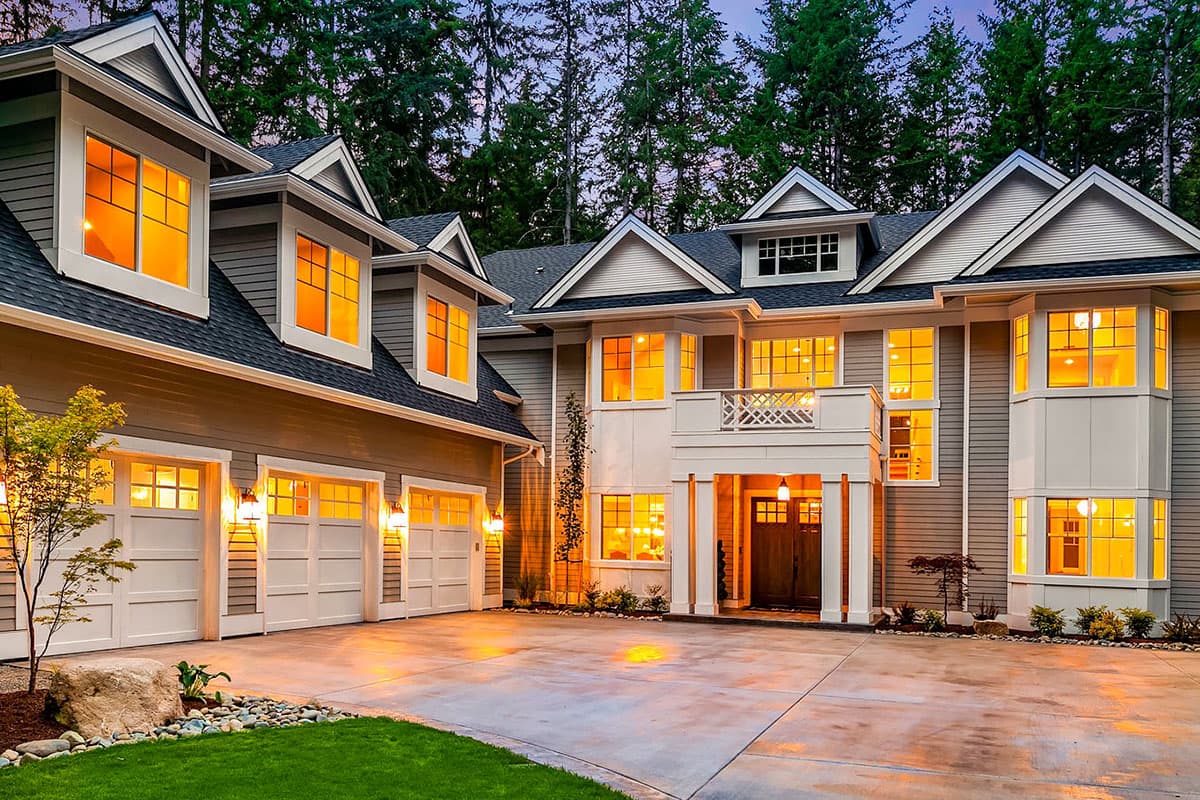

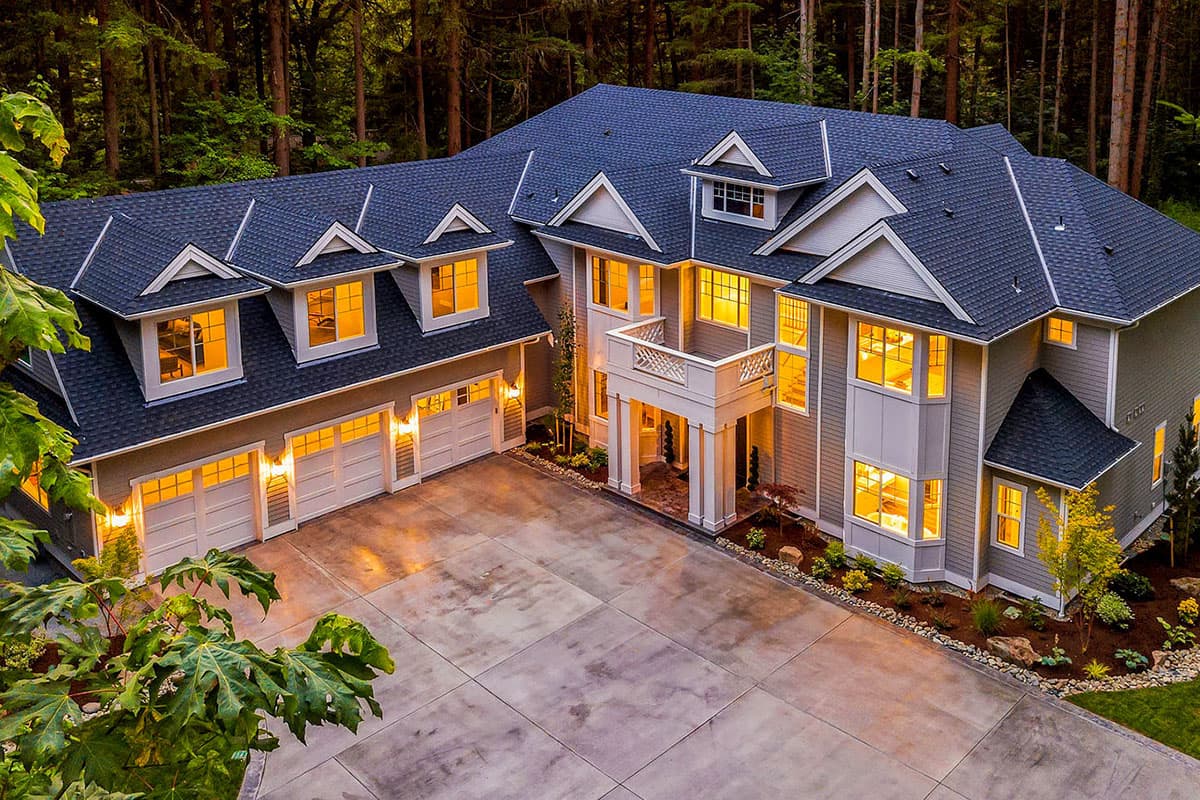

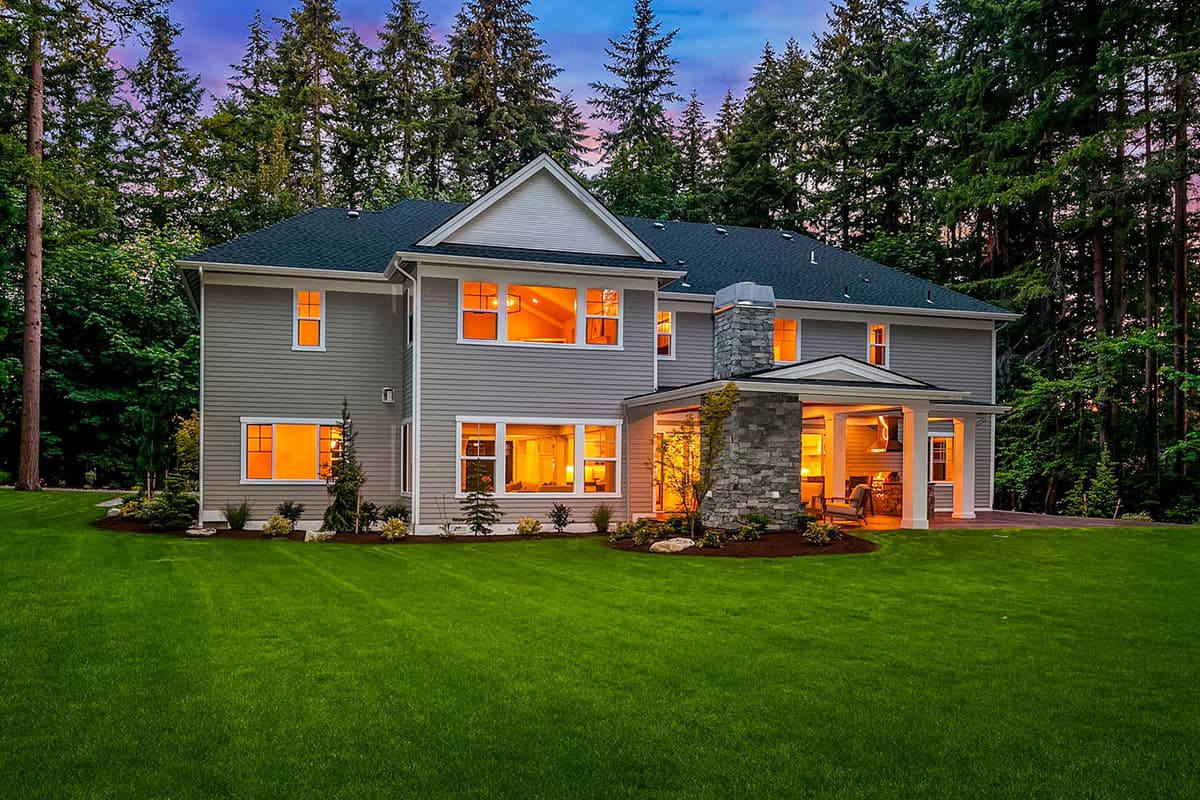

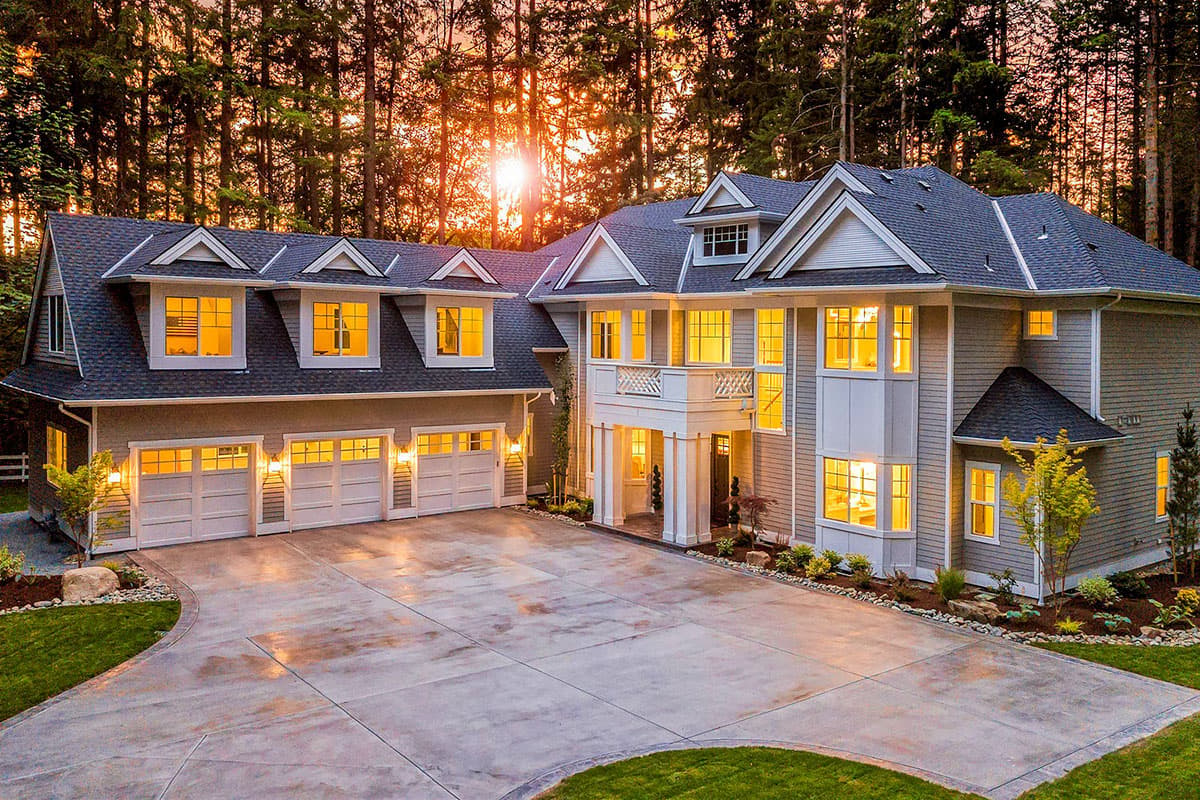

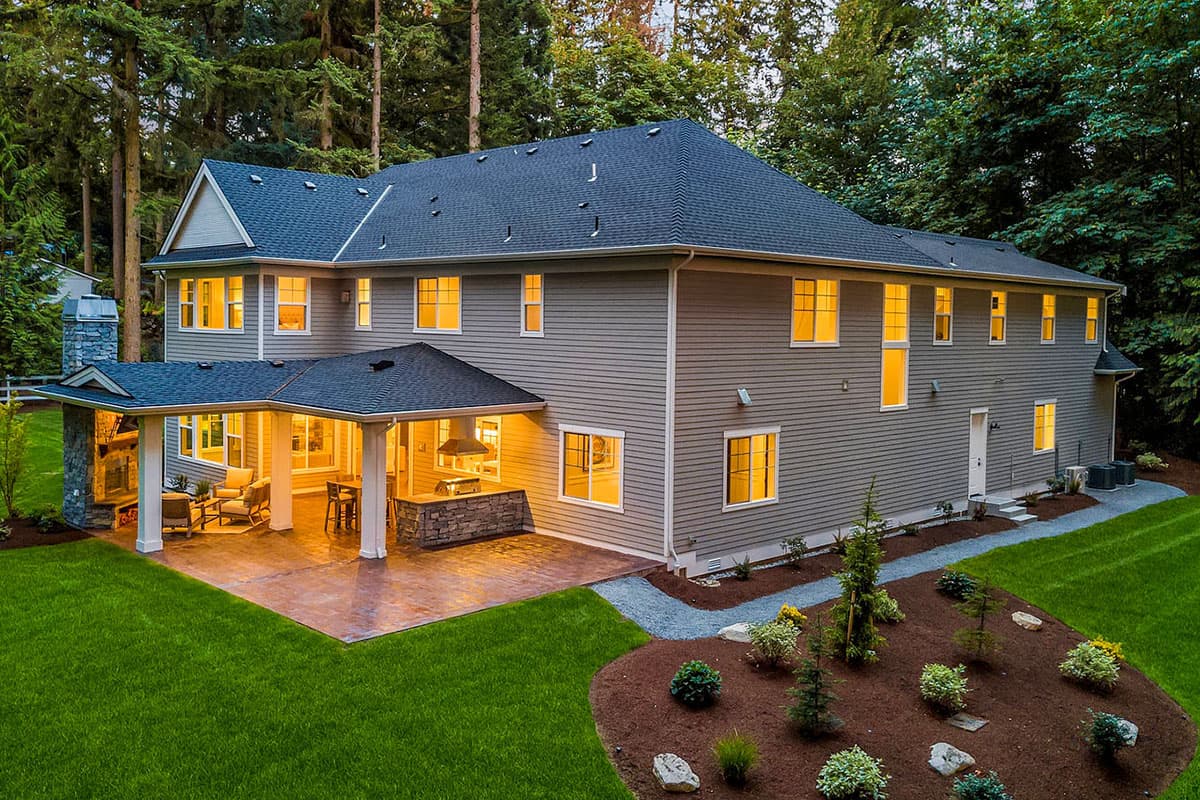

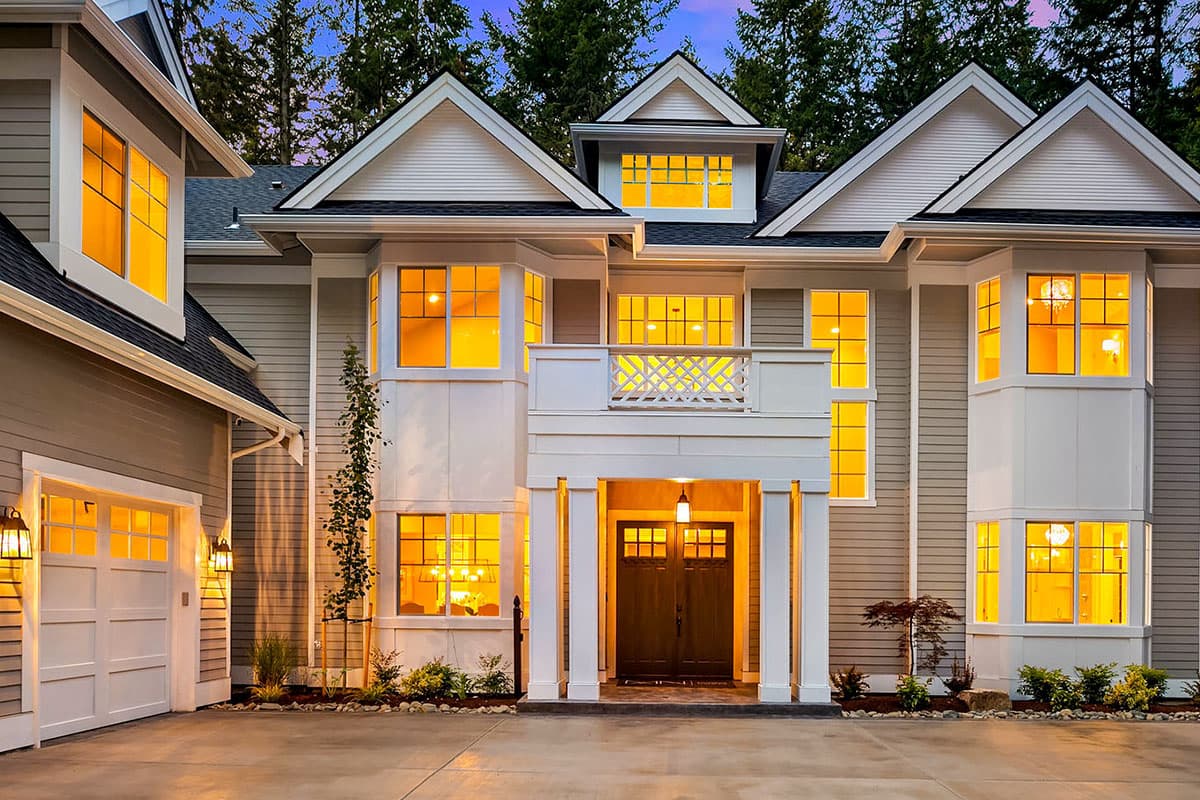

  • This stately 5-bedroom house plan lacks for nothing with gorgeous details in every room, including a grand exterior appearance. The angled 3-car garage provides an expansive recreation room above it, and a large outdoor porch includes a fireplace, BBQ porch, and extends further to a patio.

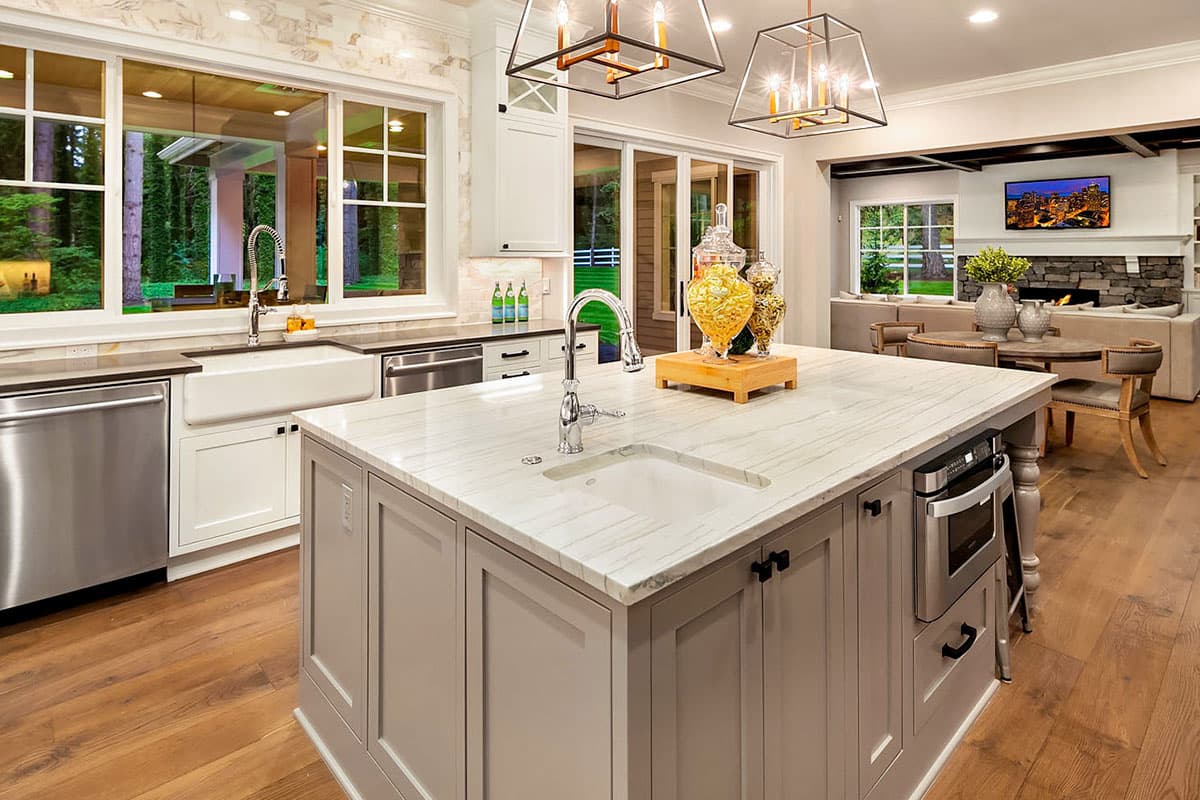

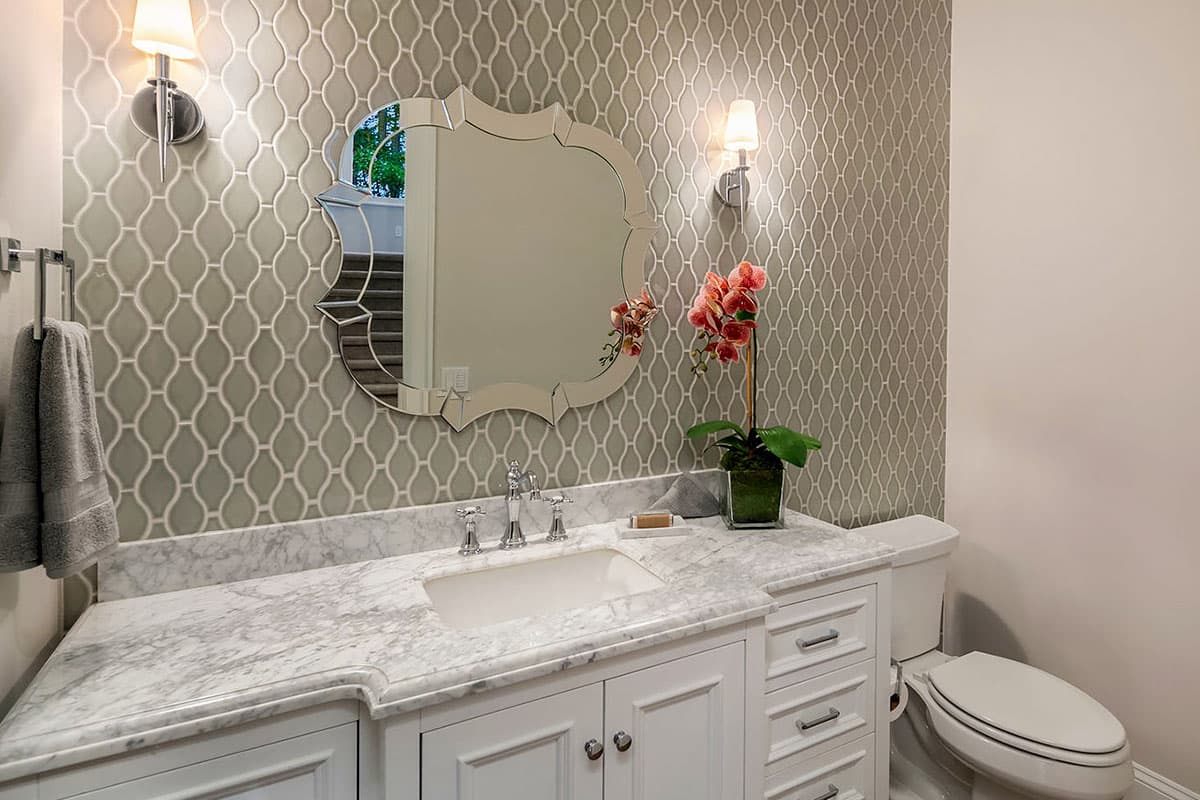

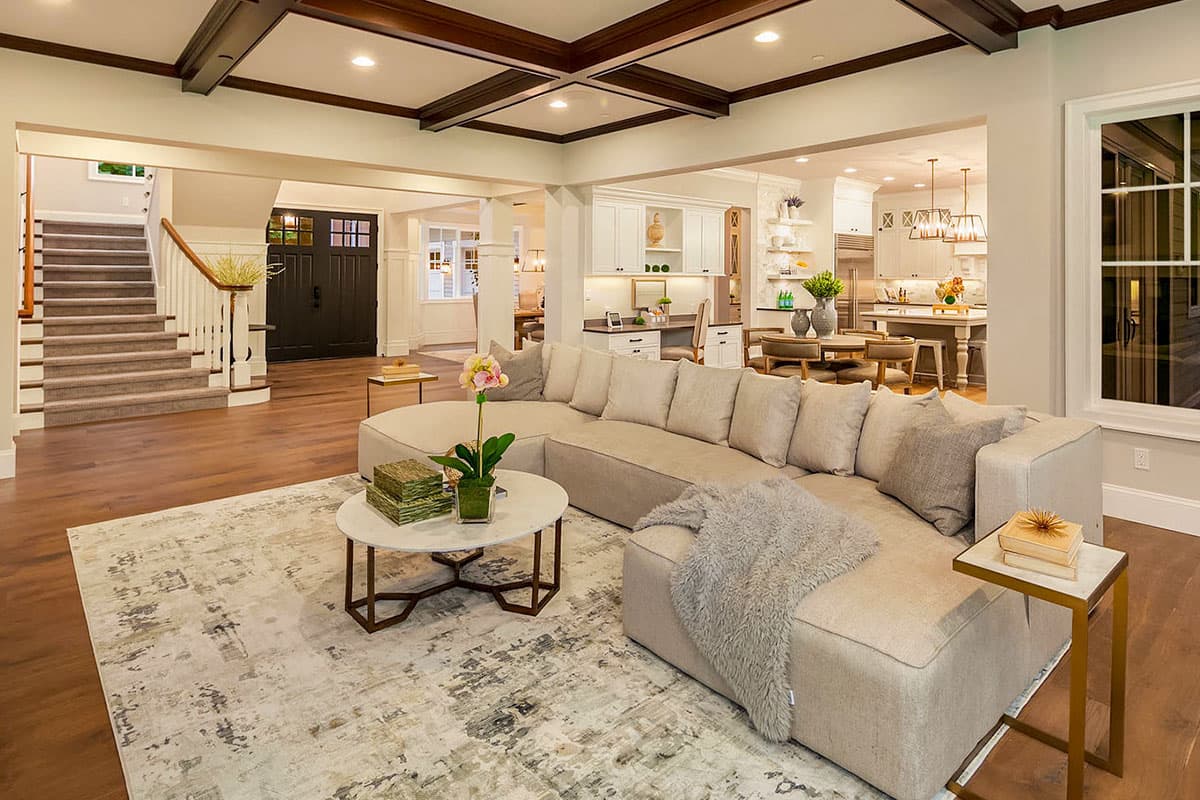

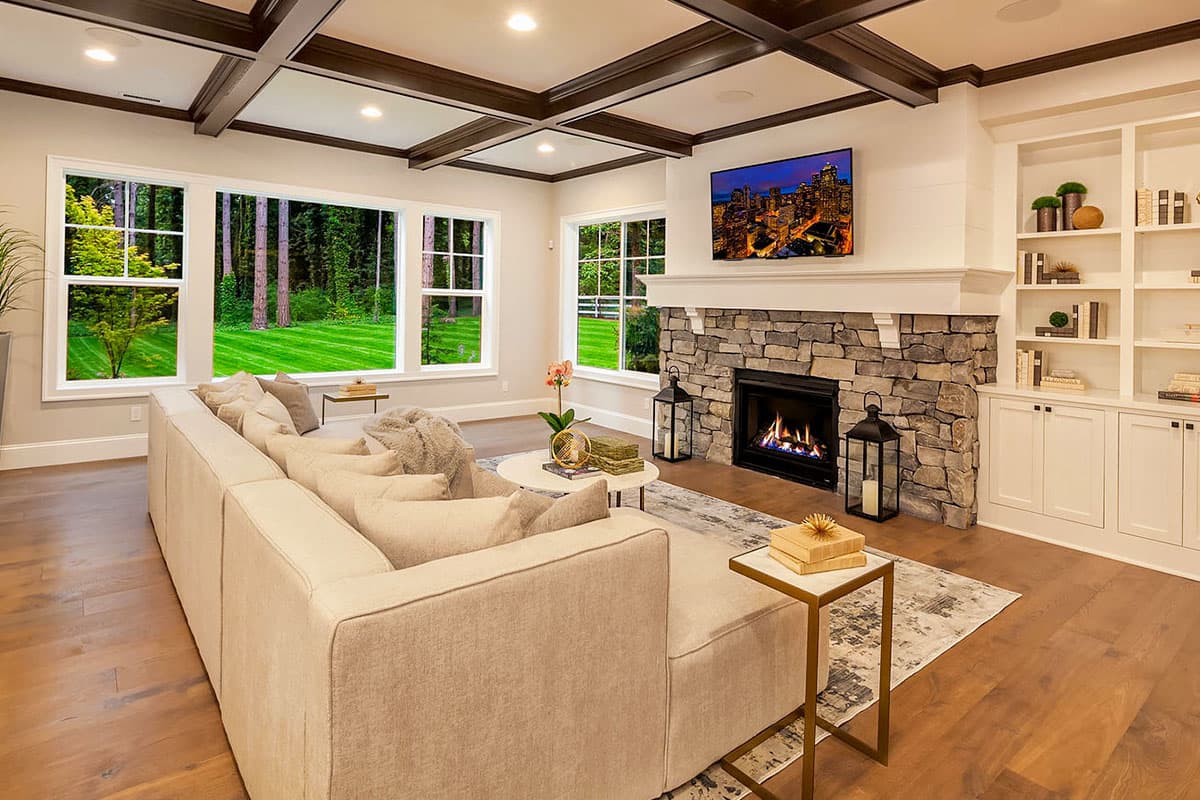

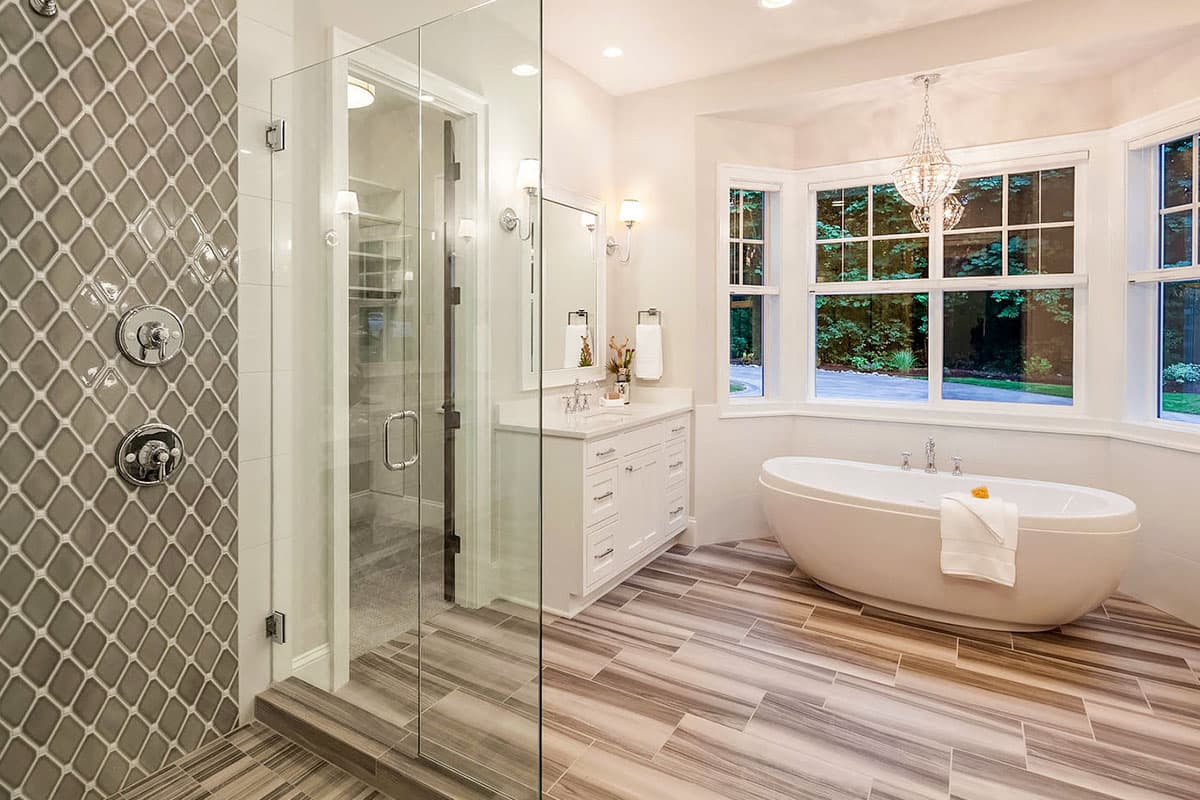

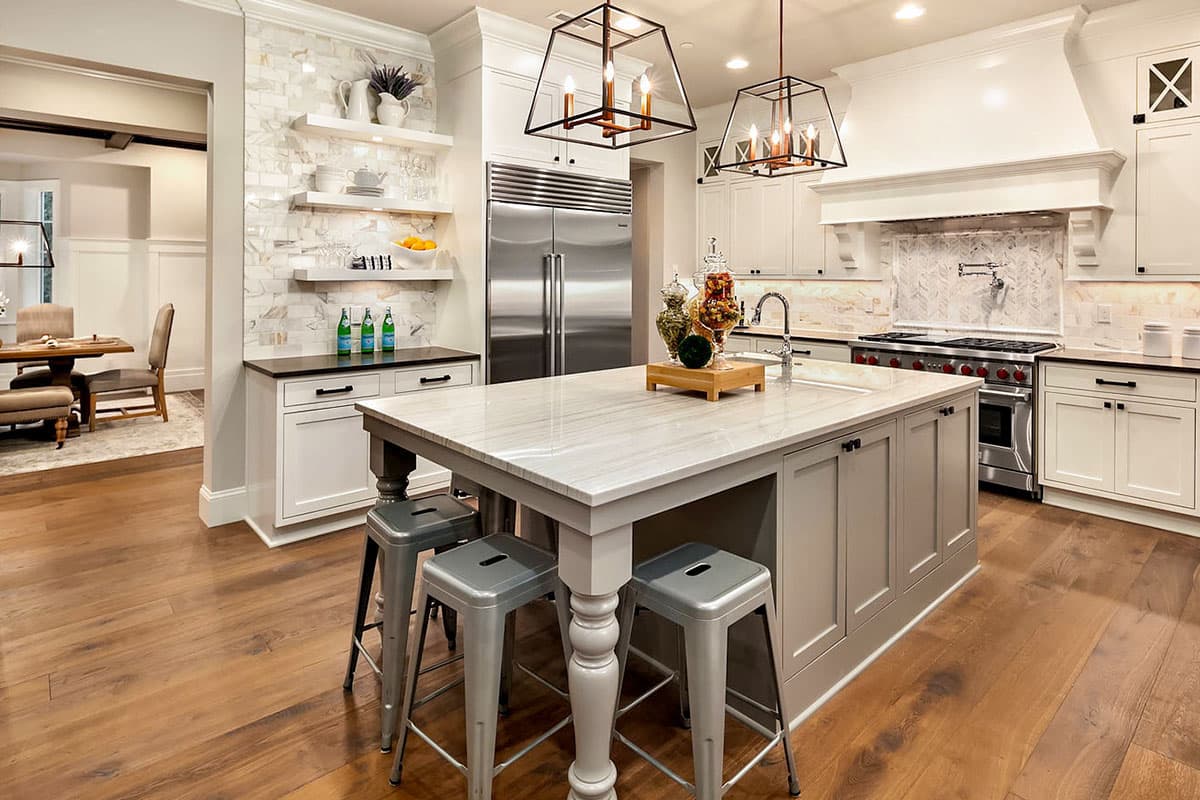

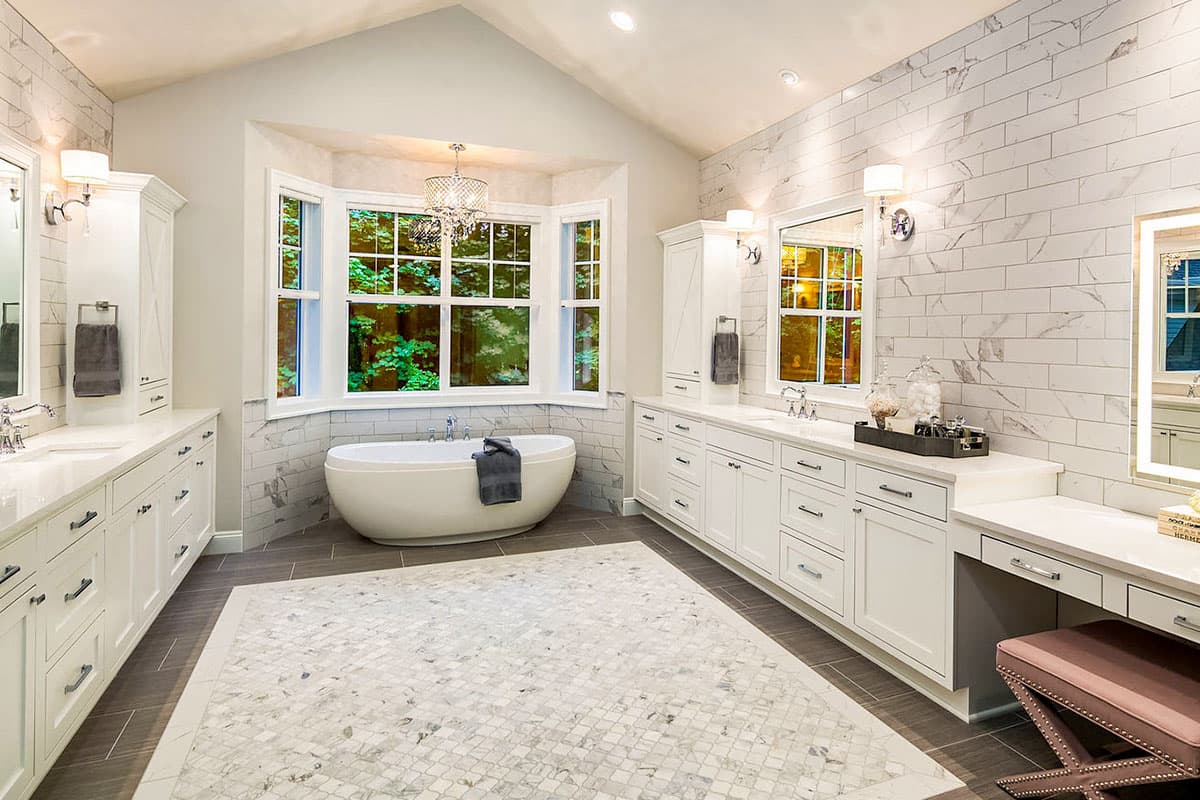

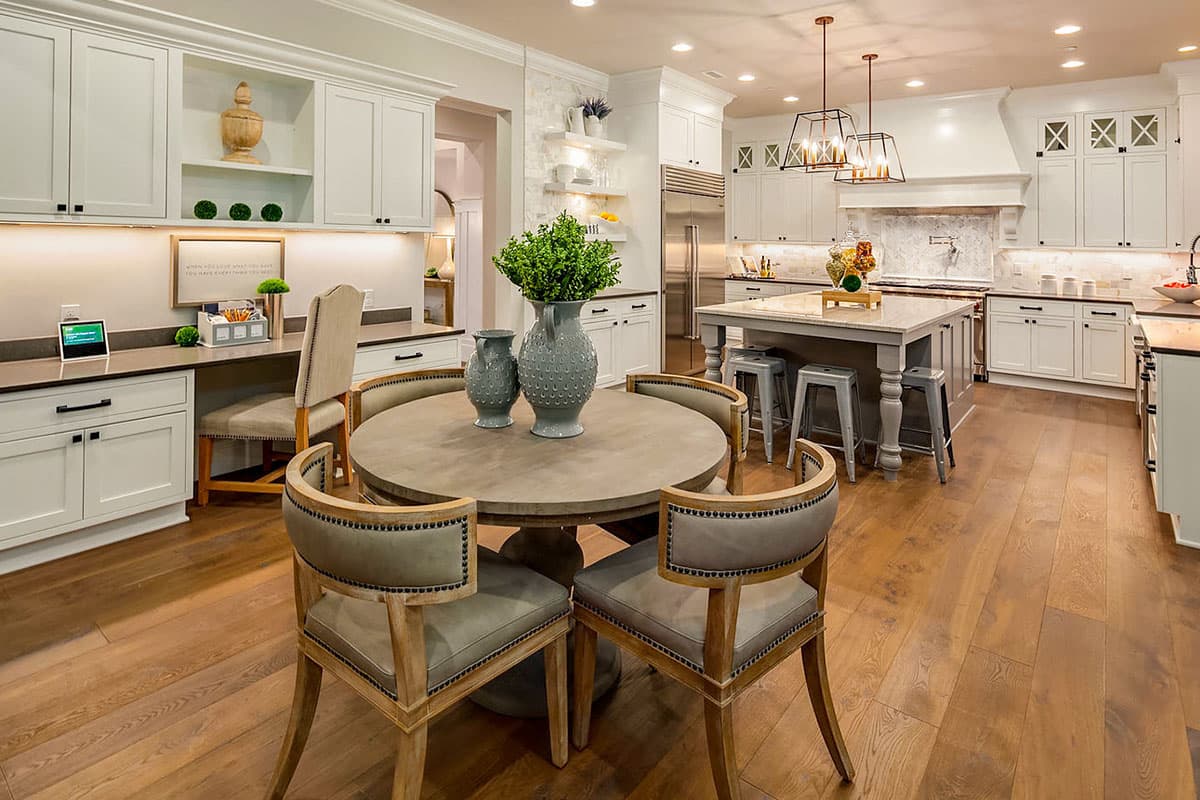

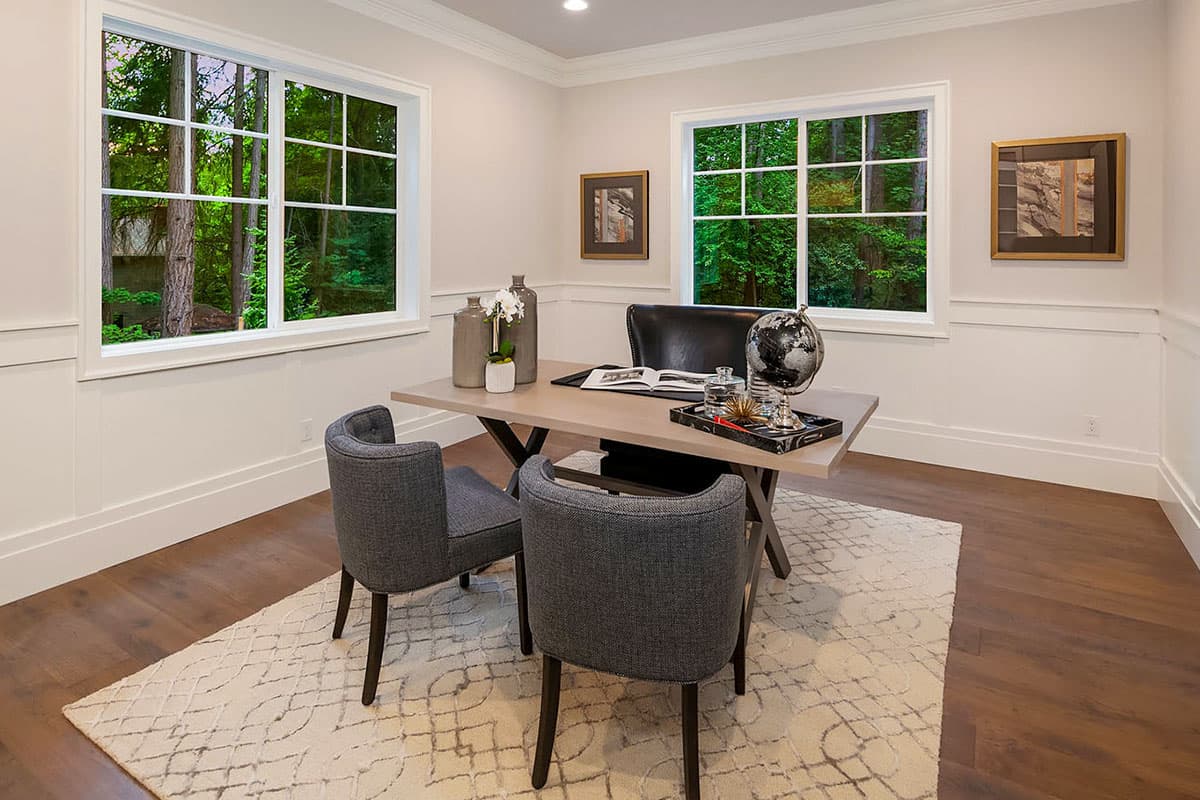

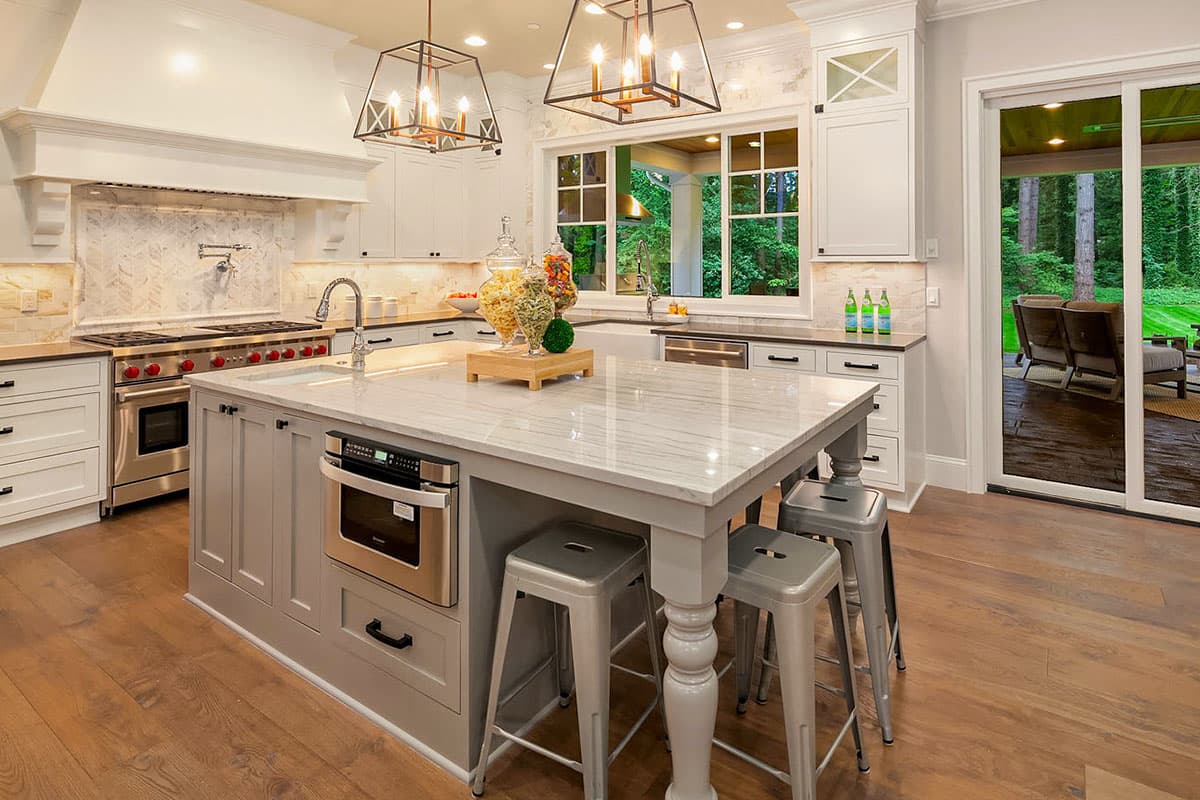

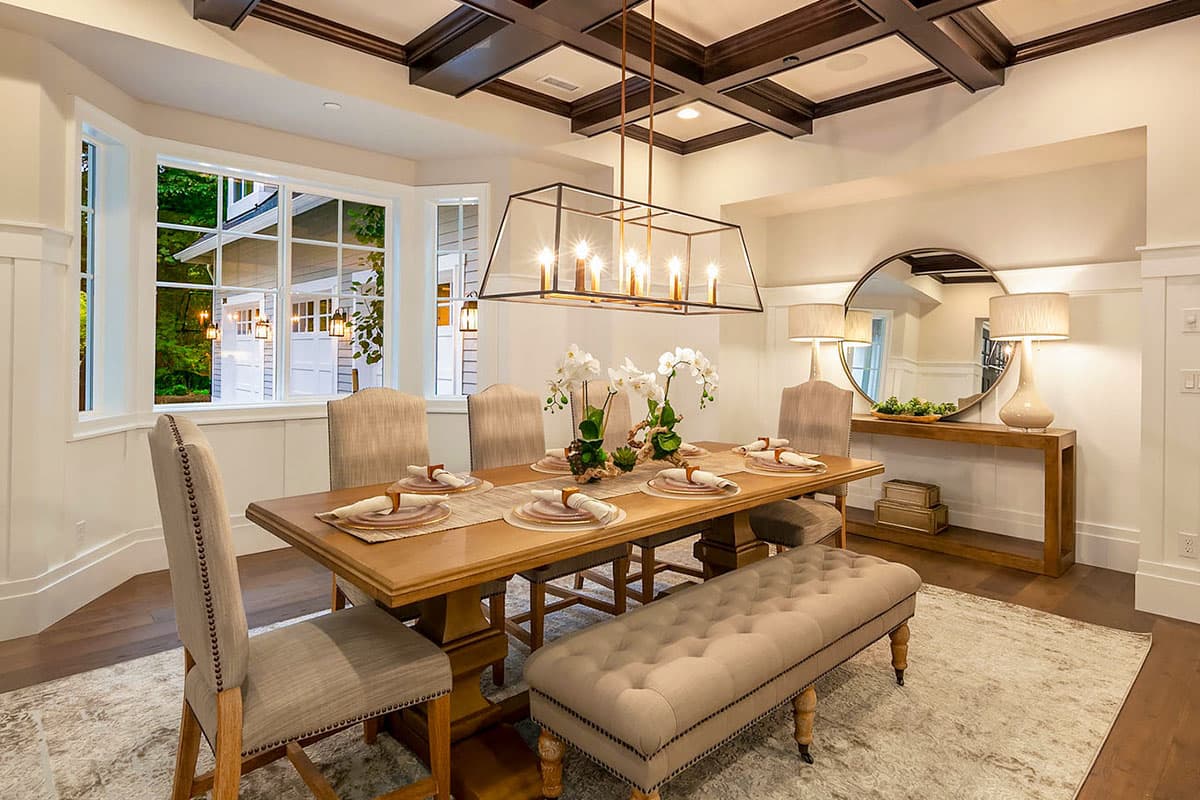

  • The main level boasts a dining room with a bay window, a quiet den near a powder bath, and a first-floor master bedroom with a tub set in a bay window, dual vanities, and a large walk-in closet. The open layout combines the great room, breakfast nook, and kitchen, where a window above the sink overlooks the back porch.

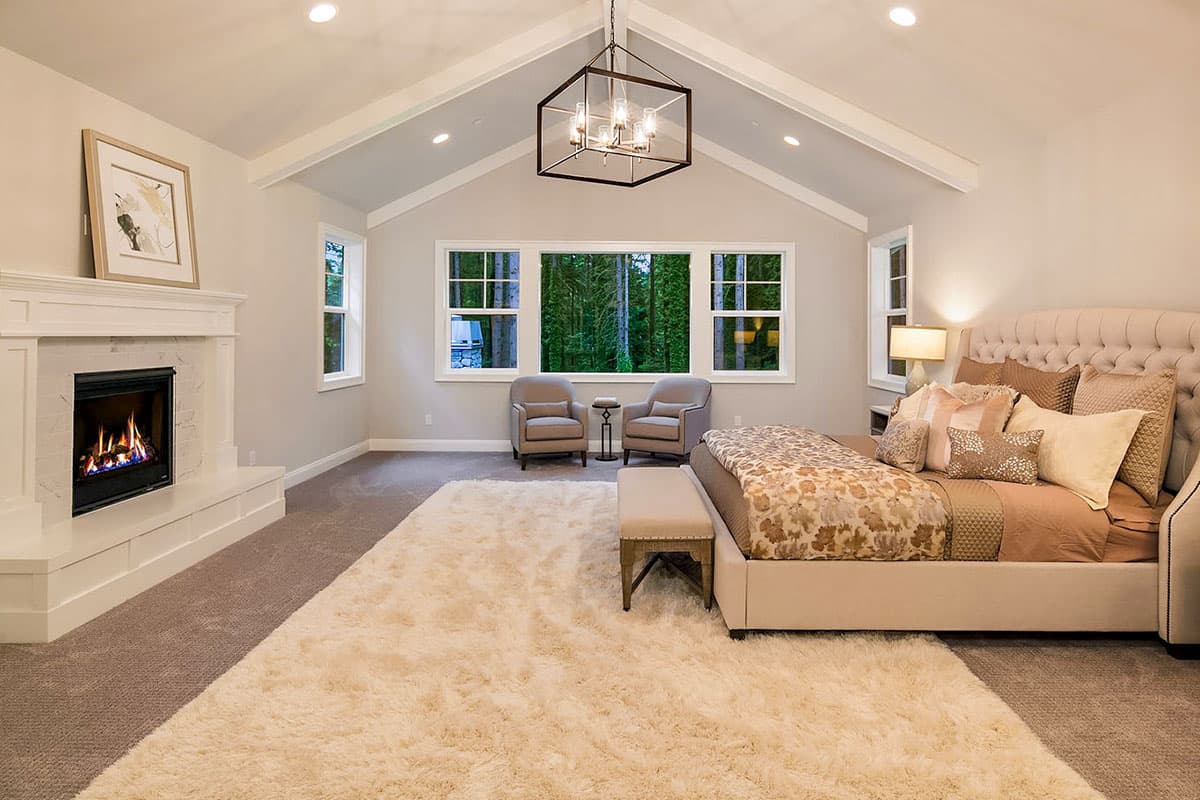

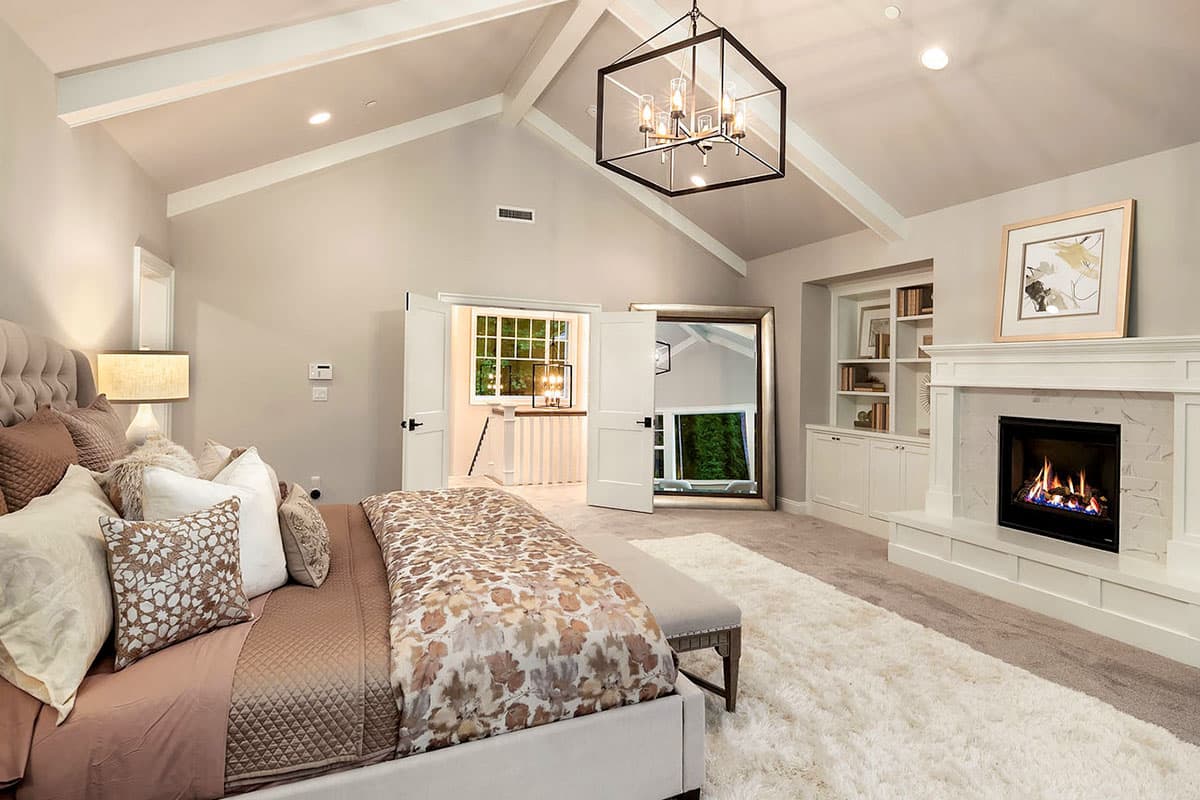

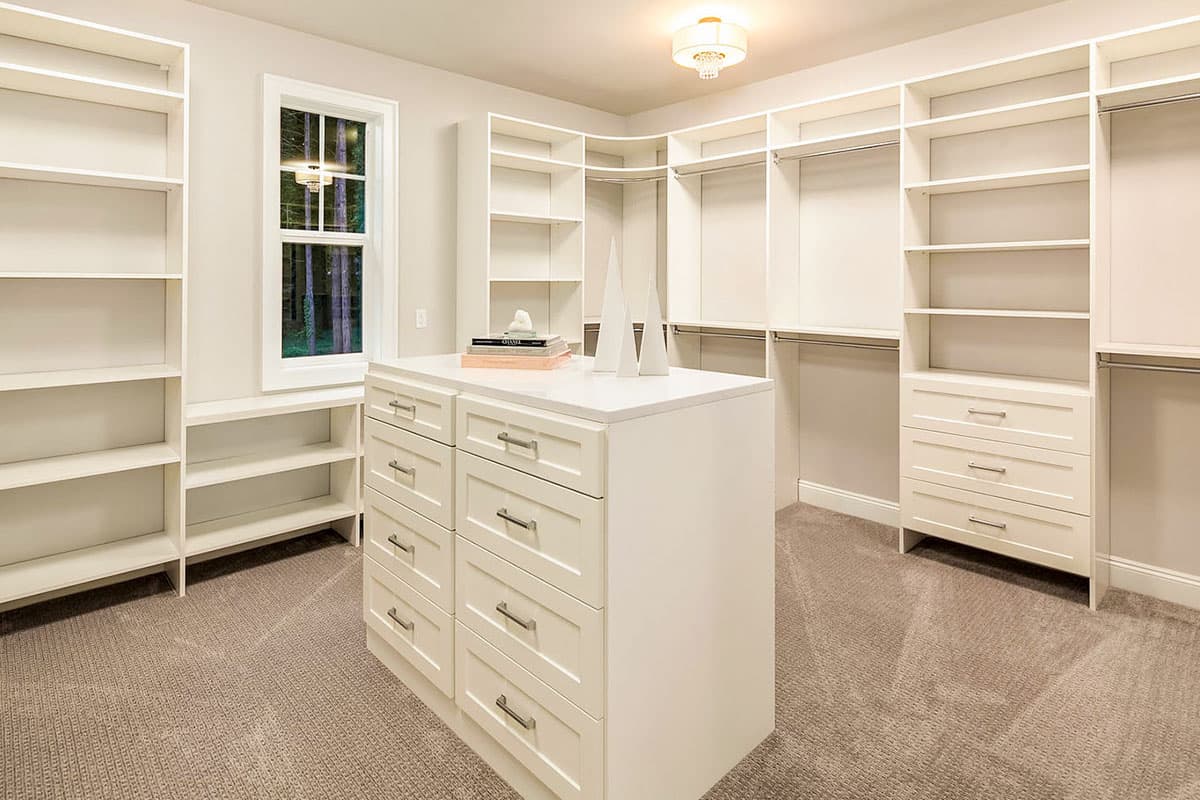

  • Upstairs, discover a second master suite which boasts a fireplace with surrounding built-ins, a roomy walk-in closet with a dresser island, and a 5-fixture bathroom. The laundry room shares a wall with the master for added convenience.

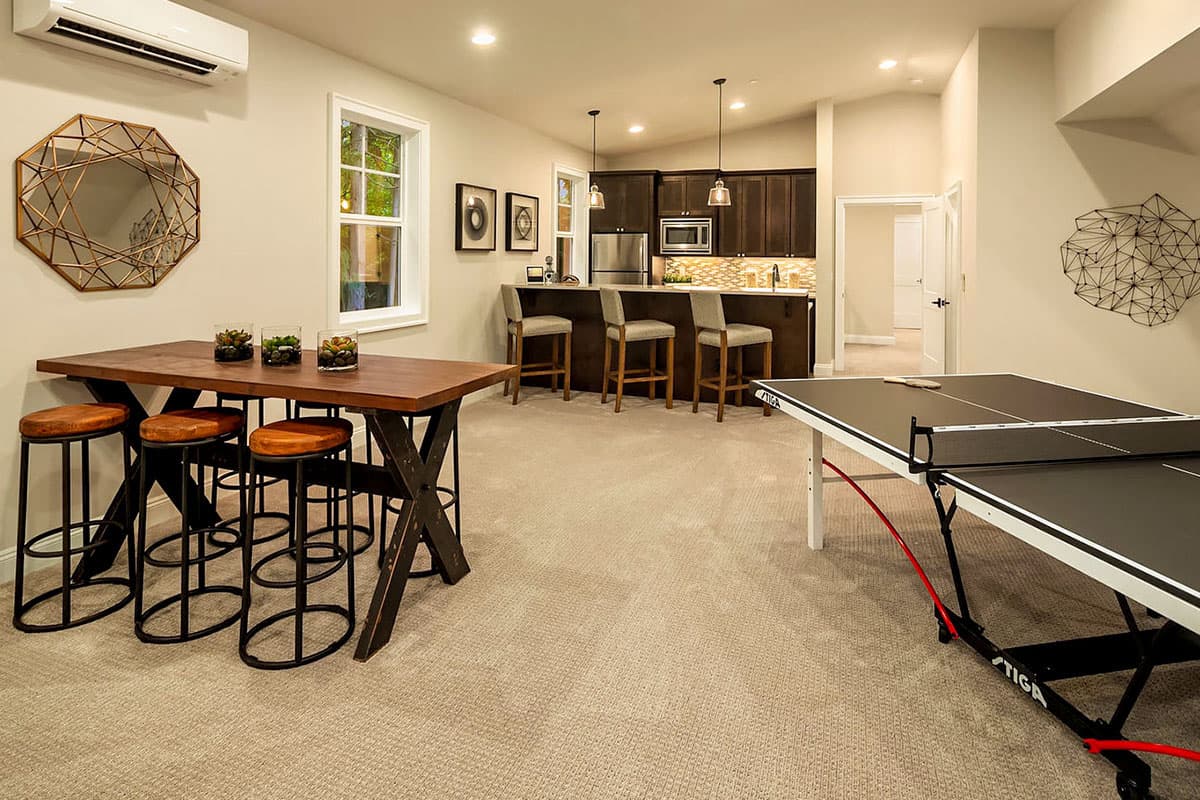

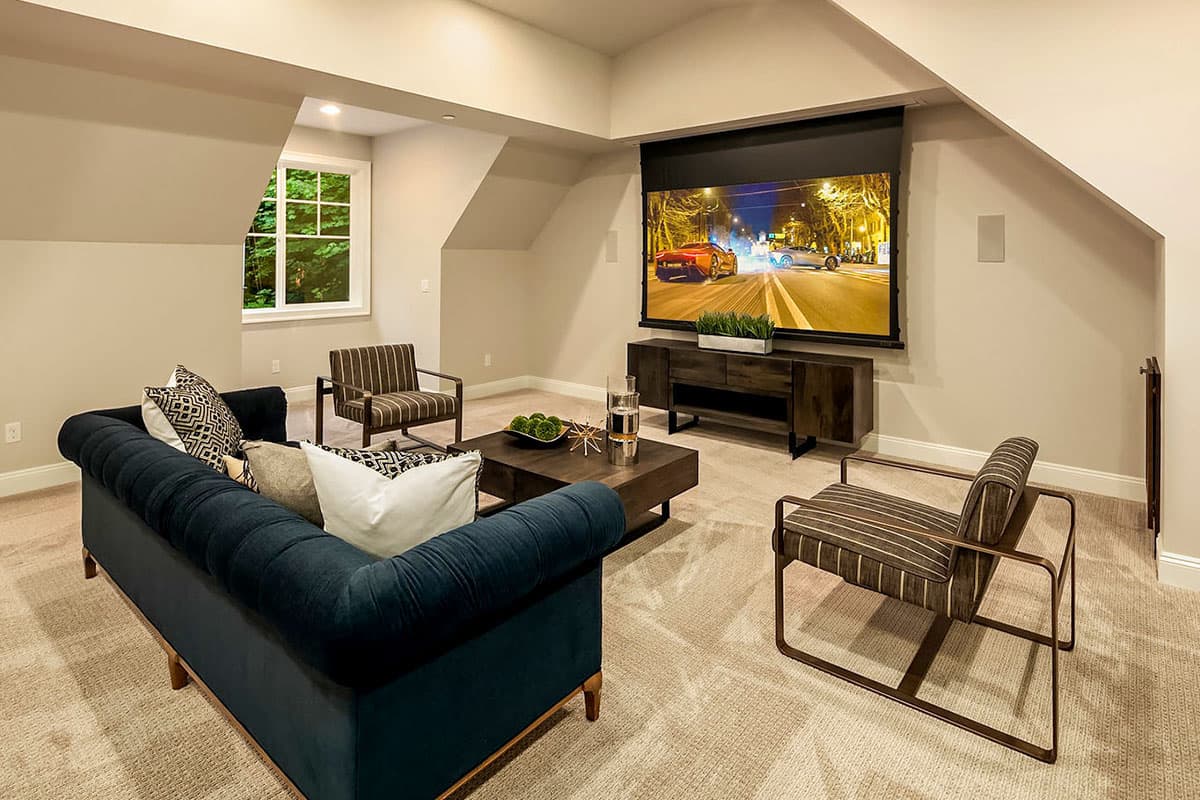

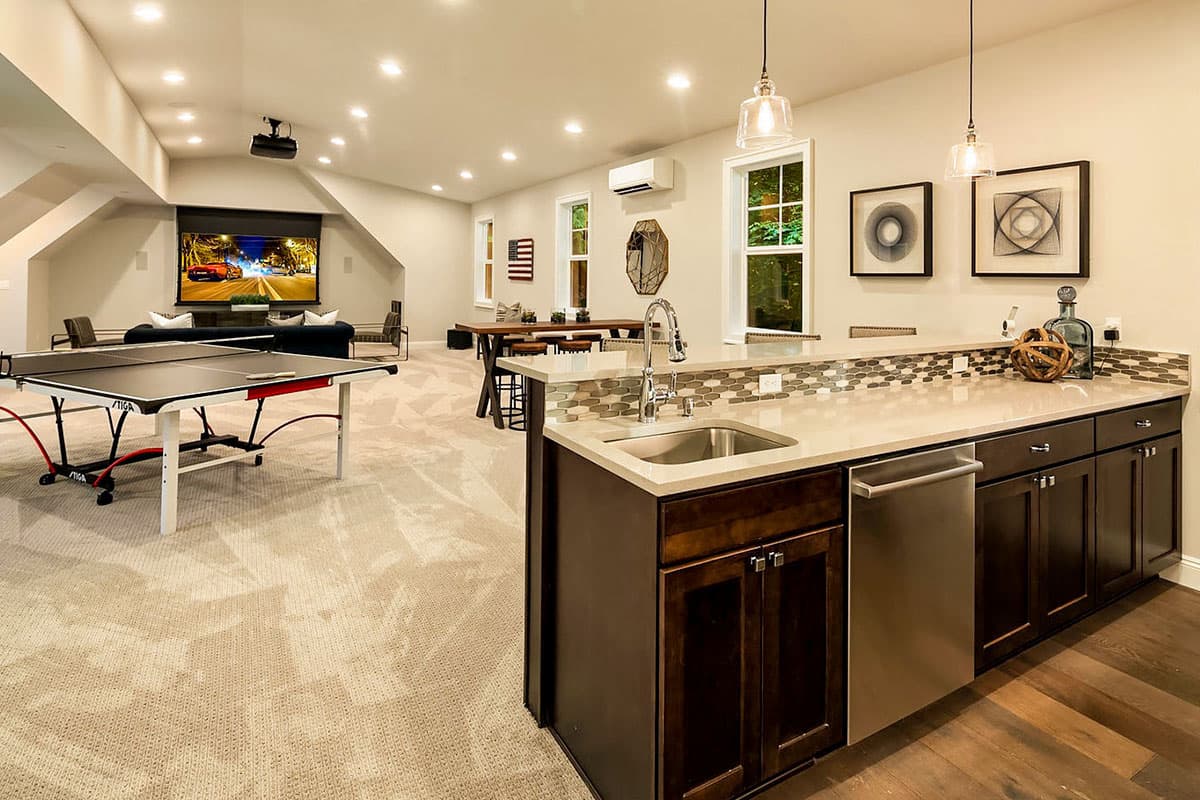

  • Two additional bedrooms share a Jack-and-Jill bath, and another bedroom has access to a full bathroom. The massive play room atop the garage includes a wet bar and storage room.

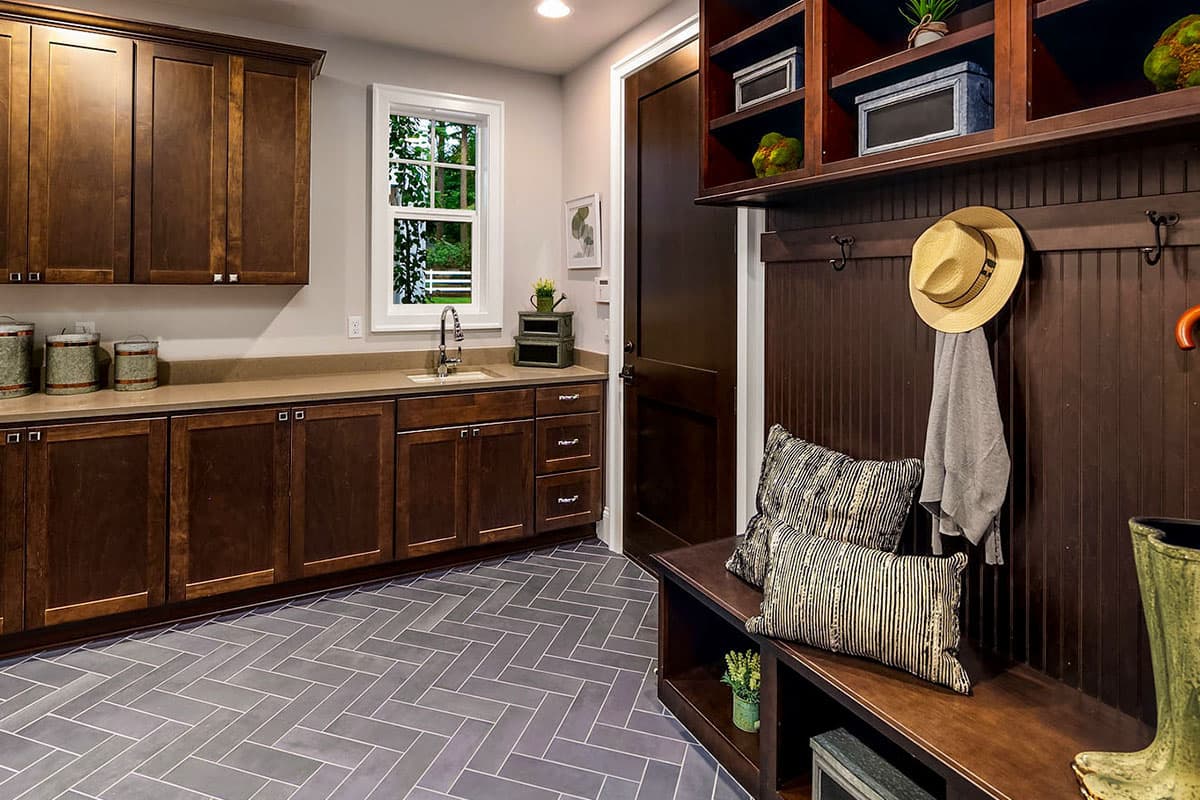

  • Entry from the garage leads to a spacious mudroom with built-in lockers and a utility sink.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

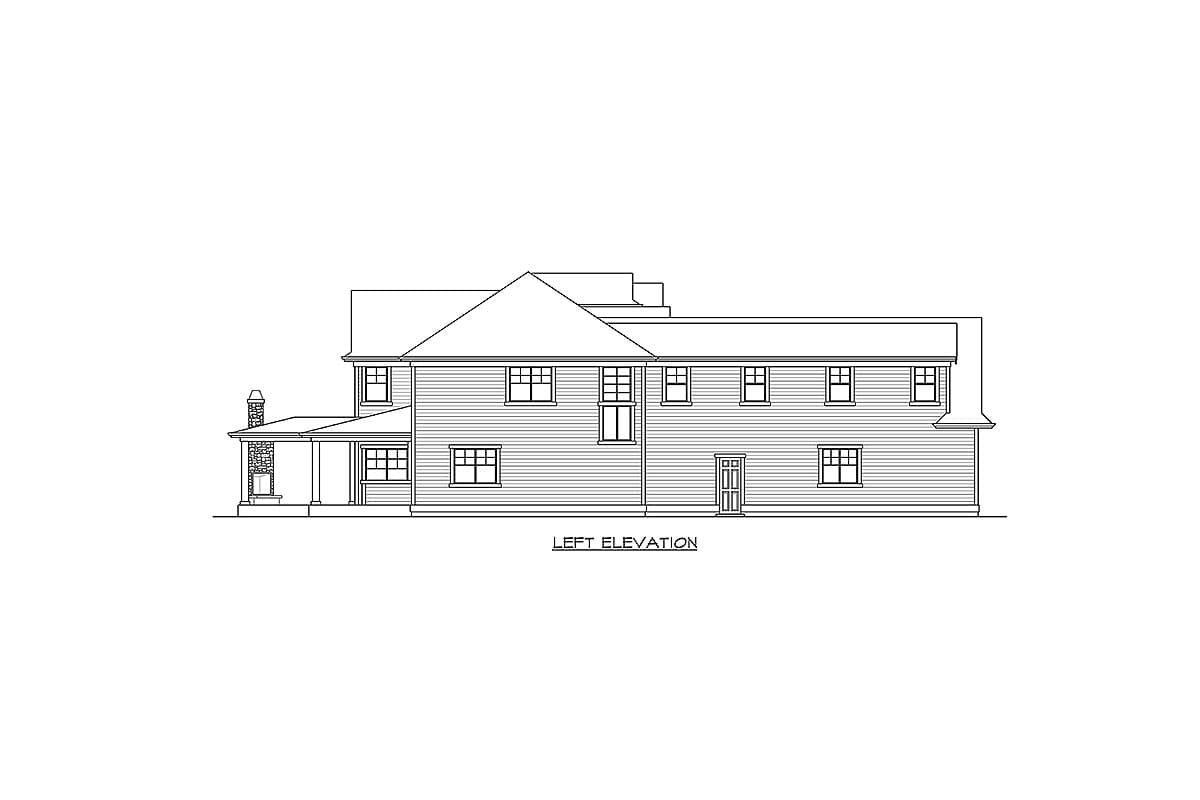

Elevation Sheet

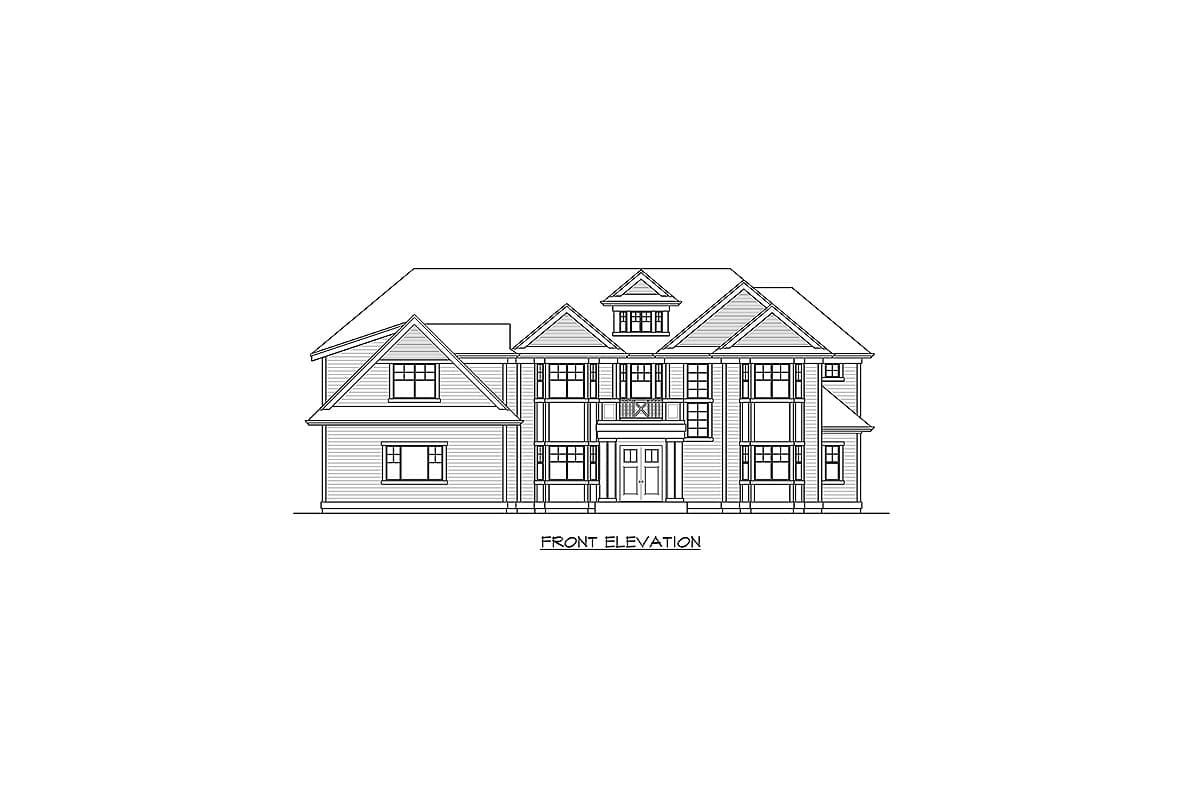

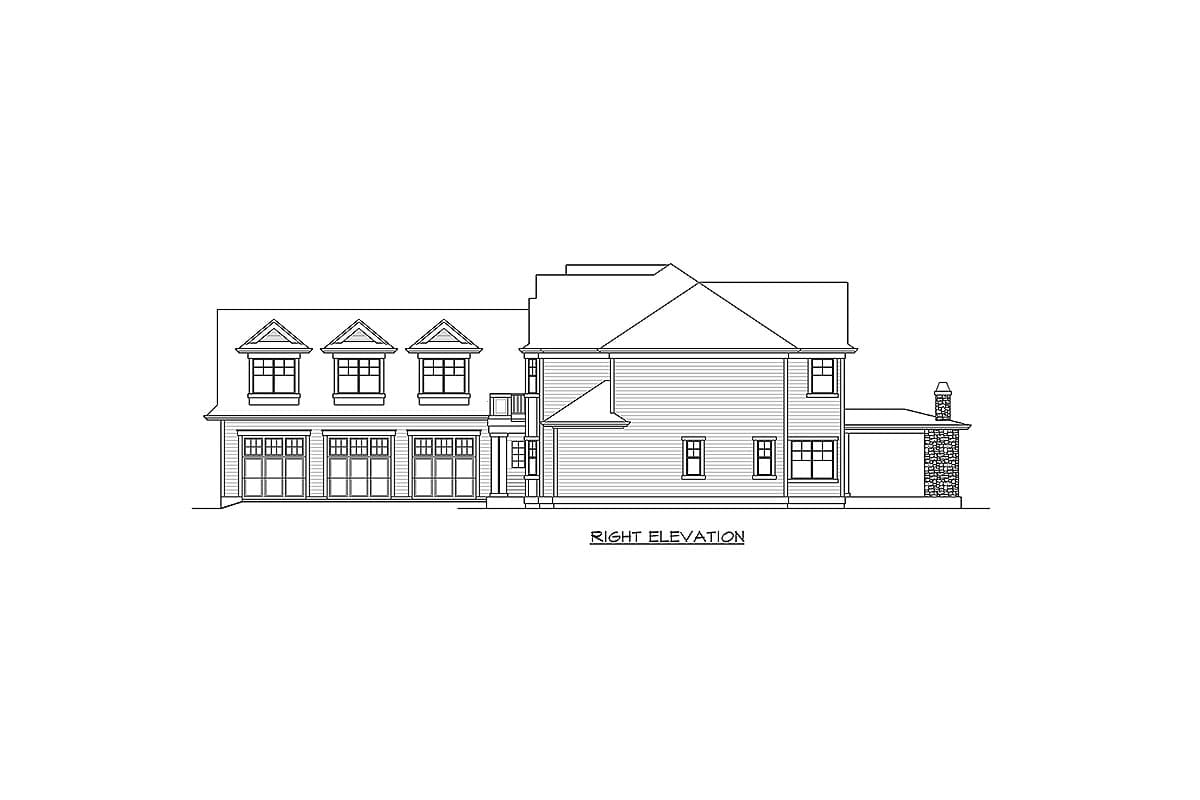

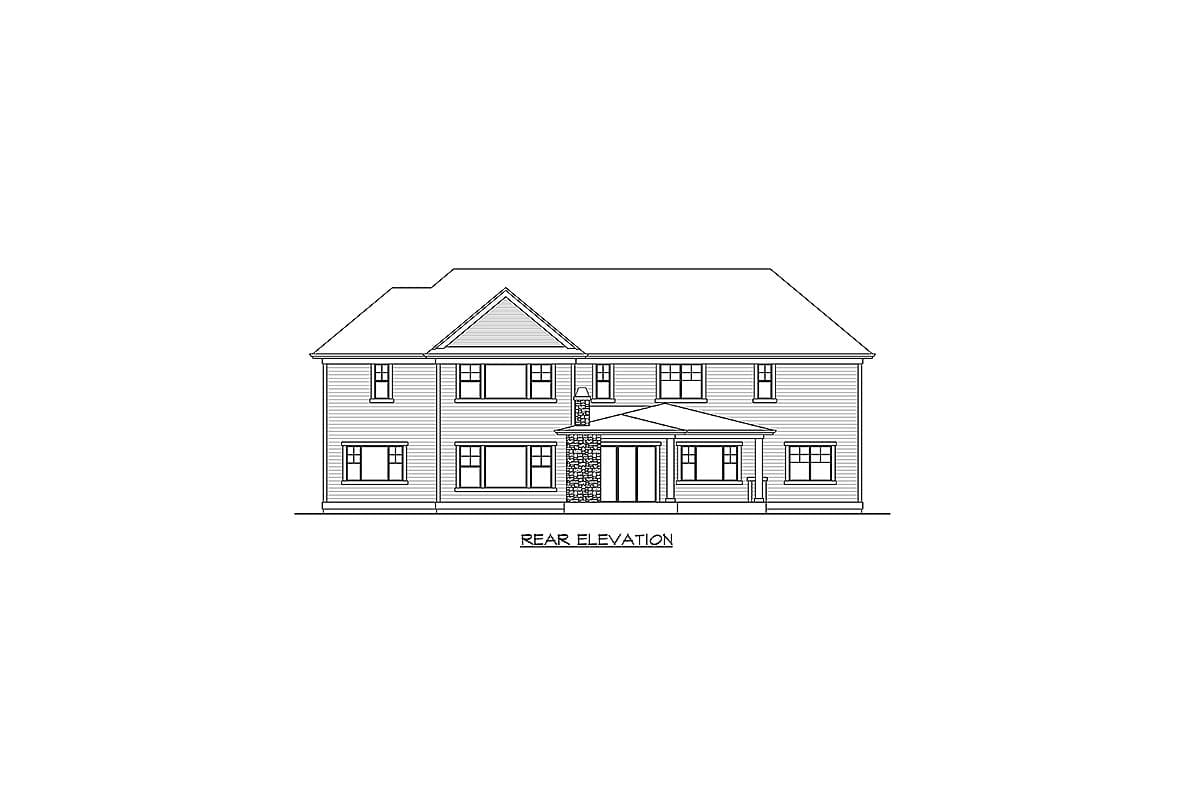

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Stately 5-Bed House Plan with Two Master Beds and Outdoor Kitchen

  • 6,692

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $3,000
  • 5 Sets PLUS $3,200
  • CAD - multi-use $5,000
  • View all purchase option online

About This Plan

  • This stately 5-bedroom house plan lacks for nothing with gorgeous details in every room, including a grand exterior appearance. The angled 3-car garage provides an expansive recreation room above it, and a large outdoor porch includes a fireplace, BBQ porch, and extends further to a patio.
  • The main level boasts a dining room with a bay window, a quiet den near a powder bath, and a first-floor master bedroom with a tub set in a bay window, dual vanities, and a large walk-in closet. The open layout combines the great room, breakfast nook, and kitchen, where a window above the sink overlooks the back porch.
  • Upstairs, discover a second master suite which boasts a fireplace with surrounding built-ins, a roomy walk-in closet with a dresser island, and a 5-fixture bathroom. The laundry room shares a wall with the master for added convenience.
  • Two additional bedrooms share a Jack-and-Jill bath, and another bedroom has access to a full bathroom. The massive play room atop the garage includes a wet bar and storage room.
  • Entry from the garage leads to a spacious mudroom with built-in lockers and a utility sink.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

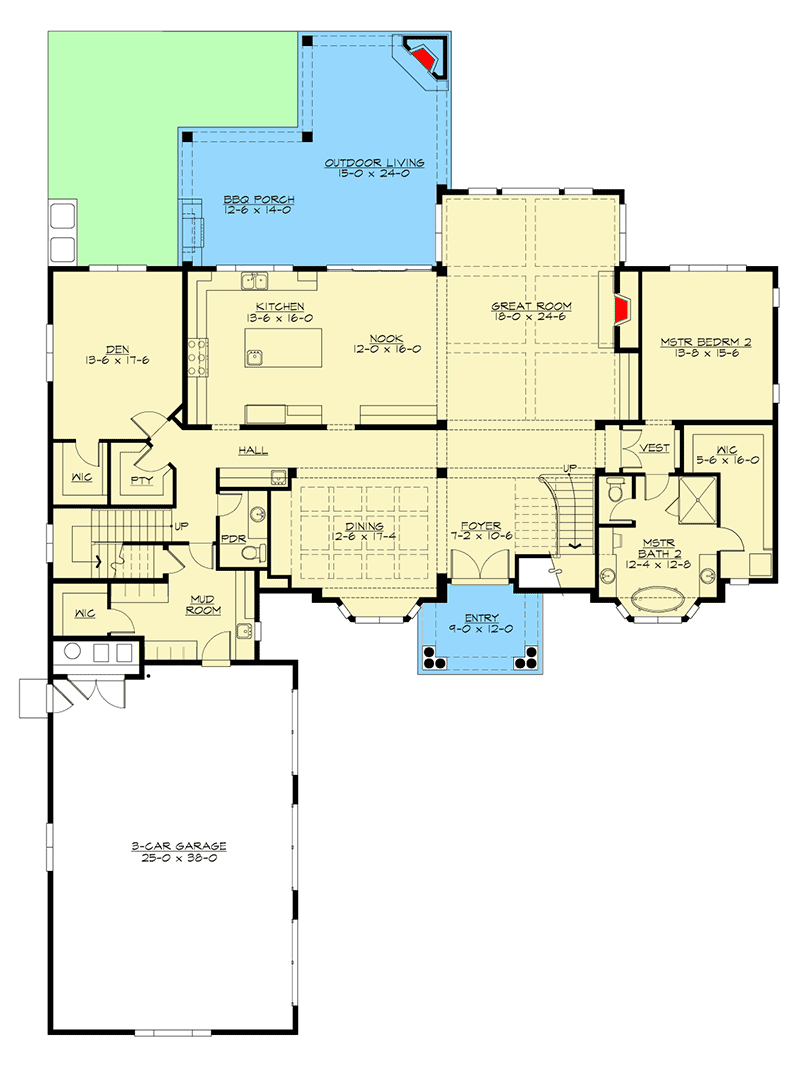

  • Main Level

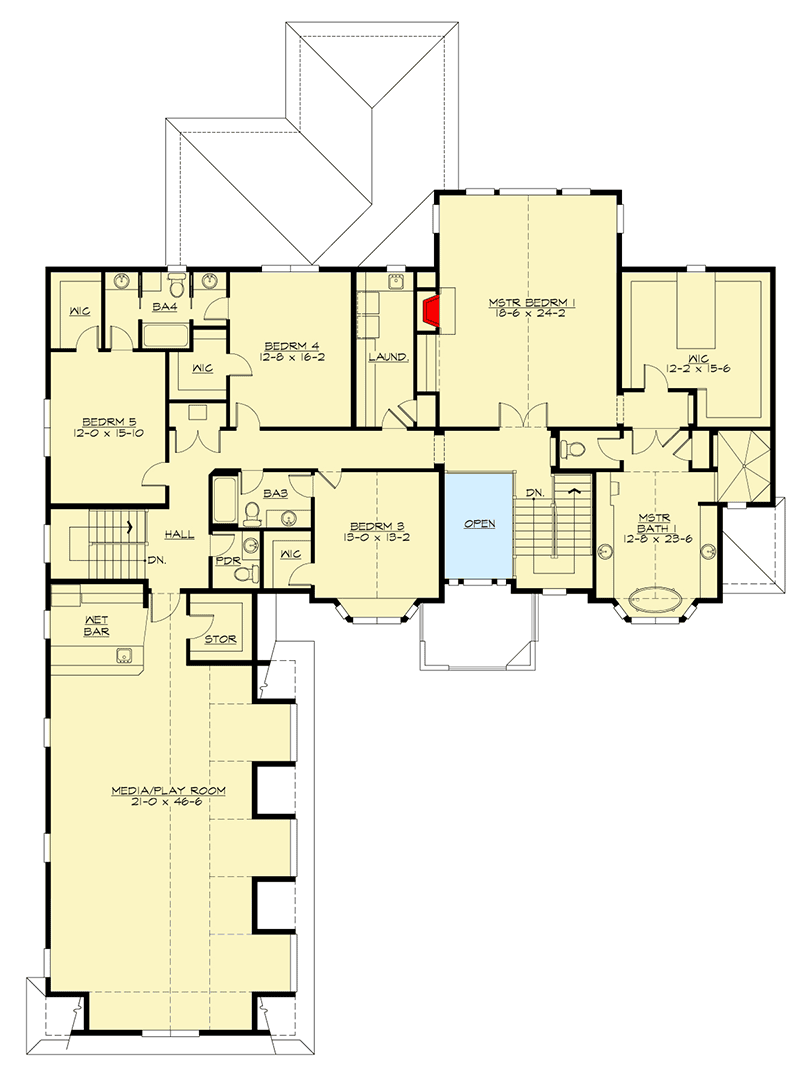

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,692 sq. ft.
  • 1st Floor: 2,966 sq. ft.
  • 2nd Floor: 3,726 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 104' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 988 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
