Stately Historical Home Plan

Plan 59145ND

  • 2,246

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Exterior details on this historical home plan add character to this stately, symmetrical design. Upon entering the foyer, French doors lead to an optional study where privacy awaits and beautiful antique furniture can be showcased.
  • While the formal dining room enhanced with elegant columns leads to the well-equipped kitchen.
  • The breakfast room separates the master suite quarters from the additional bedrooms and has an optional basement stairway next to the garage entry.
  • Retire to your master suite full of amenities, treat yourself to a soak in the corner whirlpool tub and afterwards enjoy private access to the rear-grilling porch for late night stargazing.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

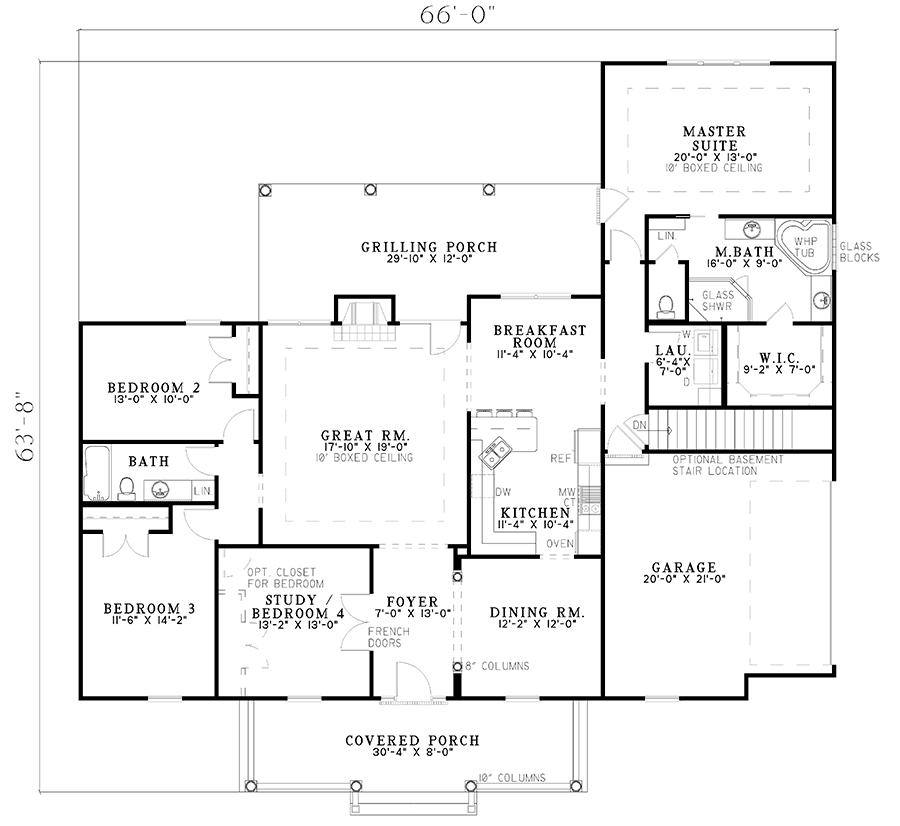

Stately Historical Home Plan - 59145ND floor plan - Main Level

Plan details

Stately Historical Home Plan

  • 2,246

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • CAD + PDF - Single Build $2,000
  • View all purchase option online

About This Plan

  • Exterior details on this historical home plan add character to this stately, symmetrical design. Upon entering the foyer, French doors lead to an optional study where privacy awaits and beautiful antique furniture can be showcased.
  • While the formal dining room enhanced with elegant columns leads to the well-equipped kitchen.
  • The breakfast room separates the master suite quarters from the additional bedrooms and has an optional basement stairway next to the garage entry.
  • Retire to your master suite full of amenities, treat yourself to a soak in the corner whirlpool tub and afterwards enjoy private access to the rear-grilling porch for late night stargazing.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,246 sq. ft.
  • 1st Floor: 2,246 sq. ft.
  • Porch, Front: 243 sq. ft.
  • Porch, Rear: 260 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 63' 8"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
