Plan: 69071AM

Stately Stone Facade

3,841 4 4 2 3
Pageloader

Stately Stone Facade

Plan 69071AM

  • 3,841

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

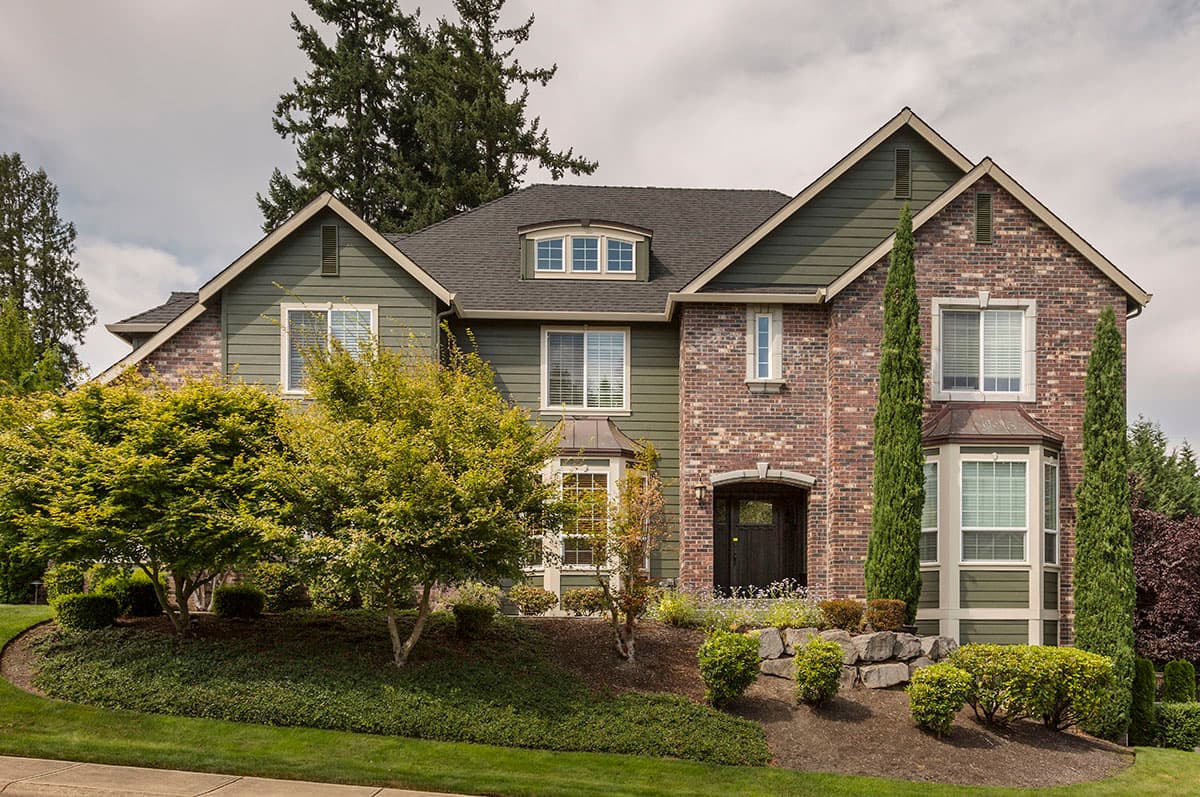

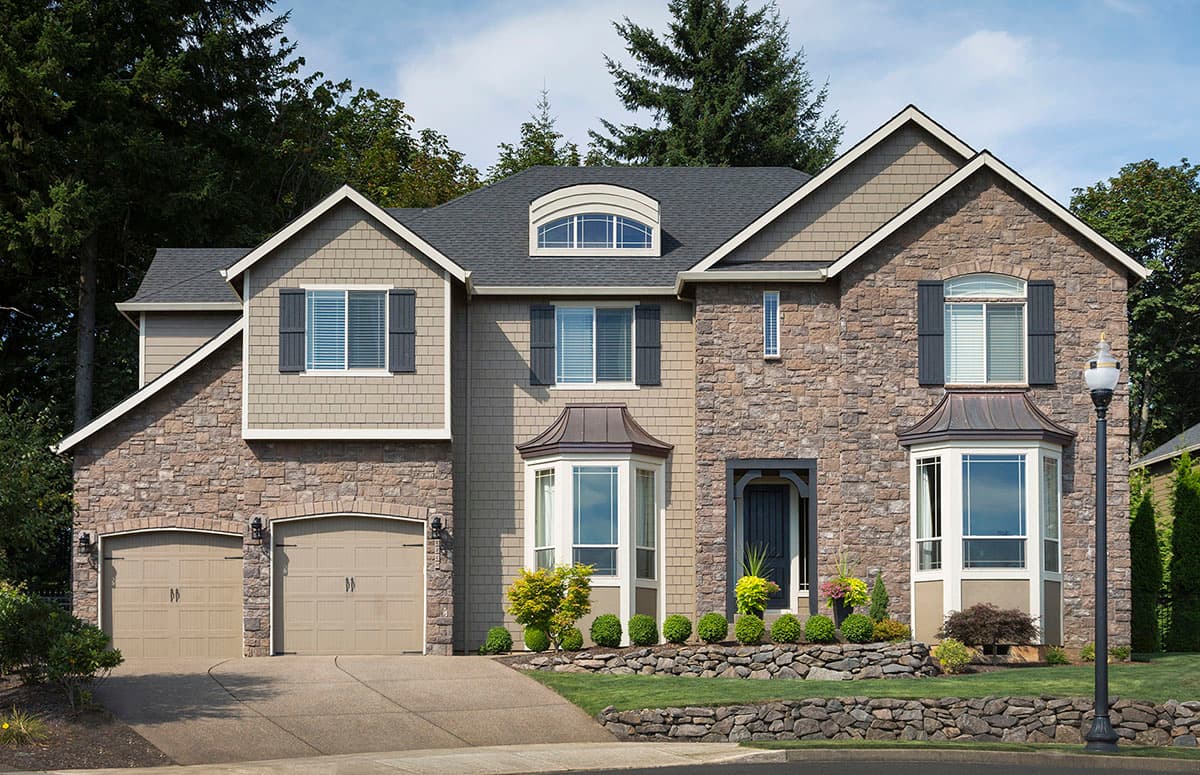

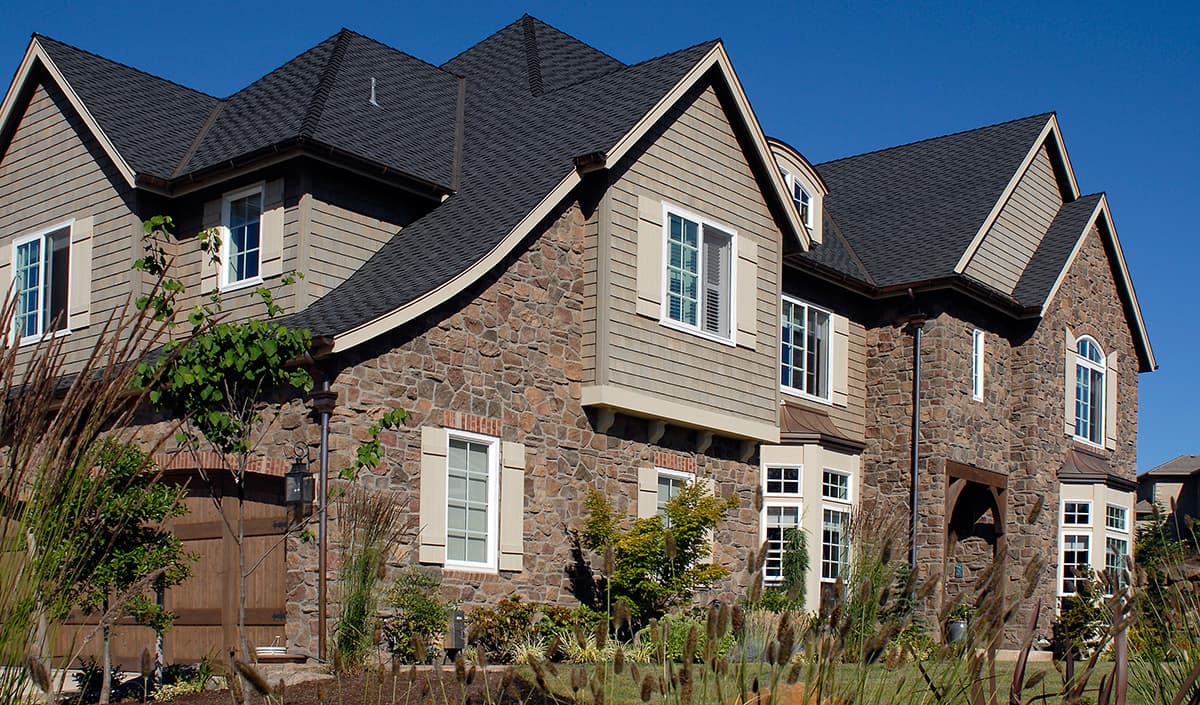

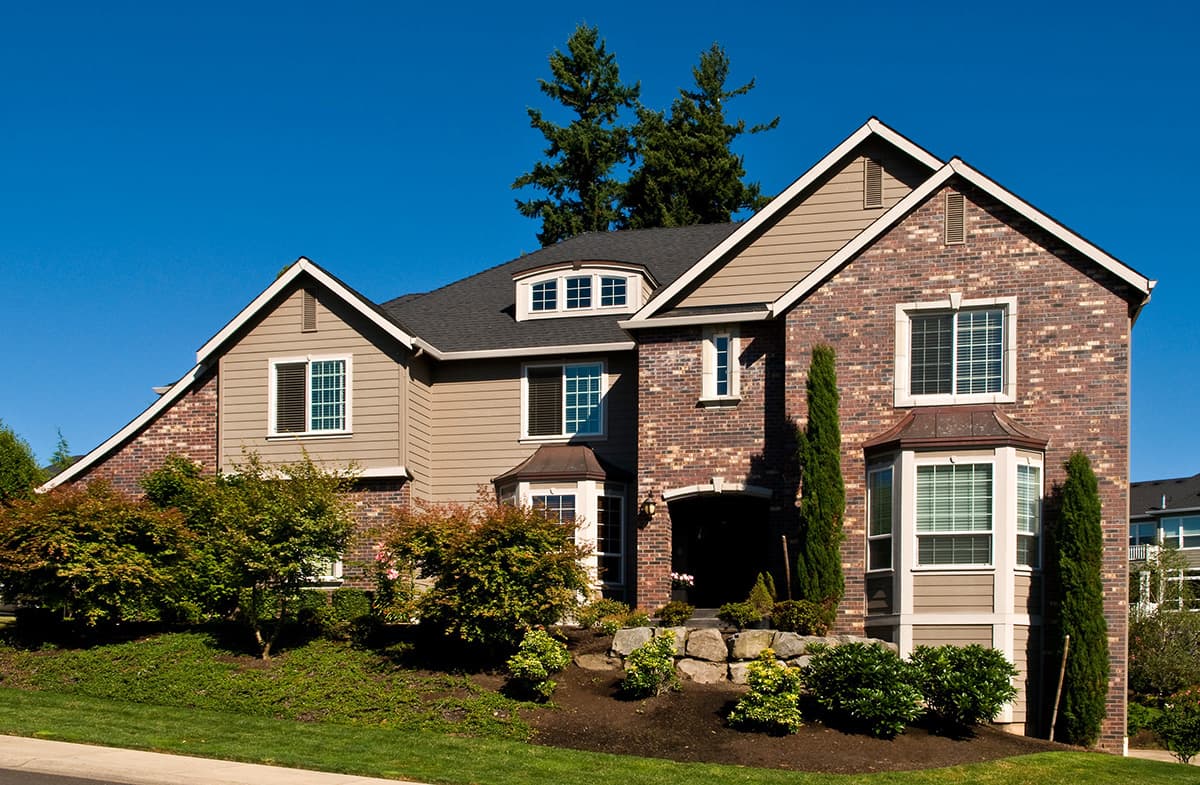

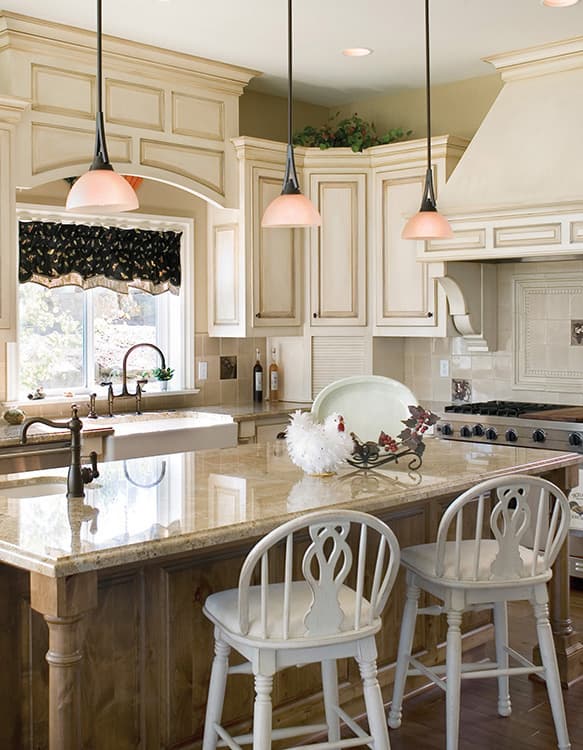

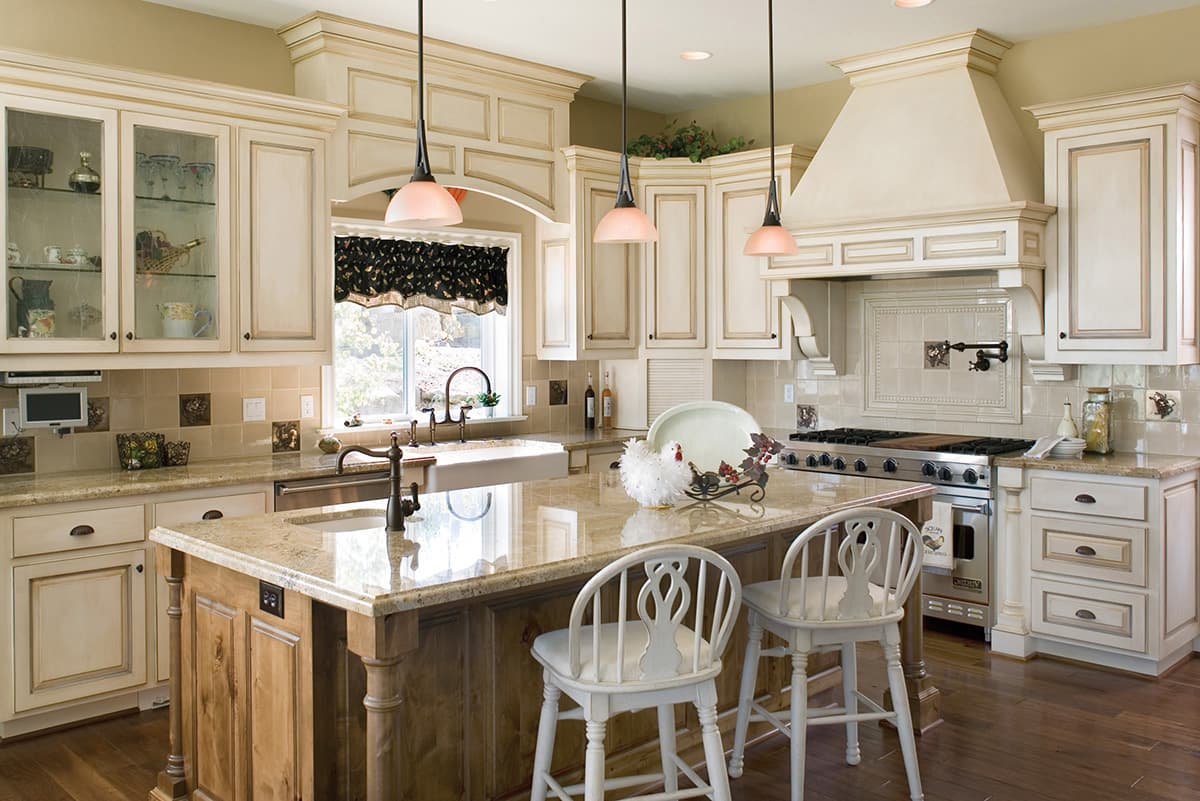

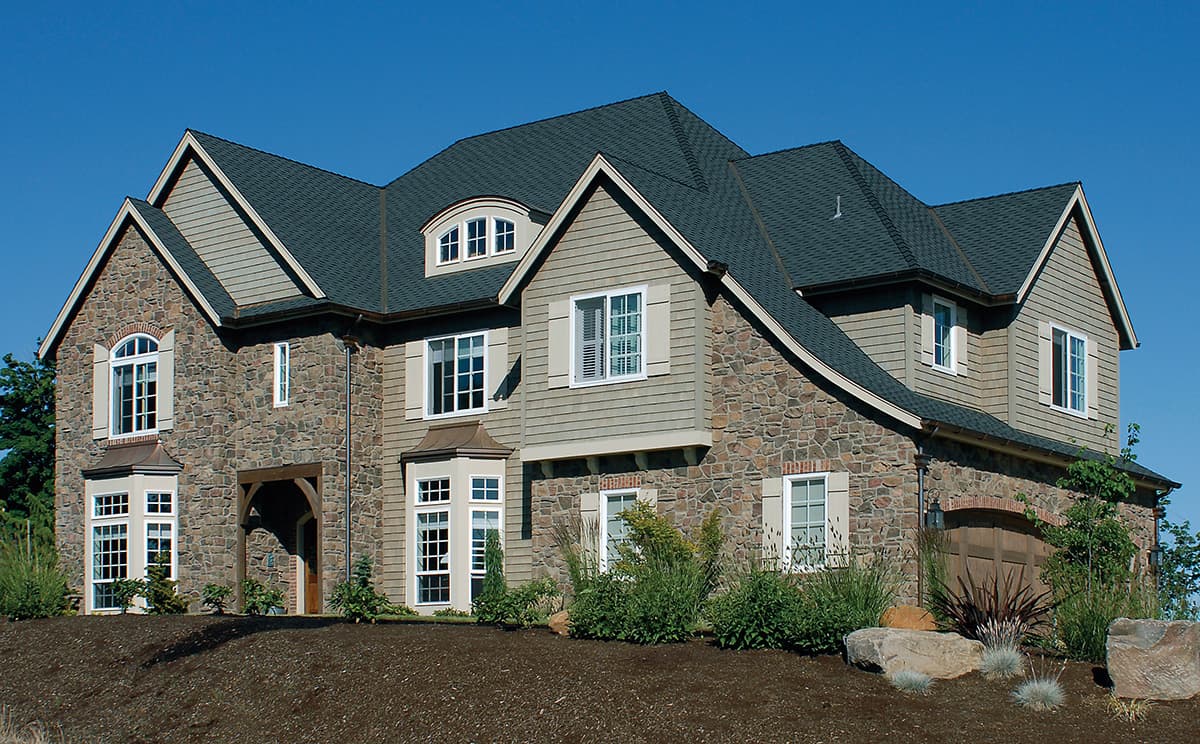

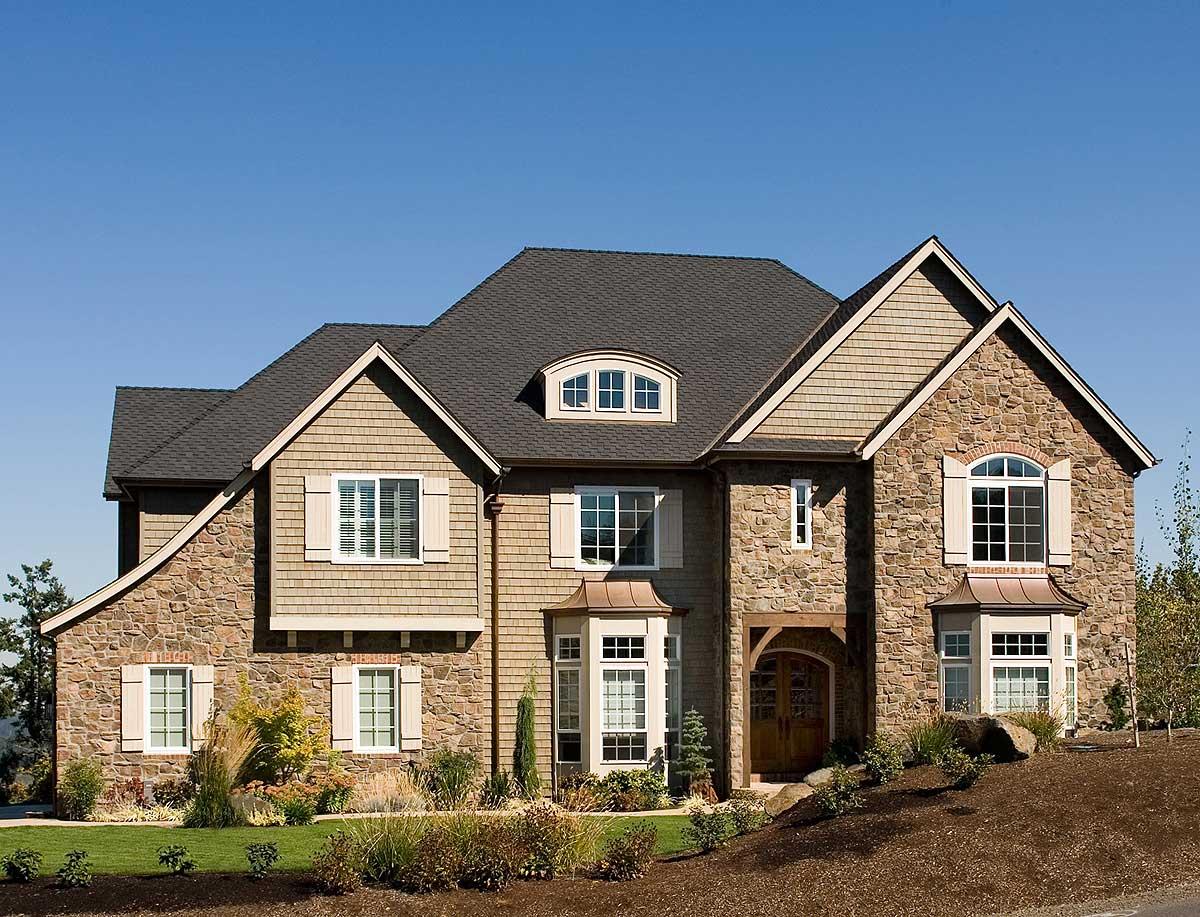

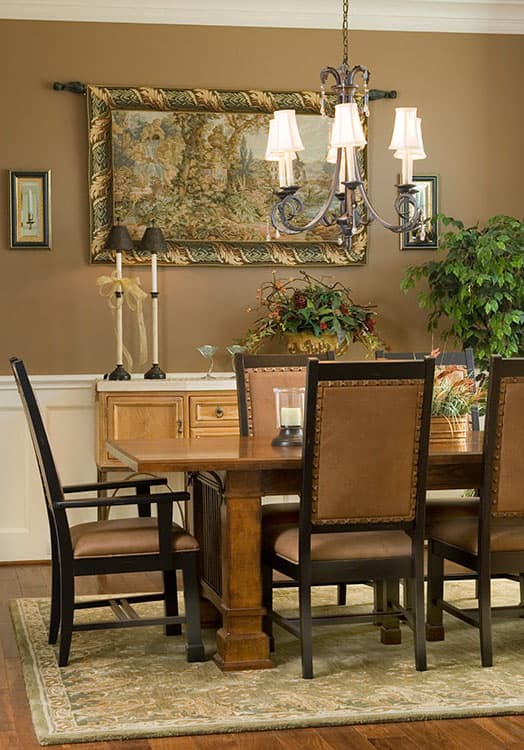

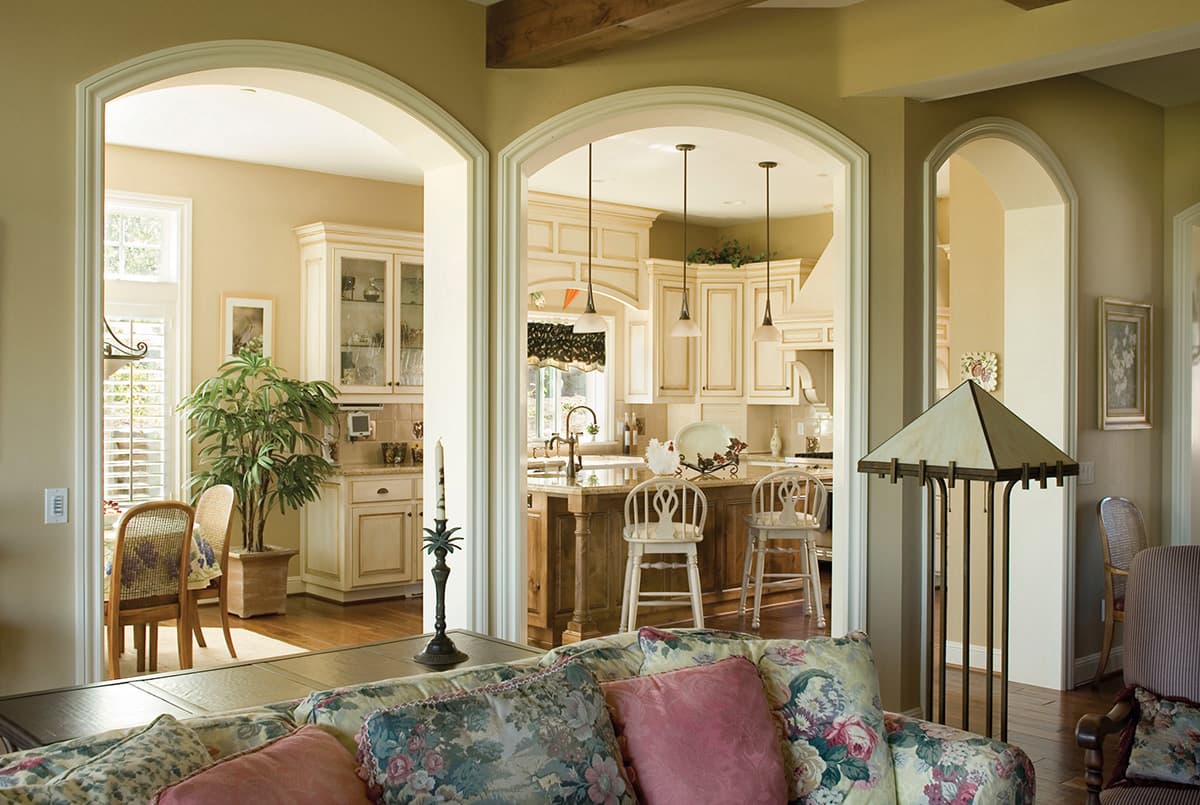

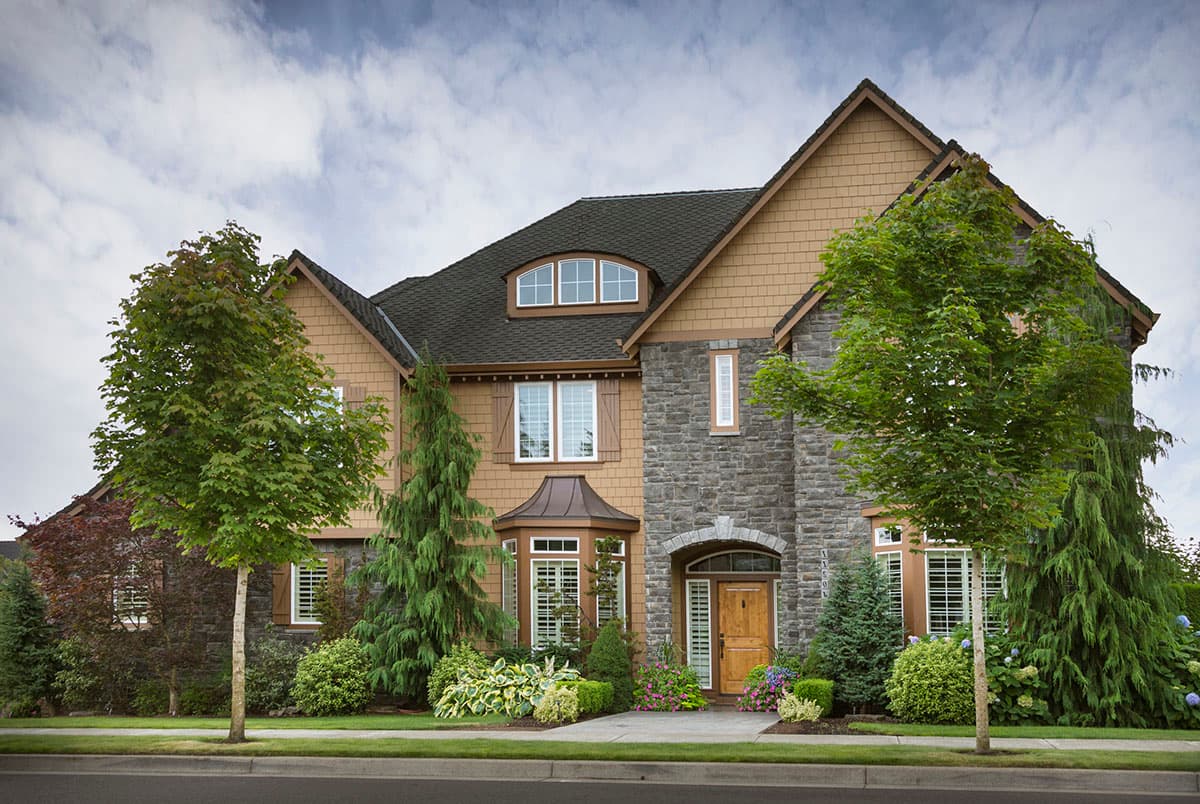

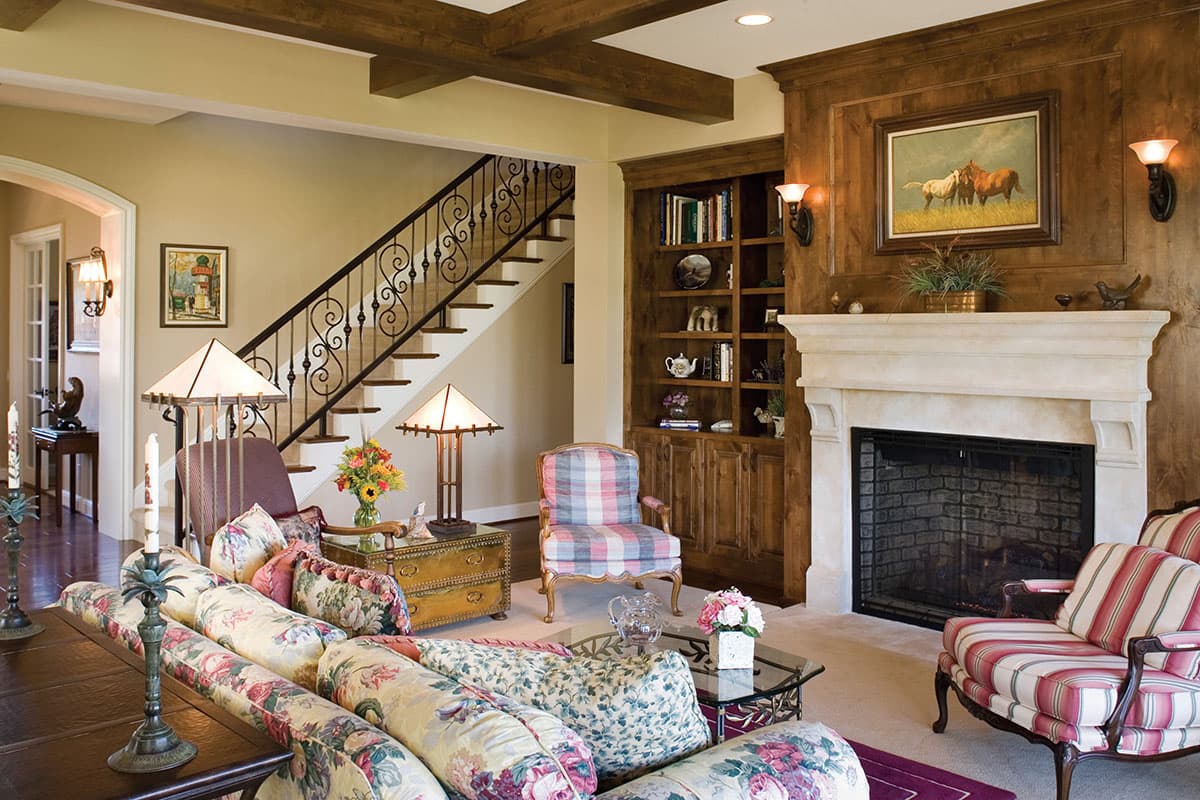

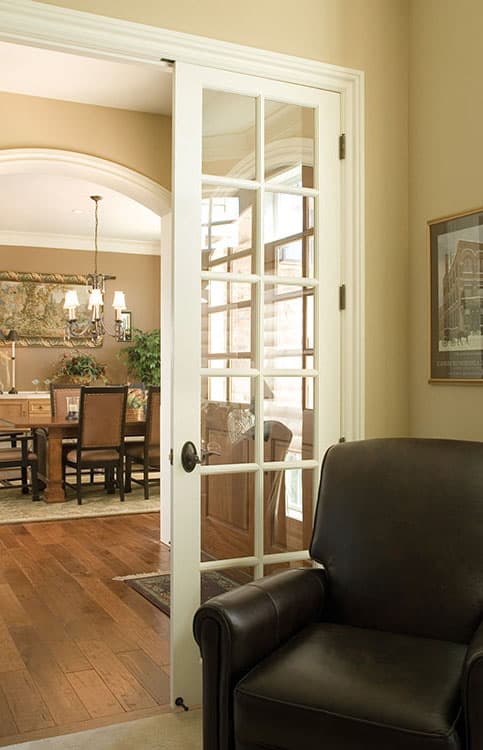

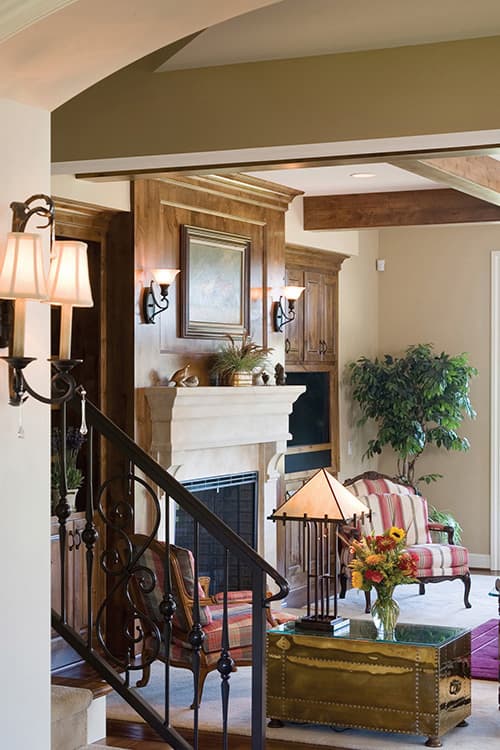

  • A stone fa'ade - so stately, so lasting. And the perfect complement to this timeless design. Main-level rooms begin with a formal dining room and a den flanking the entry foyer - both with bay windows. The den has a built-in desk and bookshelves. A gigantic great room is at the back. It is appointed with a fireplace, built-ins and a wall of glass. The nearby nook opens to a covered patio and adjoins the island kitchen. The service hall features a half-bath and closet and leads to the triple garage with workshop or storage space. Note that main-level rooms have 10' foot ceilings.

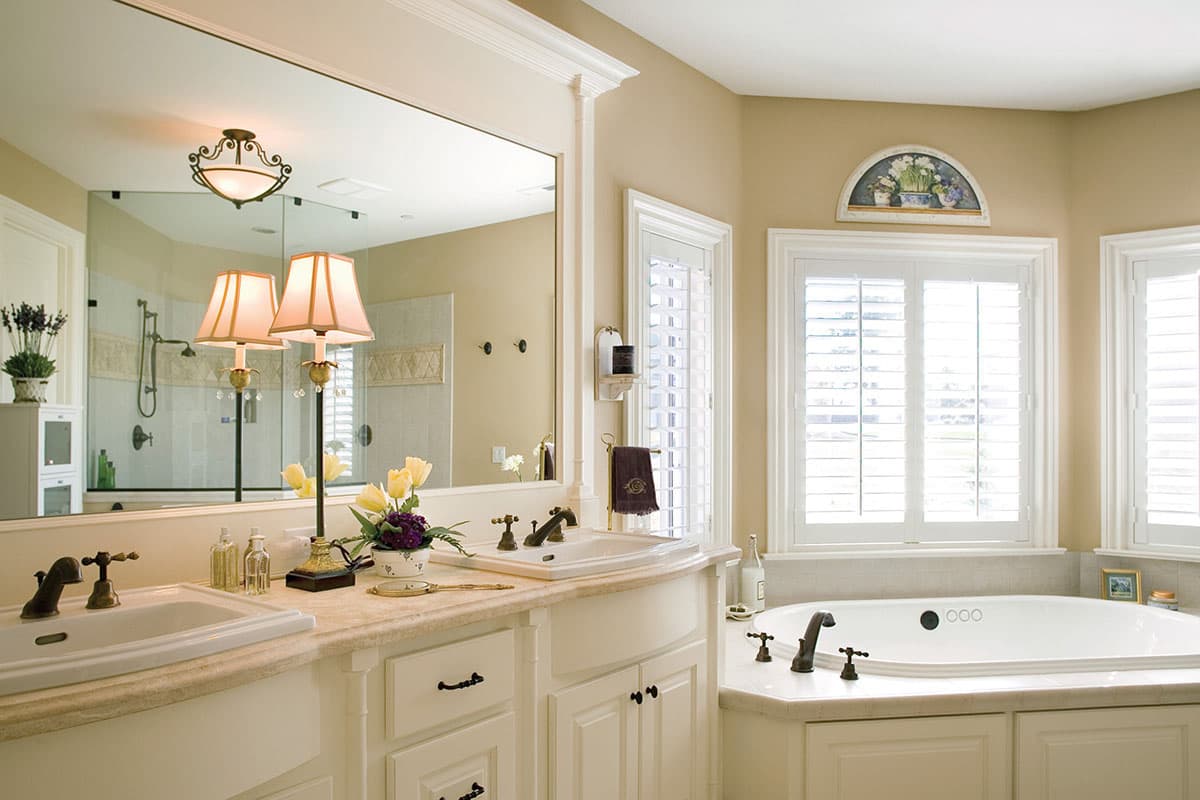

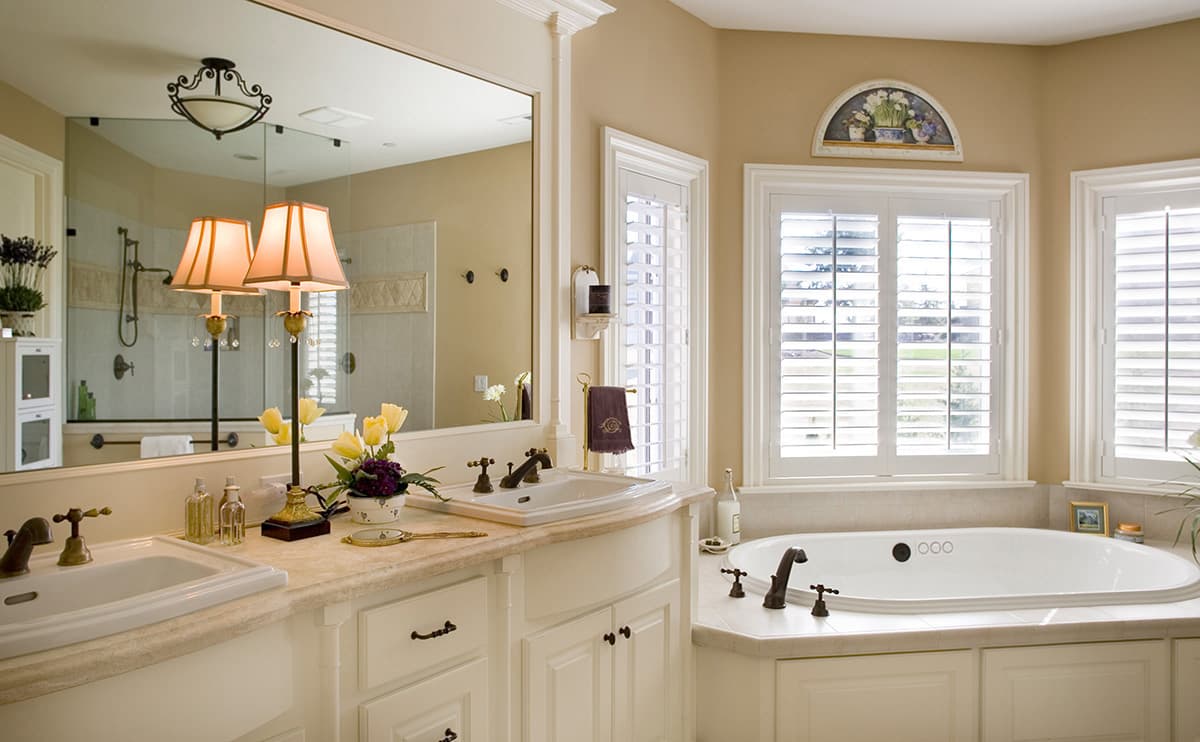

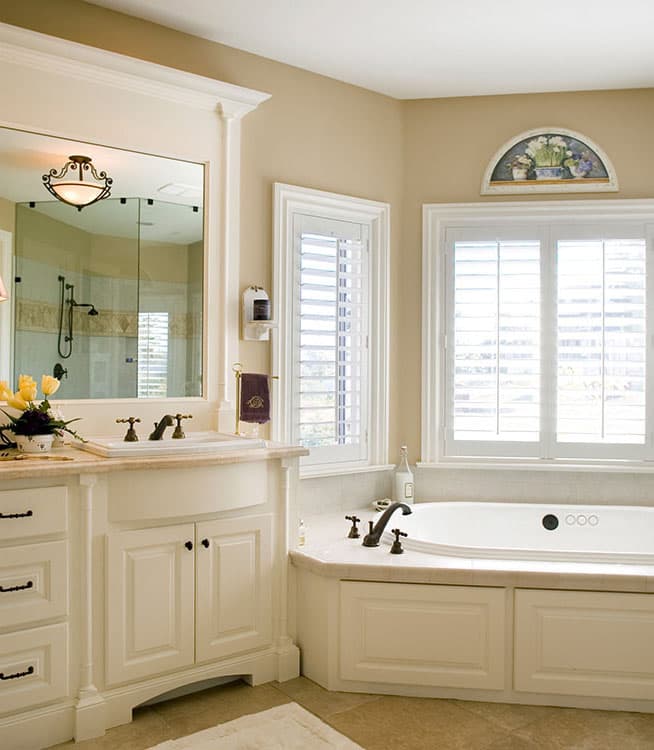

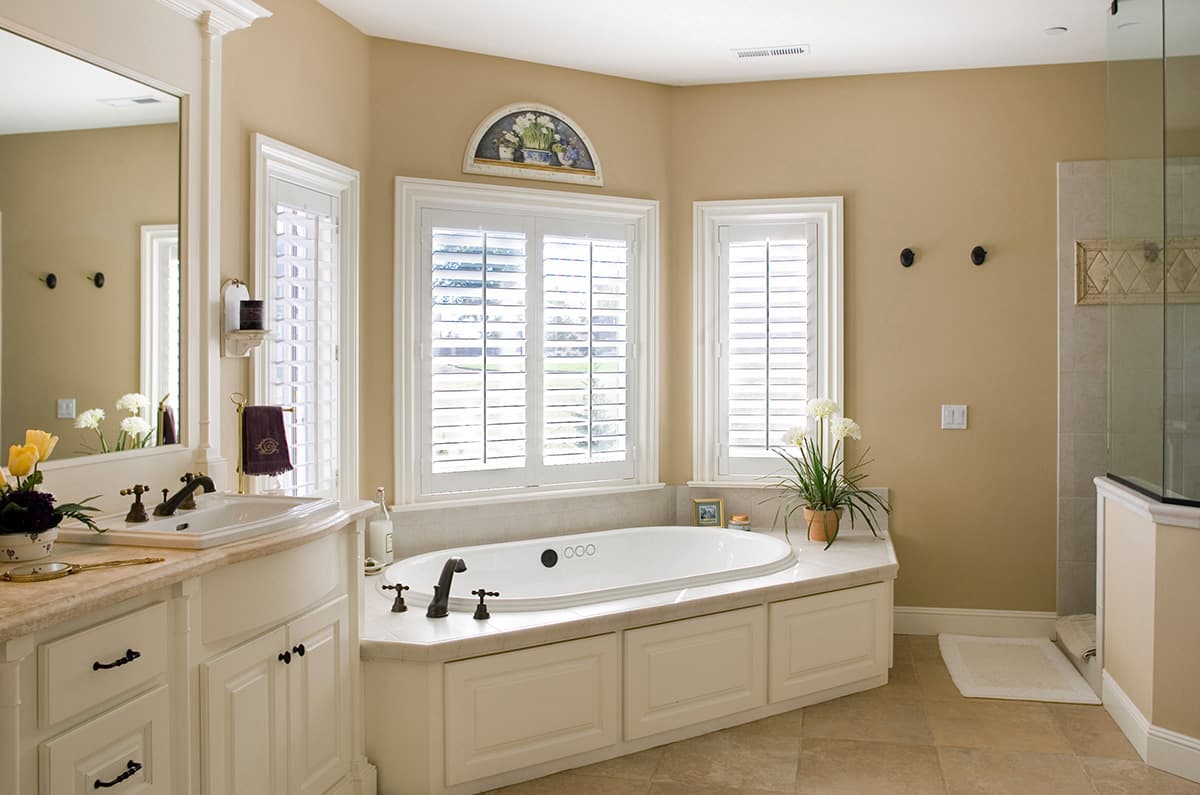

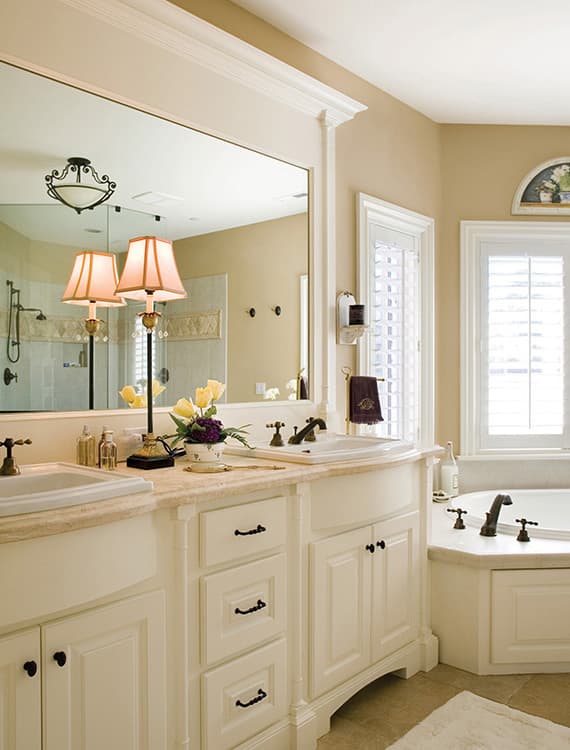

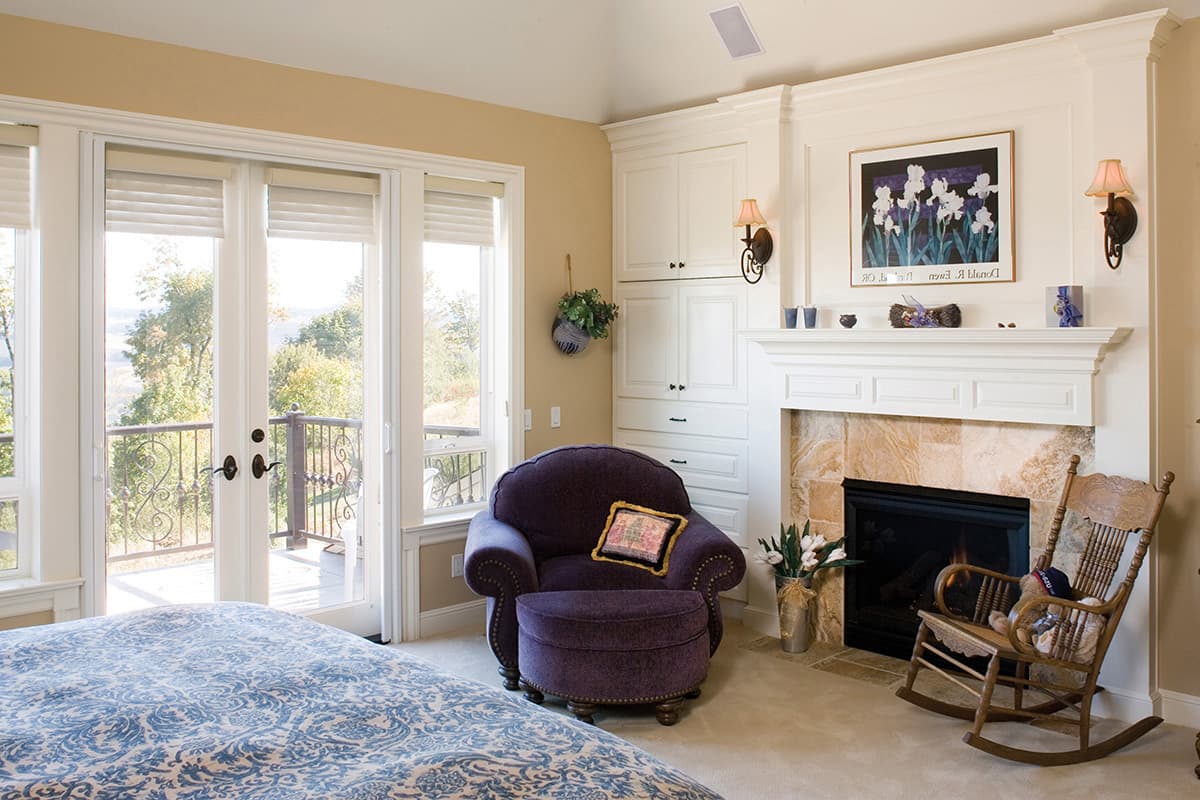

  • The upper level holds four bedrooms and a media center or playroom with snack center. Bedrooms 2 and 3 share a bath, while Bedroom 4 has a private bath. There is also a private bath in the master suite--and what a bath it is! There's a corner spa tub, separate shower, compartmented toilet and double vanity. The master salon contains a fireplace and built-ins. Thoughtful placement of the laundry on the upper level is an especially nice touch. Upper-level rooms have 9' foot ceilings, except the laundry (8') and the playroom and master salon (11').

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Stately Stone Facade

  • 3,841

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,242
  • PDF - single-use $1,592
  • 5 Sets $1,742
  • 5 Sets PLUS $1,792
  • CAD - multi-use $3,184
  • View all purchase option online

About This Plan

  • A stone fa'ade - so stately, so lasting. And the perfect complement to this timeless design. Main-level rooms begin with a formal dining room and a den flanking the entry foyer - both with bay windows. The den has a built-in desk and bookshelves. A gigantic great room is at the back. It is appointed with a fireplace, built-ins and a wall of glass. The nearby nook opens to a covered patio and adjoins the island kitchen. The service hall features a half-bath and closet and leads to the triple garage with workshop or storage space. Note that main-level rooms have 10' foot ceilings.
  • The upper level holds four bedrooms and a media center or playroom with snack center. Bedrooms 2 and 3 share a bath, while Bedroom 4 has a private bath. There is also a private bath in the master suite--and what a bath it is! There's a corner spa tub, separate shower, compartmented toilet and double vanity. The master salon contains a fireplace and built-ins. Thoughtful placement of the laundry on the upper level is an especially nice touch. Upper-level rooms have 9' foot ceilings, except the laundry (8') and the playroom and master salon (11').

Floor Plans

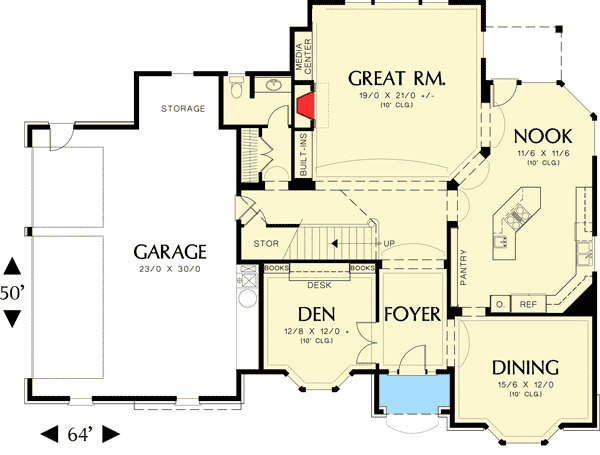

  • Main Level

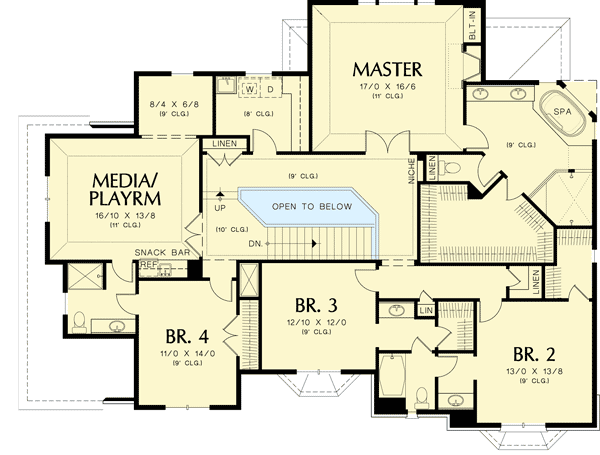

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,841 sq. ft.
  • 1st Floor: 1,634 sq. ft.
  • 2nd Floor: 2,207 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 50' 0"
  • Max ridge height: 37' 4"

Garage

  • Type: Attached
  • Area: 817 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
  • PDF
