Plan 680628VR

Stately Tudor Transitional House Plan with Main Floor Master and 3-Car Garage

Heated S.F.
4,111
Beds
4 - 5
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 680628VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680628VR

M-F 9am-5pm EST |

1-203-761-8500

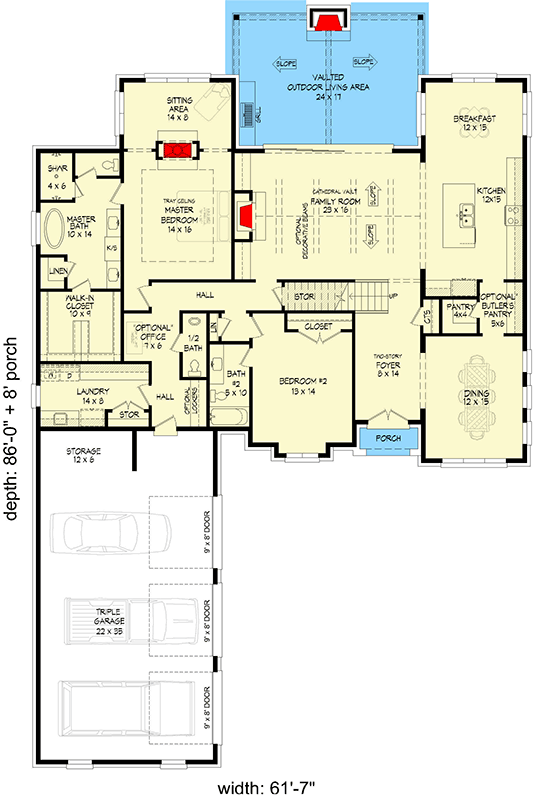

Main Level

Plan 680628VR: Stately Tudor Transitional House Plan with Main Floor Master and 3-Car Garage - Floor Plan - Main Level - Transitional, Tudor

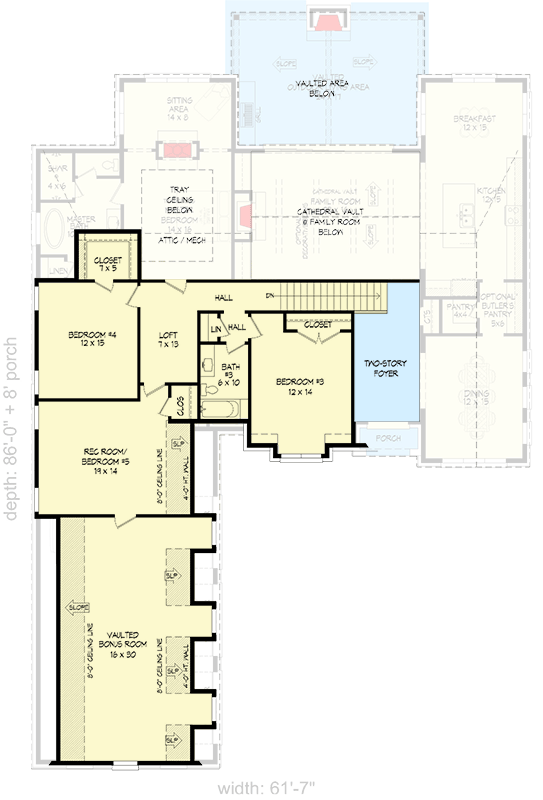

2nd Floor

Plan 680628VR: Stately Tudor Transitional House Plan with Main Floor Master and 3-Car Garage - Floor Plan - 2nd Floor - Transitional, Tudor

Plan Details

  • This stately 4,111 sq. ft. Tudor Transitional house plan offers 4 to 5 bedrooms, 3 full bathrooms, 1 half bathroom, and a spacious 946 sq. ft. attached 3-car courtyard entry garage, presenting a sophisticated blend of classic charm and modern living.
  • Upon entering, guests are welcomed into a grand foyer that opens directly into the expansive living areas, designed for seamless flow and refined daily living, with a flexible space ideal for a home office or quiet den positioned conveniently near the entry.
  • The heart of the home features an open-concept arrangement where the gourmet kitchen, complete with a butler walk-in pantry, overlooks the dining area and a comfortable family room, fostering an inviting atmosphere for both intimate family moments and lively gatherings. A charming breakfast nook offers a bright spot for morning coffee, while a formal dining room awaits more elaborate occasions.
  • The luxurious primary master suite is thoughtfully located on the main level, boasting a private sitting area for relaxation and ample space for a spa-like ensuite, while the secondary bedrooms on the second floor provide private retreats for family members or guests.
  • Enjoy sophisticated outdoor living on the expansive rear covered porch, spanning 395 sq. ft. and featuring an outdoor fireplace and a fully equipped outdoor kitchen, perfect for al fresco dining and creating memorable evenings under the stars. A charming front porch spanning 33 sq. ft. provides a welcoming entry.
  • This plan includes a finished bonus room on the second floor, offering versatile space that can be adapted to suit your lifestyle needs, whether as an additional bedroom, media room, or private studio.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,111 sq. ft.

1st Floor

2,511 sq. ft.

2nd Floor

1,600 sq. ft.

Porch, Front

33 sq. ft.

Porch, Rear

395 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 7"

Depth

86' 0"

Max Ridge Height

30' 1"

Garage

Type

Standard, Attached

Area

946 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

8 on 12

Architectural Style

Transitional

Tudor

Special Features

Breakfast Nook

Butler Walk-in Pantry

Finished Bonus Room

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen
