Plan 39075ST
Stately Williamsburg Exterior
Heated S.F.
3,366
Beds
3-4
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • This luxurious two story home plan combines a stately Williamsburg exterior style with a large functional floor plan. Nine-foot ceiling heights prevail throughout the first floor while the volume ceiling in the great room is decorated with wood beams and reaches a two-story height.
  • Light radiates through the multiple rear windows to flood the great room, breakfast area and kitchen with natural daylight.

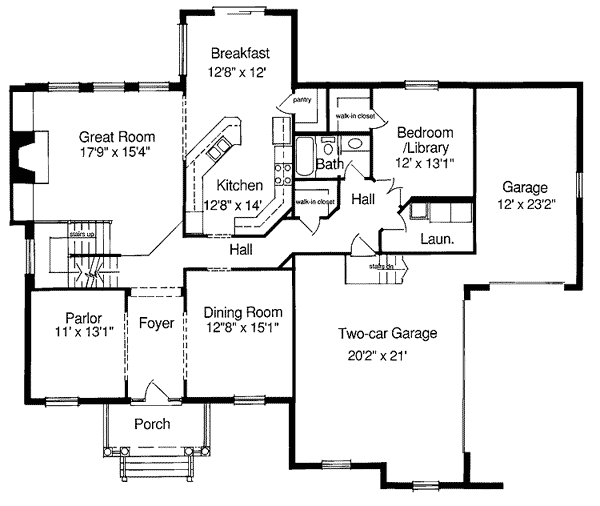

  • Secluded to the rear of the home is an optional library or bedroom which can serve as a comfortable guest room.

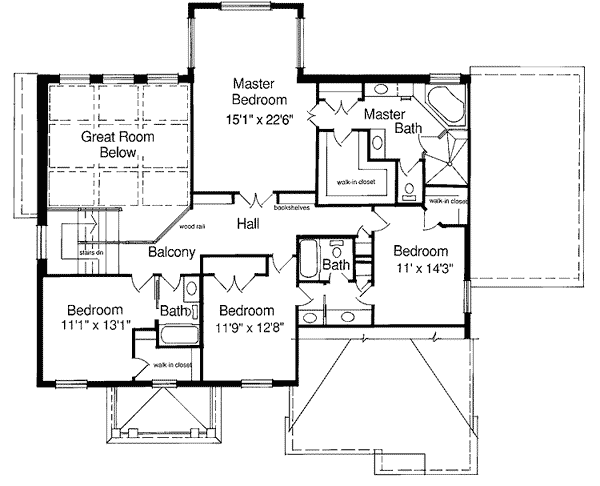

  • Split stairs lead to a second floor balcony offering a dramatic view to the great room. Built-in bookshelves flank the entrance to the large master bedroom suite where a lavish retreat offers a large sitting area surrounded by windows, and a deluxe bath with spacious closets, dual vanities, an oversized whirlpool tub.
  • Three more bedrooms each with large closets, and private access to a bath complete this family friendly home.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
