Sticks and Struts Craftsman Ranch

Plan 72815DA

  • 2,518

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

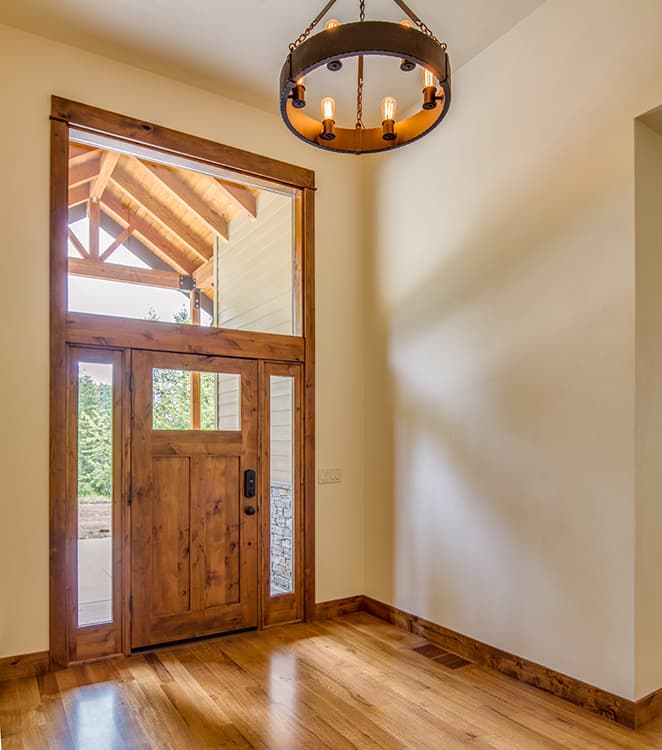

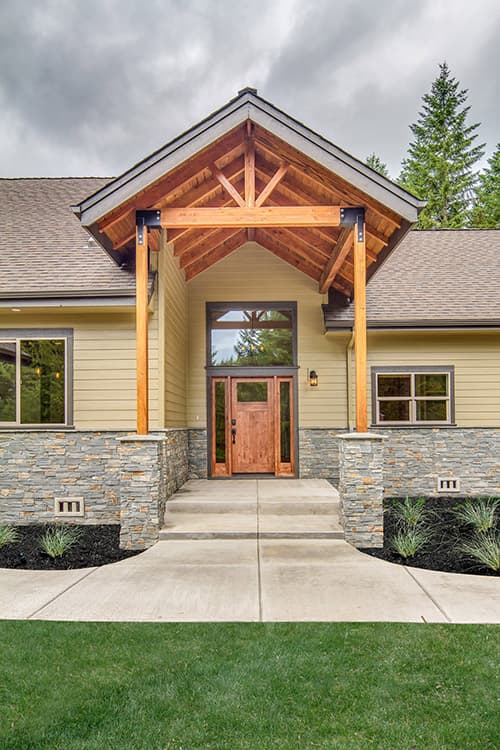

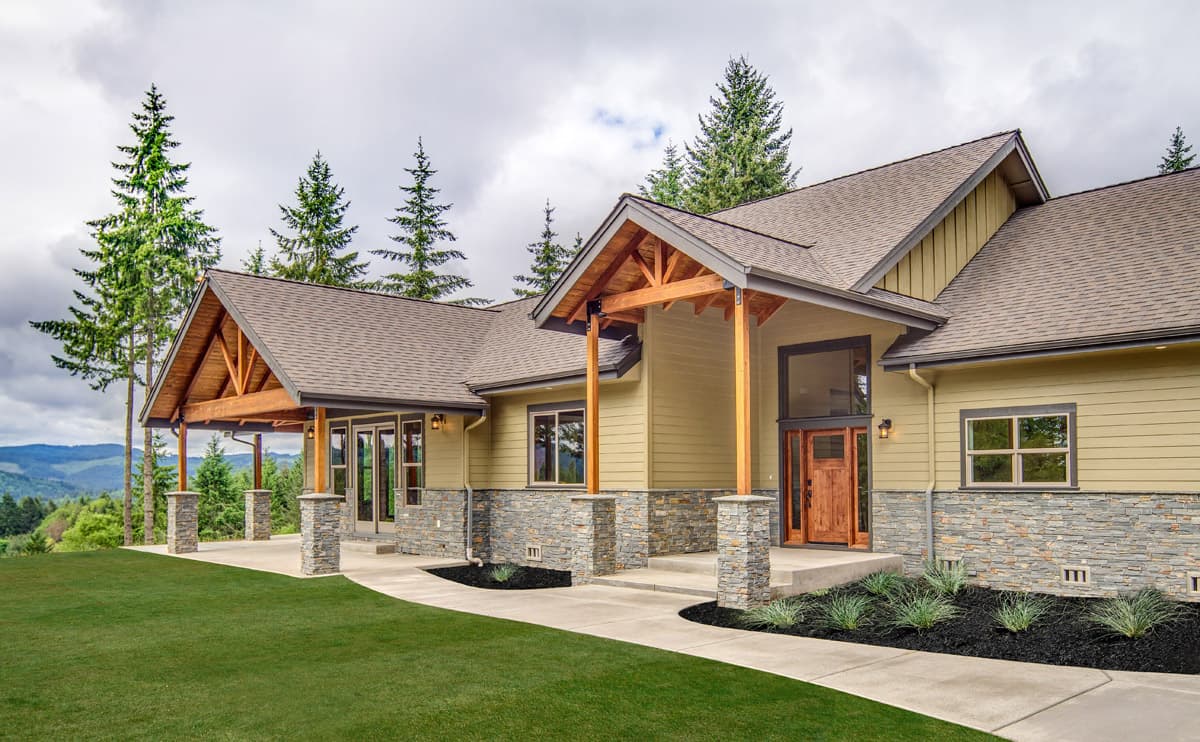

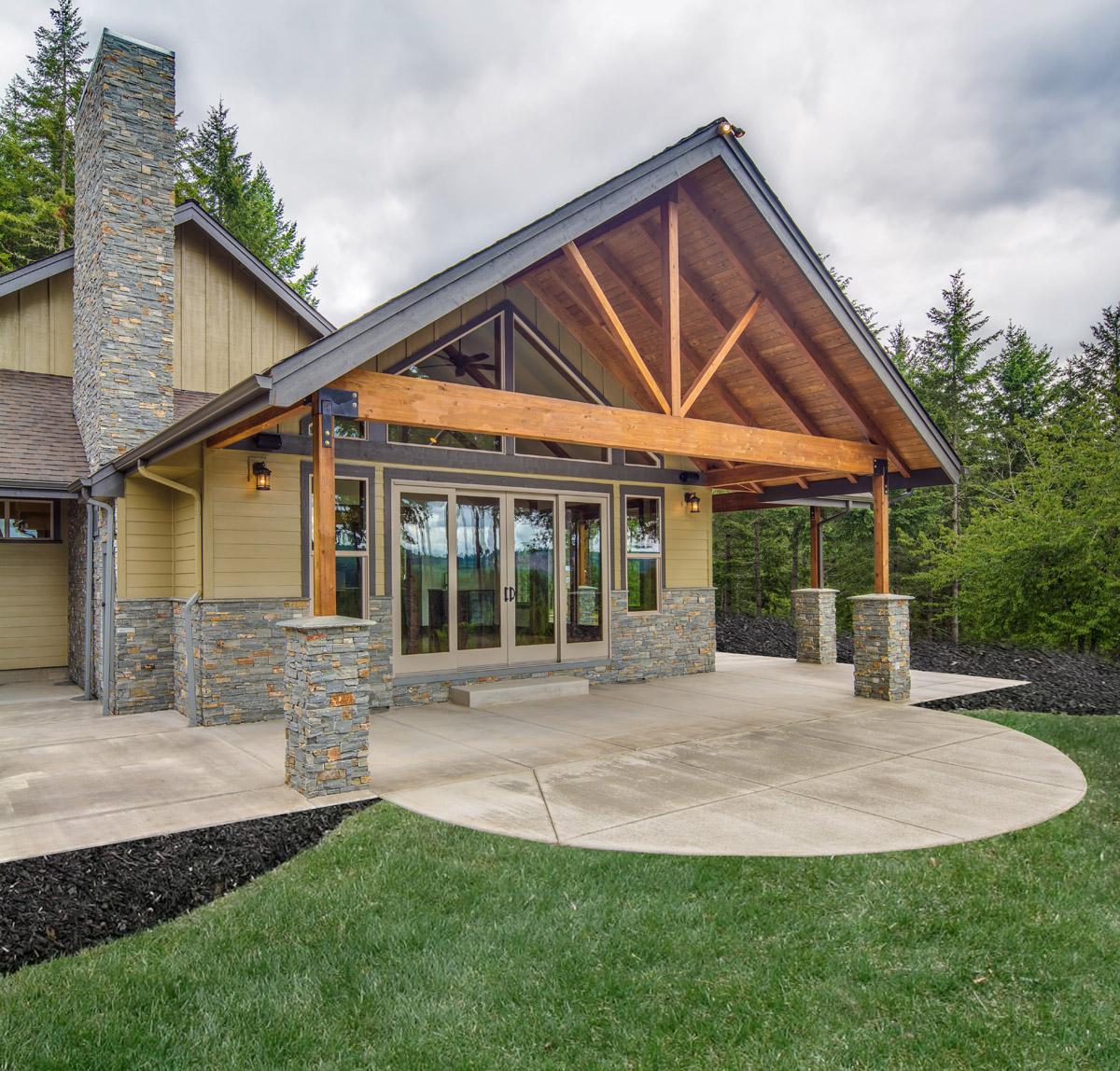

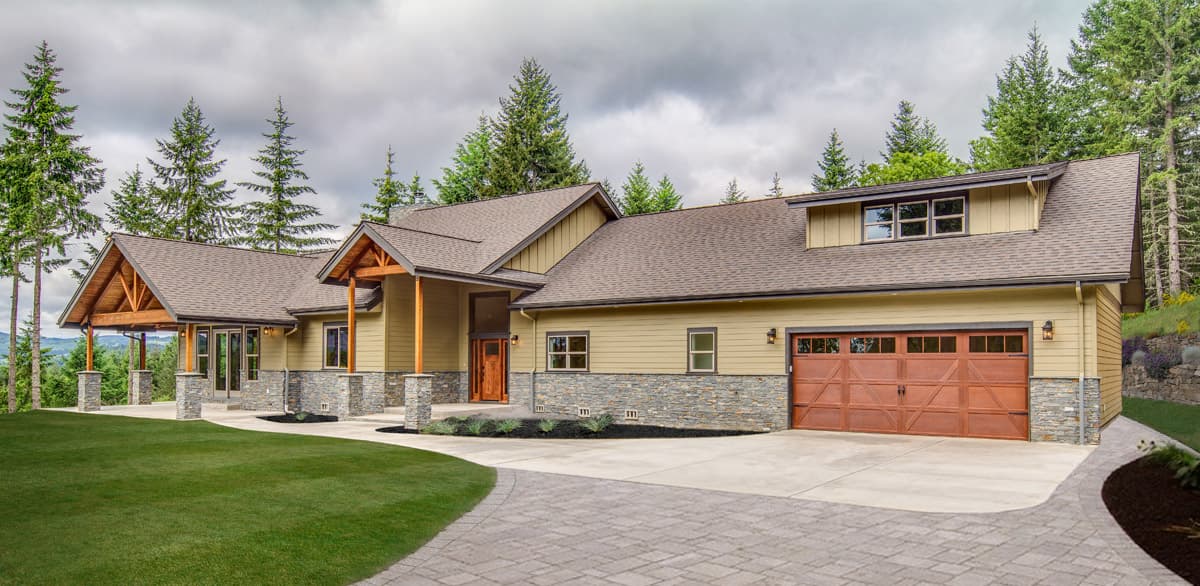

  • Sticks and struts highlight the Craftsman-style front gables in this ranch home plan. Columns and cultured stone frame the vaulted covered porch, creating an inviting entry portico. The slender chimney, too, is clad in cultured stone, and sports an interesting metal cap.

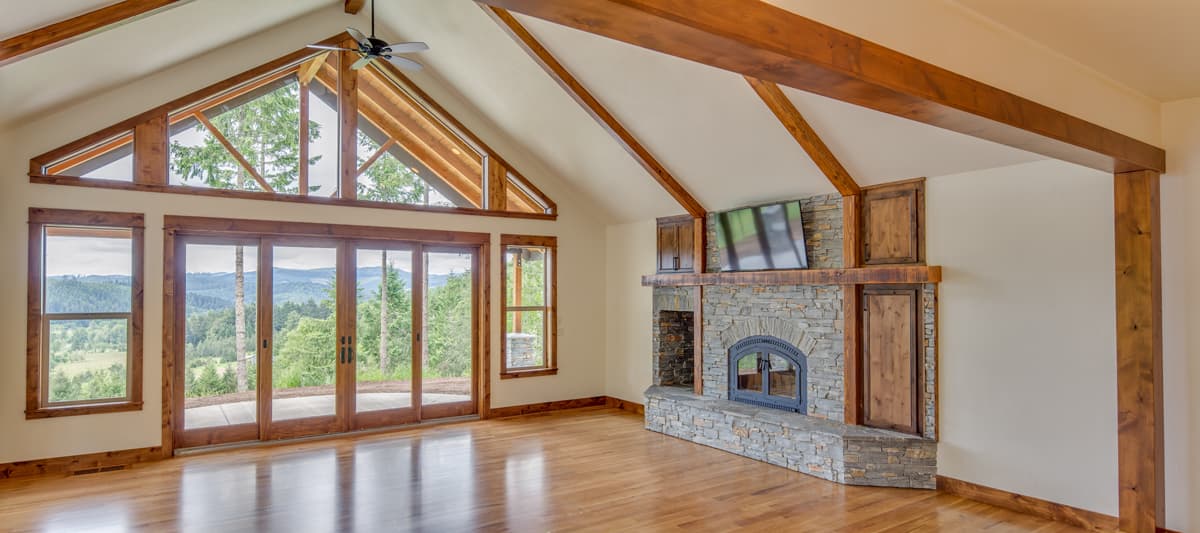

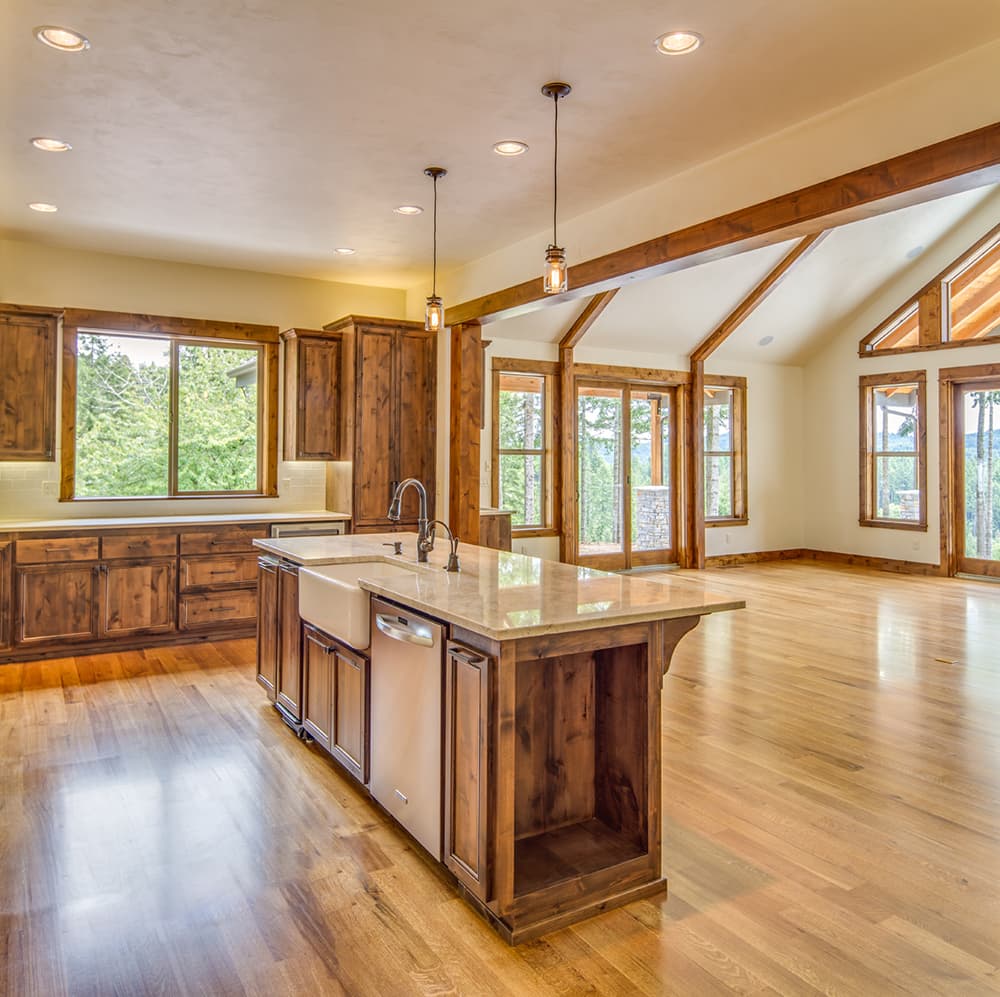

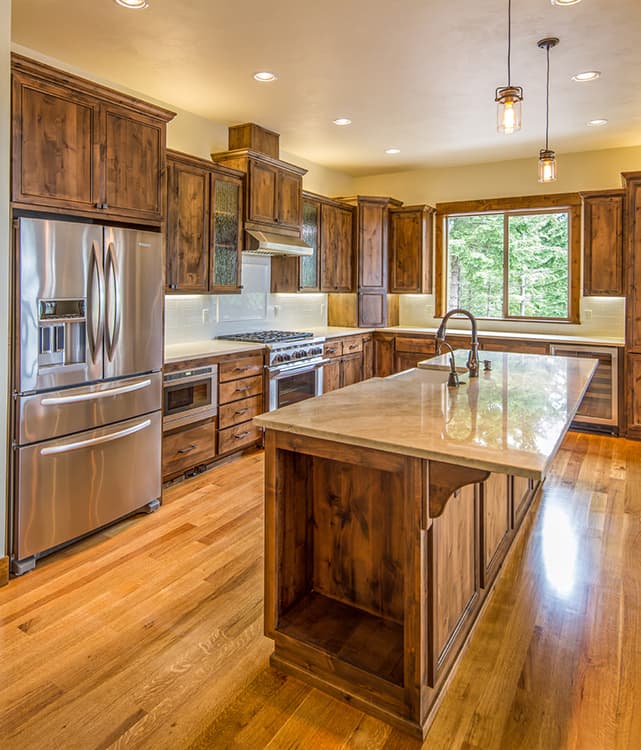

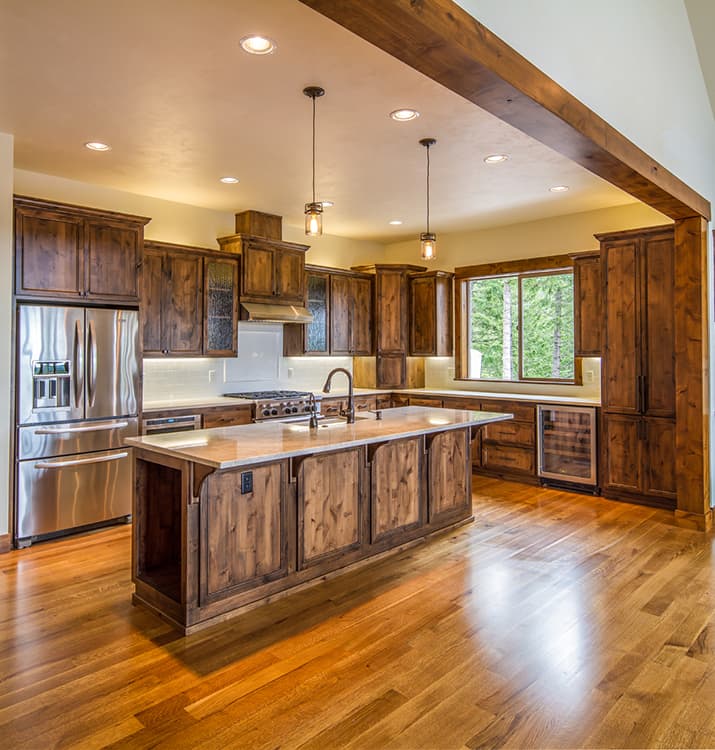

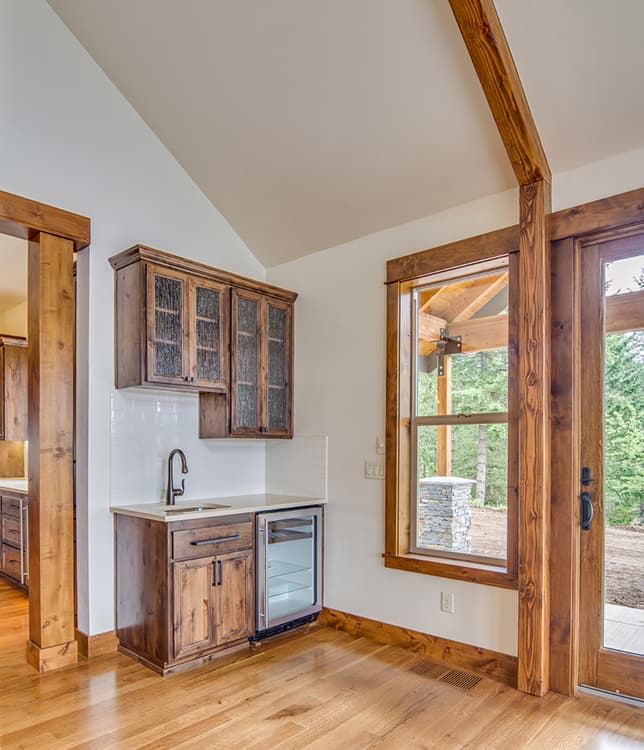

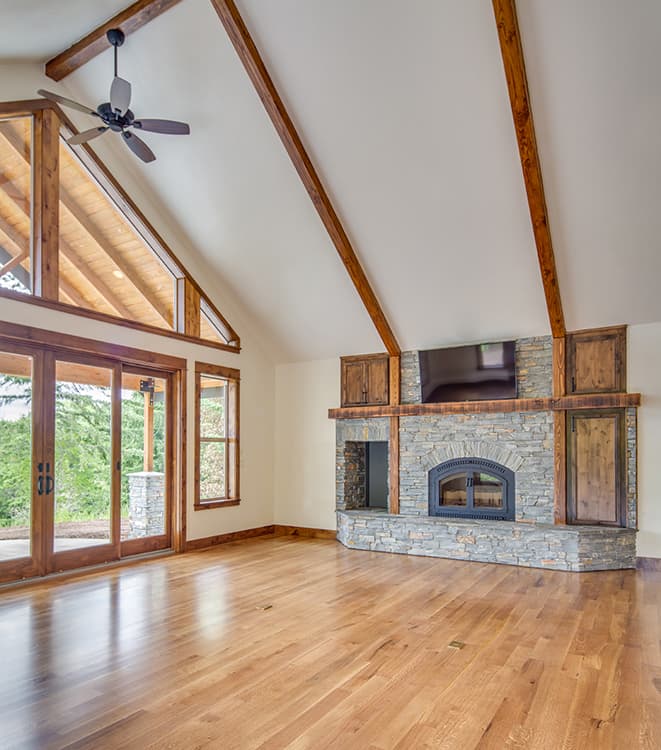

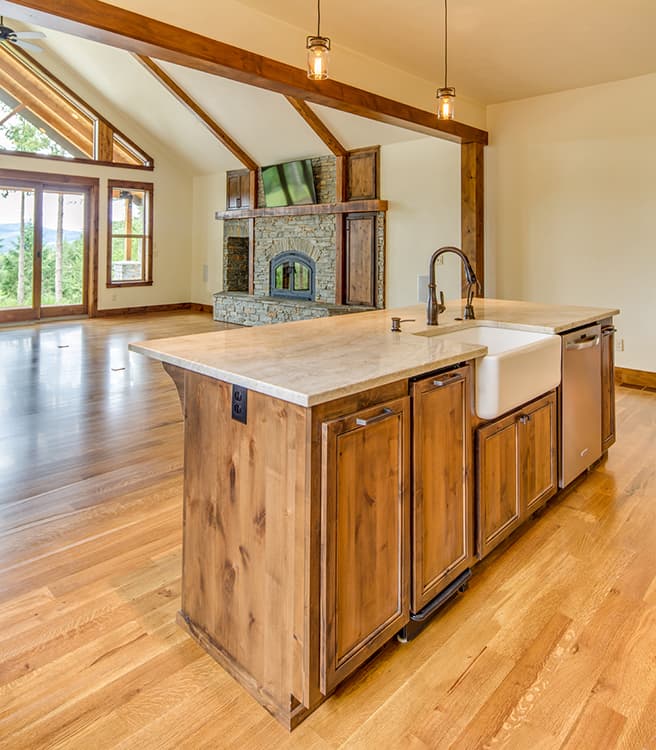

  • A richly glassed vaulted great room with a beverage bar is at the heart of this home. It's open to the kitchen on one side, bounded by a long work island with a flush eating bar. Sliding glass doors at the front and side open onto two covered and vaulted patios, while a wood-burning fireplace offers a focal point on the other side.
  • Bedrooms, including the spacious owners' suite, are at the rear. Suite amenities include a huge walk-in closet and a private covered patio. The bathroom boasts a spa tub, private toilet, dual vanity and walk-in shower. Secondary bedrooms share a bathroom that offers direct entry from both.

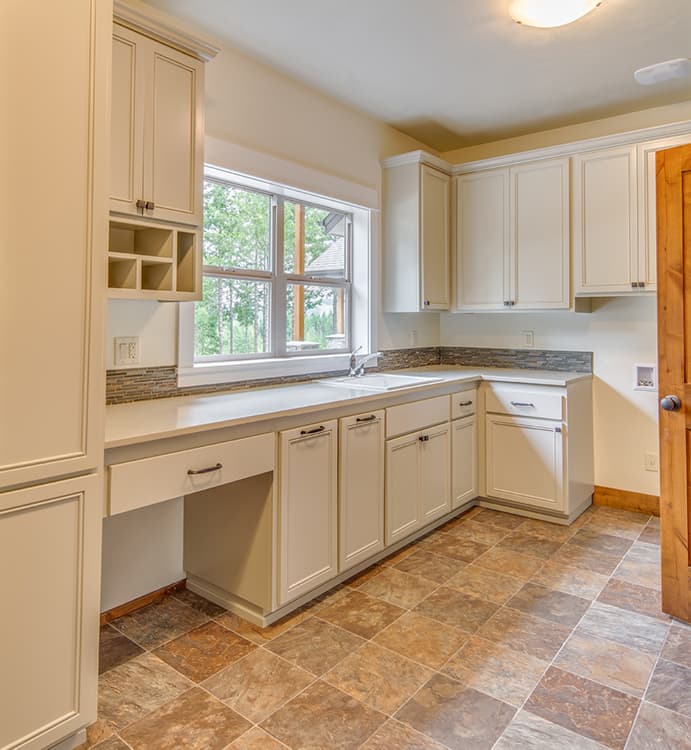

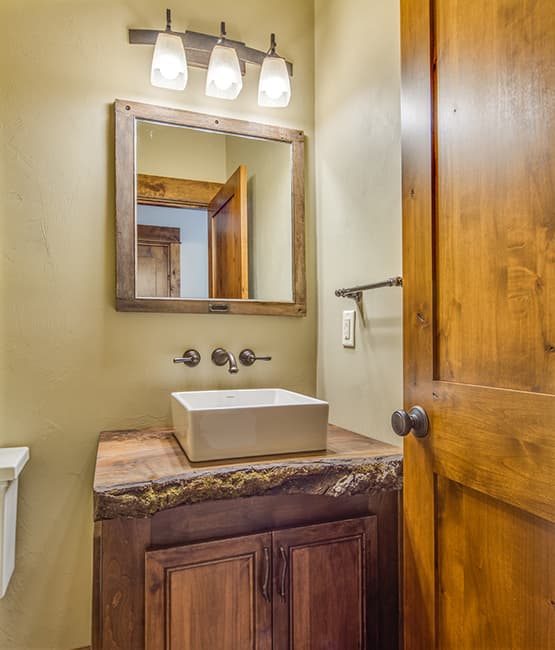

  • A pocket bathroom in the hallway serves guests, and another mini-bathroom is tucked in the hallway that links the two-car garage with the pass-throughutility room. An unfinished bonus room is upstairs.
  • The roof is a truss design with an 8:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

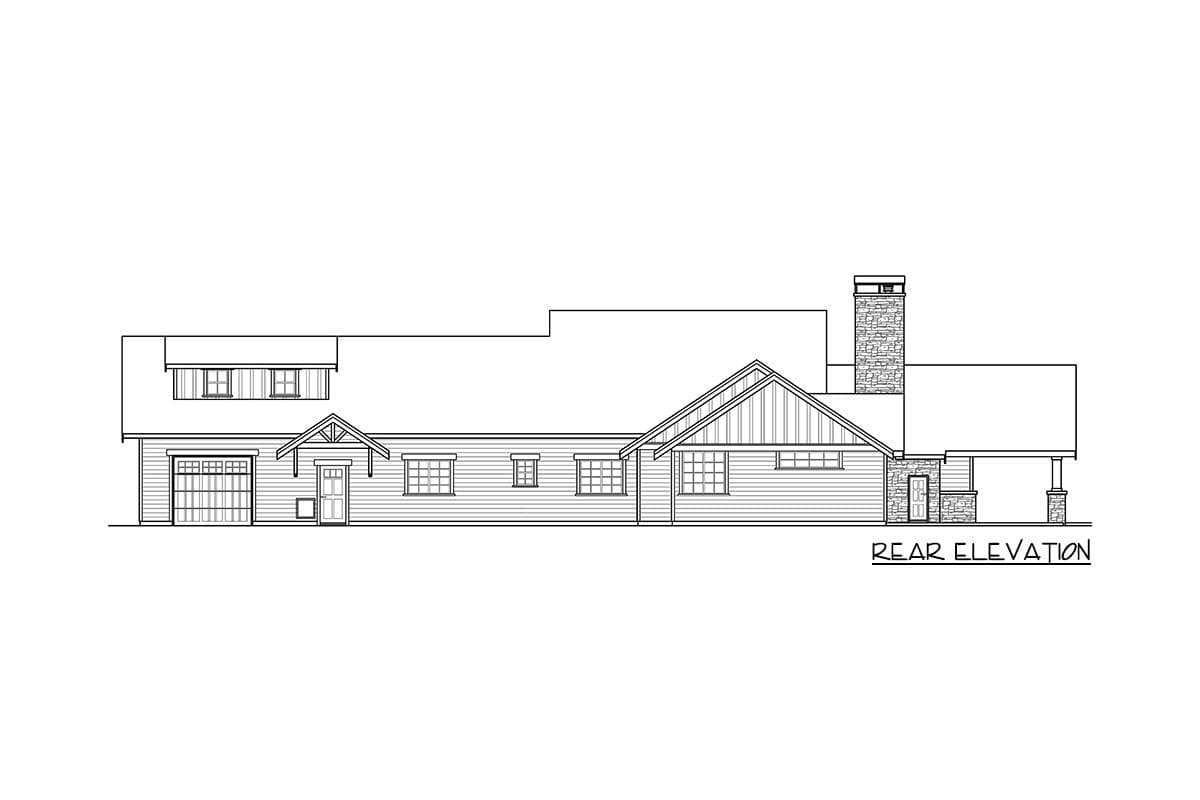

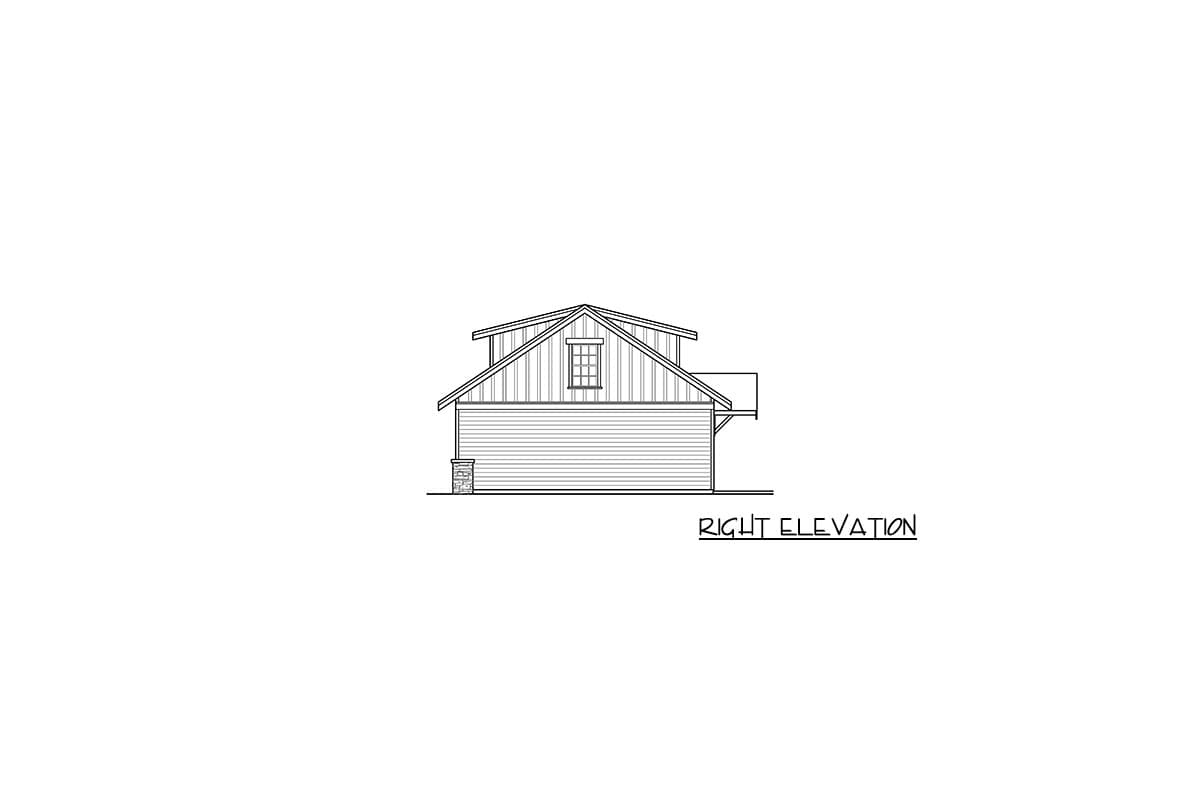

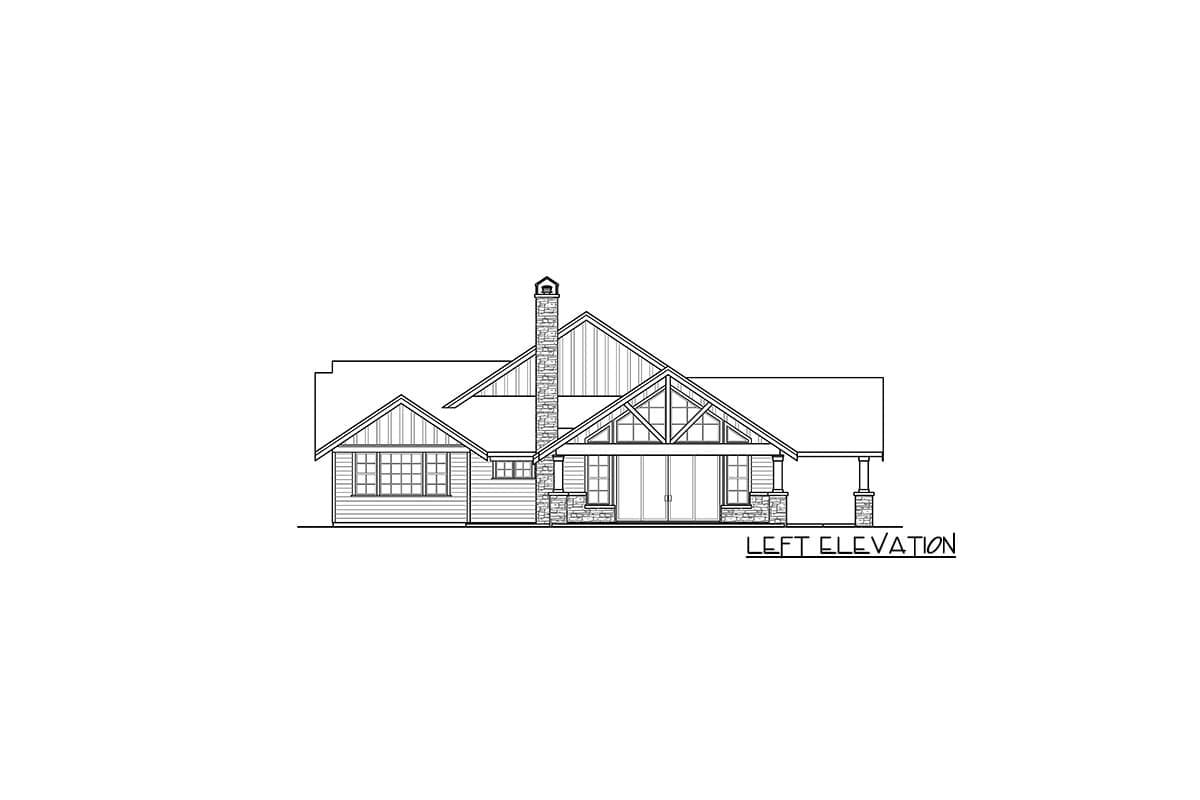

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

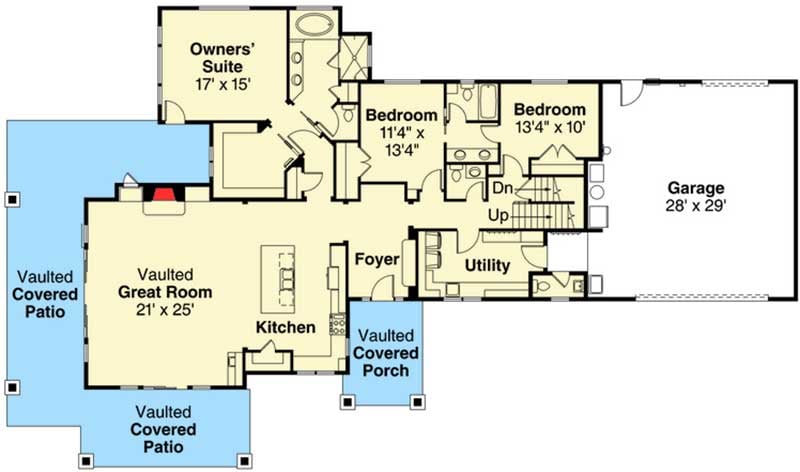

Sticks and Struts Craftsman Ranch - 72815DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sticks and Struts Craftsman Ranch - 72815DA floor plan - Bonus

Sticks and Struts Craftsman Ranch

  • 2,518

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,518 sq. ft.
  • 1st Floor: 2,518 sq. ft.

Dimensions

  • Width: 106' 10"
  • Depth: 62' 0"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 863 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
