Plan 5493LK

Stone Turret Exudes Character

Heated S.F.
3,973
Beds
6
Baths
5
Stories
2
Cars
3

Floor Plan

Plan 5493LK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5493LK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

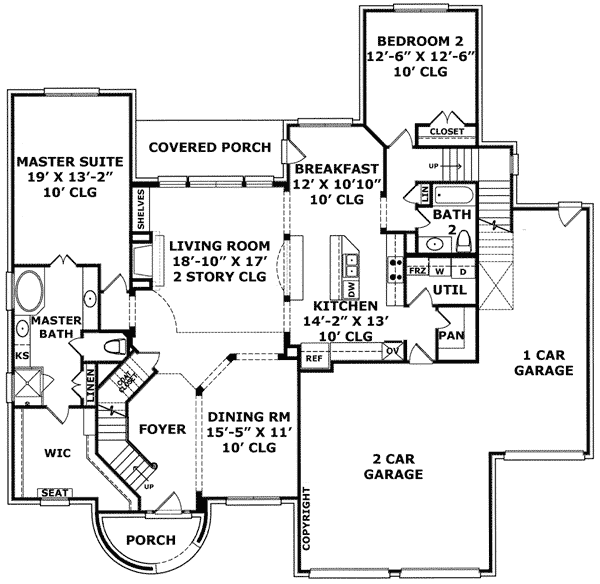

Plan 5493LK: Stone Turret Exudes Character - Floor Plan - Main Level - European

2nd Floor

Plan 5493LK: Stone Turret Exudes Character - Floor Plan - 2nd Floor - European

Plan Details

  • The stone turret with arch top windows exudes character and gives credence to the adage that your home is your castle.
  • Six bedrooms make this spectacular European style home plan an excellent design for a large family.
  • The master suite is located downstairs for privacy and features a spa-like master bath and an enormous walk in closet featuring natural light from the window and a built in seat beneath.
  • A second bedroom for the in-laws is split away from the master suite for privacy.
  • The living room, dining room, kitchen and breakfast area are wide open and make this plan great for entertaining.
  • Upstairs, four additional bedrooms-each with a walk in closet-and a large game/media room complete the plan.
  • Related Plan: Get an alternate exterior with house plan 5491LK.

What's Included

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
