Plan 17570LV Storybook Inspiration with Secret Passage

3,166 3 3.5 2 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Storybook Inspiration with Secret Passage

Plan 17570LV

  • 3,166

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This storybook-inspired house plan will dazzle the young at heart and comes complete with a secret passage to the bonus room over the garage.
  • When entering the home you are invited to step into a majestic library complete with a roaring fireplace.
  • It is home to a circular staircase leading to the second floor. There, you are met by a loft and extended library festooned with built-in bookcases. Look closely, one bookcase leads to a secret passage giving you access to a concealed bonus room over the garage.
  • On the main floor the master suite accesses a covered lanai. The upstairs suites have their own private baths.
  • The family room features an angled fireplace and accesses the rear patio. Nearby, the kitchen opens to the light-filled breakfast room.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

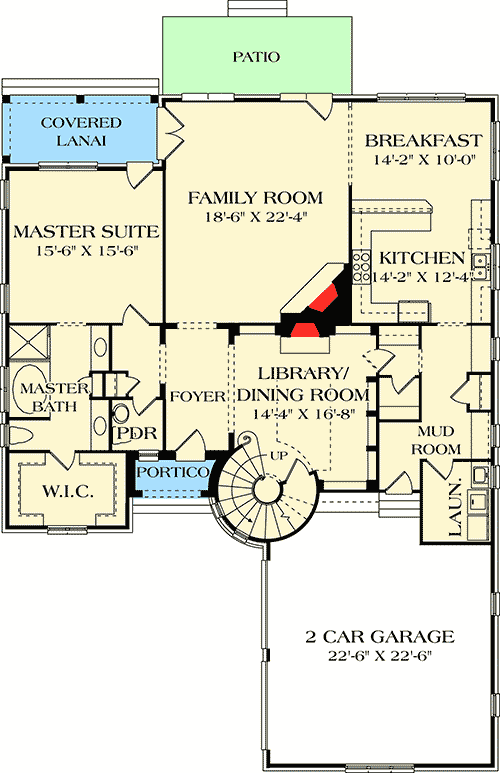

Storybook Inspiration with Secret Passage - 17570LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

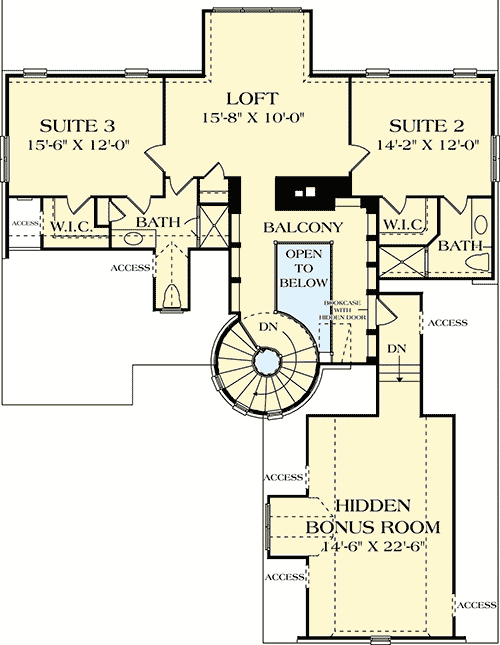

Storybook Inspiration with Secret Passage - 17570LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,166 sq. ft.
  • 1st Floor: 1,980 sq. ft.
  • 2nd Floor: 1,186 sq. ft.
  • Bonus: 433 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 10"
  • Depth: 69' 2"

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Storybook Inspiration with Secret Passage

  • 3,166

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,550
  • PDF - Single-Build $1,550
  • CAD - Single-Build $3,099
  • View all purchase option online

About This Plan

  • This storybook-inspired house plan will dazzle the young at heart and comes complete with a secret passage to the bonus room over the garage.
  • When entering the home you are invited to step into a majestic library complete with a roaring fireplace.
  • It is home to a circular staircase leading to the second floor. There, you are met by a loft and extended library festooned with built-in bookcases. Look closely, one bookcase leads to a secret passage giving you access to a concealed bonus room over the garage.
  • On the main floor the master suite accesses a covered lanai. The upstairs suites have their own private baths.
  • The family room features an angled fireplace and accesses the rear patio. Nearby, the kitchen opens to the light-filled breakfast room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,166 sq. ft.
  • 1st Floor: 1,980 sq. ft.
  • 2nd Floor: 1,186 sq. ft.
  • Bonus: 433 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 10"
  • Depth: 69' 2"

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
