Striking 4-Bed Farmhouse Plan with Walk-Out Basement

Pageloader

Striking 4-Bed Farmhouse Plan with Walk-Out Basement

Plan 23771JD

  • 4,348

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This exciting, 4-bedroom farmhouse plan features a covered, front porch, stone accents and cross, gabled roof lines. A large, back porch includes a vaulted ceiling and is accessible from three rooms, encouraging you to enjoy the outdoor elements.
  • Step through the front entry and a sought-after, open floor plan greets you. The two-story, great room features a fireplace and large wall of sliding doors offering abundant natural light. An oversized island in the kitchen includes seating for three, and the walk-in pantry sits across a powder bath.
  • Your first-floor, master suite offers access to the back porch, dual sinks in the 4-fixture bathroom, and an expansive, walk-in closet.
  • Upstairs, a bridge-style hallway overlooks the great room, and separates the two bedrooms, each with a full bathroom.
  • A walk-out basement leads to a covered patio and features a large, media room, and a fourth bedroom, well suited for guests.
  • A private, bonus room - factored into the total living area figure - sits atop the 3-car garage and maximizes versatility.
  • Related Plan: Eliminate the basement with house plan 23770JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

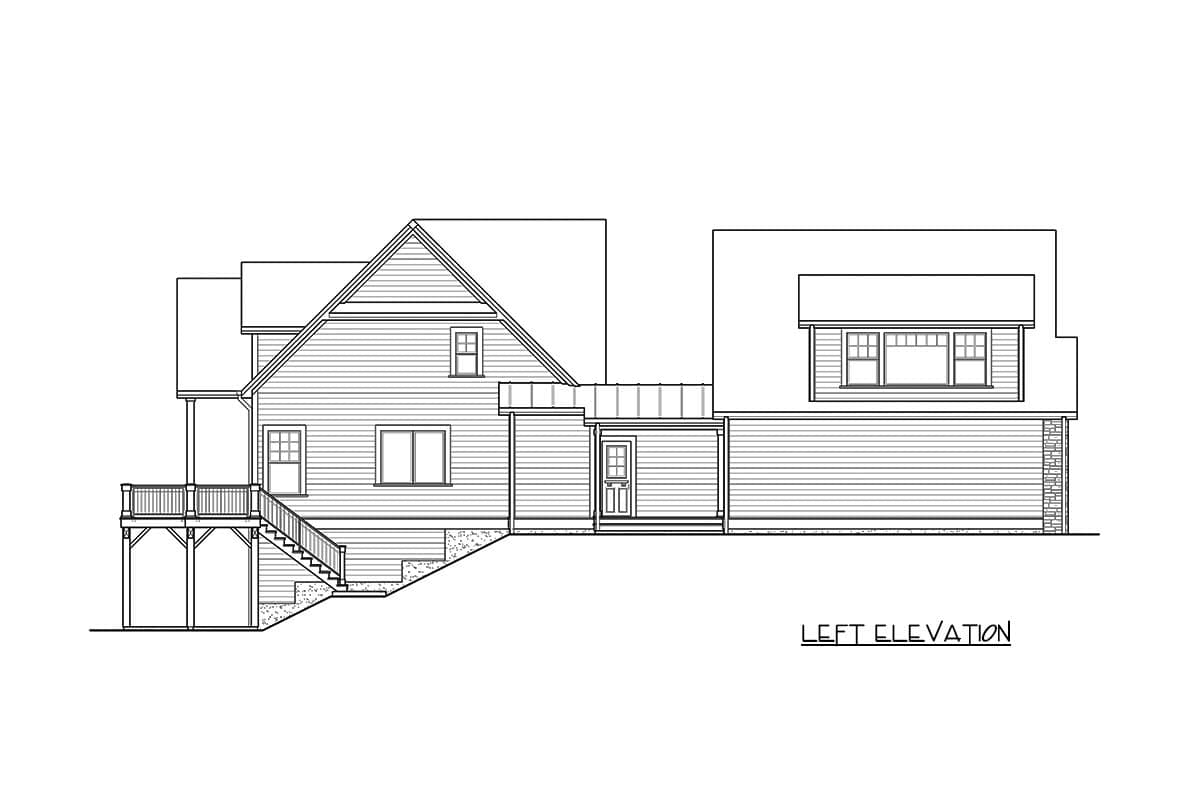

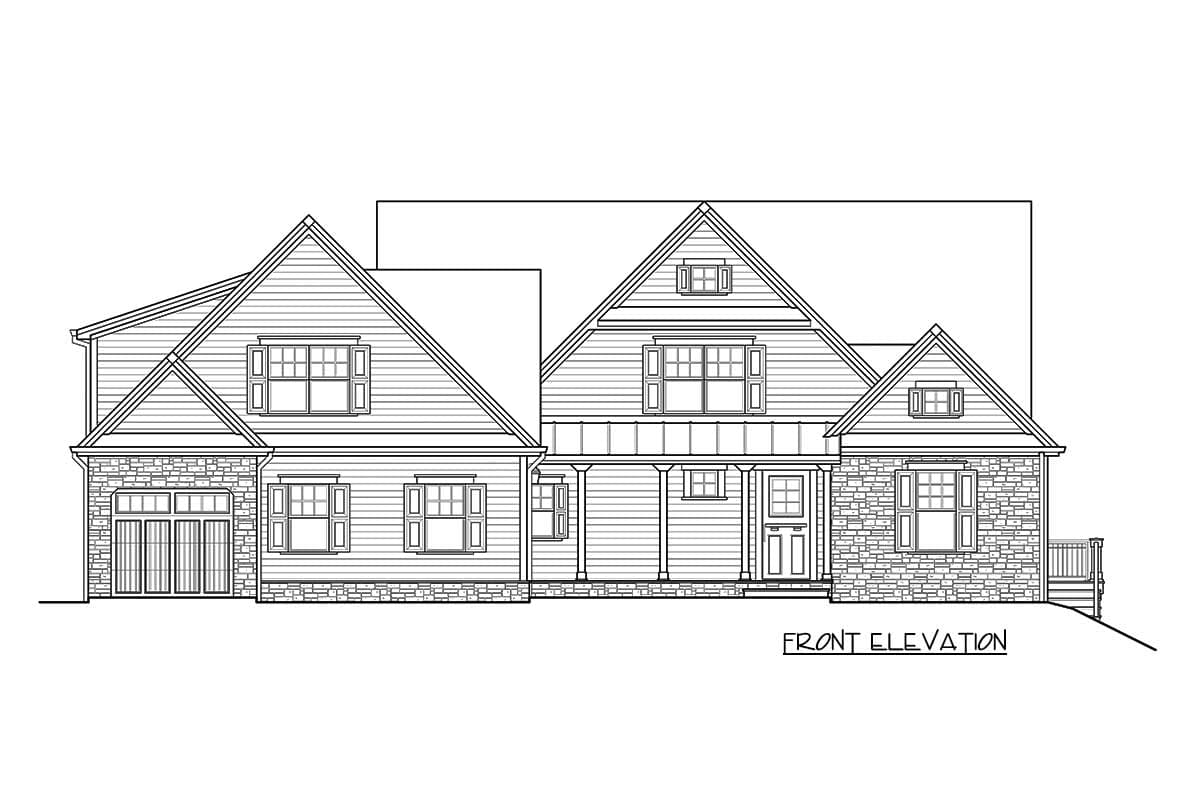

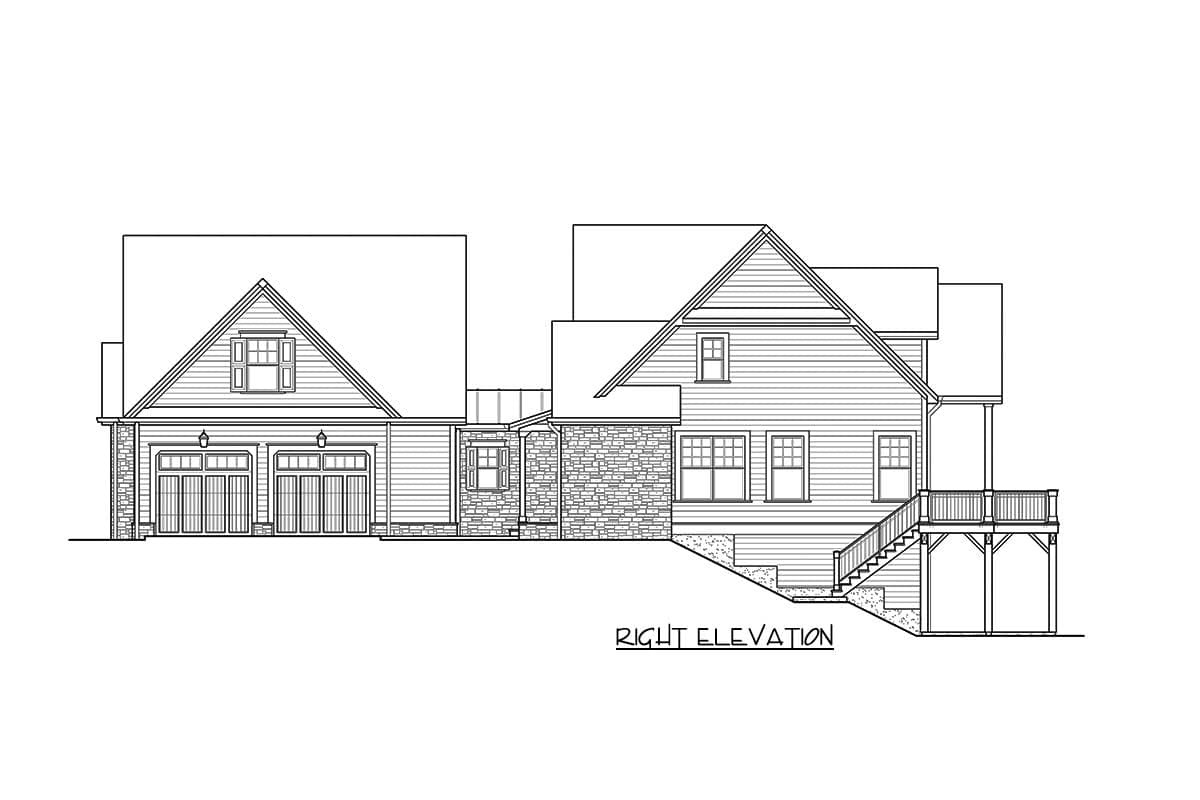

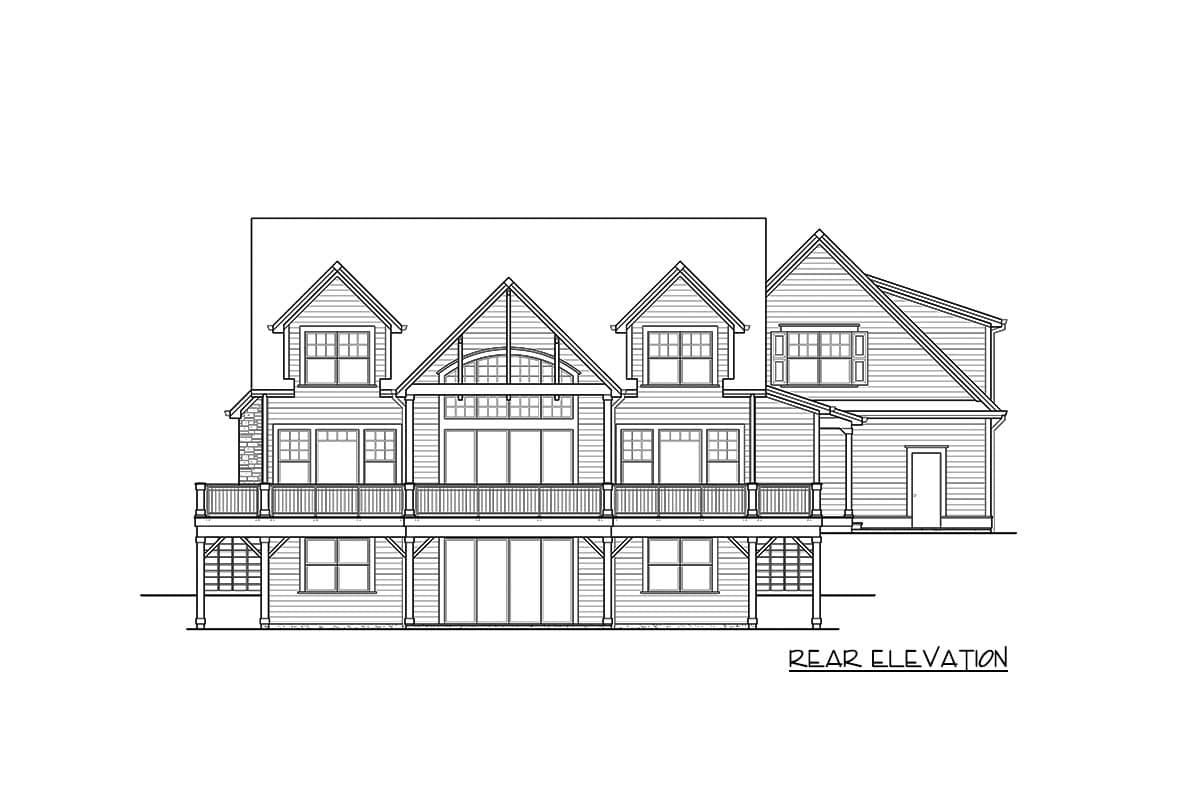

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Striking 4-Bed Farmhouse Plan with Walk-Out Basement

  • 4,348

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,800
  • 5 Sets PLUS $1,950
  • CAD - multi-use $3,050
  • View all purchase option online

About This Plan

  • This exciting, 4-bedroom farmhouse plan features a covered, front porch, stone accents and cross, gabled roof lines. A large, back porch includes a vaulted ceiling and is accessible from three rooms, encouraging you to enjoy the outdoor elements.
  • Step through the front entry and a sought-after, open floor plan greets you. The two-story, great room features a fireplace and large wall of sliding doors offering abundant natural light. An oversized island in the kitchen includes seating for three, and the walk-in pantry sits across a powder bath.
  • Your first-floor, master suite offers access to the back porch, dual sinks in the 4-fixture bathroom, and an expansive, walk-in closet.
  • Upstairs, a bridge-style hallway overlooks the great room, and separates the two bedrooms, each with a full bathroom.
  • A walk-out basement leads to a covered patio and features a large, media room, and a fourth bedroom, well suited for guests.
  • A private, bonus room - factored into the total living area figure - sits atop the 3-car garage and maximizes versatility.
  • Related Plan: Eliminate the basement with house plan 23770JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

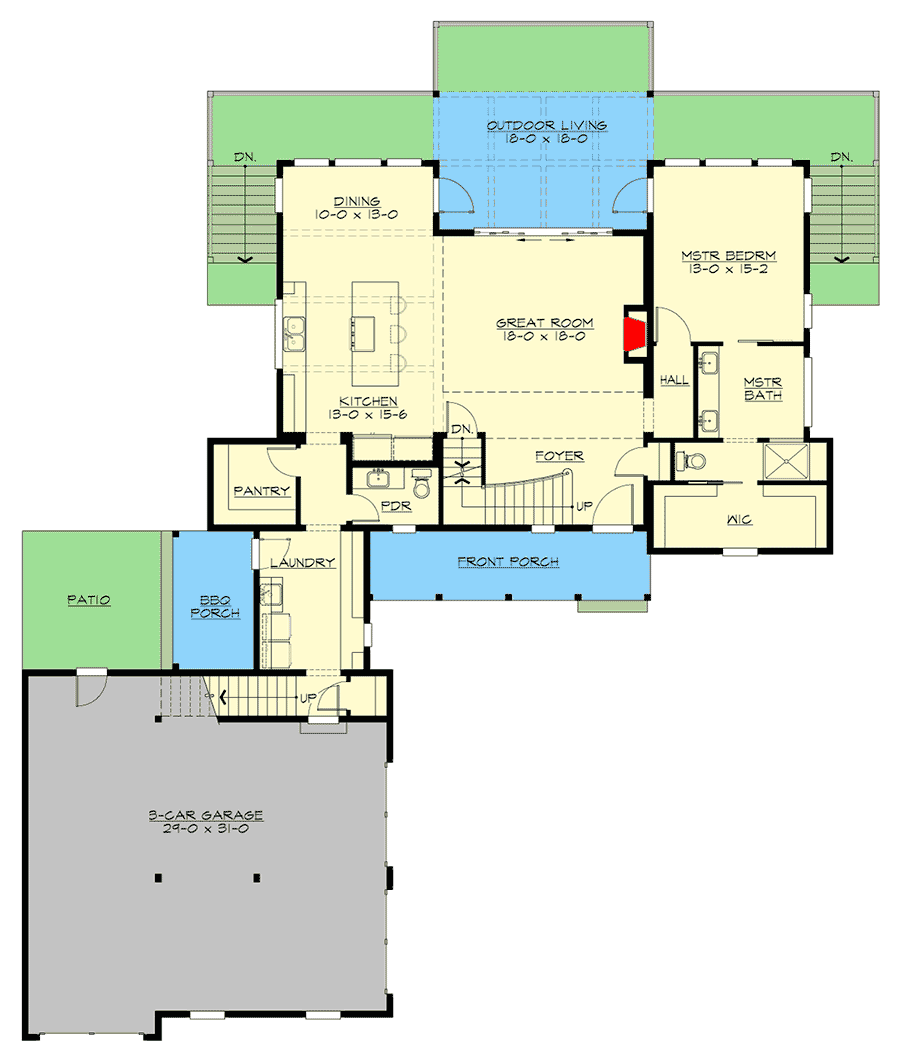

  • Main Level

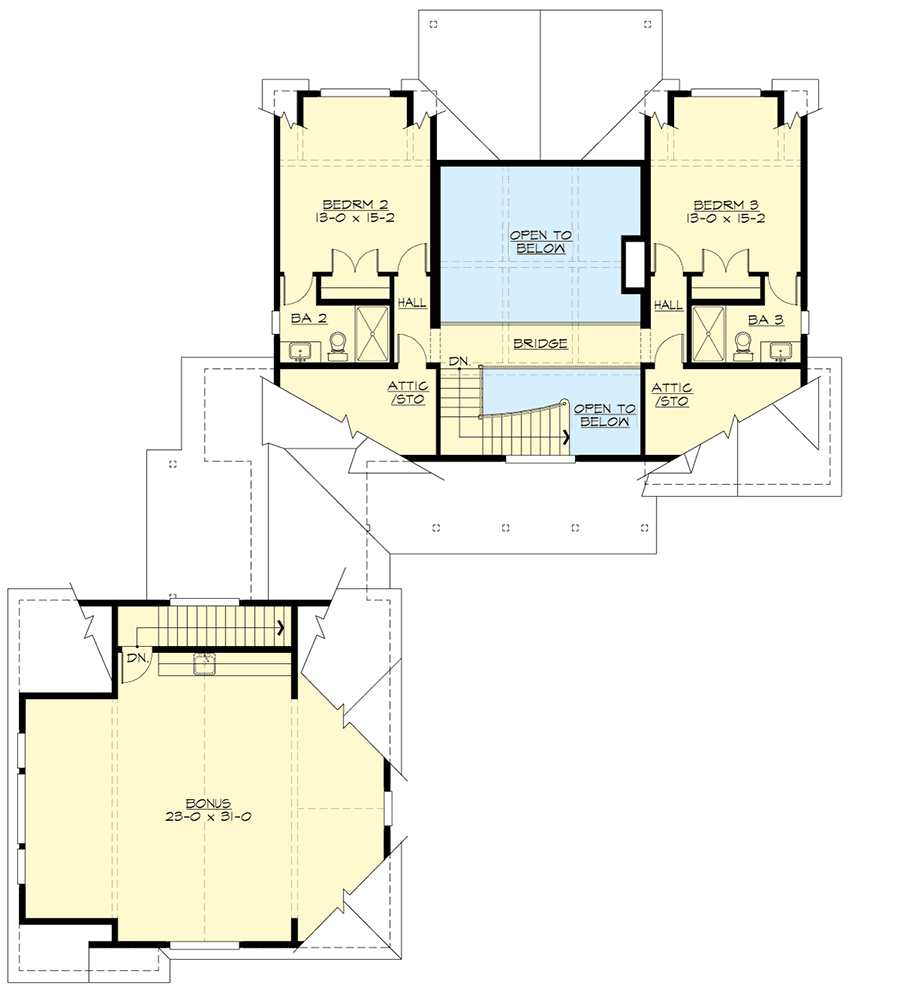

  • Second Level

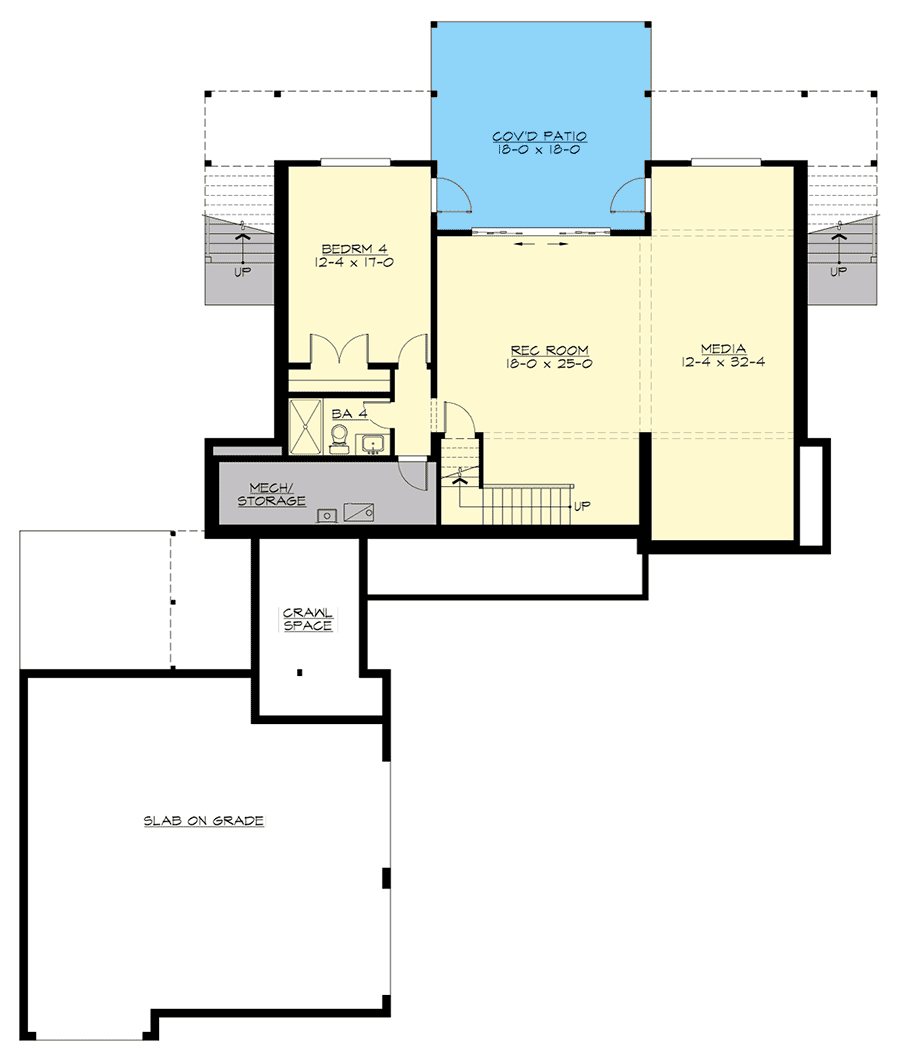

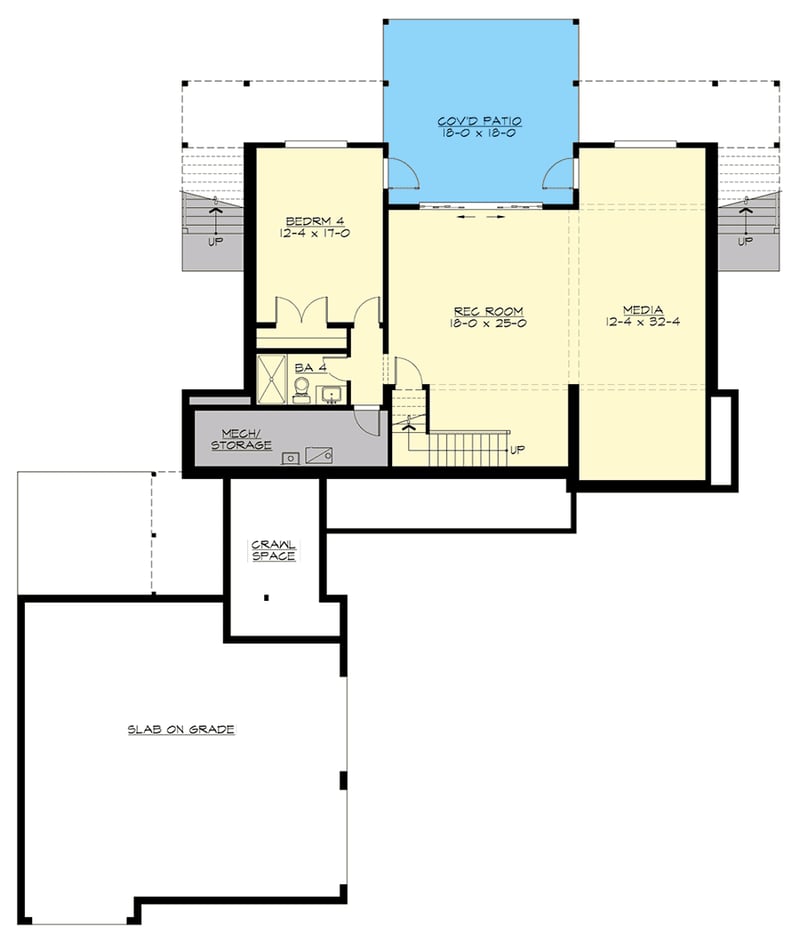

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,348 sq. ft.
  • Lower Level: 1,313 sq. ft.
  • 1st Floor: 1,635 sq. ft.
  • 2nd Floor: 1,400 sq. ft.
  • Porch, Rear: 324 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 82' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 940 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
