Striking Modern House Plan with Courtyard and Drive-Under Garage
Heated S.F.
2,682
Beds
3
Baths
2.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details
  • Clean, straight lines and lots of glass give a bold look to this striking Modern house plan.
  • Enter the home through the large ground level foyer that also has a laundry room and bench with lockers.
  • Head up the stairs to the first floor where you have a huge, open great room that combines the cooking, eating and living spaces.
  • A wall of glass overlooks a private partially-covered courtyard.
  • The master suite is at the back of the home and it is the only bedroom on this level.
  • Relax in the master sitting area topped with beams.

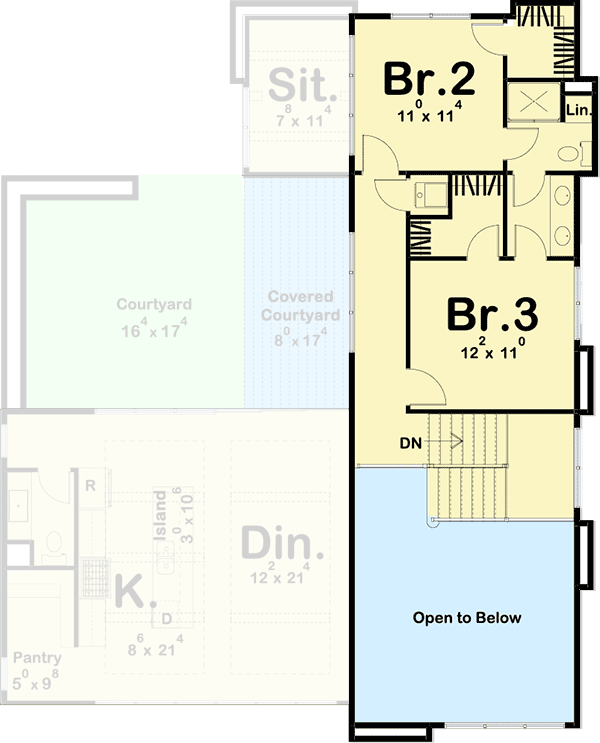

  • Each of the two bedrooms on the top floor have walk-in closets and share a connected bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

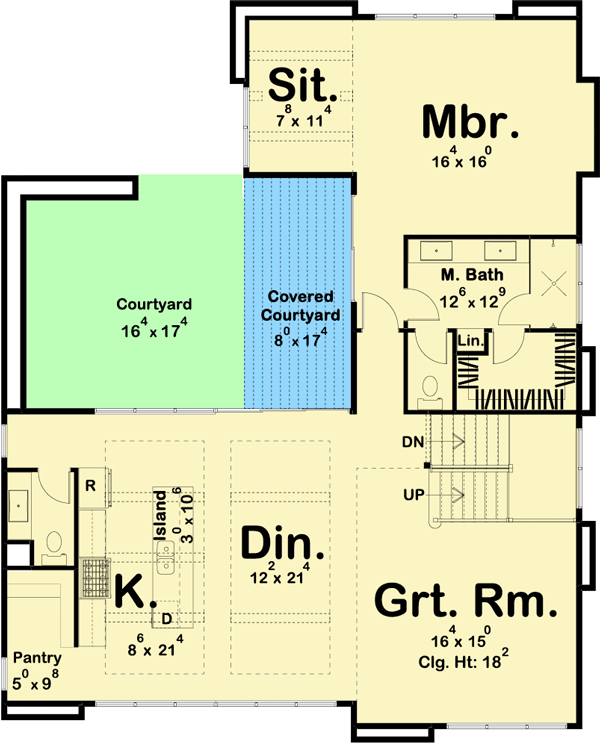

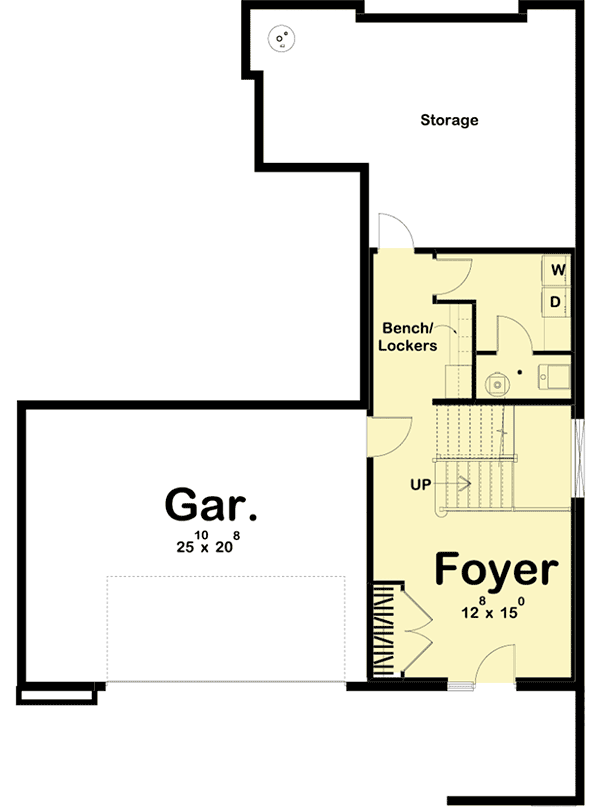

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
