Striking Modern House Plan with Game Room - 3312 Sq Ft

Plan 54222HU

3,312
Heated s.f.
3
Beds
3.5
Baths
1
Stories
3
Cars

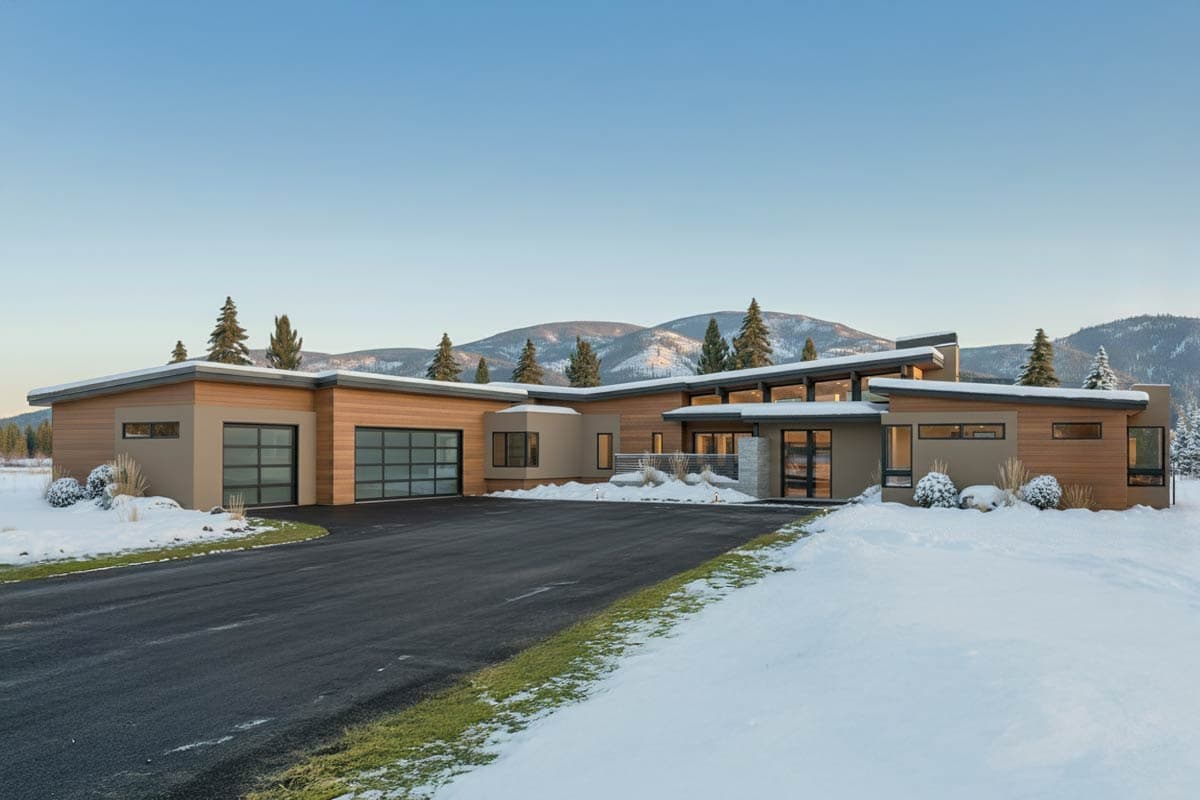

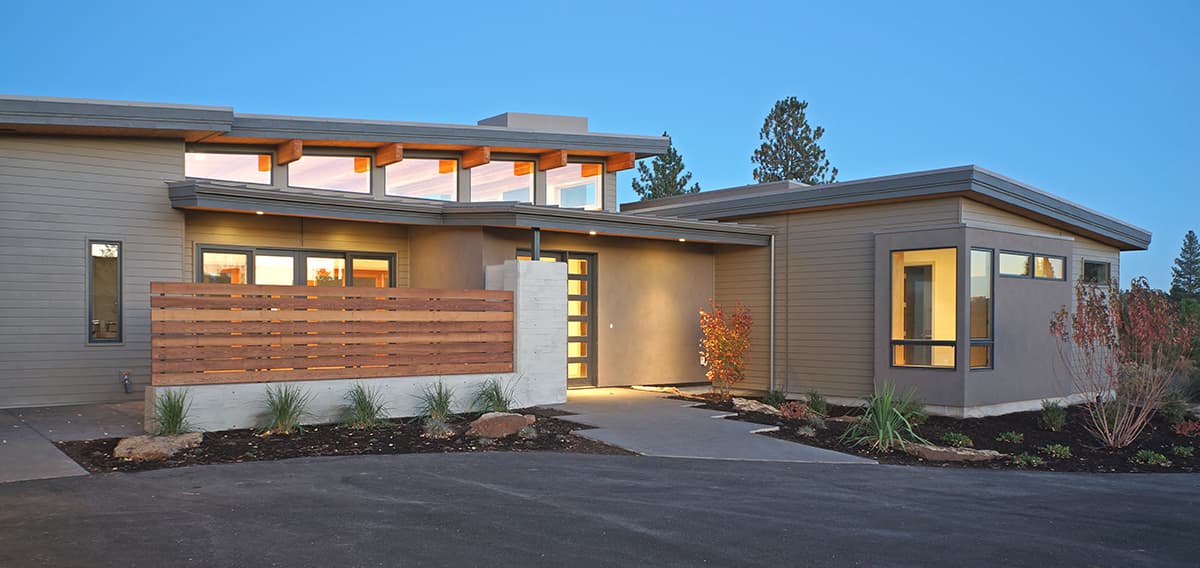

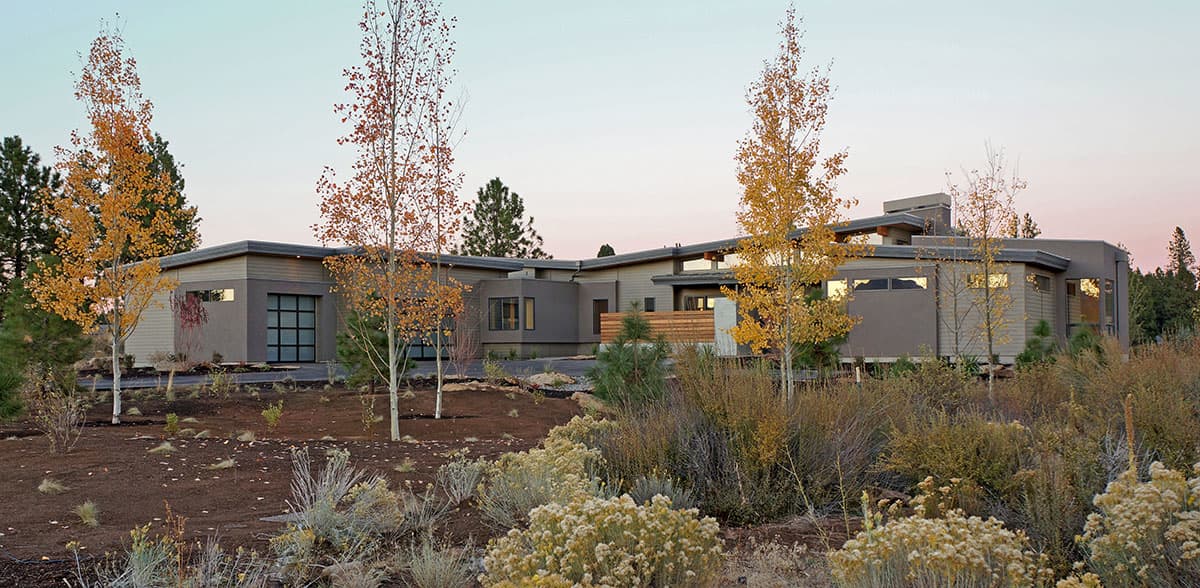

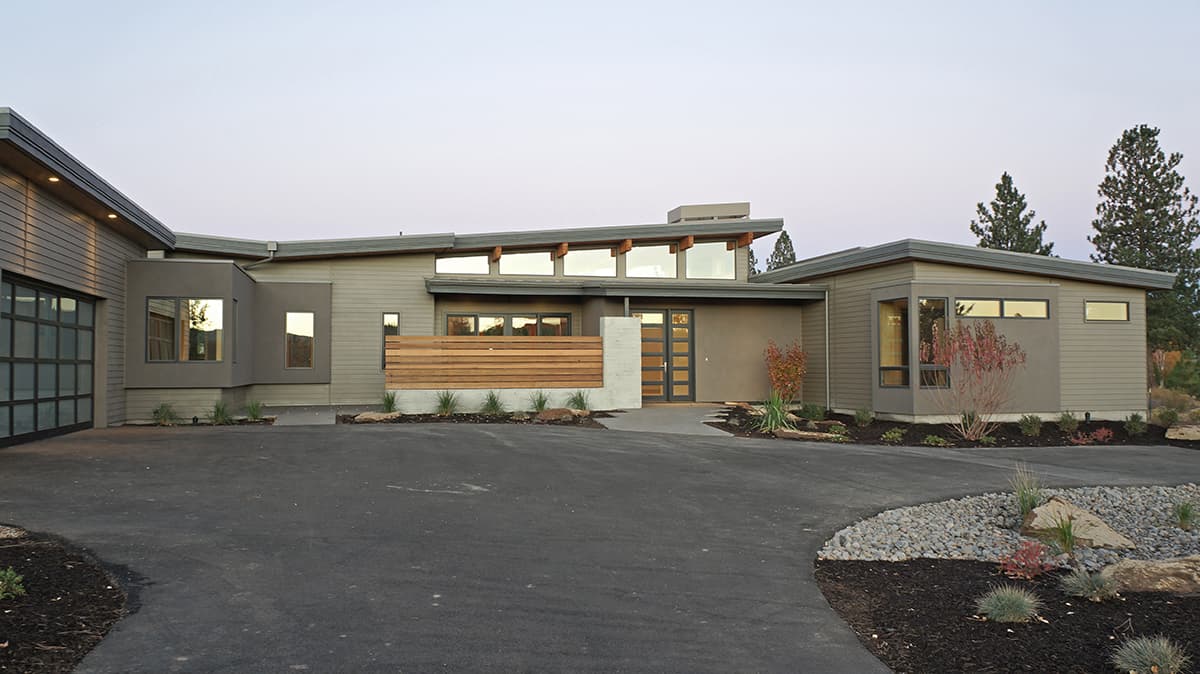

With a combination of flat and shed roof lines, this Modern house plan has a striking look, with that "Wow" factor.

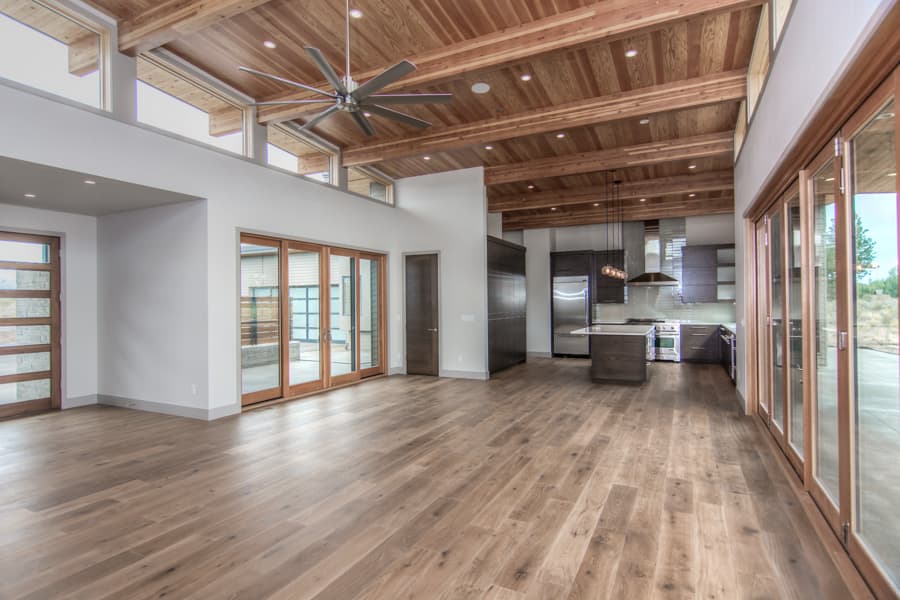

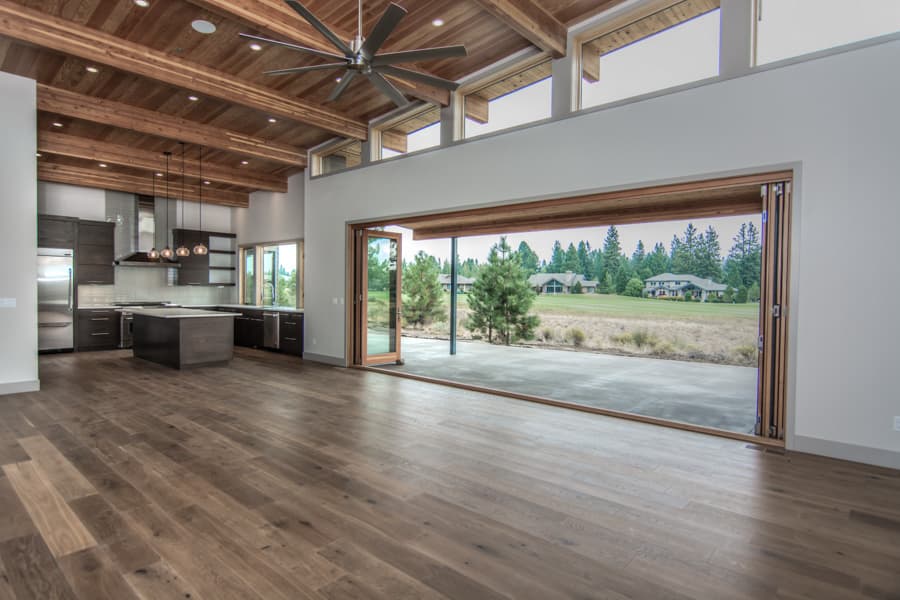

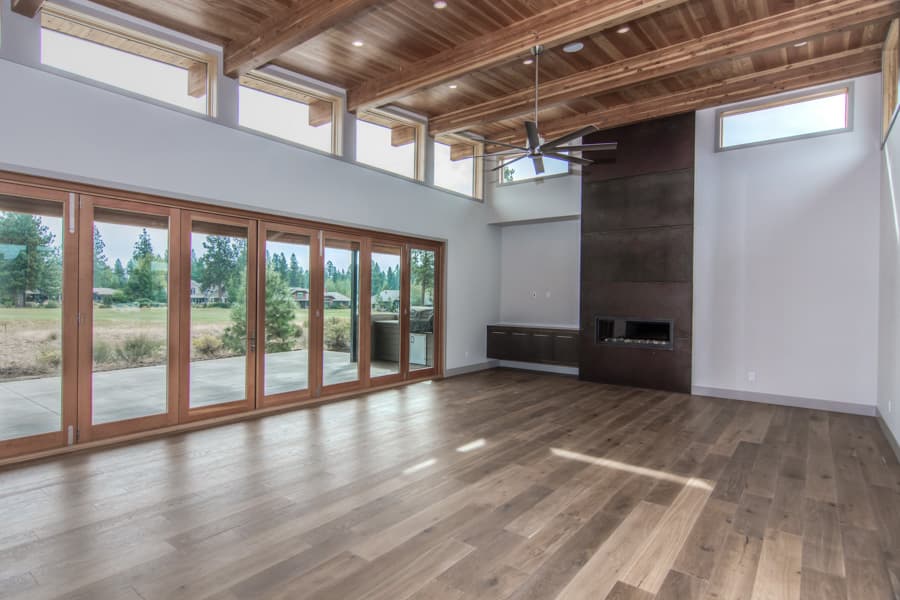

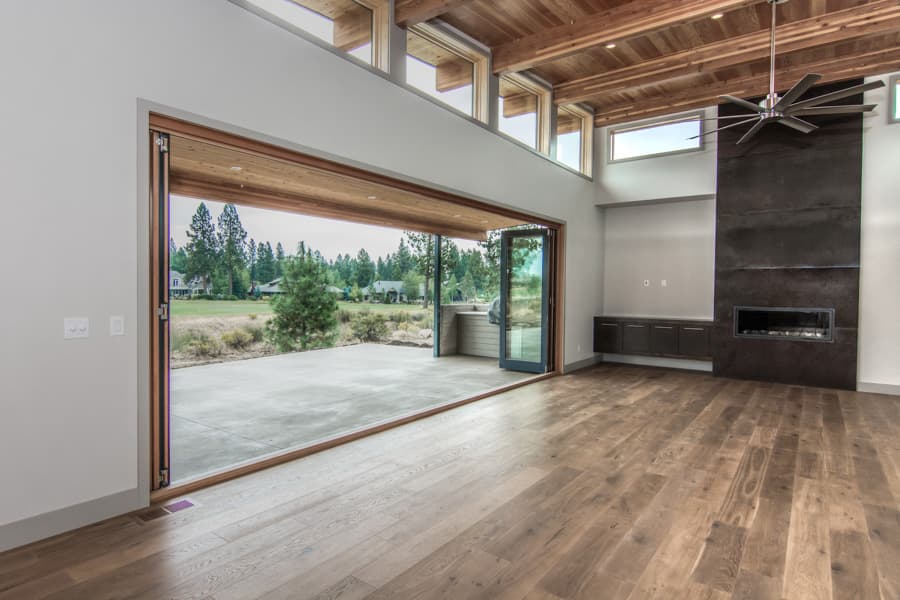

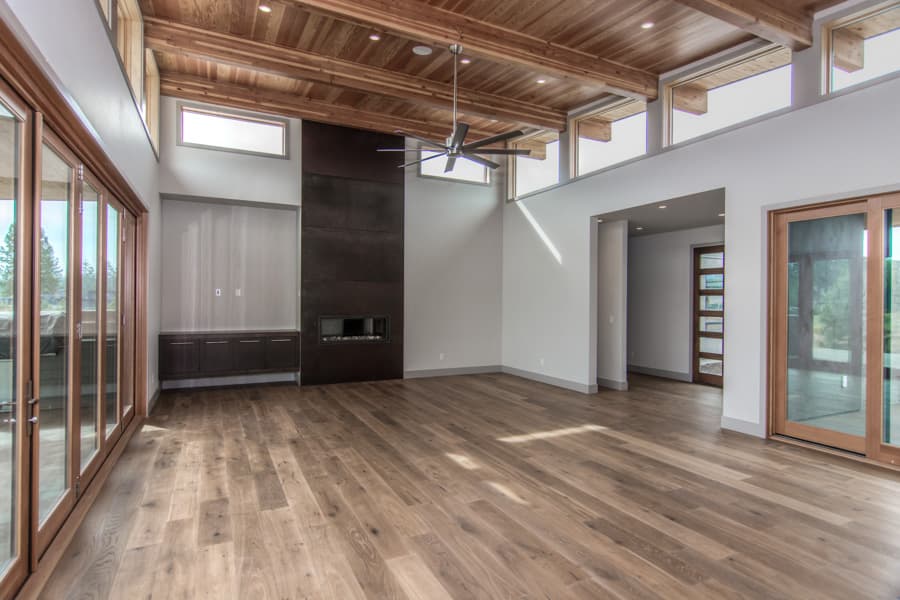

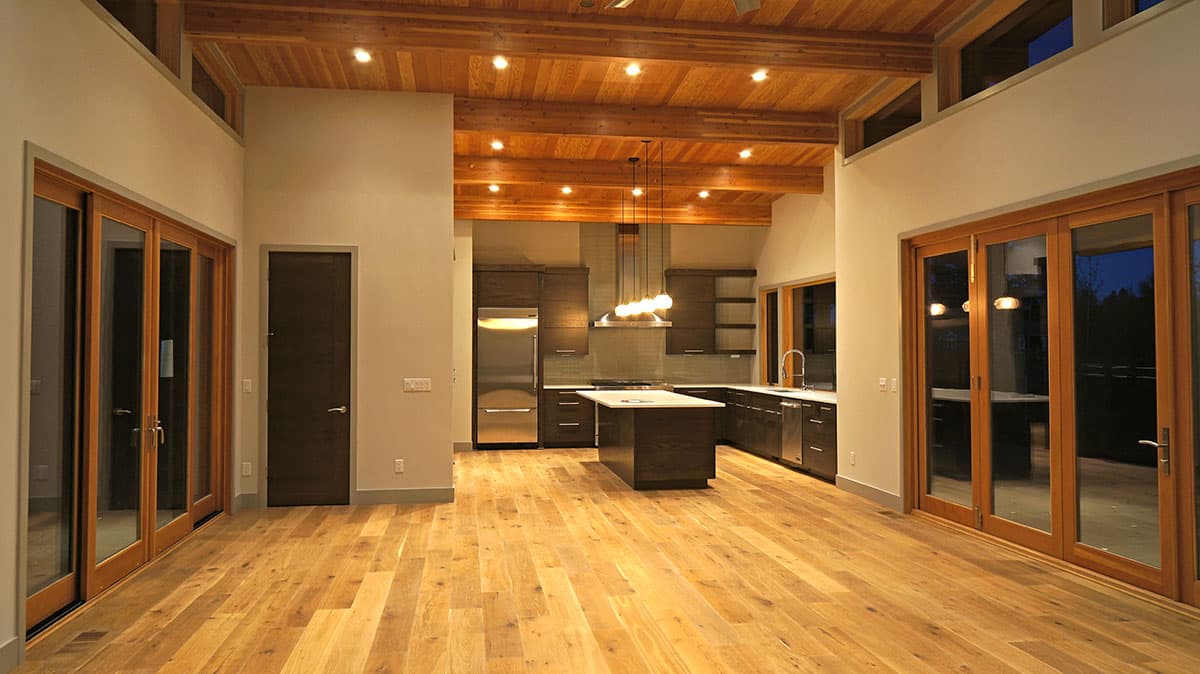

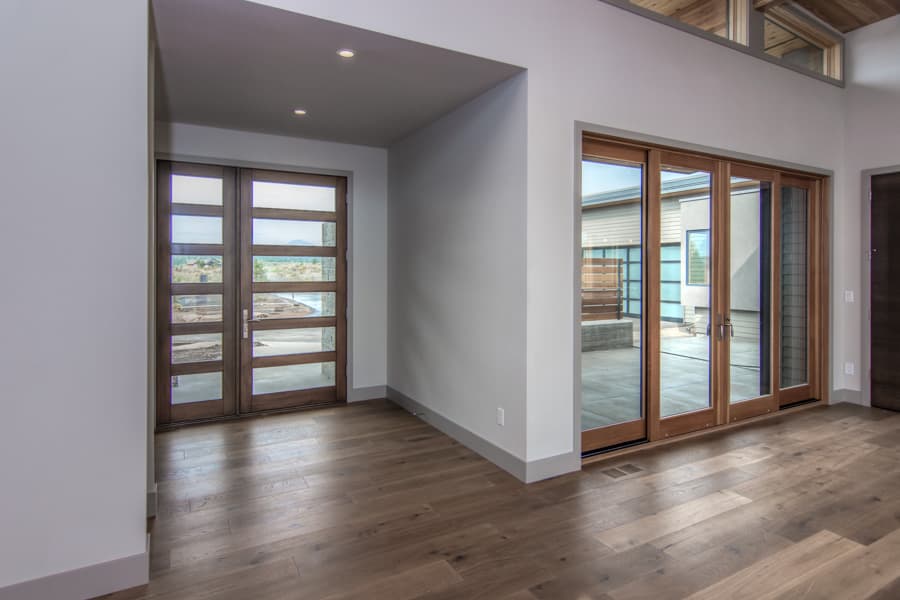

The huge main living area has a wall of folding doors that lead out to the outdoor covered area.

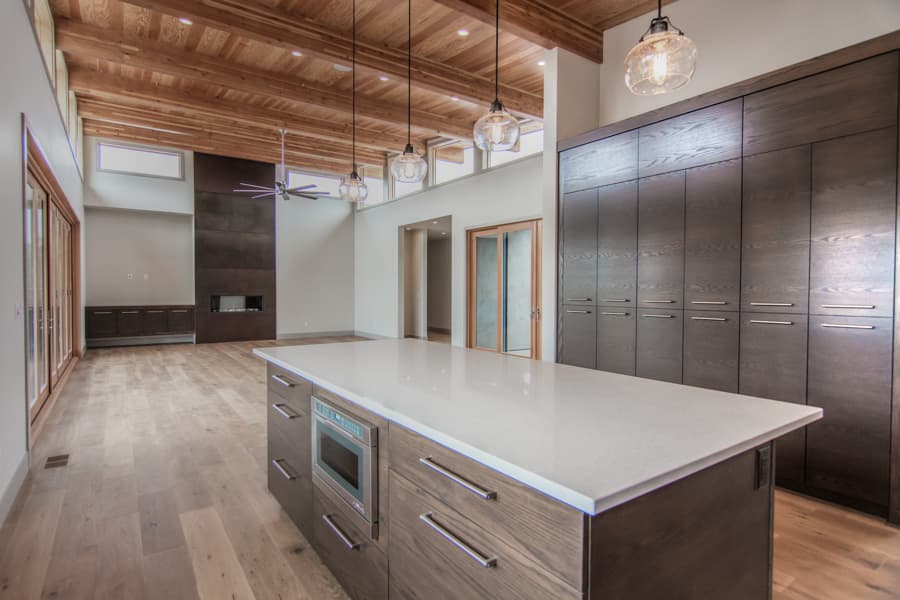

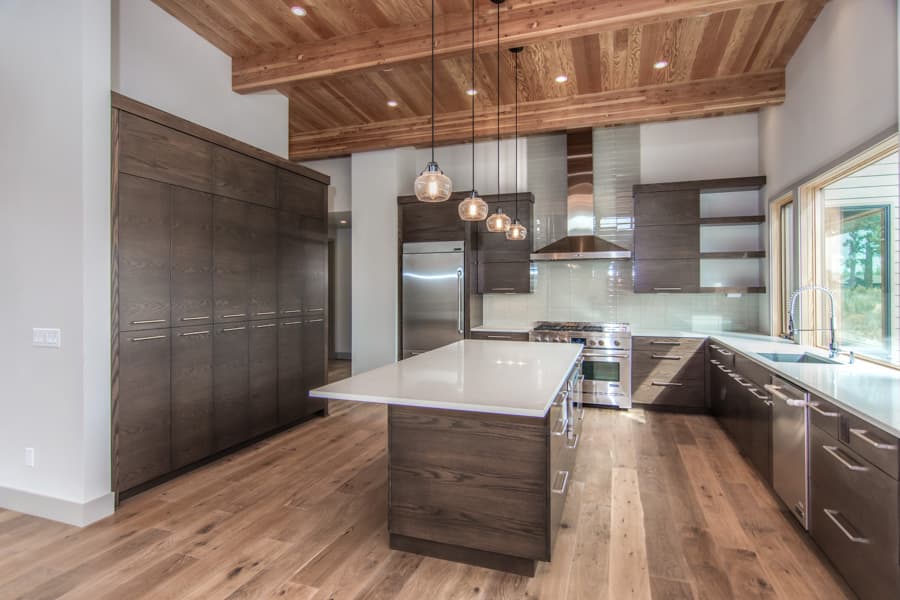

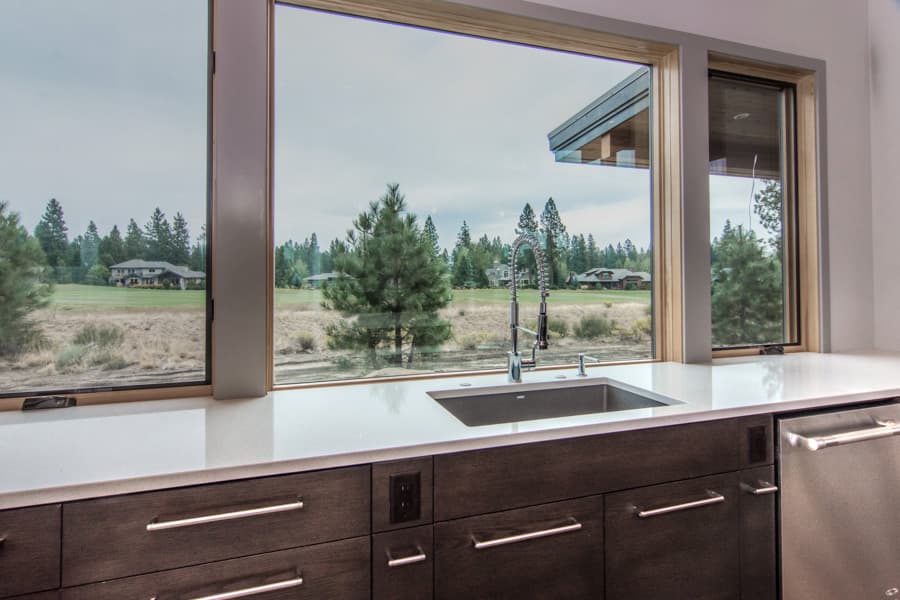

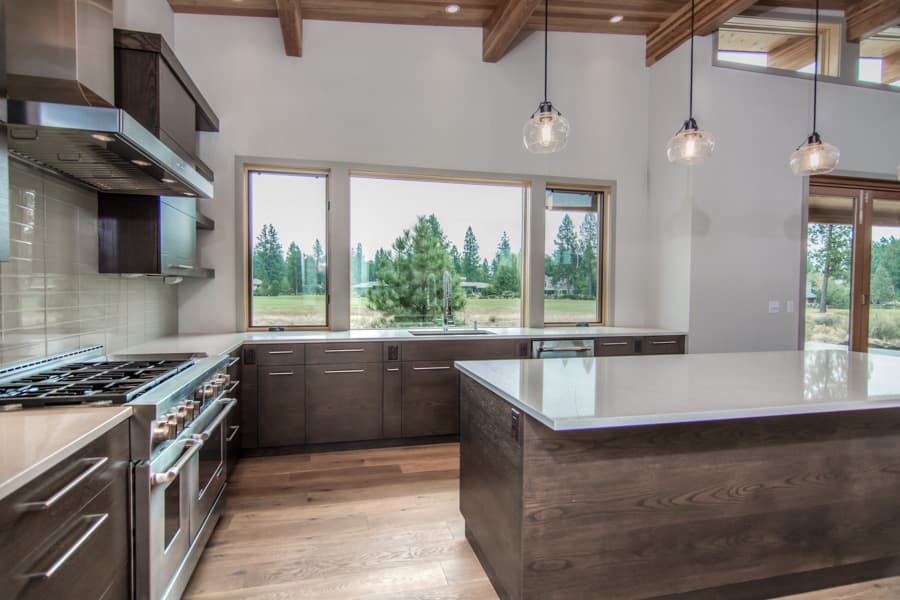

A wall of glass by the kitchen sink brightens your work space and you can seat four people at the big kitchen island.
There's a quiet study tucked away by the master suite, your getaway retreat.
The other two family bedrooms are separated by the huge game room that lies in between them.

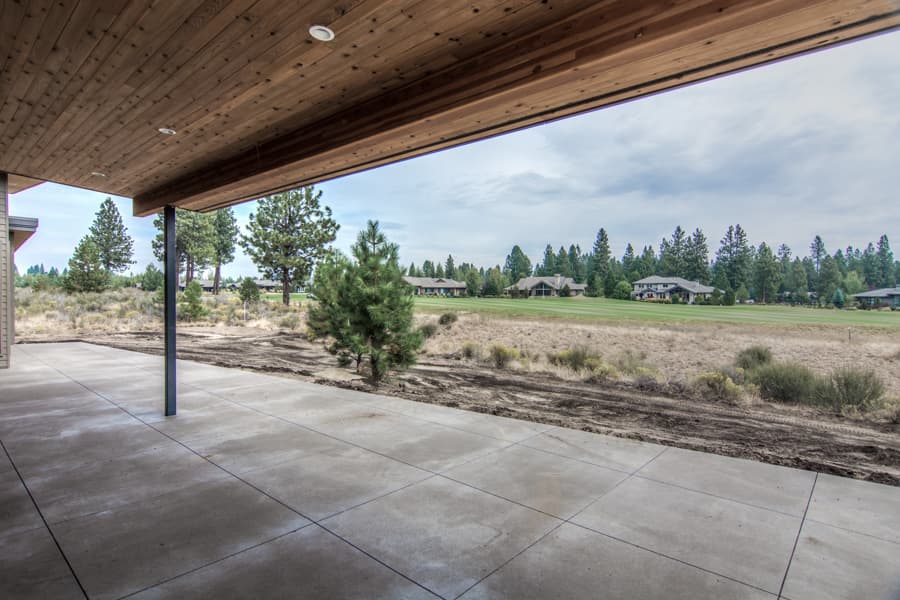

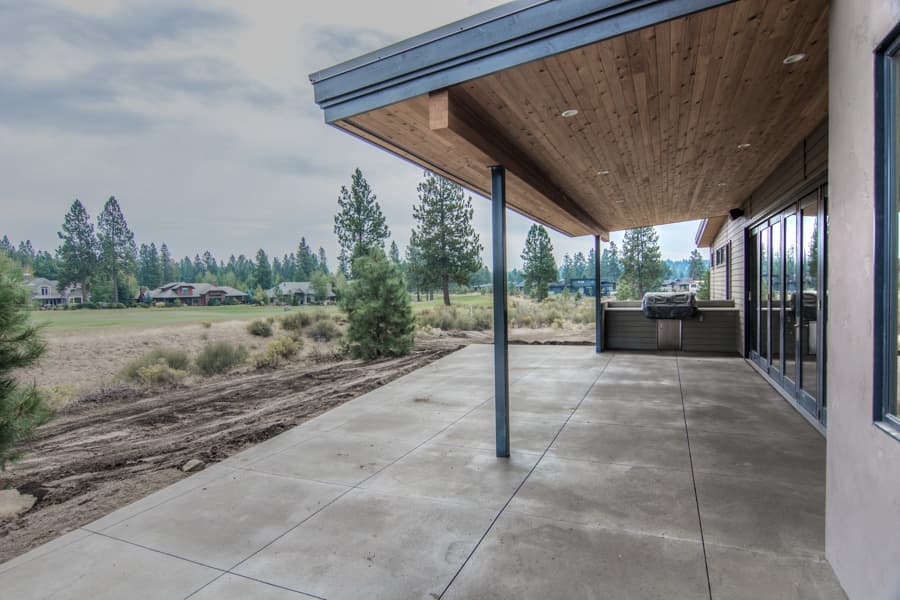

A front terrace with privacy wall and a back terrace complete this stunning house plan.
The roof has a 1:12 pitch.
Related Plan: Get an alternate roofline with house plan 54232HU.

Each plan set includes the following:

Cover sheet with renderings or photos
Site plan from original project for reference, with floor areas and drawing index
Main level architectural plan
Upper level architectural plan
Elevations of four sides
Section drawings at ¼” scale
Typical construction details and framing details
Foundation and floor framing plan
Upper level floor and lower roof framing plan
Upper roof framing plan
Basic lighting plans for main and upper levels available for some plans. Check availability.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

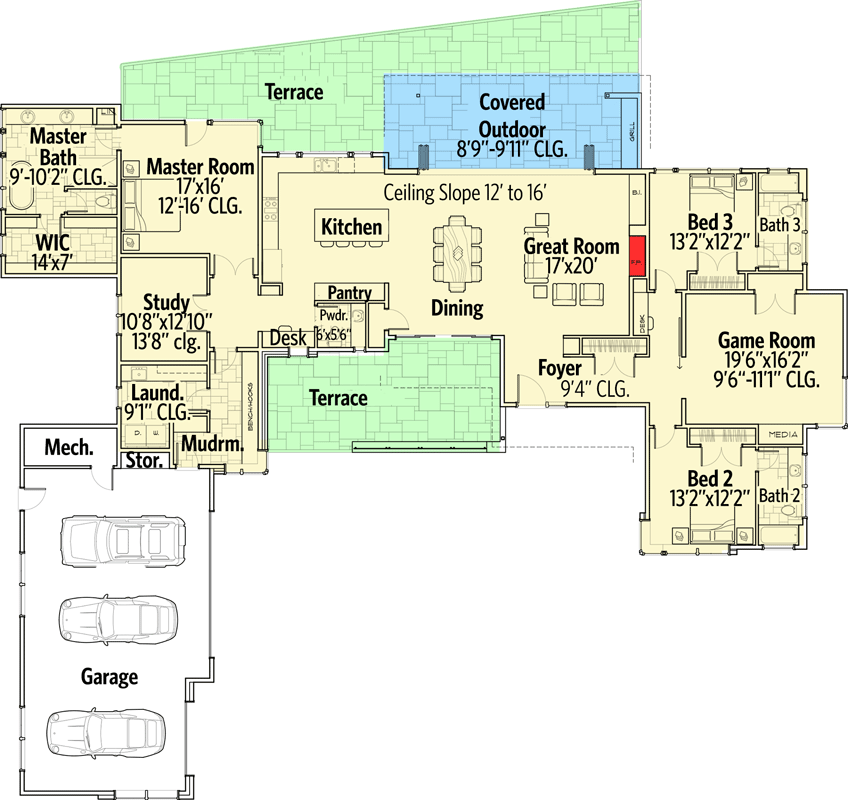

Striking Modern House Plan with Game Room - 3312 Sq Ft - 54222HU floor plan - Main Level
