Striking Outdoor Living Room or Poolhouse Cabana with Fireplace

Heated S.F.
0
Beds
0
Baths
0
Stories
1

Floor Plan

Plan 911003JVD

Main Level
Main Level

Plan 911003JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

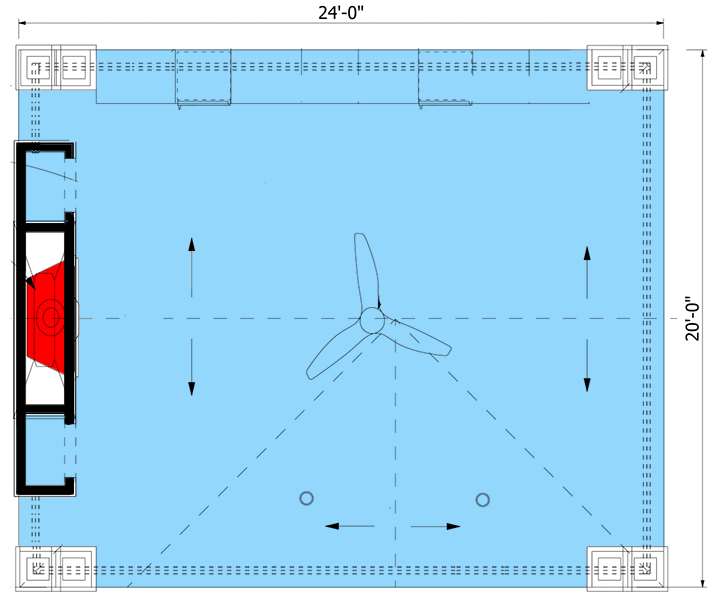

Plan 911003JVD: Striking Outdoor Living Room or Poolhouse Cabana with Fireplace - Floor Plan - Main Level - Craftsman

Plan Details

  • This outdoor living room plan (or a pool house cabana) has acovered porch measuring 20' by 24', capped by a cross-gable roof.
  • The open gables exposes the decorative truss and beams.
  • A built-in fireplace wrapped in stone resides at one end of the design.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

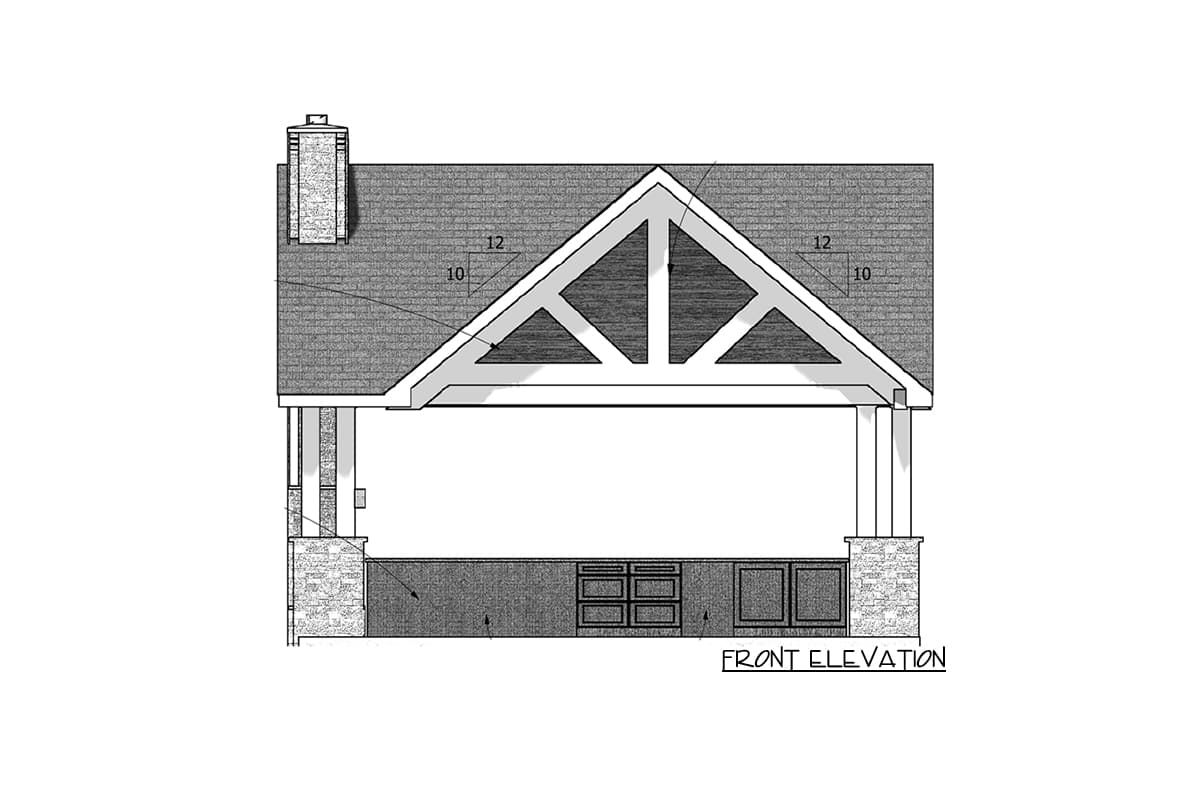

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Covered Patio

480 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

20' 0"

Max Ridge Height

18' 0"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Covered Patio

480 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

20' 0"

Max Ridge Height

18' 0"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Plan Collections

Pool House
