Plan 36343TX

Study Doubles as Main Floor Bedroom

Heated S.F.
4,285
Beds
3 - 4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 36343TX

Main Level
Main Level
2nd Floor
2nd Floor

Plan 36343TX

M-F 9am-5pm EST |

1-203-761-8500

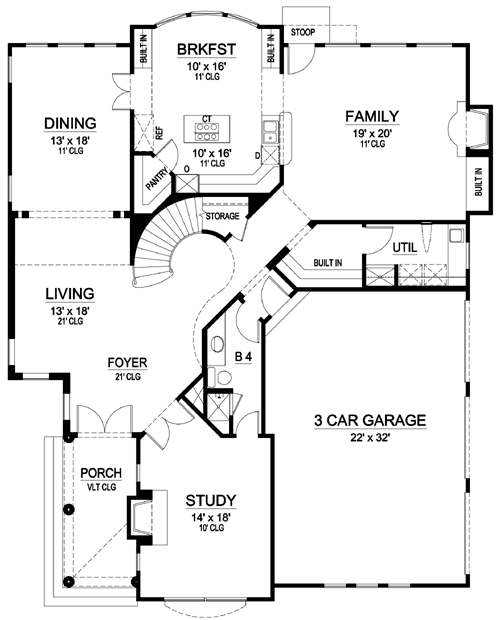

Main Level

Plan 36343TX: Study Doubles as Main Floor Bedroom - Floor Plan - Main Level - European

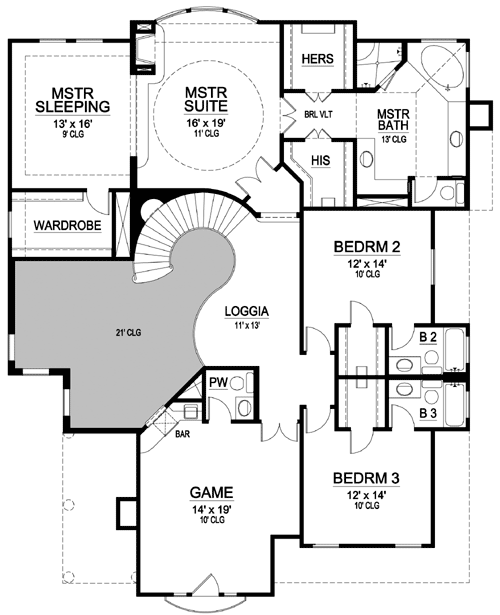

2nd Floor

Plan 36343TX: Study Doubles as Main Floor Bedroom - Floor Plan - 2nd Floor - European

Plan Details

  • A luxury master suite is a main attraction to this 3 bedroom house plan. Occupying a significant portion of the upper floor it features a raised ceiling sitting area with fireplace and a spacious sleeping section. His and hers closets plus a large wardrobe area and a five fixture bath complete the suite.
  • The foyer ceiling rises to 21' and creates a warm welcome.
  • The living room and dining room are open to each other and great for entertaining.
  • The family room is spacious and has a fireplace and built-ins. Counter seating in the nearbykitchen is a nice feature.
  • A study with fireplace is spacious and can be used as a guest bedroom if needed.

What's Included

  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,285 sq. ft.

1st Floor

2,090 sq. ft.

2nd Floor

2,195 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

65' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

715 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Second Floor

10'

Architectural Style

European

Special Features

Laundry - Main Level

Library/Study

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

4,285 sq. ft.

1st Floor

2,090 sq. ft.

2nd Floor

2,195 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 0"

Depth

65' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

715 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Second Floor

10'

Architectural Style

European

Special Features

Laundry - Main Level

Library/Study

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Luxury
