Stunning 3-Bed Home Plan with Dramatic Rear Elevation

Plan 12962KN

  • 2,251

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • An elongated, front porch welcomes guests into a foyer with clean sight lines through the living room and beyond to the back deck. A walk-out basement provides plenty of space for future development should additional living space be required.
  • Exposed beams in the living room provide a rustic touch and rest above a grand fireplace. The adjoining kitchen includes a cooktop island, and a spacious counter, doubling as a buffet, sits between the dining room and kitchen.
  • The work-at-home resident will appreciate the quiet office tucked to the left of the foyer.
  • The main-level, master bedroom boasts a private patio, dual closets, and a lavish ensuite with a whirlpool tub, double vanities, and a private commode room.
  • Across the hall, two secondary bedrooms are separated by a 4-fixture bath.
  • Homeowners have the option for a side-entry, 3-car garage or a forward-facing garage. Both options lead into a sizable mud / laundry room.

Floor plans at ¼" scale

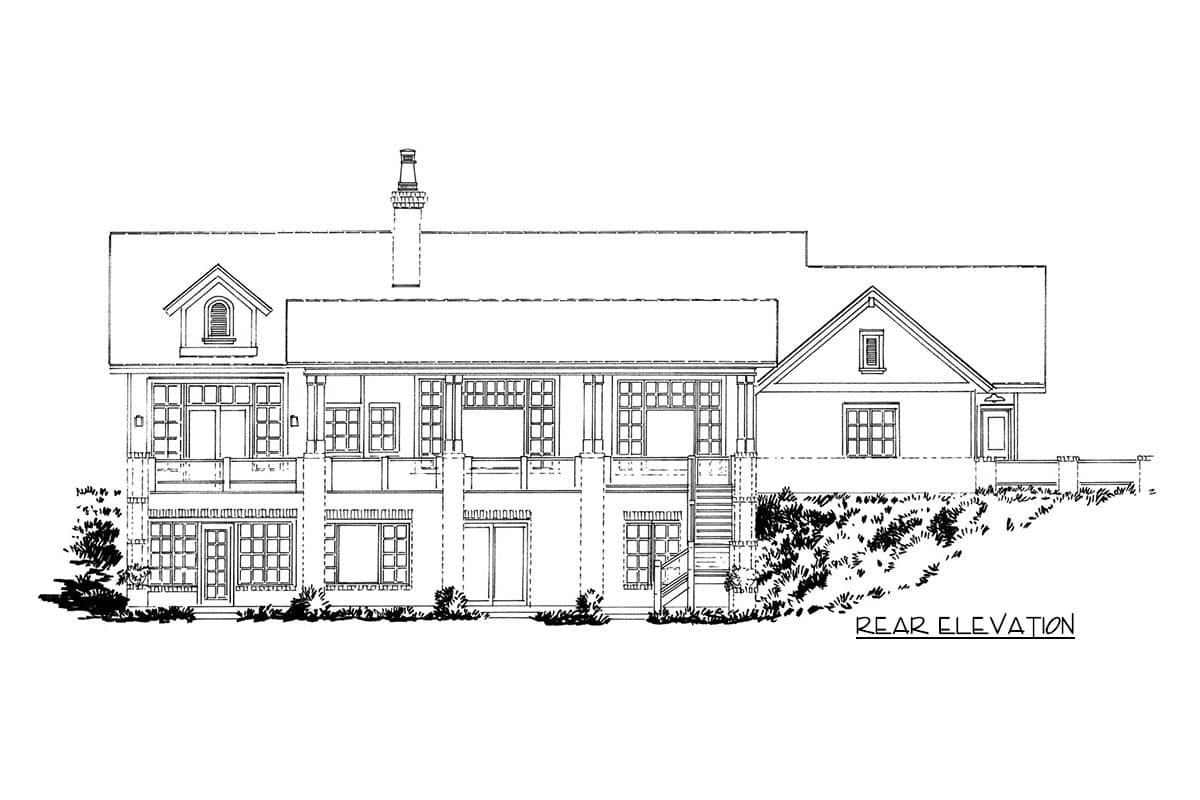

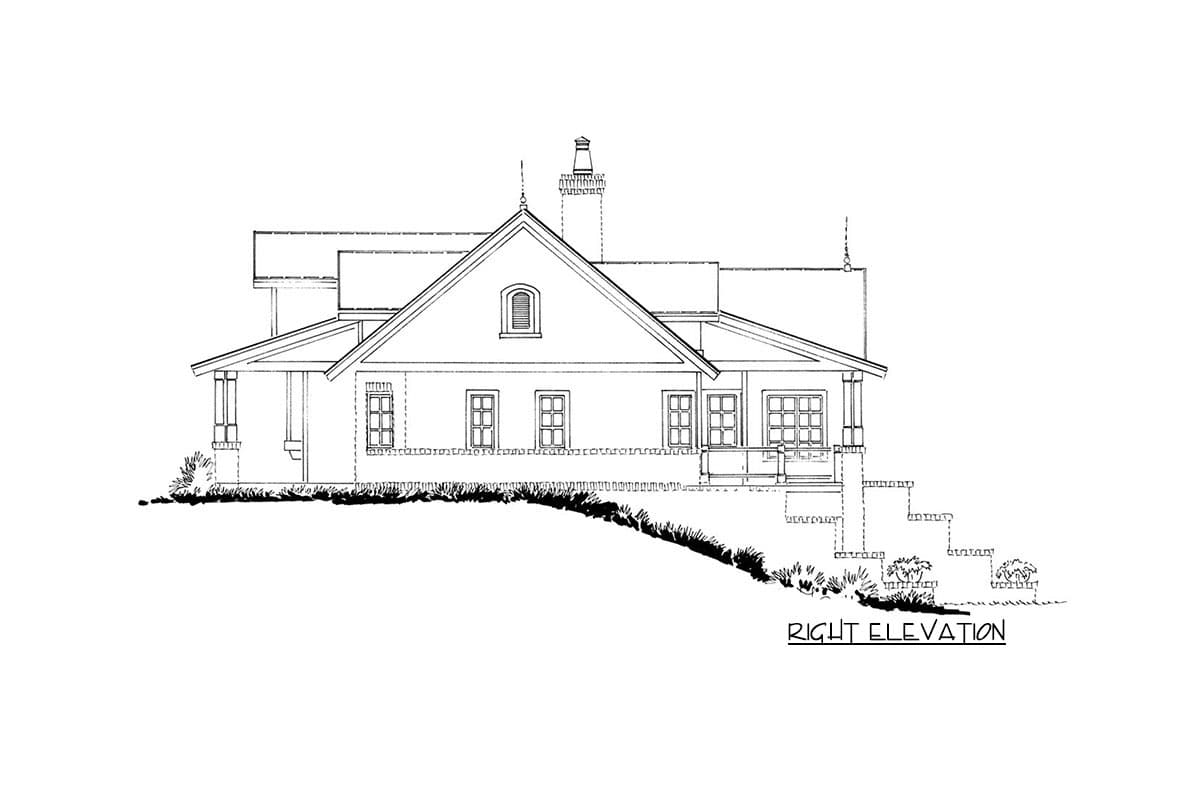

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

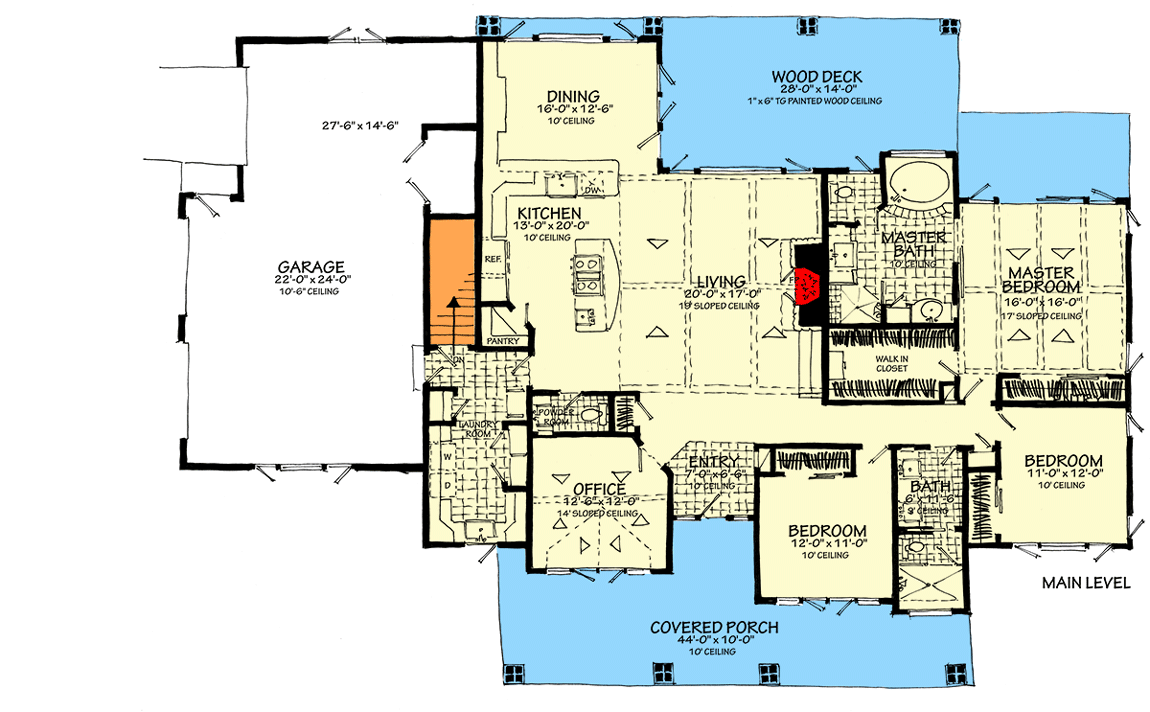

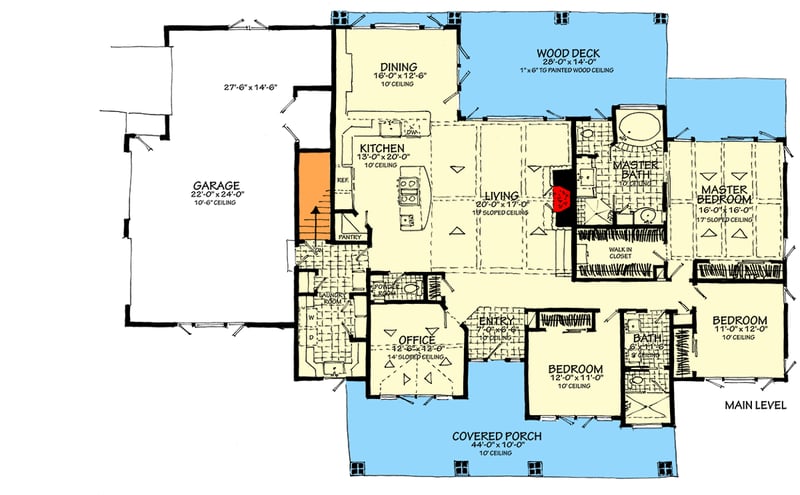

Stunning 3-Bed Home Plan with Dramatic Rear Elevation - 12962KN floor plan - Main Level

Optional 3-Car Front Facing Garage - No Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

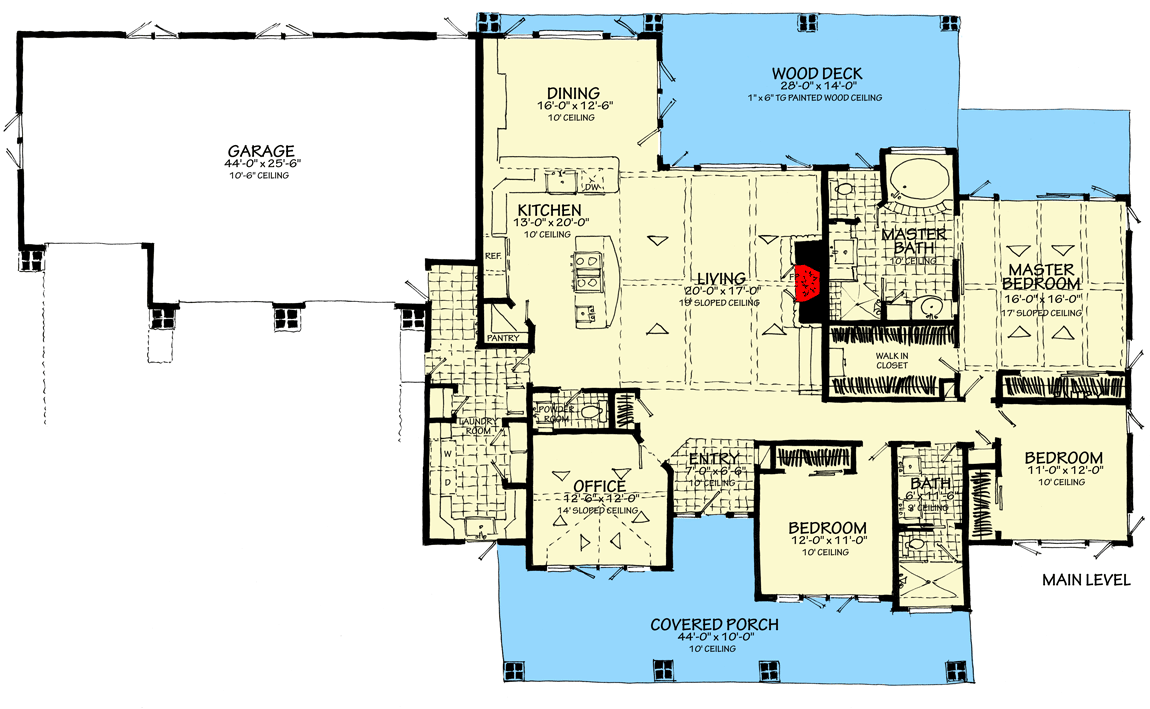

Stunning 3-Bed Home Plan with Dramatic Rear Elevation - 12962KN floor plan - Optional 3-Car Front Facing Garage - No Basement

Optional 3-Car Front Facing Garage

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

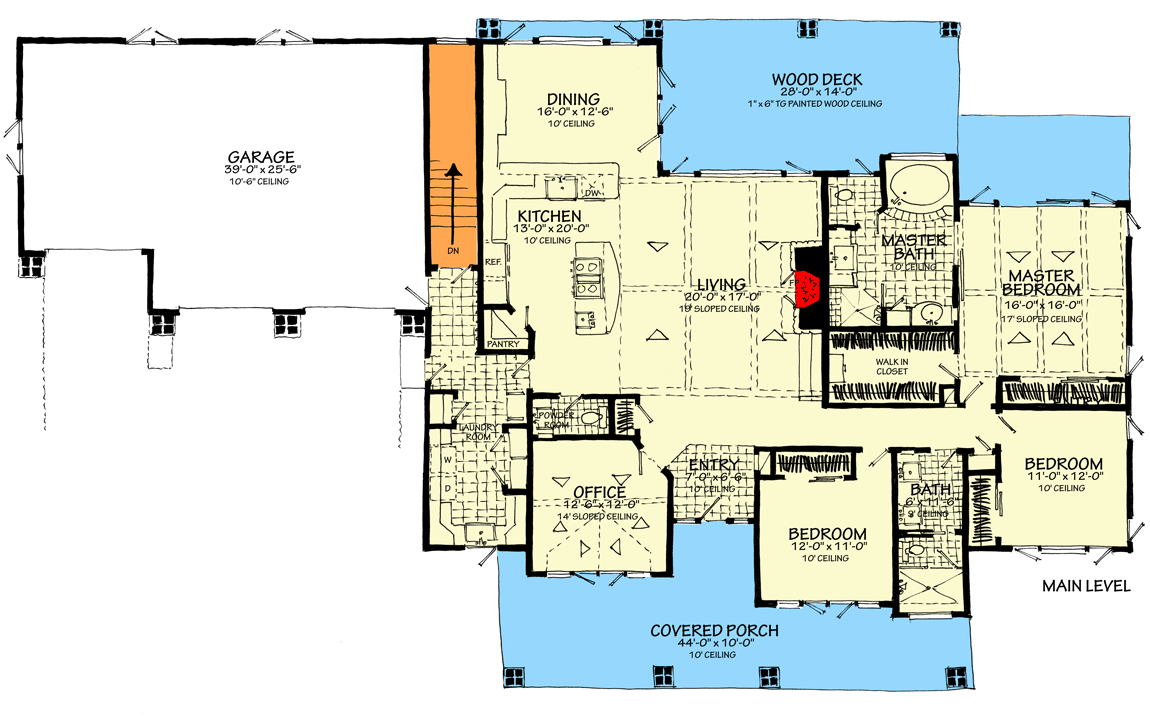

Stunning 3-Bed Home Plan with Dramatic Rear Elevation - 12962KN floor plan - Optional 3-Car Front Facing Garage

Basement Unfinished

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

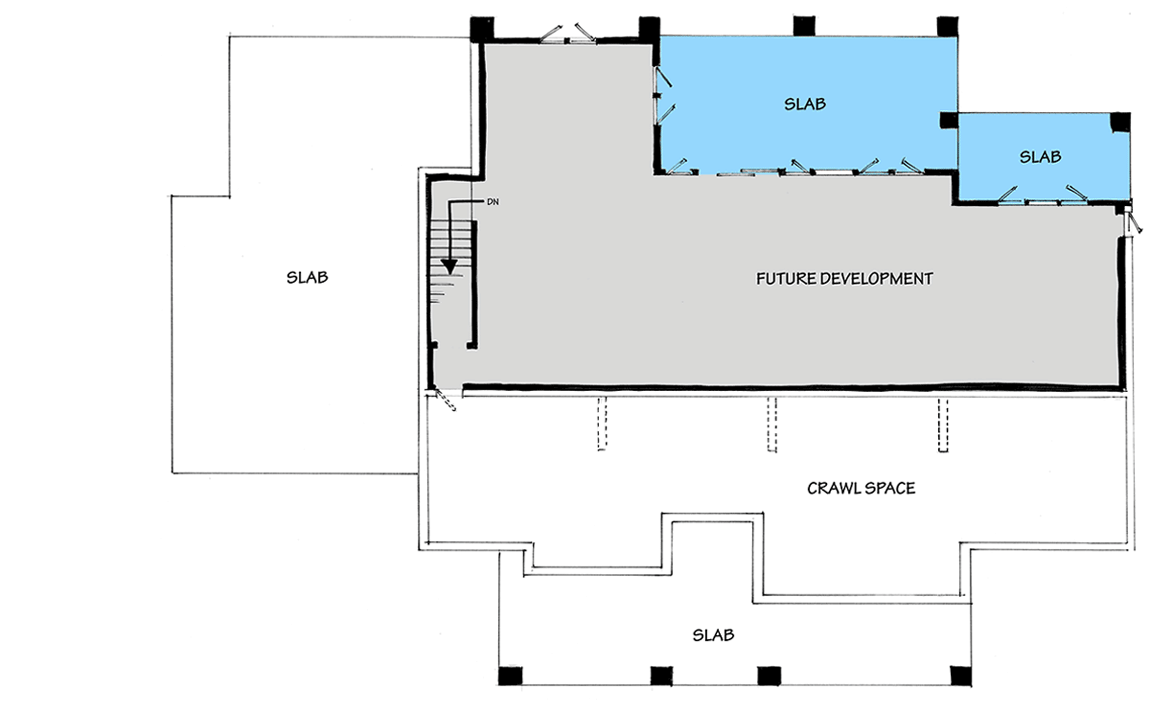

Stunning 3-Bed Home Plan with Dramatic Rear Elevation - 12962KN floor plan - Basement Unfinished

Stunning 3-Bed Home Plan with Dramatic Rear Elevation

  • 2,251

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional 3-Car Front Facing Garage - No Basement

  • Optional 3-Car Front Facing Garage

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total: 2,251 sq. ft.
  • 1st Floor: 2,251 sq. ft.

Dimensions

  • Width: 54' 6"
  • Depth: 86' 0"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 856 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6
