Stunning 5-Bed Craftsman Home Plan with Bonus

Plan 51788HZ

  • 3,311

    Heated s.f.

  • 5-6

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Stories

  • 2-3

    Cars

  • This 5-Modern Craftsman home plan gives you 5 bedrooms and 3.5 baths with a large bonus room giving you 485 square feet of expansion above the garage.
  • Open design with volume ceilings, office and large rear porch with outdoor kitchen.
  • All bedrooms offer a walk-in closet and access to spacious baths.
  • The master suite includes a luxurious master bath with large custom shower and separate sinks. Laundry room is conveniently located to and accessible from the master bath.
  • Home features two sets of gas logs for cozy living or backyard entertaining.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

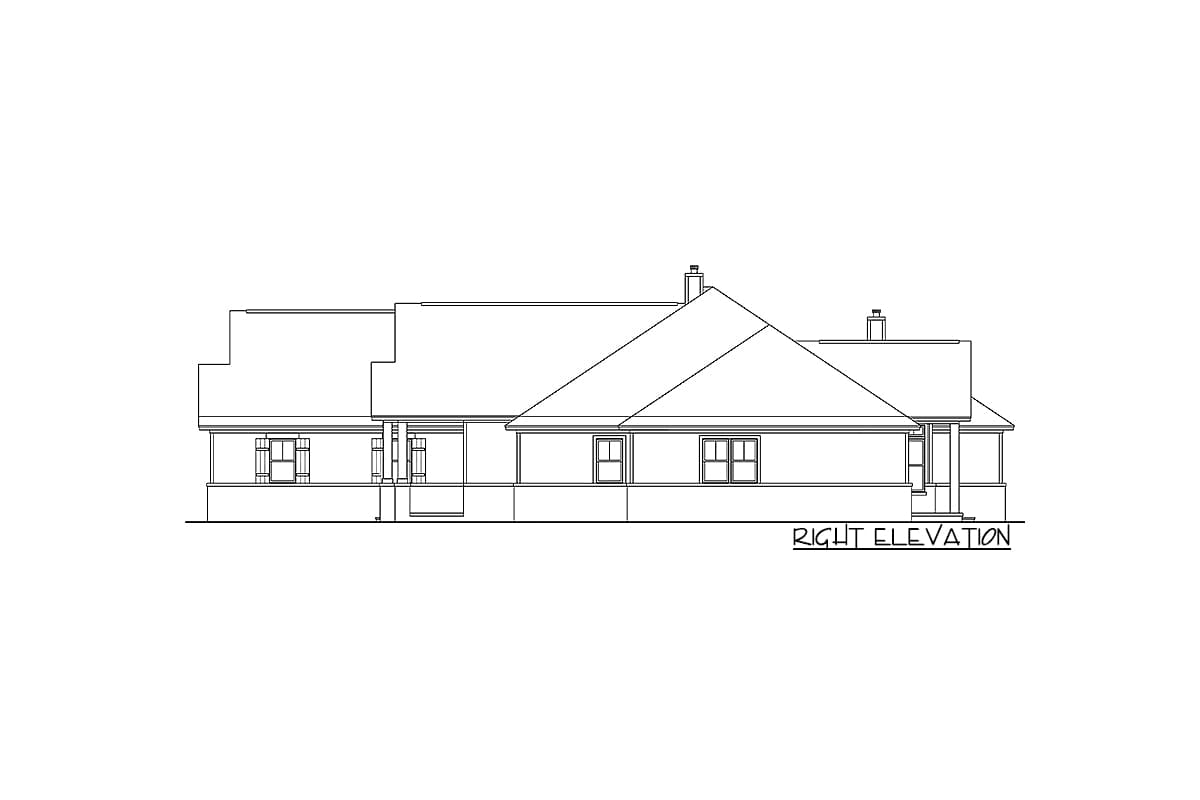

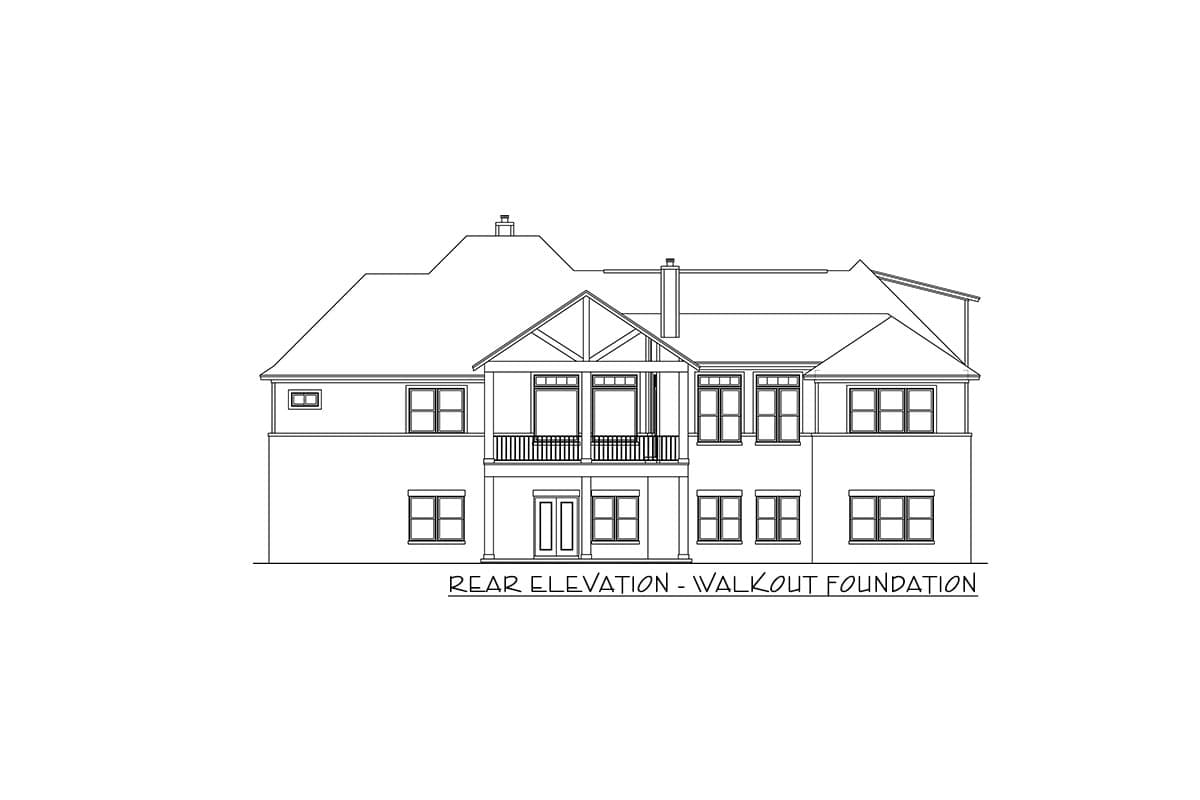

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

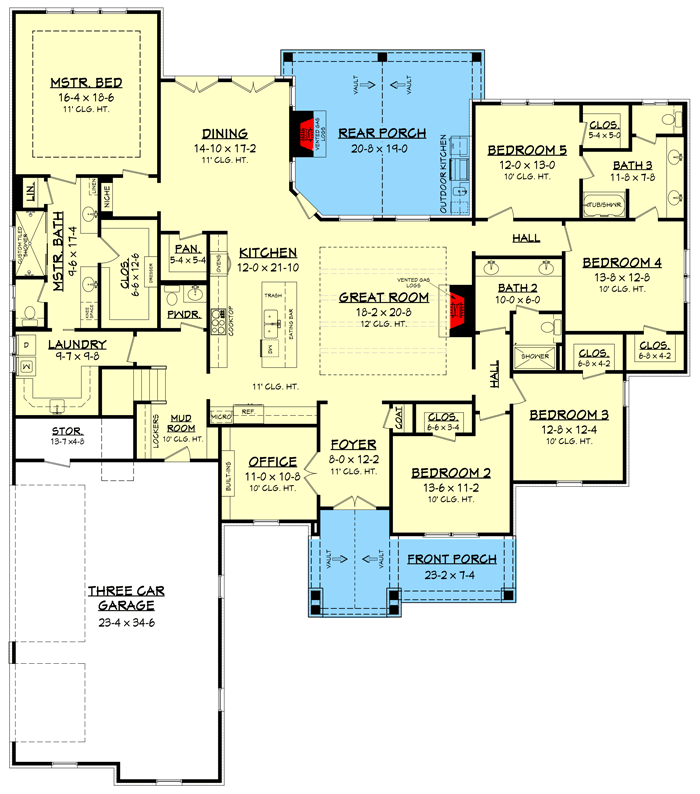

Stunning 5-Bed Craftsman Home Plan with Bonus - 51788HZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

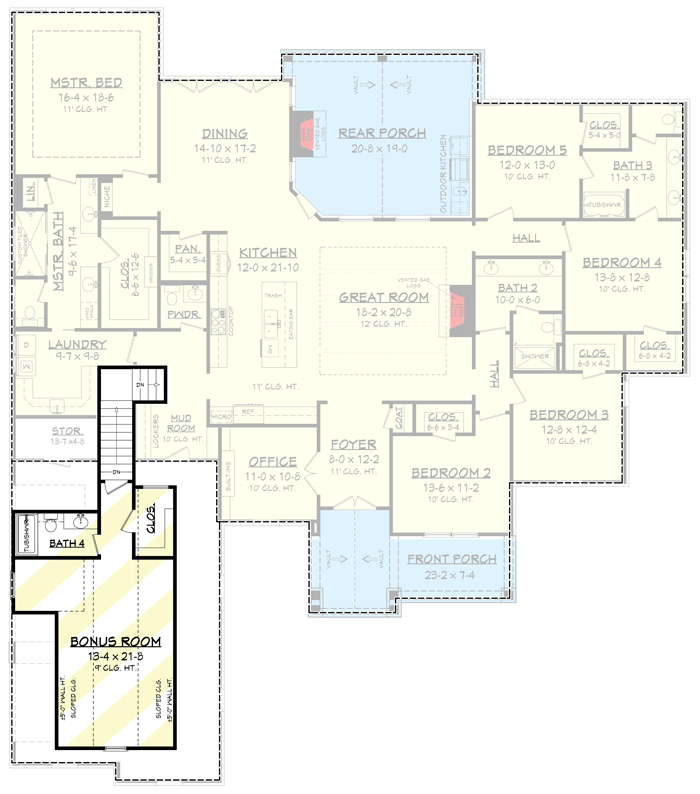

Stunning 5-Bed Craftsman Home Plan with Bonus - 51788HZ floor plan - Bonus

Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

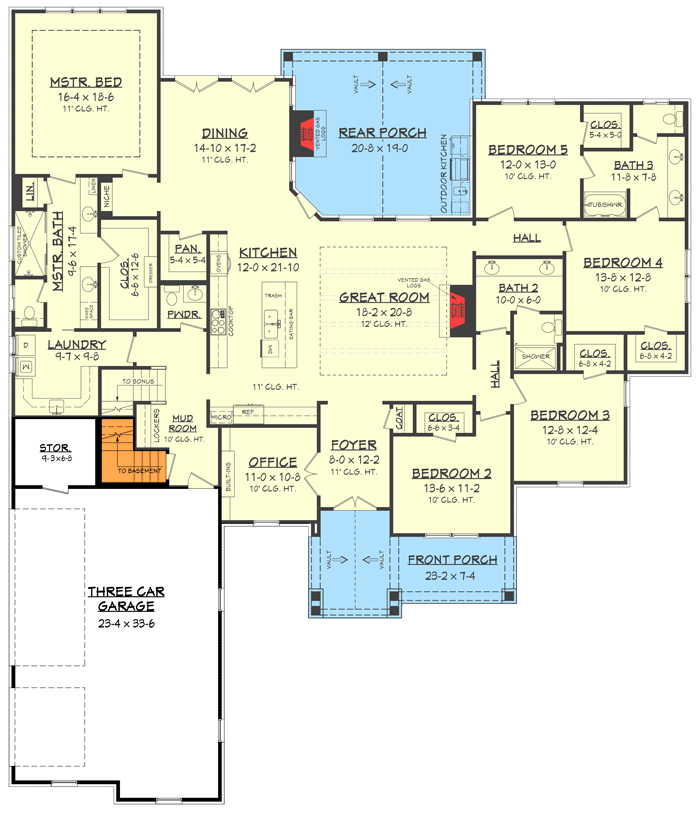

Stunning 5-Bed Craftsman Home Plan with Bonus - 51788HZ floor plan - Basement Stair Location

2-Car Garage Option Main Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

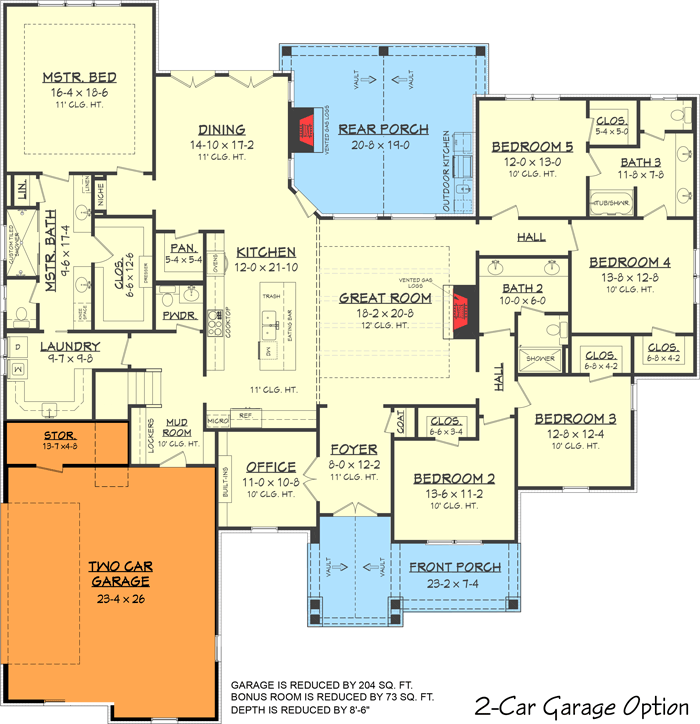

Stunning 5-Bed Craftsman Home Plan with Bonus - 51788HZ floor plan - 2-Car Garage Option Main Level

2-Car Garage Option Bonus Room

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

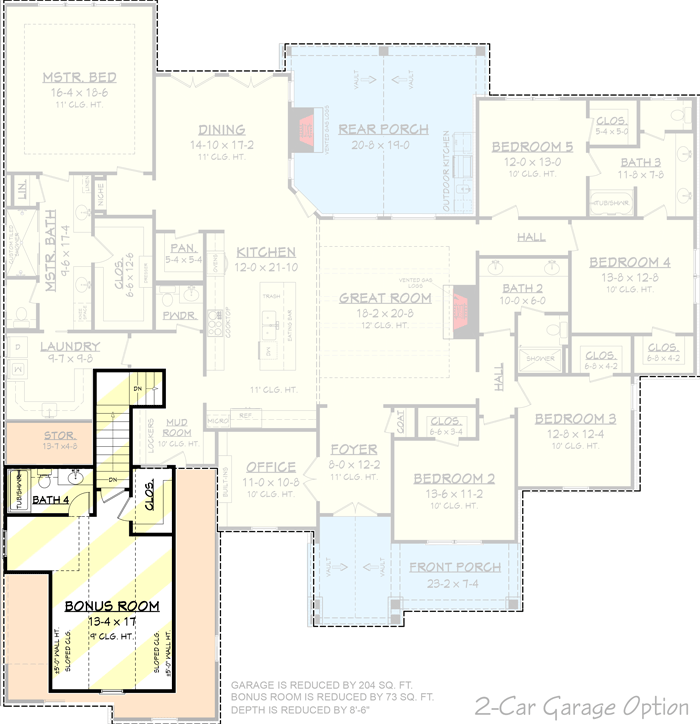

Stunning 5-Bed Craftsman Home Plan with Bonus - 51788HZ floor plan - 2-Car Garage Option Bonus Room

Stunning 5-Bed Craftsman Home Plan with Bonus

  • 3,311

    Heated s.f.

  • 5-6

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2 - 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

  • Basement Stair Location

  • 2-Car Garage Option Main Level

  • 2-Car Garage Option Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 3,311 sq. ft.
  • 1st Floor: 3,311 sq. ft.

Dimensions

  • Width: 77' 10"
  • Depth: 88' 8"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 858 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 On 12 & 4 on 12
  • Framing Type: Stick
