Plan 86297HH
Stunning Craftsman Home Plan with Optional Lower Level
Heated S.F.
3,108
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

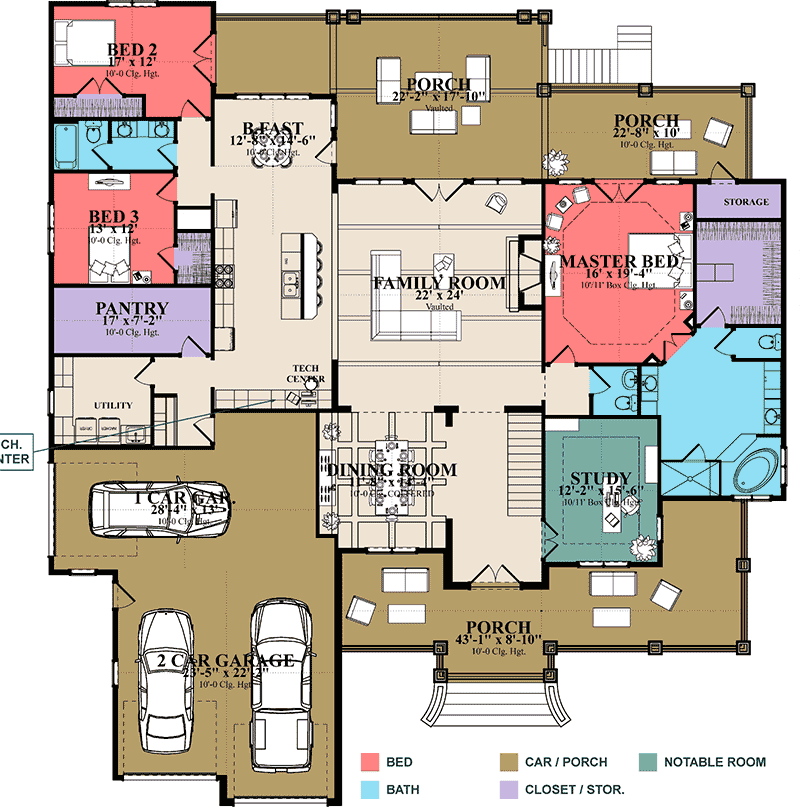

Main Level
Reverse Floor Plan
Stunning Craftsman Home Plan with Optional Lower Level - 86297HH floor plan - Main Level

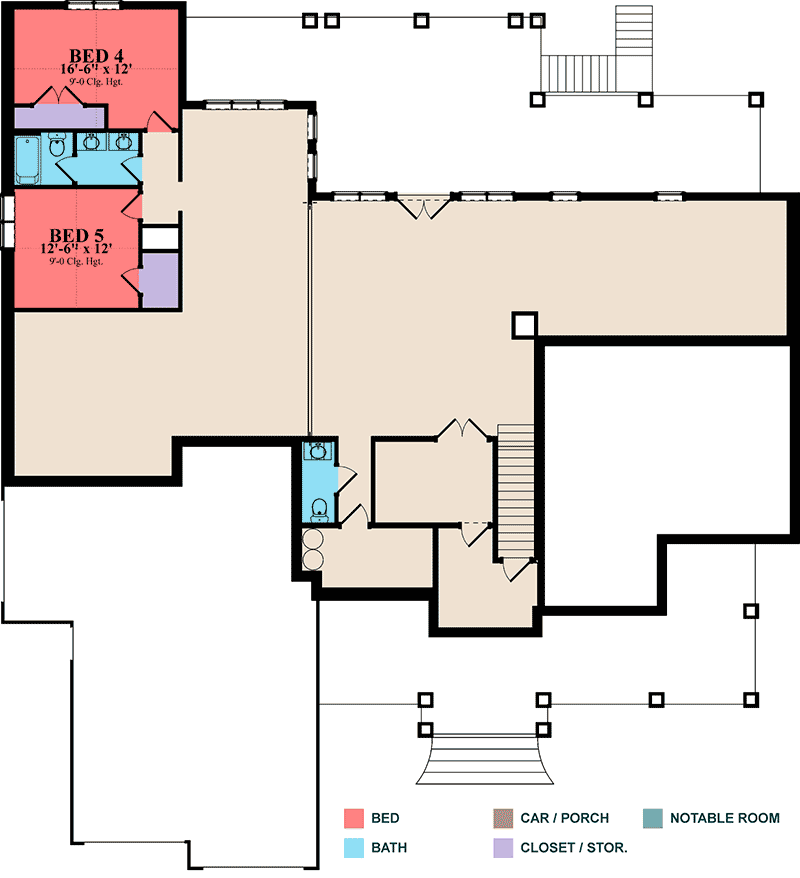

Optional Finished Lower Level
Reverse Floor Plan
Stunning Craftsman Home Plan with Optional Lower Level - 86297HH floor plan - Optional Finished Lower Level
Plan Details
  • This Craftsman style home plan, with it's striking design, has an open floor plan that maximizes the square footage
  • The vaulted porch in back can be seen from the giant vaulted family room.
  • The kitchen is a true chef's delight, with views while you cook.
  • The nearby tech center lets you keep a watchful eye on the kids while they do their homework.
  • There's a quiet study when you want to work from home and tons of storage in the spacious walk-in pantry.
  • Split bedrooms separate the master suite from the family bedrooms.
  • The 3-car garage has an unusual configuration.
  • Get two more bedrooms by finishing the optional lower level.
  • Related Plan: Get an alternate exterior with house plan 86213HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stunning Craftsman Home Plan with Optional Lower Level

  • 3,108

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,108 sq. ft.
  • 1st Floor: 3,108 sq. ft.

Dimensions

  • Width: 79' 6"
  • Depth: 86' 6"
  • Max ridge height: 31' 3"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 890 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
