Plan 1792DW

Stunning Florida Home

Heated S.F.
3,016
Beds
4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 1792DW

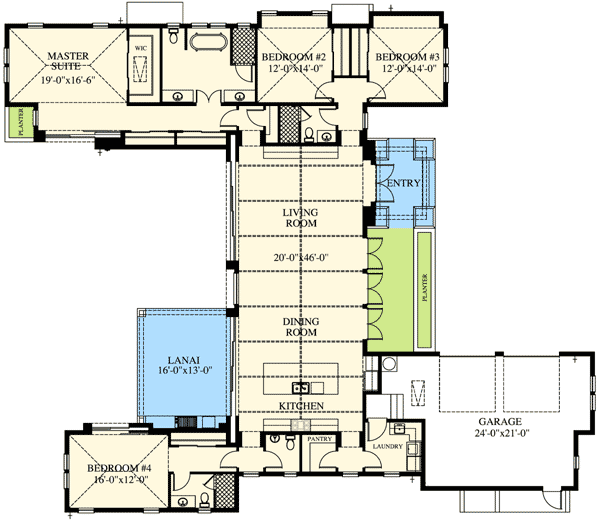

Main Level
Main Level

Plan 1792DW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 1792DW: Stunning Florida Home - Floor Plan - Main Level - Coastal, Florida-Style, Southern, Vacation

Plan Details

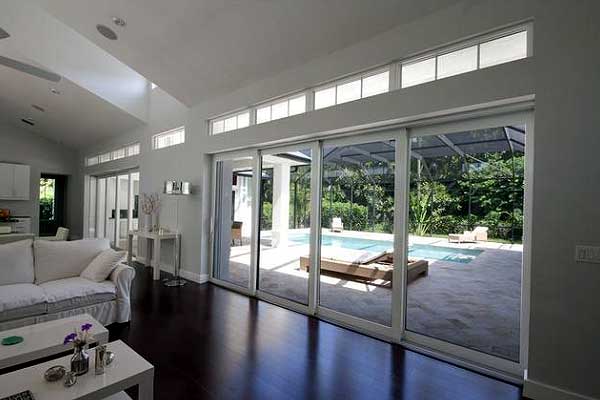

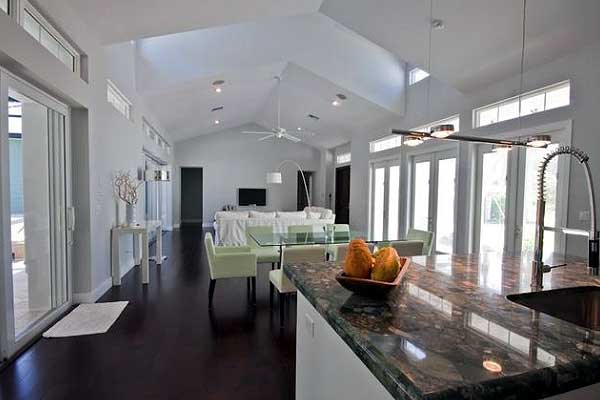

  • A huge open great room with vaulted ceilings is the centerpiece of this stunning Florida home plan.
  • Everything feels open and airy with sightlines that go on for 46'.
  • Sliding glass doors on one side and three sets of double doors on the other open this space to the great outdoors.
  • Most of the bedrooms are on one side of the home but there is a delightful guest suite that could function as an in-law suite on the opposite side of the house, offering privacy for both sides.

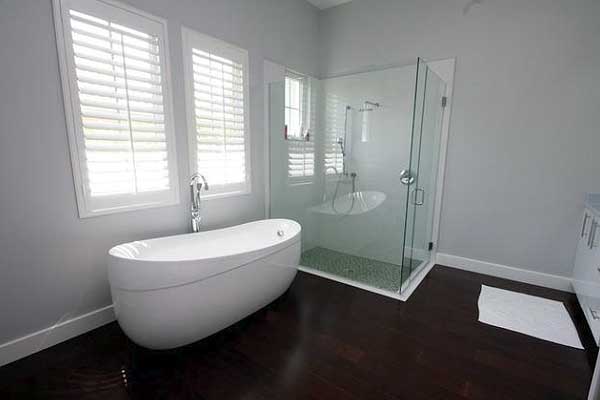

  • The vaulted master suite is enormous with both linear and walk-in closets and a spa bath with claw foot tub and walk-in shower.

What's Included

This house plan has 9 pages as follows:
  1. Cover page
  2. Plumbing dimension plan (schematic)
  3. Noted floor plan
  4. Dimensioned floor plan
  5. Electrical layout plan
  6. Roof plan (schematic)

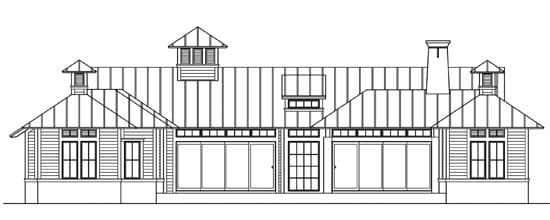

  7. Front and rear elevations
  8. Left and right elevations
  9. Sections
NOTE: The designer of this plan does not supply foundation plans. A local structural engineer will be required to adjust them to suit the conditions of where you are building.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,016 sq. ft.

1st Floor

3,016 sq. ft.

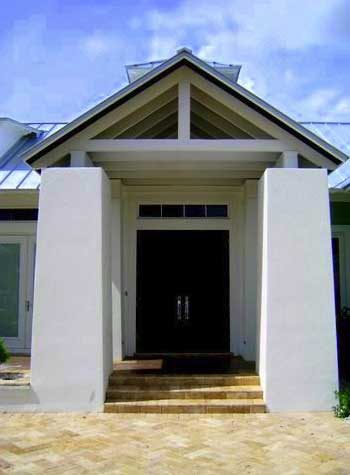

Entry

140 sq. ft.

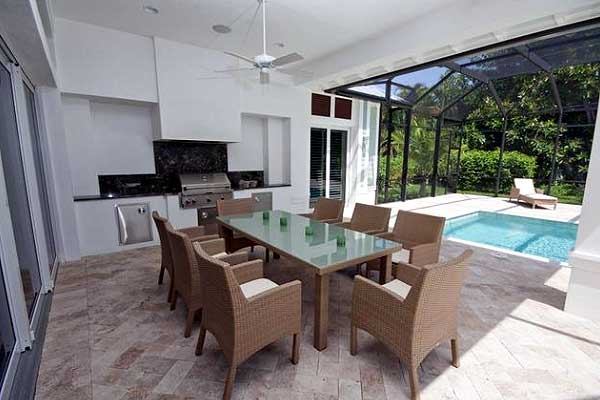

Lanai

274 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

80' 8"

Depth

95' 0"

Max Ridge Height

22' 0"

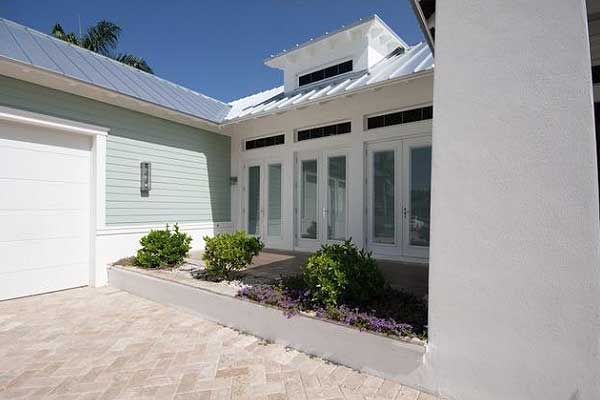

Garage

Type

Attached

Area

690 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

Florida-Style

Southern

Vacation

Special Features

Bedrooms - Clustered

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection
