Plan 36162TX

Stunning Luxury

Name: Plan 36162TX: Stunning Luxury
Brand: Architectural Designs
SKU: 36162TX
Price: 3400.0 USD
Availability: InStock

Heated S.F.

7,192

Beds

Baths

Stories

Cars

Floor Plan

Main Level

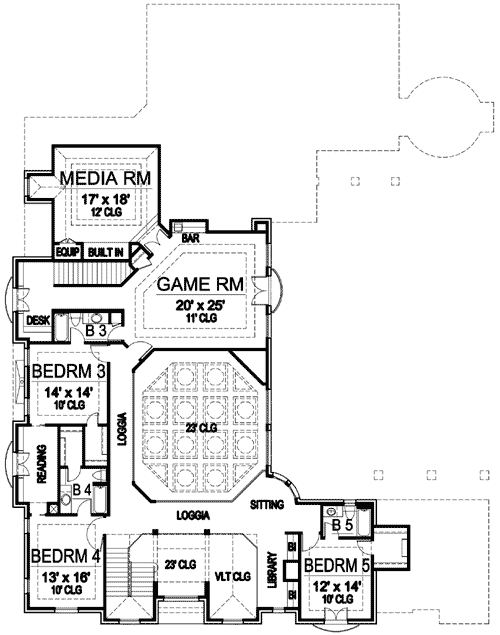

2nd Floor

Plan Details

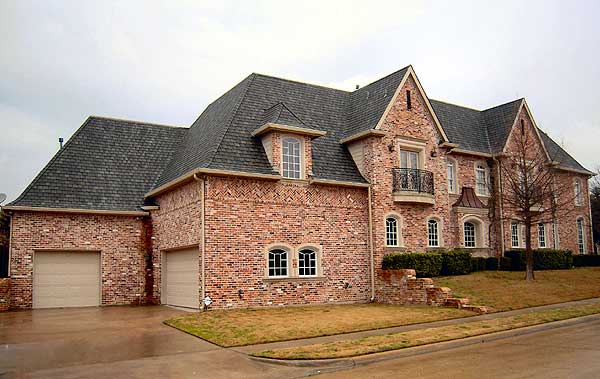

This stunning luxury home plan will impress you with its unique character and substantial square footage. This home offers five bedrooms, a three-car garage and 7,192 square feet of living space.
You will adore the master suite, located at the rear of this home, and the barrell vaulted ceiling in the master bath.
The kitchen and breakfast area opens to the family room. While enjoying a meal in the breakfast room you can enjoy views of the patio.
On the second floor, the 2-story family room has elegant ceiling treatments. The media room and game room are located close together making entertainment convenient.
Three secondary bedrooms also reside upstairs with spacious walk-in closets and private baths.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
