Plan 62521DJ

Stunning Mountain New American Duplex Plan with Four Spacious Bedrooms Per Unit

Heated S.F.
5,798
Units
2
Width
Depth

Floor Plan

Plan 62521DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62521DJ

M-F 9am-5pm EST |

1-203-761-8500

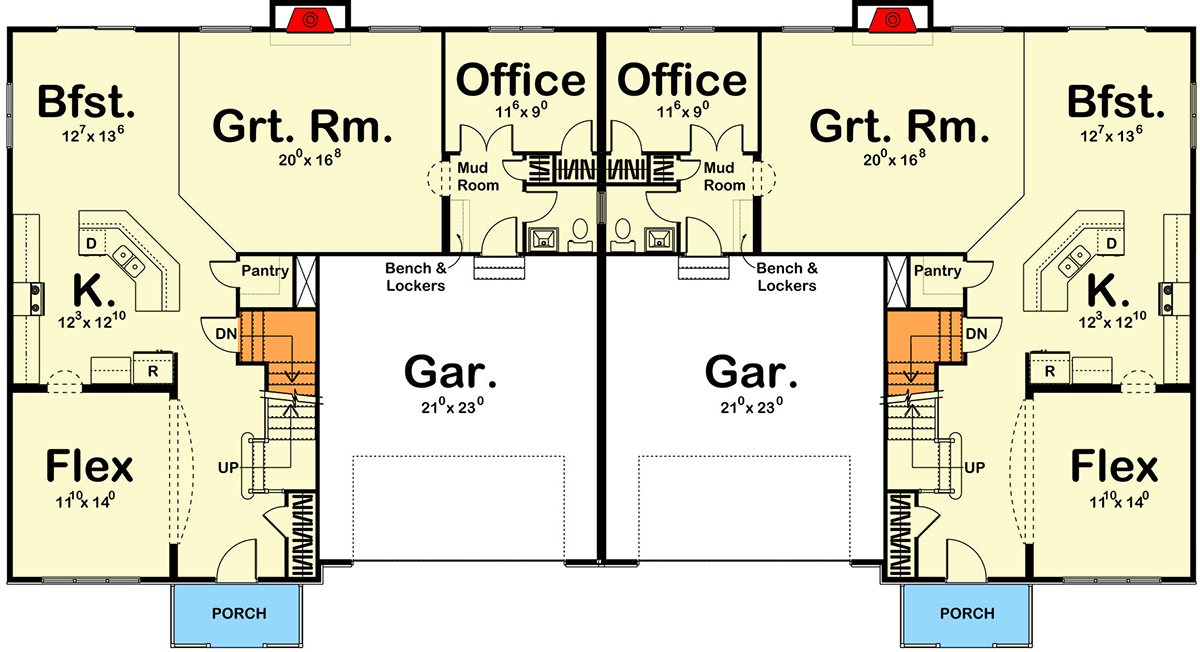

Main Level

Plan 62521DJ: Stunning Mountain New American Duplex Plan with Four Spacious Bedrooms Per Unit - Floor Plan - Main Level - Mountain, New American

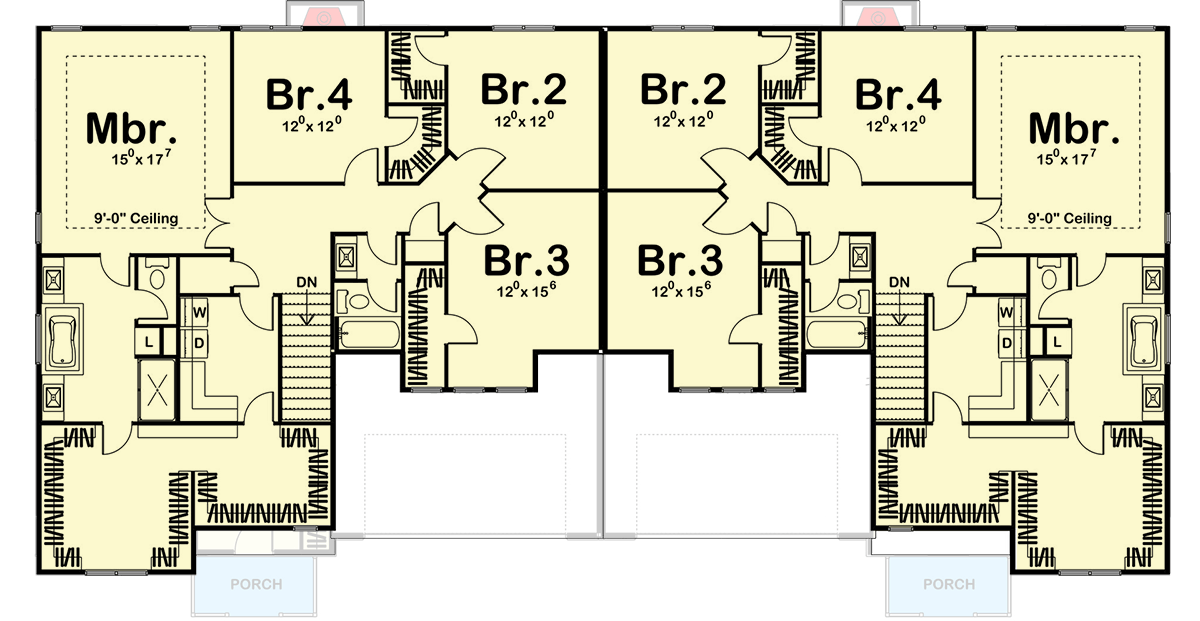

2nd Floor

Plan 62521DJ: Stunning Mountain New American Duplex Plan with Four Spacious Bedrooms Per Unit - Floor Plan - 2nd Floor - Mountain, New American

Plan Details

  • This sophisticated Mountain New American duplex plan offers 2,899 finished square feet, 4 bedrooms, 2.5 baths, and an attached 498-square-foot garage per unit.
  • The striking exterior features a harmonious blend of dark siding and natural stone, creating an elegant arrival experience that emphasizes high-end craftsmanship.
  • Inside, the main level is thoughtfully designed with a formal dining room for special occasions and a quiet den that serves as an ideal home office.
  • The open-concept living area flows seamlessly into a bright breakfast nook and a gourmet kitchen equipped with a convenient walk-in pantry.
  • Upstairs, the primary master suite provides a peaceful retreat, while three additional bedrooms share the upper level for optimal family proximity.
  • A dedicated mudroom keeps the home organized, and the inclusion of an upstairs laundry room adds modern efficiency to daily routines.
Unit A
Heated Area
2,899Sq. Ft.
1363 Sq. Ft. 1st
1536 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
498 Sq. Ft.
Dimensions
45'width
42'depth
34'height
Unfinished Areas
498 Sq. Ft. Garage
Unit B
Heated Area
2,899Sq. Ft.
1363 Sq. Ft. 1st
1536 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
498 Sq. Ft.
Dimensions
45'width
42'depth
34'height
Unfinished Areas
498 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,798 sq. ft.

1st Floor

2,726 sq. ft.

2nd Floor

3,072 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 0"

Depth

42' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

996 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Mountain

New American

Special Features

Breakfast Nook

Den

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

5,798 sq. ft.

1st Floor

2,726 sq. ft.

2nd Floor

3,072 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 0"

Depth

42' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

996 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Mountain

New American

Special Features

Breakfast Nook

Den

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry
