Plan 42814MJ Stunning Tuscan Abode

5,839 5 5.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Stunning Tuscan Abode

Plan 42814MJ

  • 5,839

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

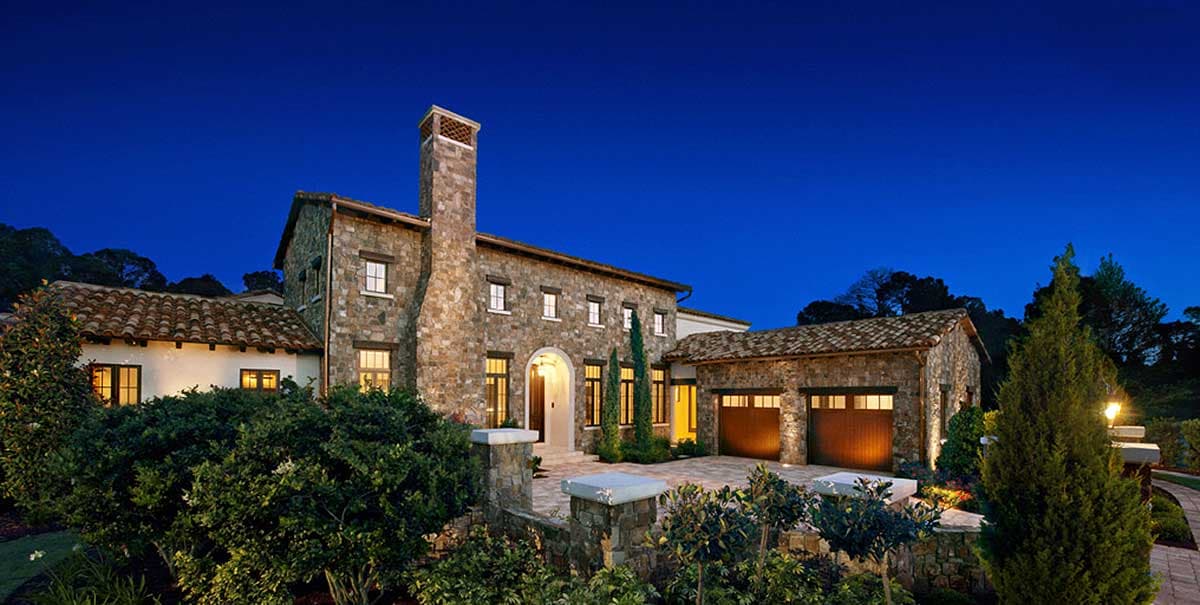

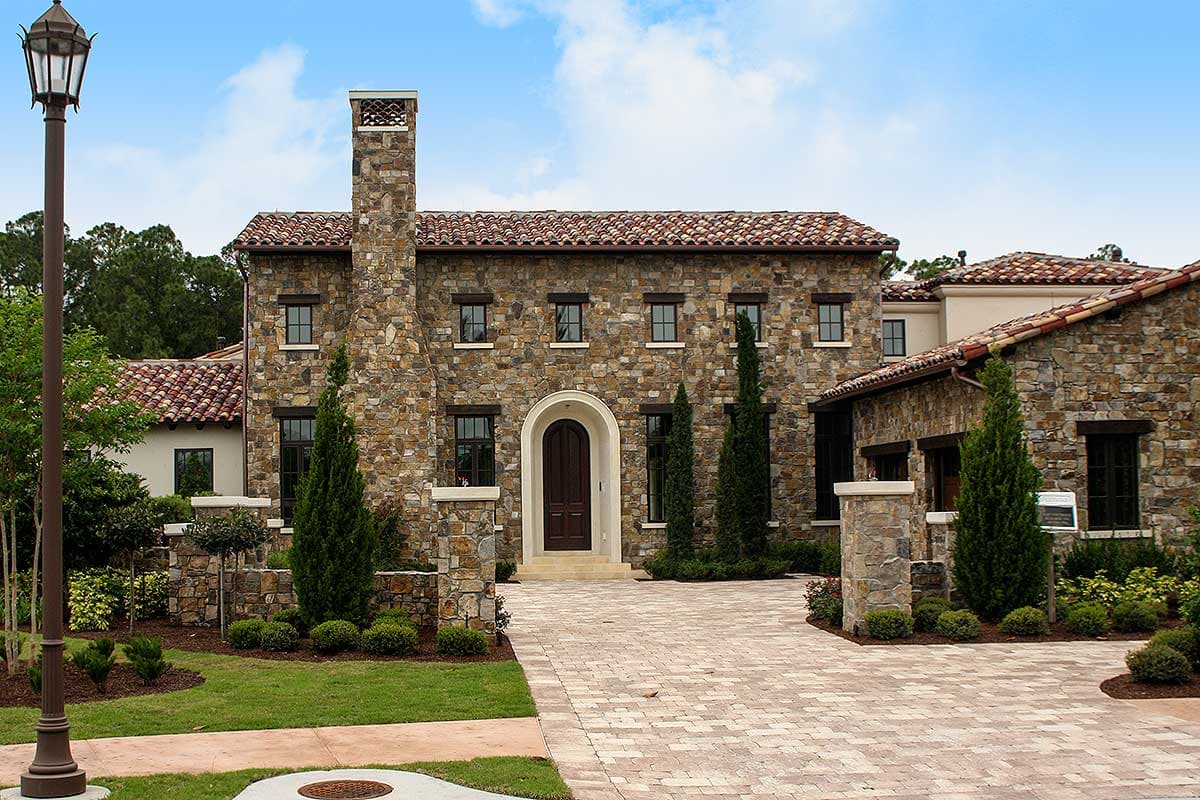

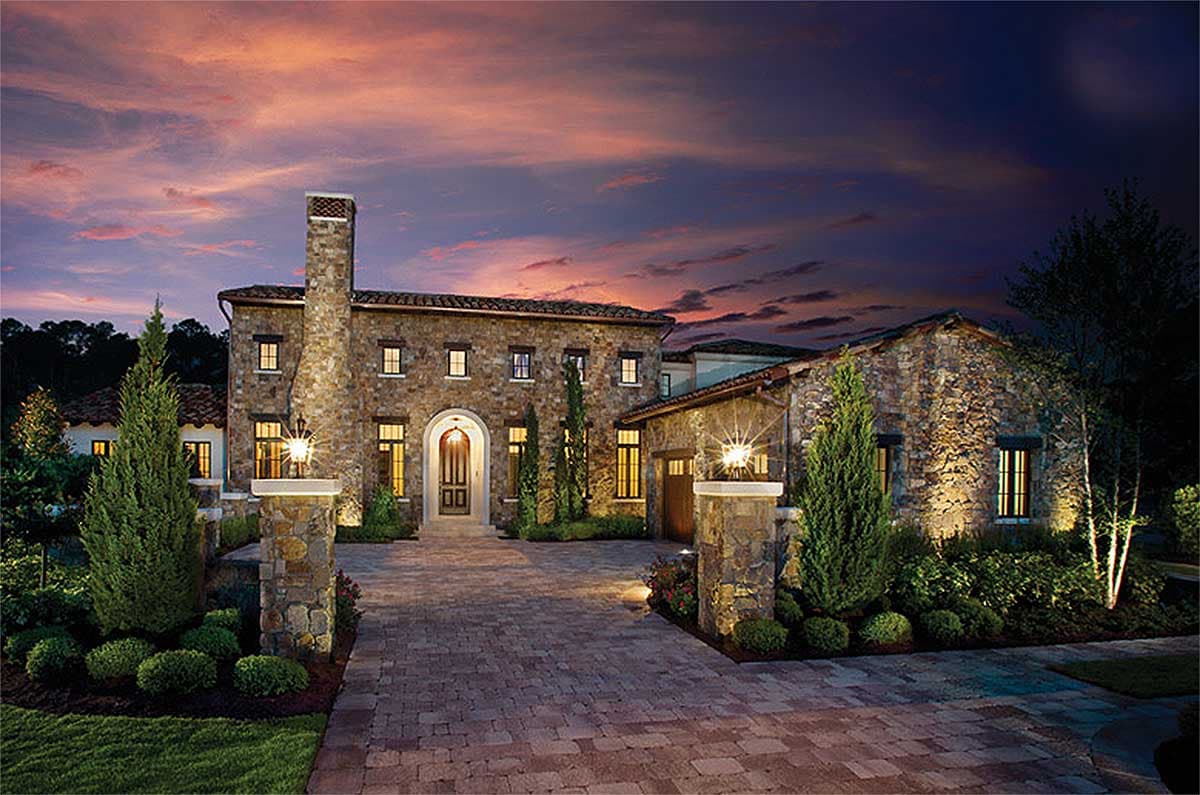

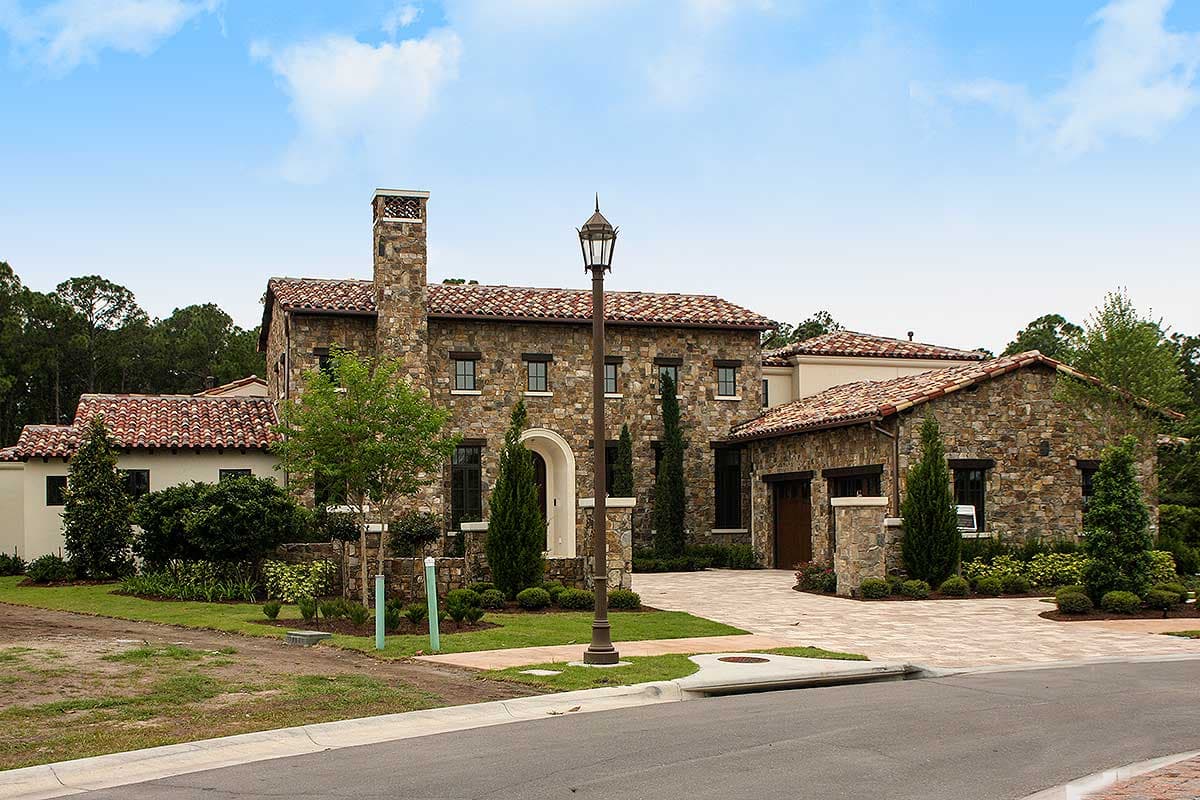

  • Stretching out across over 128', this magnificent Mediterranean home looks as if it came straight from Italy.

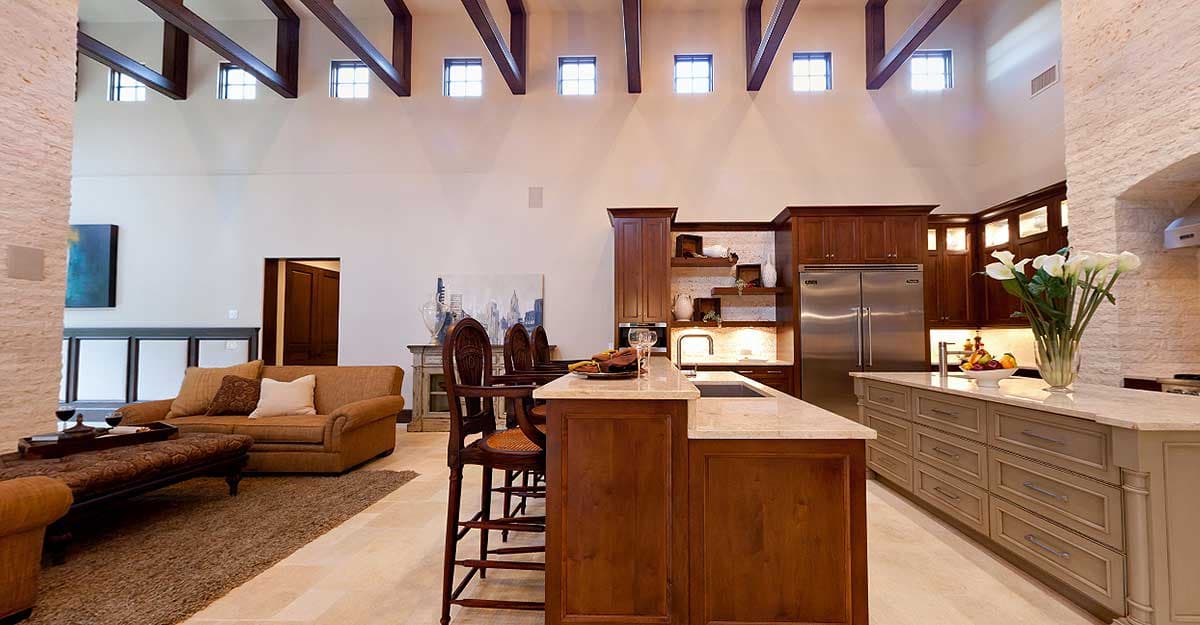

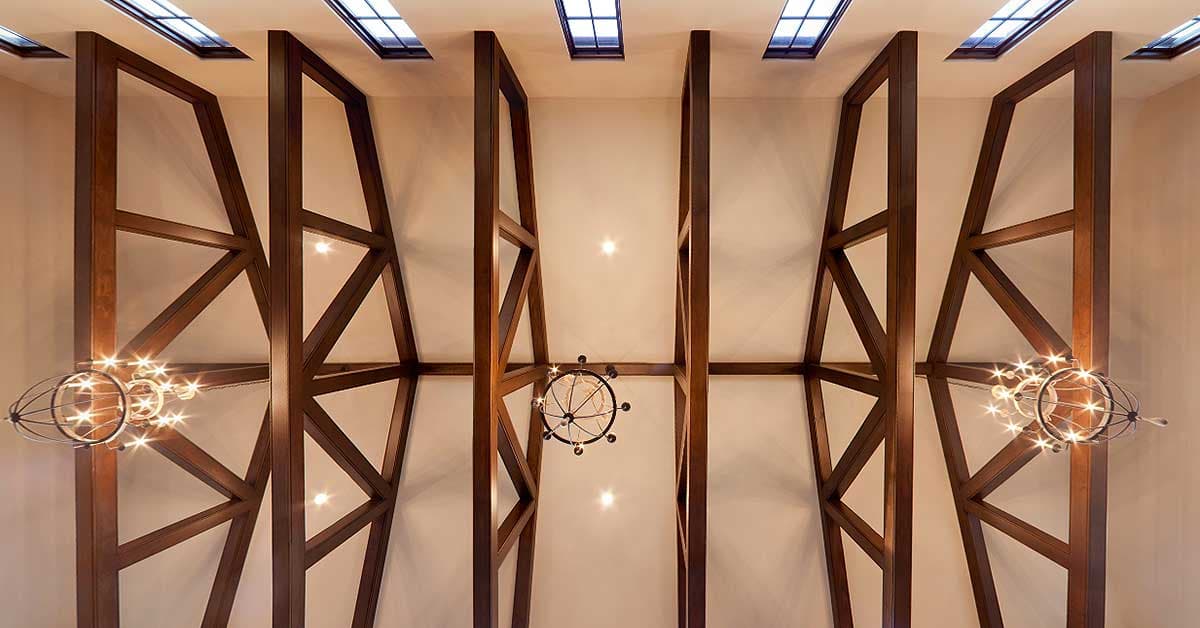

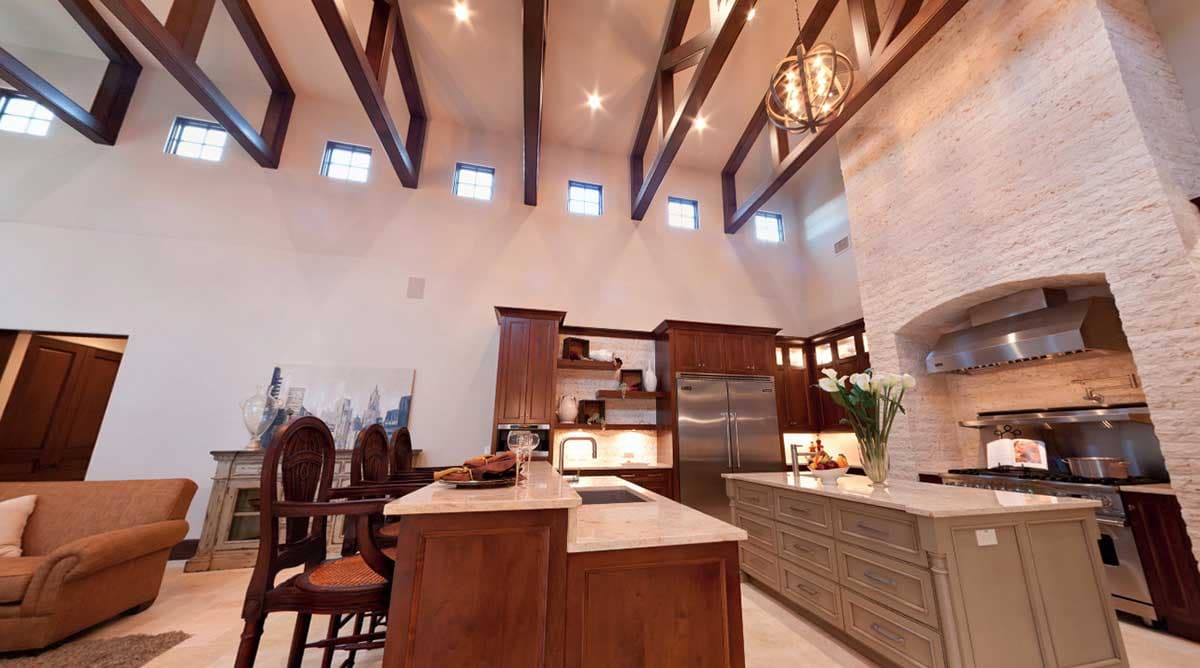

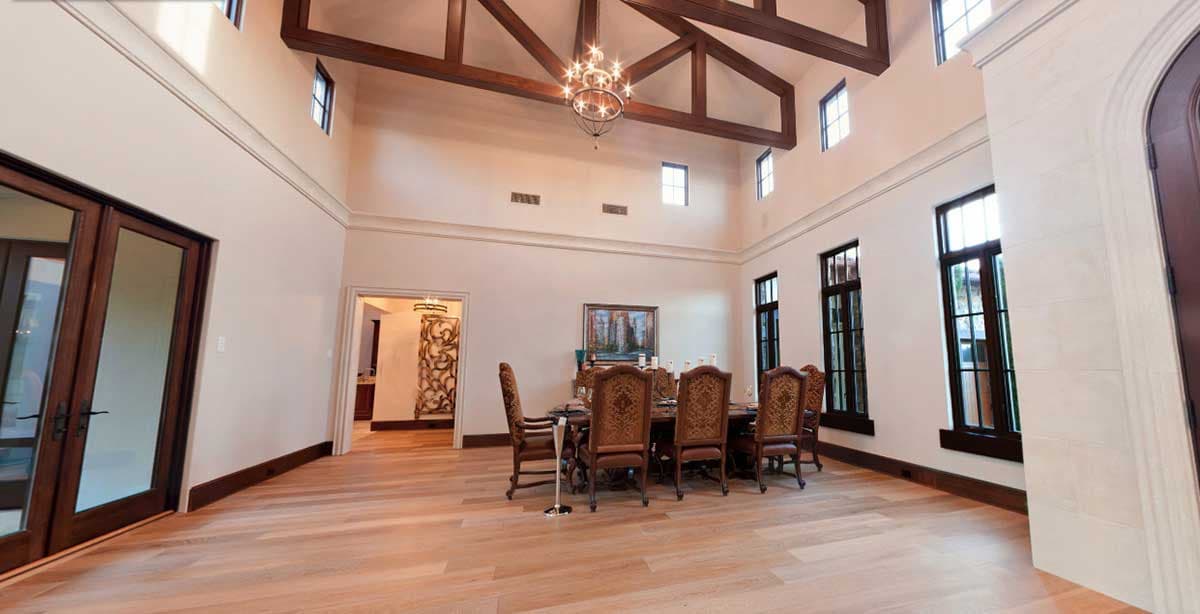

  • Two-story ceilings throughout all the main living areas are topped with beams for a rustic appeal.

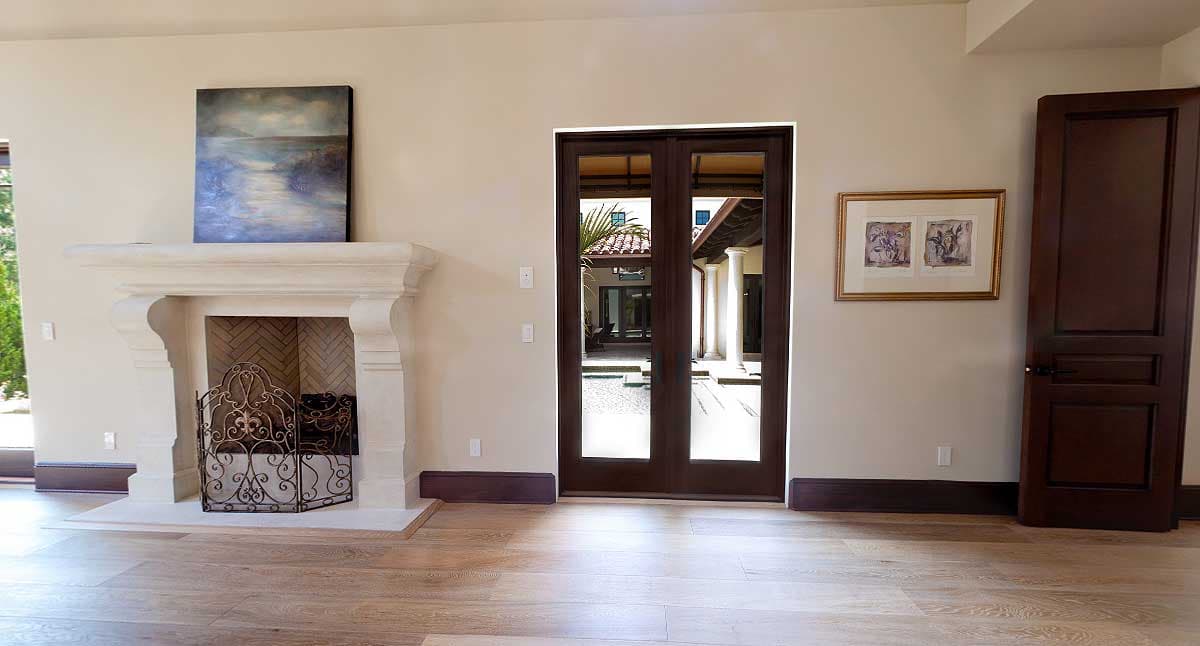

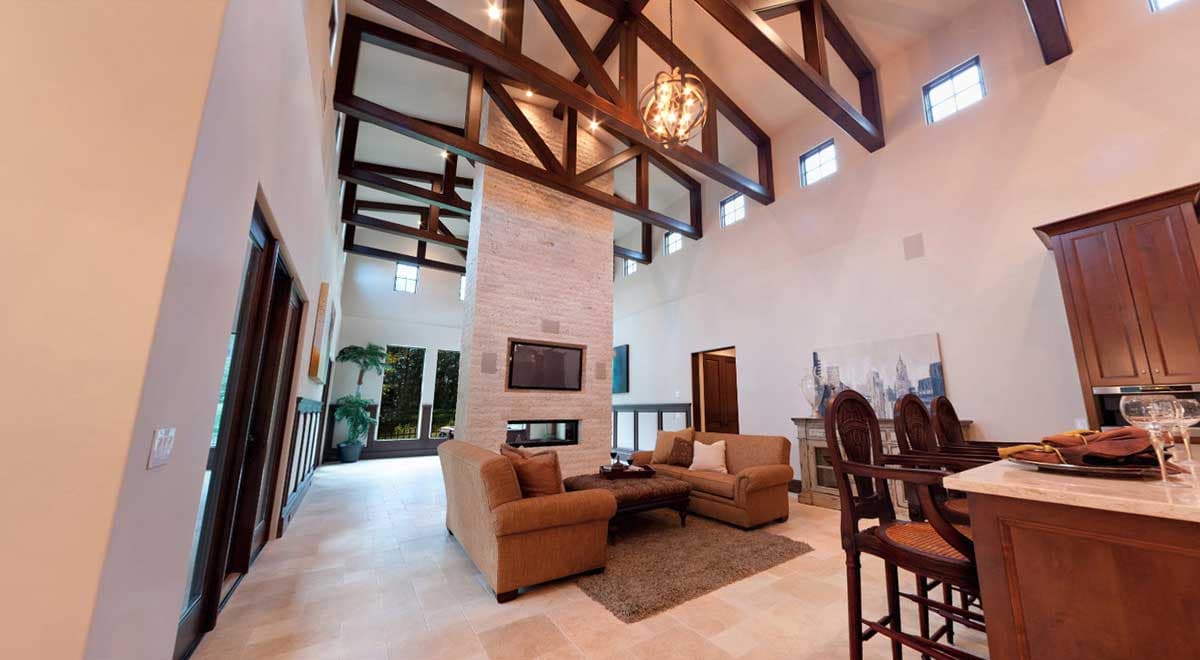

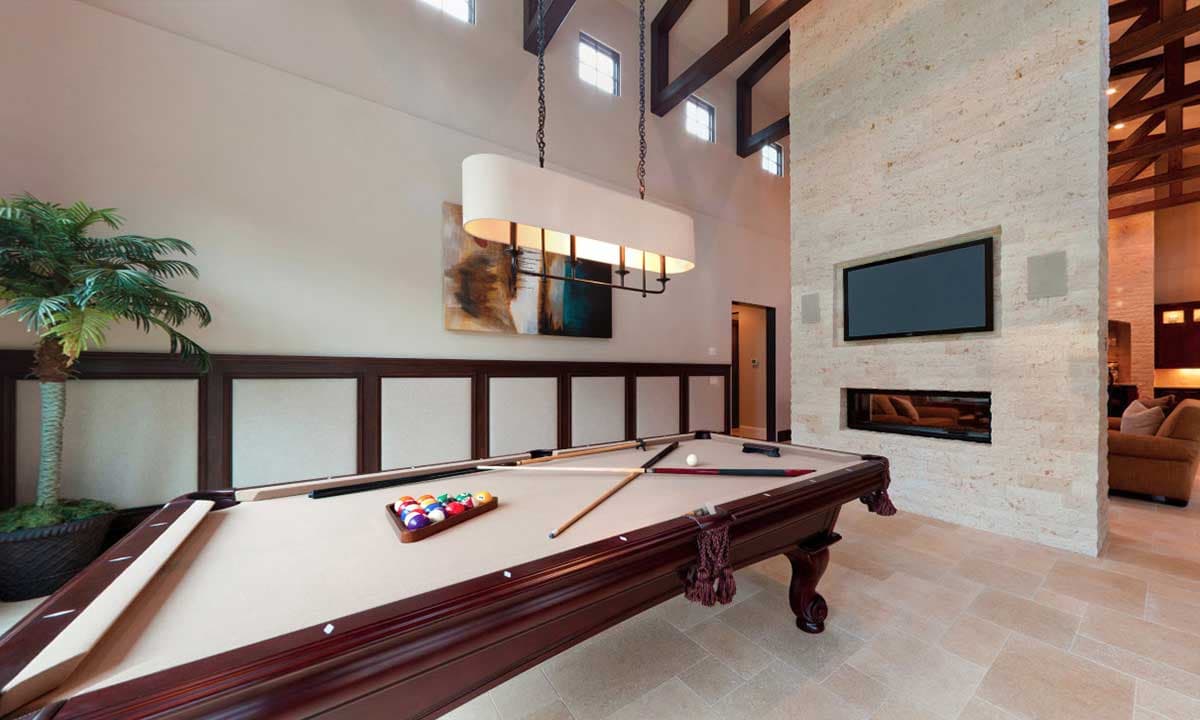

  • A two-sided fireplace is shared by the enormous gathering and game rooms.

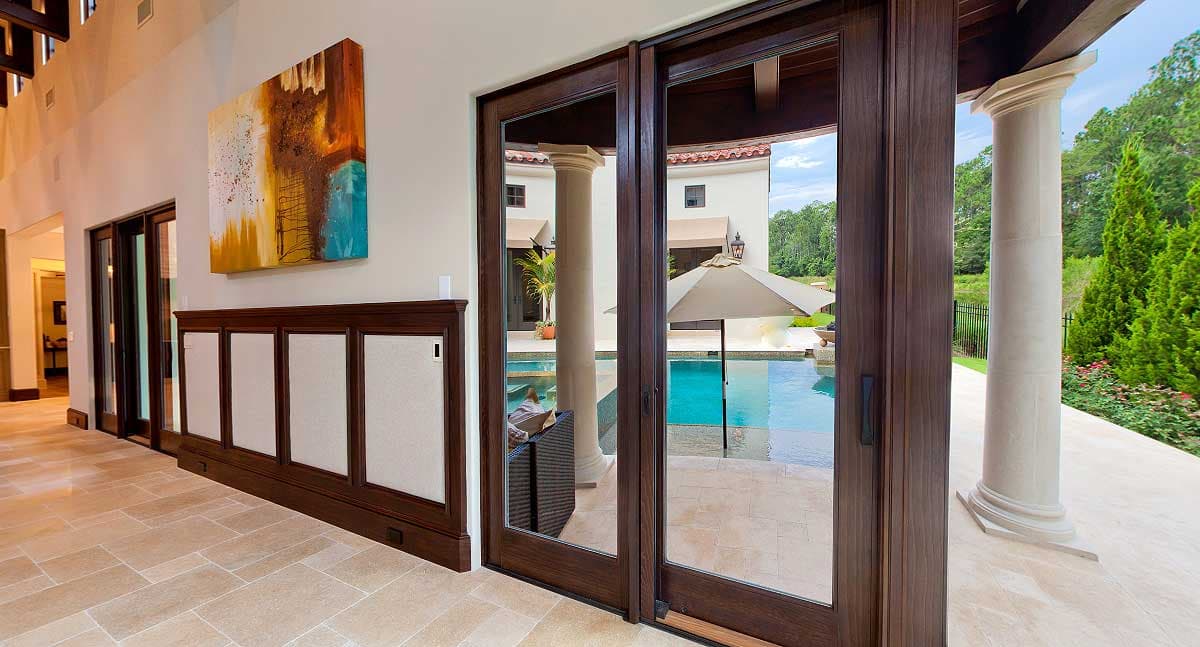

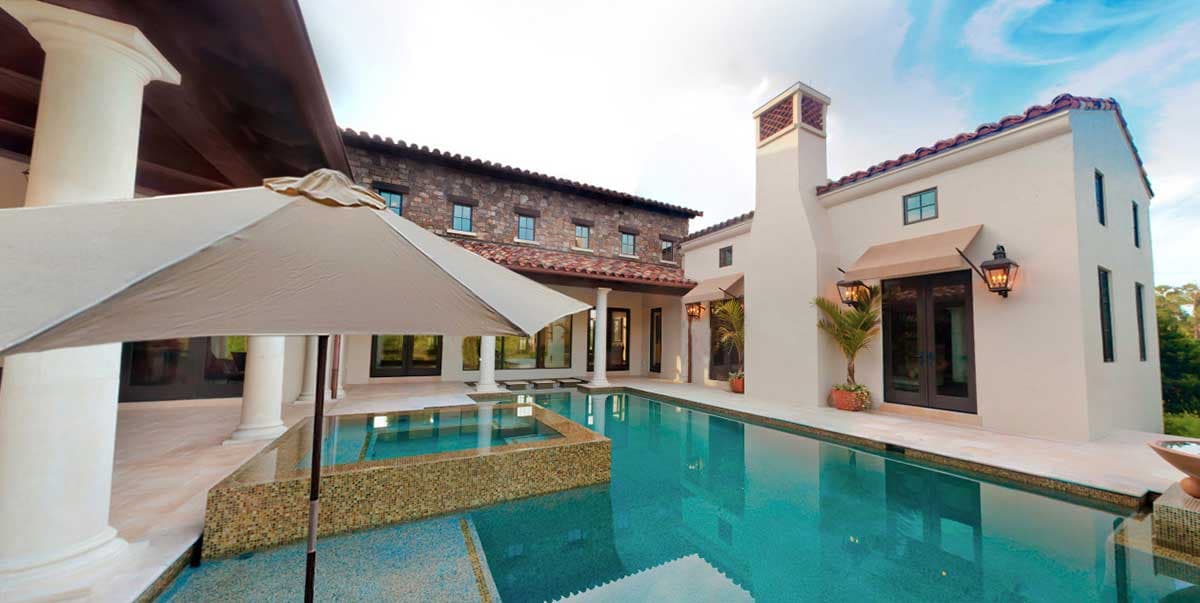

  • From here you can step out to the side porch with its outdoor kitchen and living area.

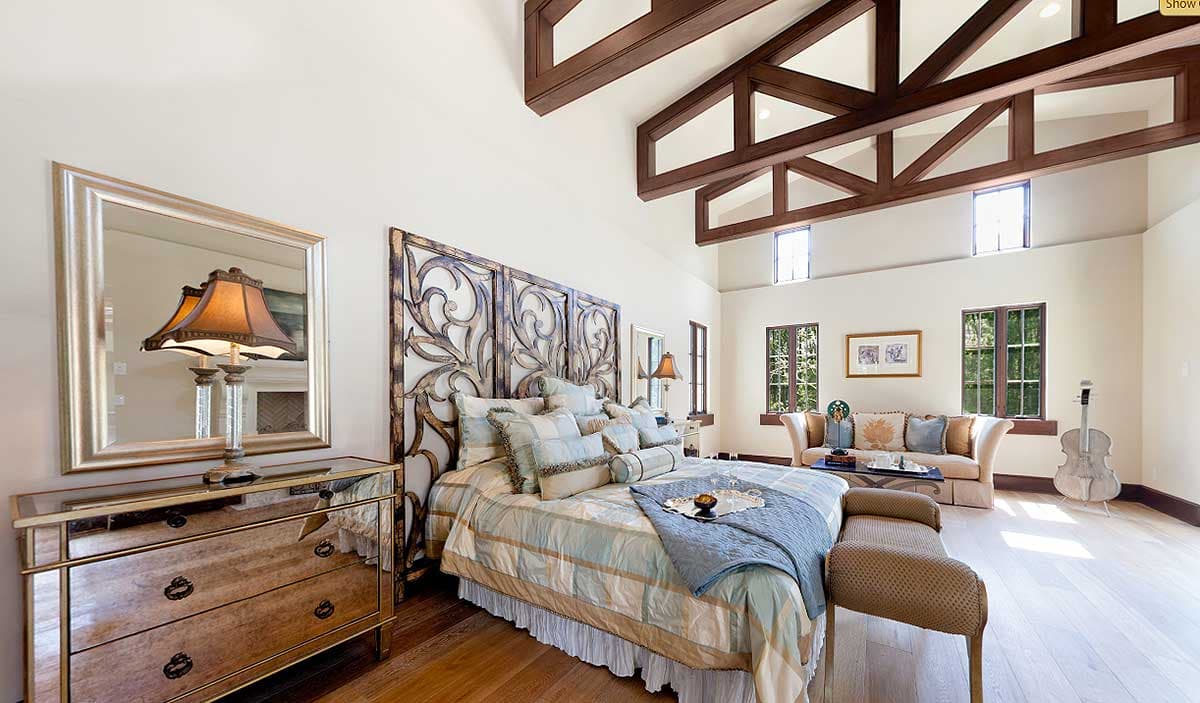

  • The owner's retreat is a true oasis boasting a morning bar, safe room and spectacular master bath.
  • The master walk-in closet is also huge and is divided into his and her sections.
  • On the opposite side of the home, four beautiful guest suites will house family and friends in grand style.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

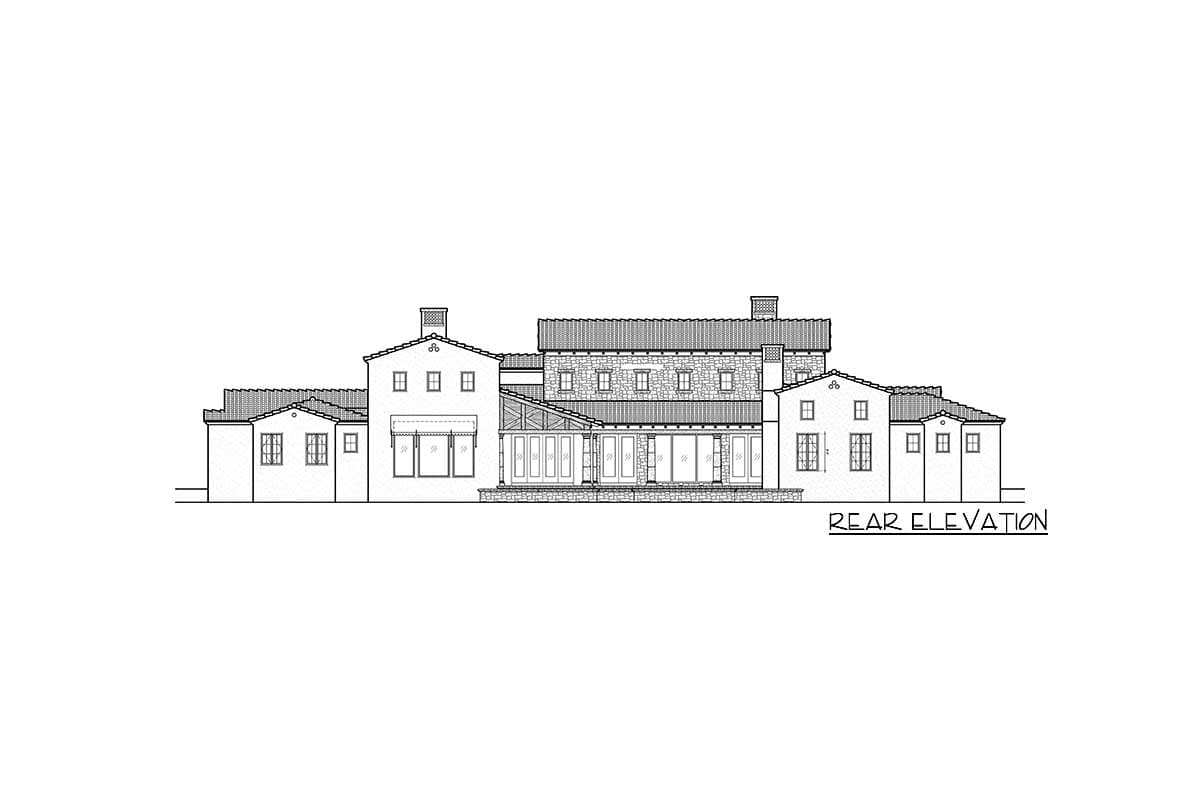

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

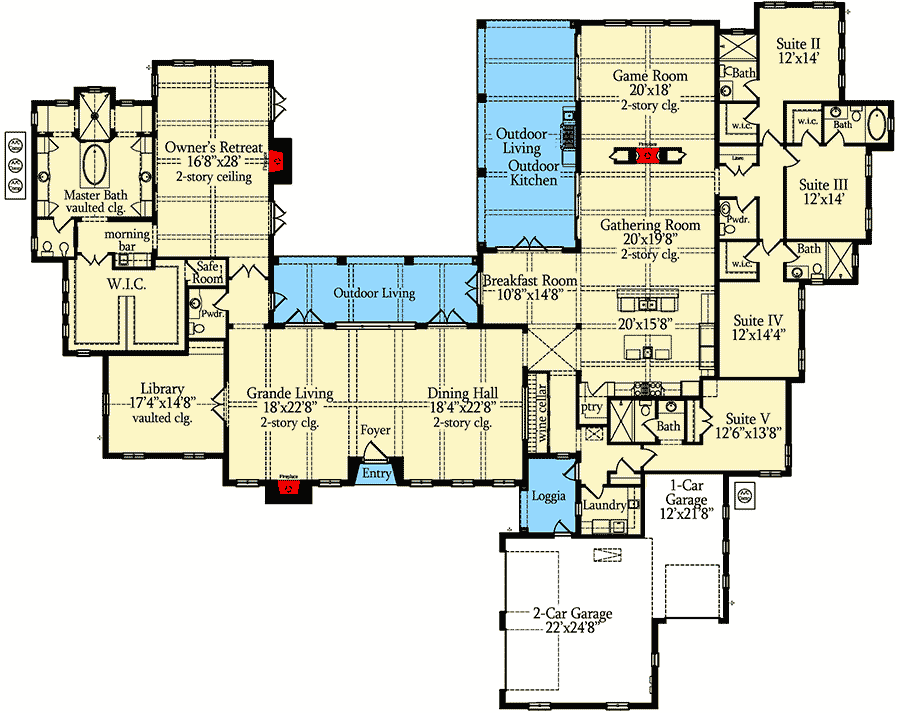

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stunning Tuscan Abode - 42814MJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,839 sq. ft.
  • 1st Floor: 5,839 sq. ft.
  • Entry: 22 sq. ft.
  • Porch, Combined: 903 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 128' 8"
  • Depth: 105' 4"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 854 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Stunning Tuscan Abode

  • 5,839

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD + PDF - Single-Build $2,795
  • View all purchase option online

About This Plan

  • Stretching out across over 128', this magnificent Mediterranean home looks as if it came straight from Italy.
  • Two-story ceilings throughout all the main living areas are topped with beams for a rustic appeal.
  • A two-sided fireplace is shared by the enormous gathering and game rooms.
  • From here you can step out to the side porch with its outdoor kitchen and living area.
  • The owner's retreat is a true oasis boasting a morning bar, safe room and spectacular master bath.
  • The master walk-in closet is also huge and is divided into his and her sections.
  • On the opposite side of the home, four beautiful guest suites will house family and friends in grand style.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,839 sq. ft.
  • 1st Floor: 5,839 sq. ft.
  • Entry: 22 sq. ft.
  • Porch, Combined: 903 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 128' 8"
  • Depth: 105' 4"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 854 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
Plan 42814MJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/42814MJ
|
