Stunning Visual Appeal

Plan 36439TX

This plan plants 3 trees

7,473
Heated s.f.
4-5
Beds
5.5+
Baths
2
Stories
4
Cars

Looking straight out of the French countryside, this European mansion has stunning visual appeal.
Turrets on either end of the home give you a circular reading room off the study and a circular staircase off the garage that leads to attic space.
From the double doors at the foyer, a magnificent fanned staircase takes your breath away.
The formal dining room lies to the right and a fabulous media room lies to the left with its beamed 11' ceiling.
Even the first floor guest suite has a gorgeous beamed ceiling and a spa-like bathroom.
Kids of all ages will love the game room that has a wet bar, fireplace and double doors to the rear outdoor covered lounge area.
Most of your family living takes place in the L-shaped open area that has beamed ceilings to unite the kitchen and the breakfast nook.
On the upper floor, a wonderful balcony bridge with open rails on both sides separates the magnificent master suite from three family bedrooms and a kids playroom with its own sink and mini-fridge.
Homeowners gets a romantic corner fireplace and a private balcony where you can relax in the fresh air.
Both the master bathroom and walk-in closet are enormous, with a true feeling of luxury.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

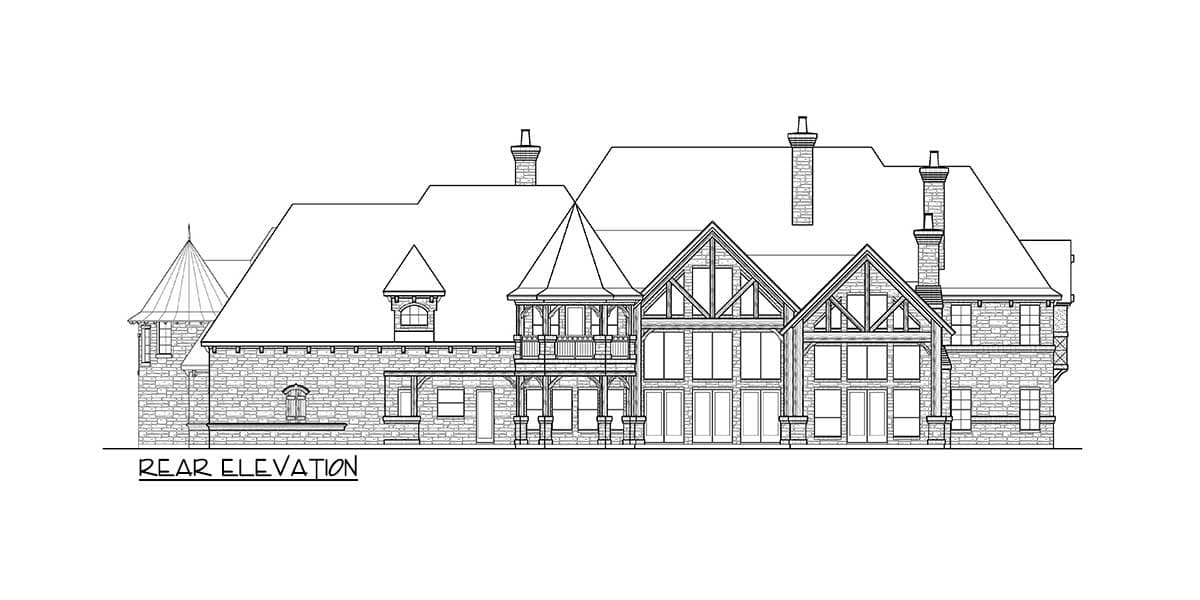

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

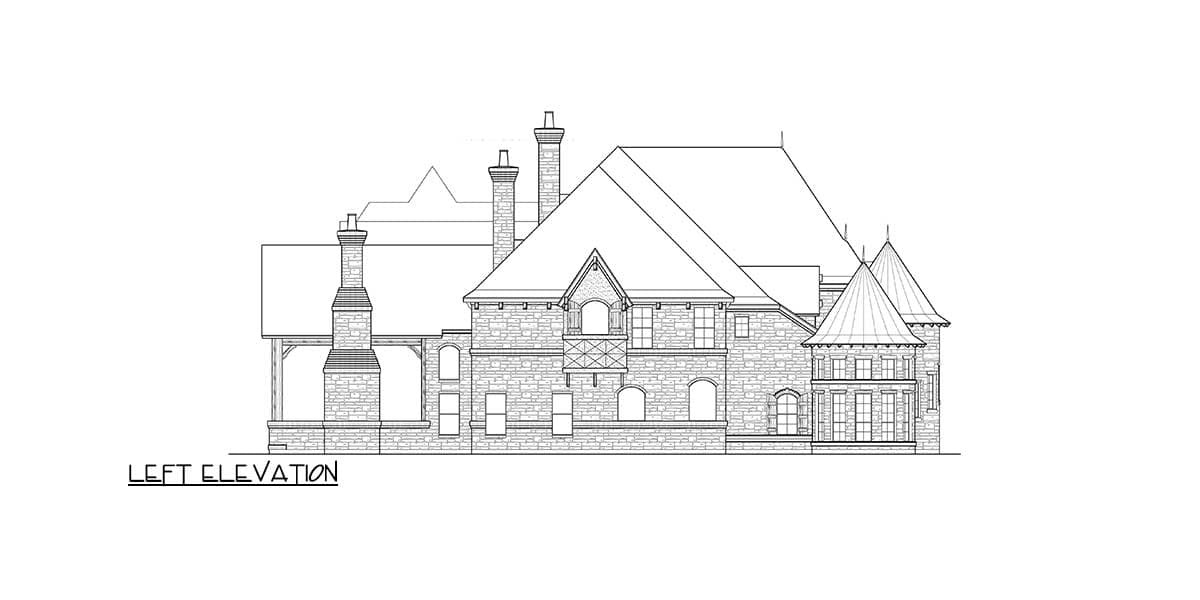

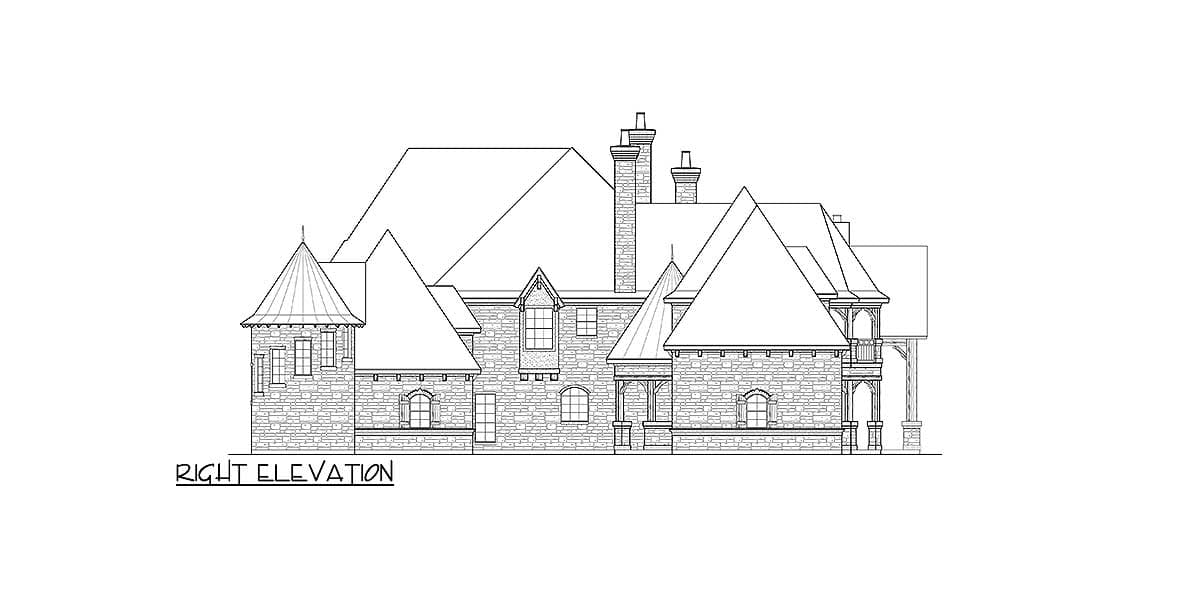

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

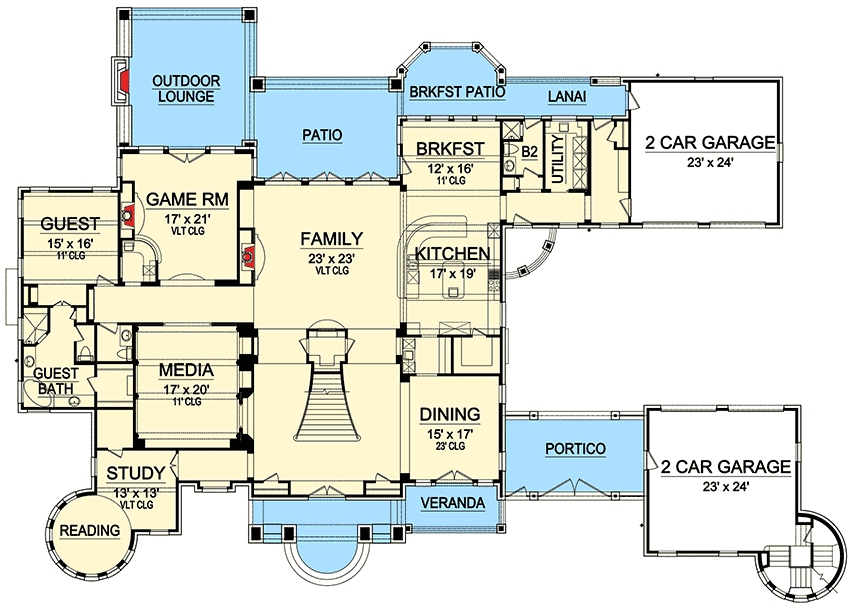

Stunning Visual Appeal - 36439TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

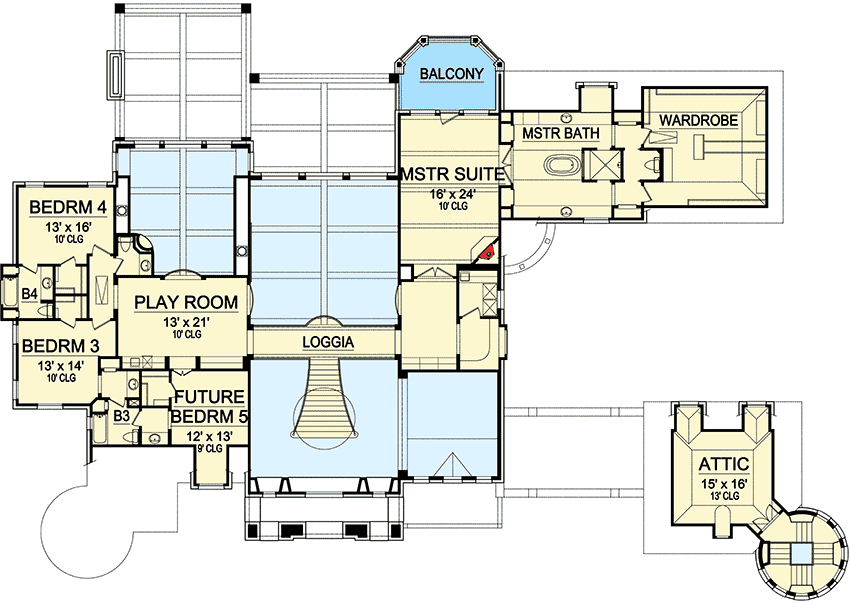

Stunning Visual Appeal - 36439TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 7,473 sq. ft.
1st Floor: 4,824 sq. ft.
2nd Floor: 2,649 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 5
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 136' 0"
Depth: 98' 0"
Max ridge height: 49' 0"

Garage

Type: Attached
Area: 1384 sq. ft.
Count: 4 Cars
Entry Location: Front, Rear

Ceiling Heights

Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Scroll
