Plan 89804AH

Sturdy Craftsman Home Plan

Heated S.F.
2,275
Beds
4
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 89804AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 89804AH

M-F 9am-5pm EST |

1-203-761-8500

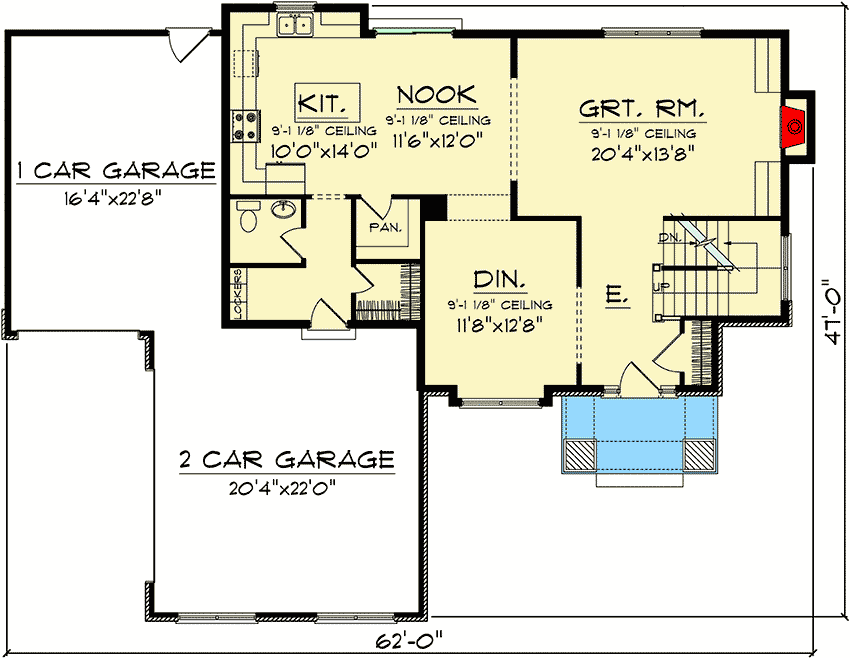

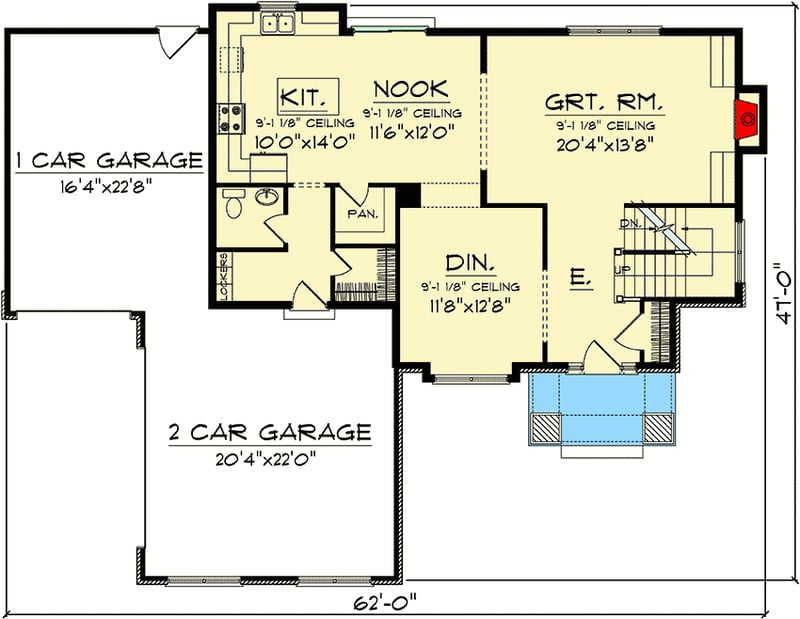

Main Level

Plan 89804AH: Sturdy Craftsman Home Plan - Floor Plan - Main Level - Craftsman, Northwest

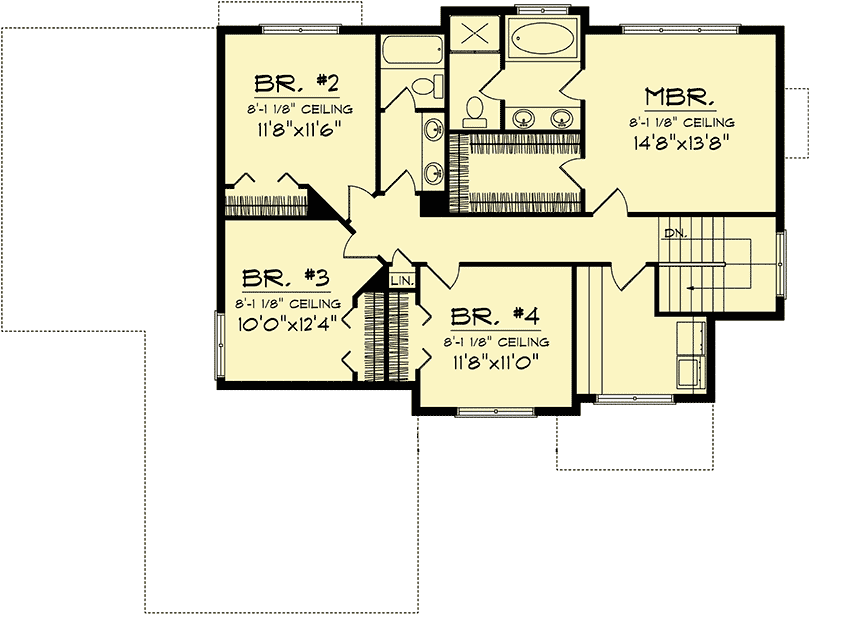

2nd Floor

Plan 89804AH: Sturdy Craftsman Home Plan - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

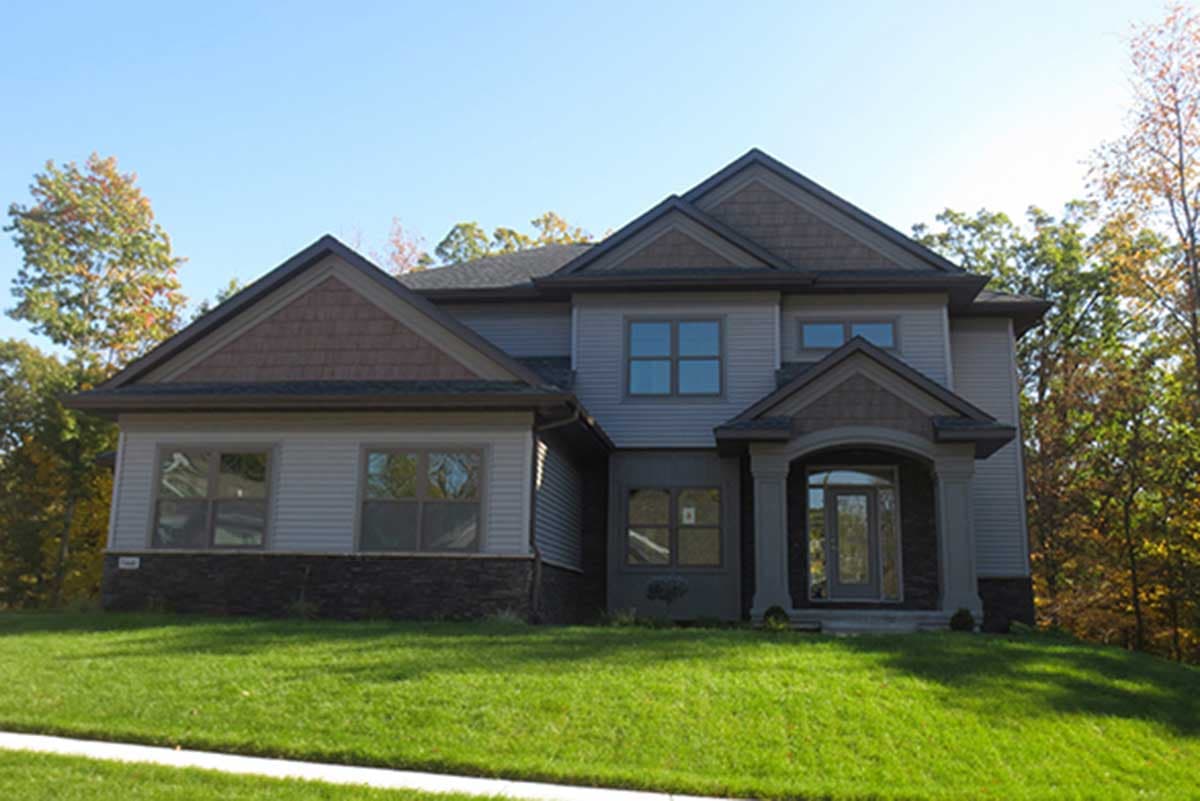

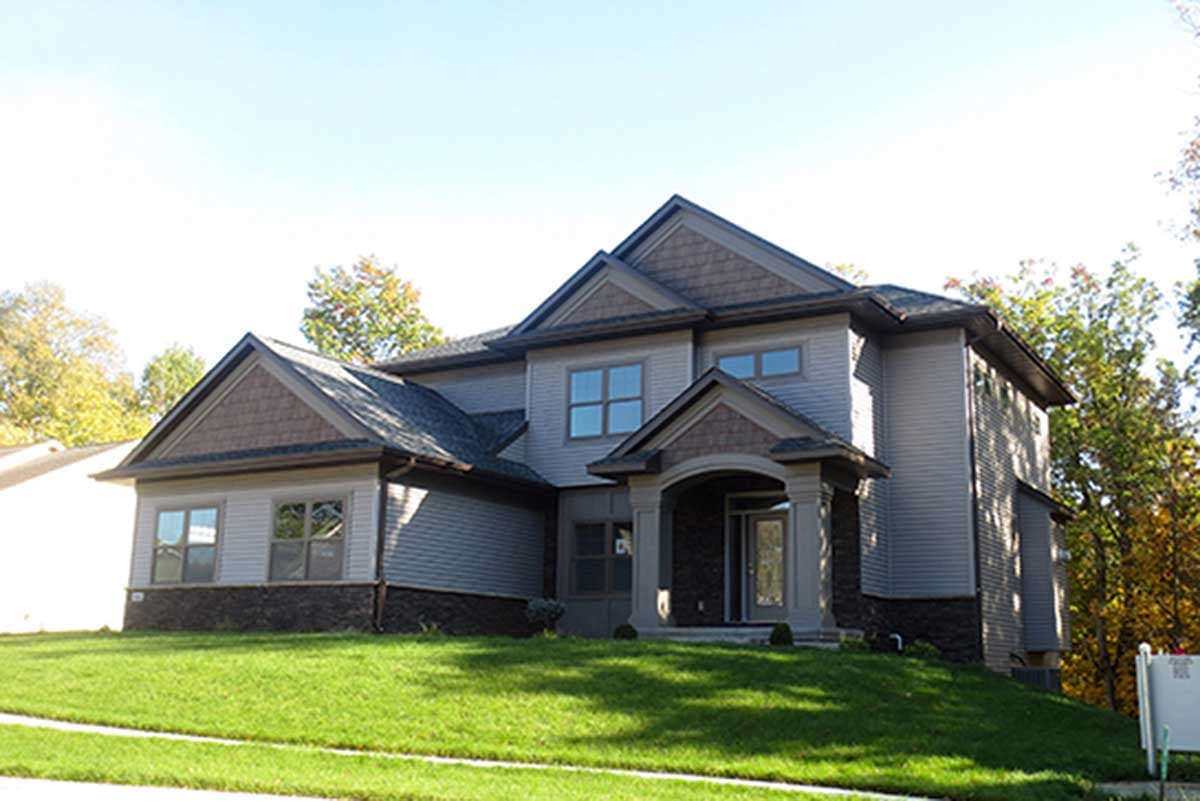

  • Clean rooflines, stone and shingle siding, and massive entry columns define this Craftsman two-story home.
  • The formal dining room is found to your left as you enter this home while the main living area lies directly ahead.
  • Here you'll find a spacious kitchen with center island that overlooks the nook to the right. The great room flows off the nook and includes a fireplace with built-in book shelves and nine-foot ceilings.
  • All bedrooms are located on the second floor where the master suite includes a spacious walk-in closet and Jacuzzi tub.
  • Each of the other 3 bedrooms has access to the full bath just off the hallway
  • A three-stall, split load garage completes this home.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,275 sq. ft.

1st Floor

1,125 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

47' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

852 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Formal Dining

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,275 sq. ft.

1st Floor

1,125 sq. ft.

2nd Floor

1,150 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

47' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

852 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Formal Dining

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Photo Gallery
