Plan 290074IY
Sturdy Craftsman with Optional Finished Lower Level
Heated S.F.
2,895
Beds
4-6
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS

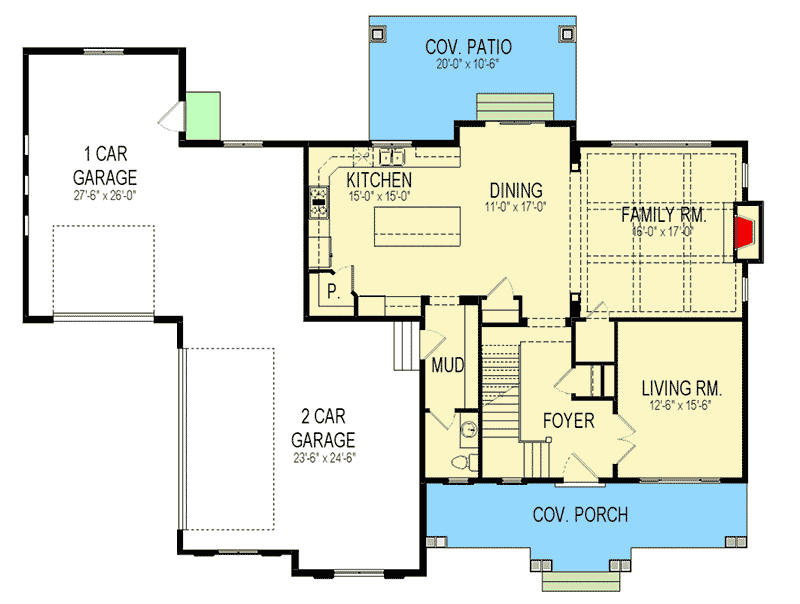

Main Level
Reverse Floor Plan
Sturdy Craftsman with Optional Finished Lower Level - 290074IY floor plan - Main Level

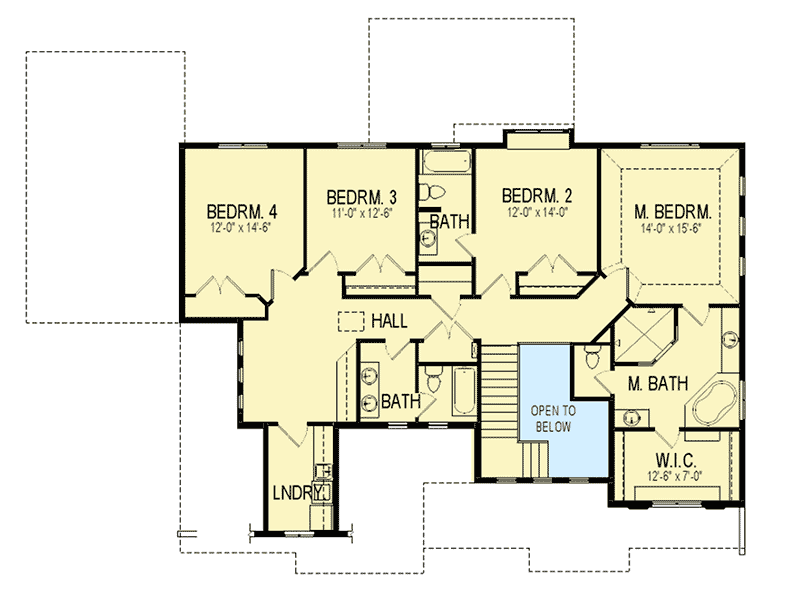

2nd Floor
Reverse Floor Plan
Sturdy Craftsman with Optional Finished Lower Level - 290074IY floor plan - 2nd Floor

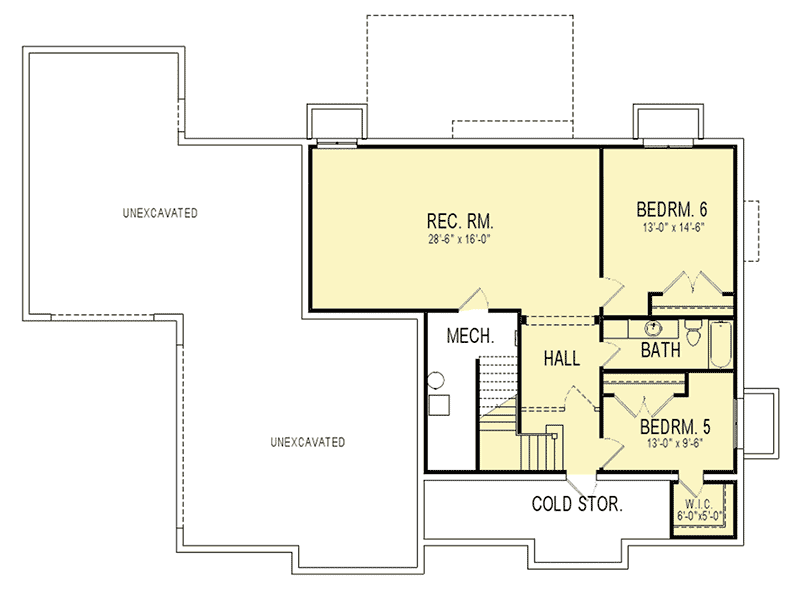

Optional Lower Level
Reverse Floor Plan
Sturdy Craftsman with Optional Finished Lower Level - 290074IY floor plan - Optional Lower Level
Plan Details
  • This large Craftsman house plan offers you a formal living room closed off with double doors and an informal family room with a gorgeous coffered ceiling.
  • A walk-in pantry and big island in the kitchen give you excellent storage space.
  • Both the front porch and the rear patio are covered to shelter you from sun and rain.
  • All four bedrooms are up on the second floor along with a handy second floor laundry room.
  • Gain two additional bedrooms and a huge rec room by finishing the lower level.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

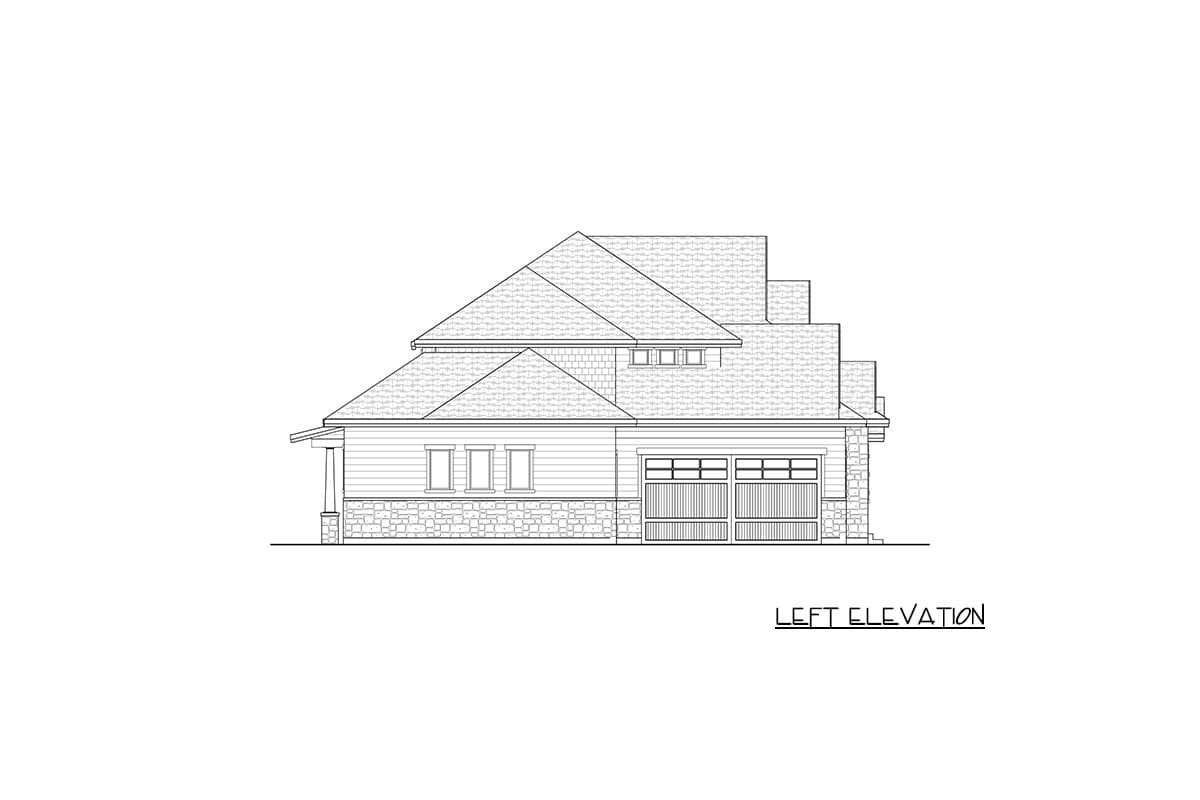

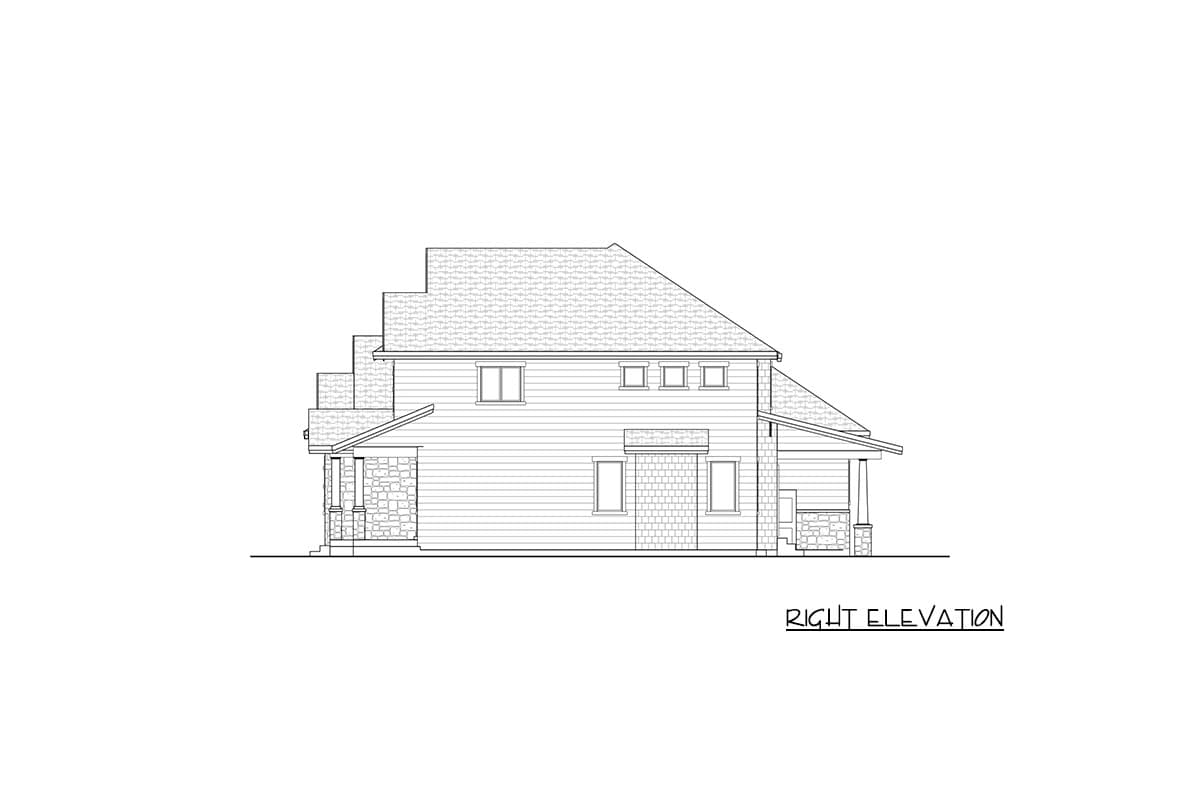

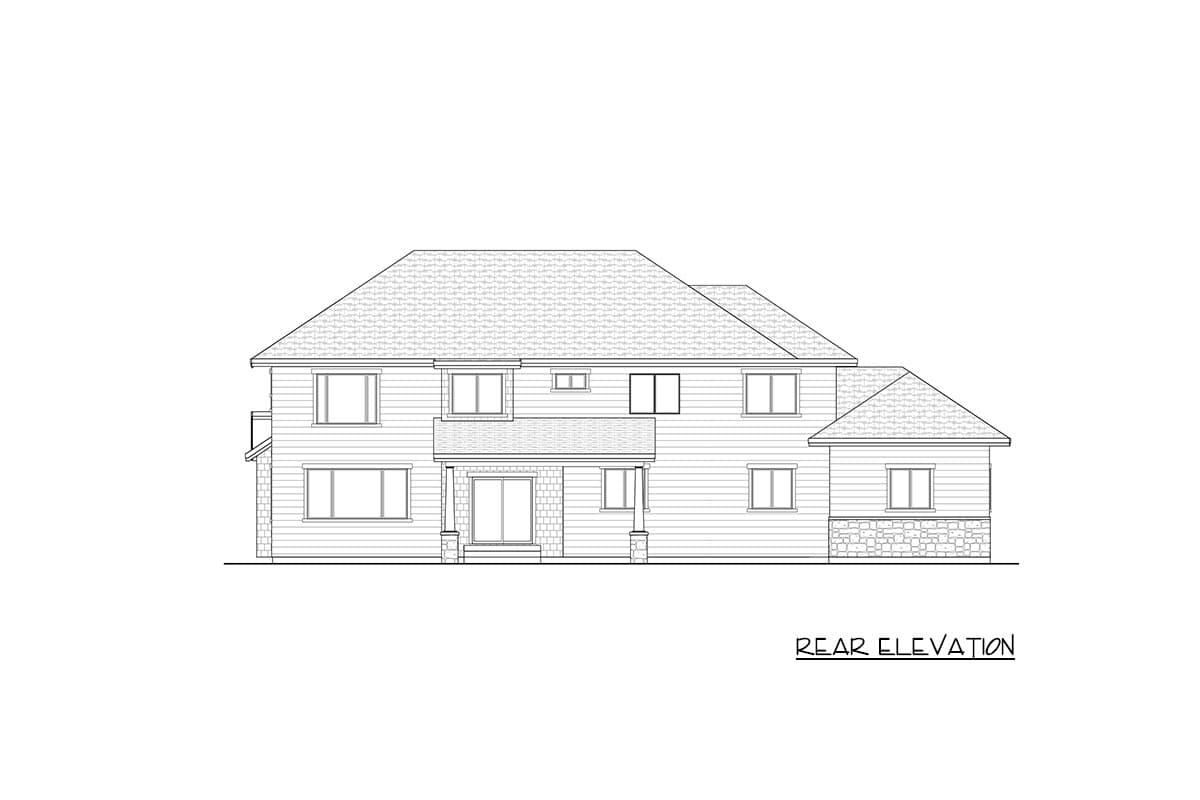

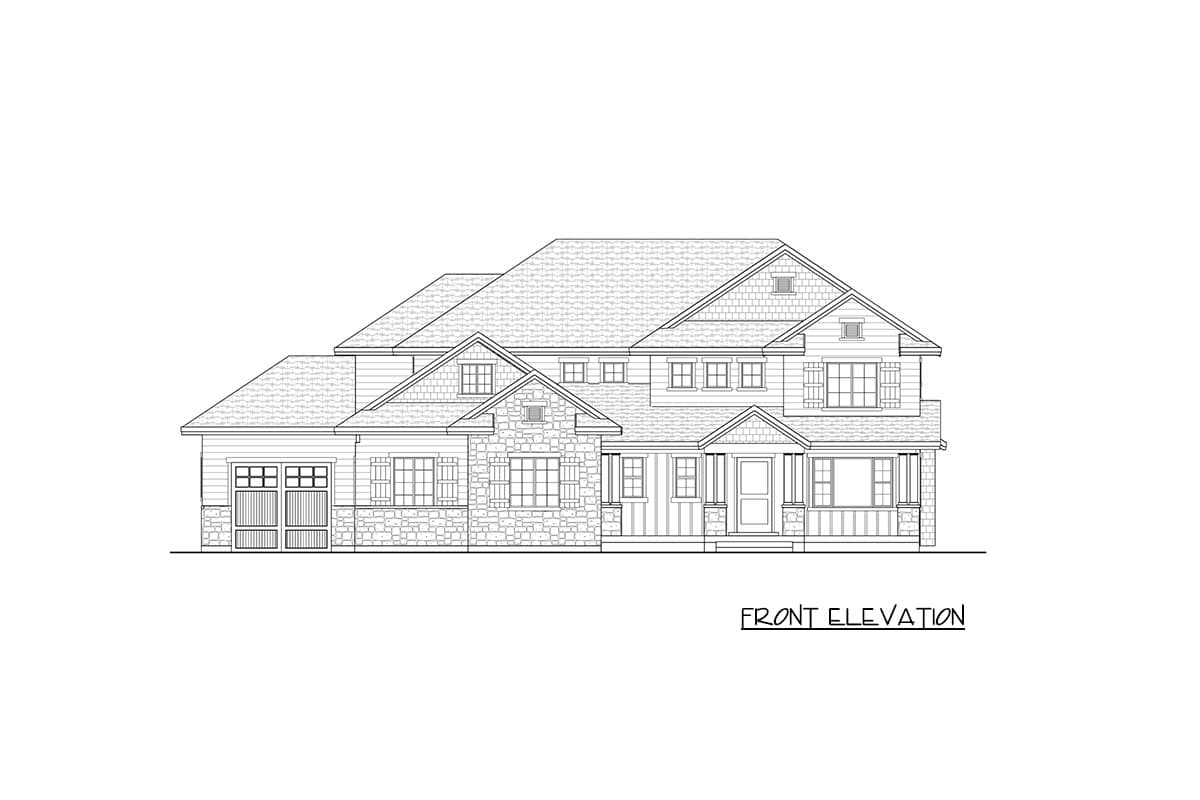

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sturdy Craftsman with Optional Finished Lower Level

  • 2,895

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,895 sq. ft.
  • 1st Floor: 1,272 sq. ft.
  • 2nd Floor: 1,623 sq. ft.

Dimensions

  • Width: 73' 2"
  • Depth: 55' 4"
  • Max ridge height: 31' 5"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
