Plan 57210HA
Stylish A-Frame Home Plan
Heated S.F.
1,117
Beds
2
Baths
1
Stories
1-2
What's Included
Plan Details
  • A wide deck opens to the combined living room and kitchen/breakfast area that span two-stories high.
  • Windows flood this vacation home with an abundance of light, keeping the area bright and cheerful.
  • The second floor loft offers a spacious area perfect for a play room or home theater.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stylish A-Frame Home Plan

  • 1,117

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1-2

    Floors

Floor Plan

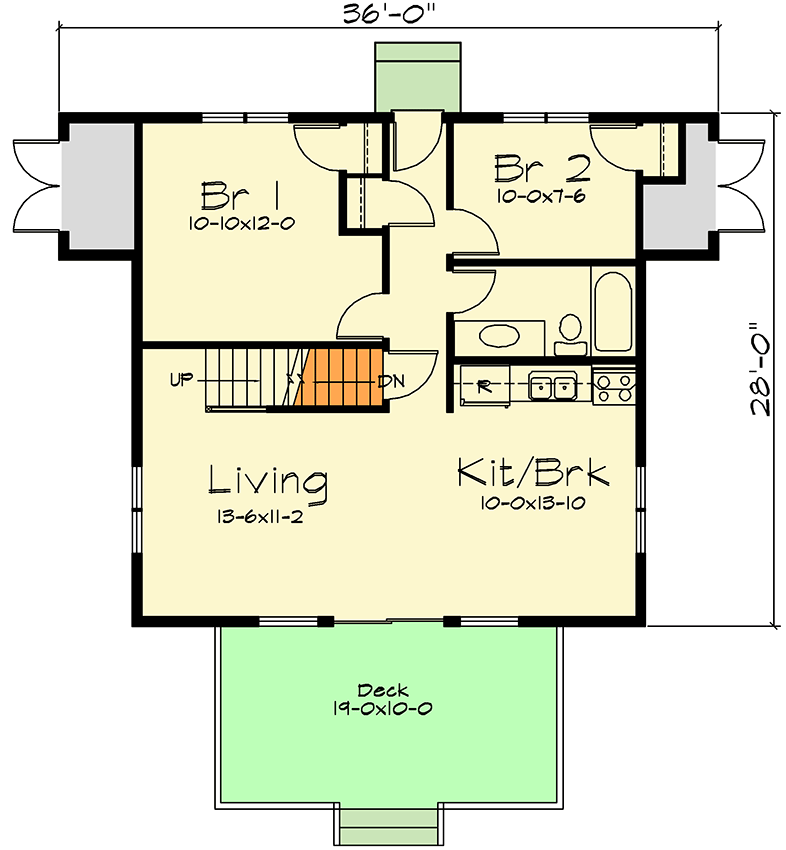

  • Main Level

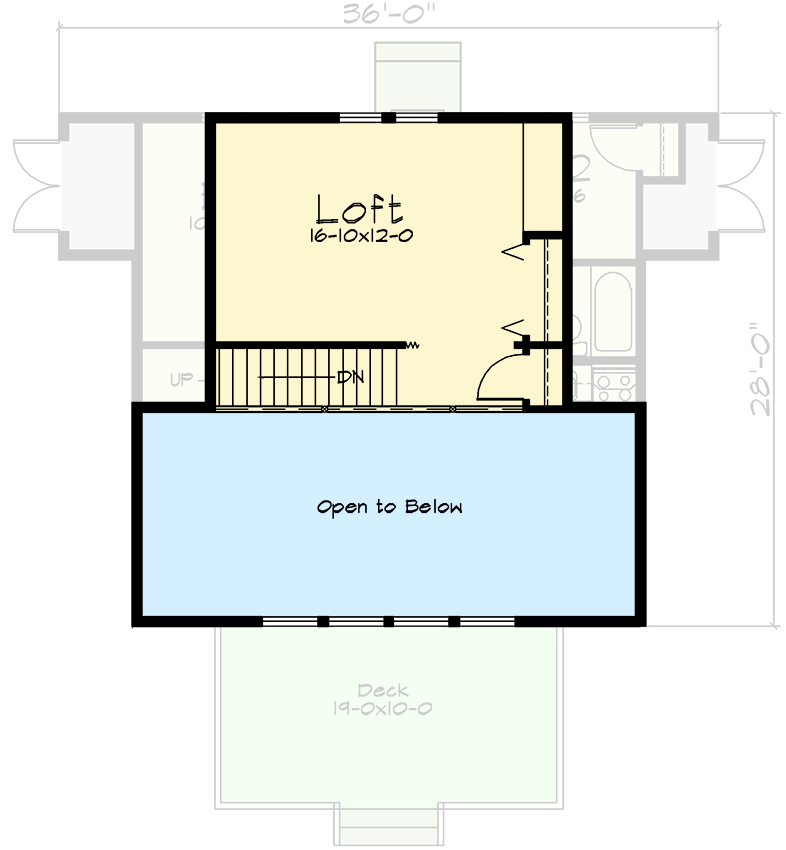

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,117 sq. ft.
  • 1st Floor: 790 sq. ft.
  • 2nd Floor: 327 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
