Plan 12005JL
Stylish and Graceful 2-Story House Plan with 4 Upstairs Bedrooms - 2996 Sq Ft
Heated S.F.
2,996
Beds
4-5
Baths
3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

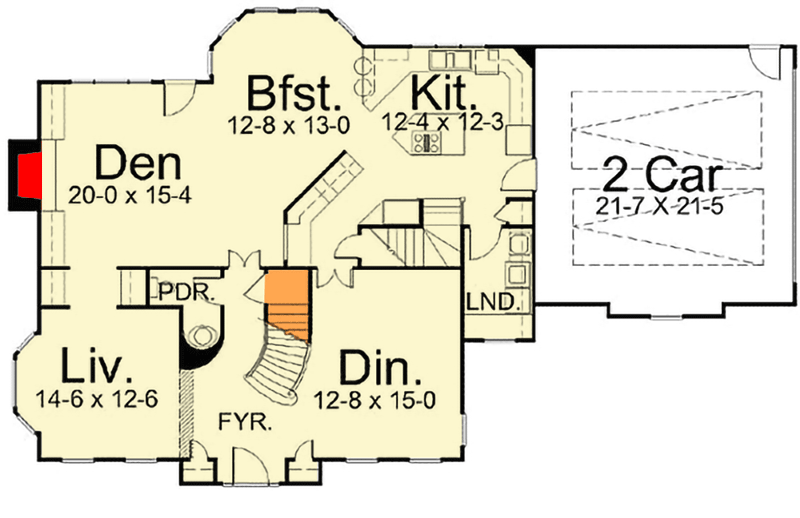

Stylish and Graceful 2-Story House Plan with 4 Upstairs Bedrooms - 2996 Sq Ft - 12005JL floor plan - Main Level
2nd Floor
Reverse Floor Plan

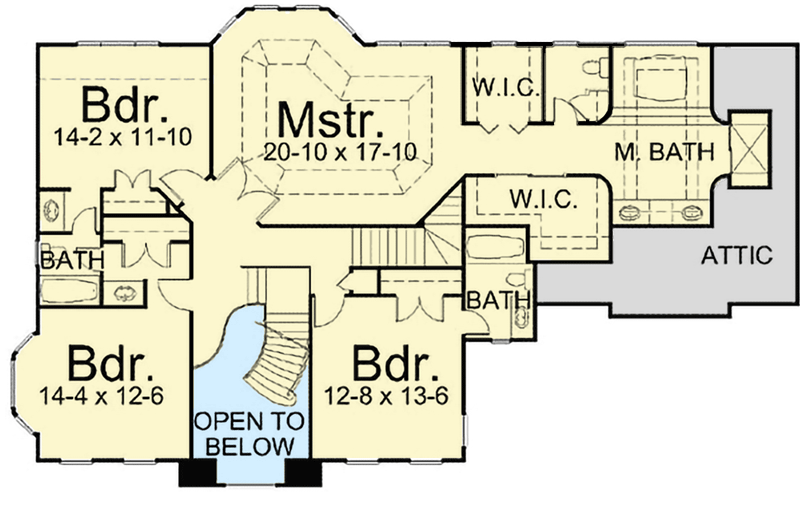

Stylish and Graceful 2-Story House Plan with 4 Upstairs Bedrooms - 2996 Sq Ft - 12005JL floor plan - 2nd Floor
Optionally Finished Lower Level
Reverse Floor Plan

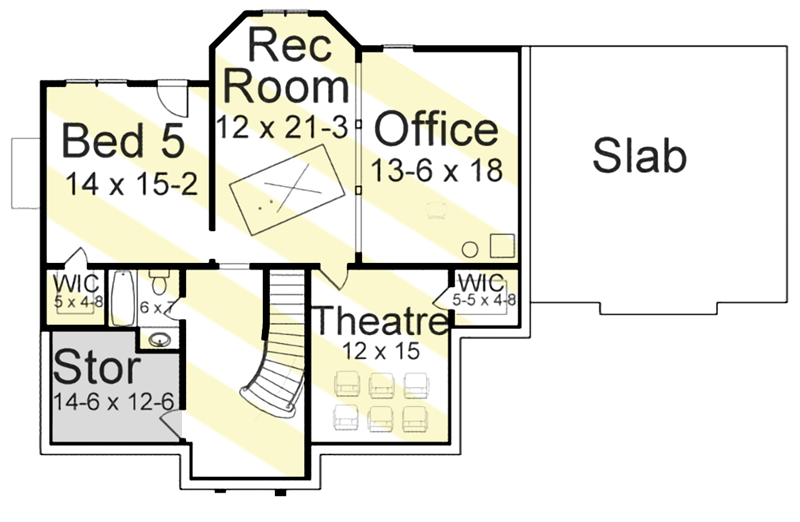

Stylish and Graceful 2-Story House Plan with 4 Upstairs Bedrooms - 2996 Sq Ft - 12005JL floor plan - Optionally Finished Lower Level
Plan Details
  • Elegance and efficiency are artfully combined to make everyday a stylish and graceful. Rich in architectural details and classical design, this house plan is not like any other home of its size.
  • Immediately upon entry, as a visitor sees the sweep of the staircase and the soaring two-story foyer, they realize this is no ordinary house.
  • The flowing first floor arrangement provides for easy family living and for memorable entertaining and special occasions.
  • The second floor includes a master suite with all the amenities of the most luxurious homes.
  • The three other bedrooms are spacious and have either their own private bath or a 'Jack and Jill' bath with separate dressing areas.
What's Included

  • Cover Sheet -The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation - These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above.  If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan - This page is drawn to 1/4”=1’-0” scale and includes exterior dimensions to build the home.  The notes are precise directions for your builder.  Important features such as built-ins, niches, and appliances are noted.  Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.
  • Second Floor Plan - The second floor includes stair details.  Often the reflective roof detail is shown legibly over the second floor plan.  This is helpful for the framing contractor.
  • Lighting and Electrical - On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.  It is common place to build with your builder and/or electrician before the work starts to review this plan.  Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting - The same details as provided for the first floor.

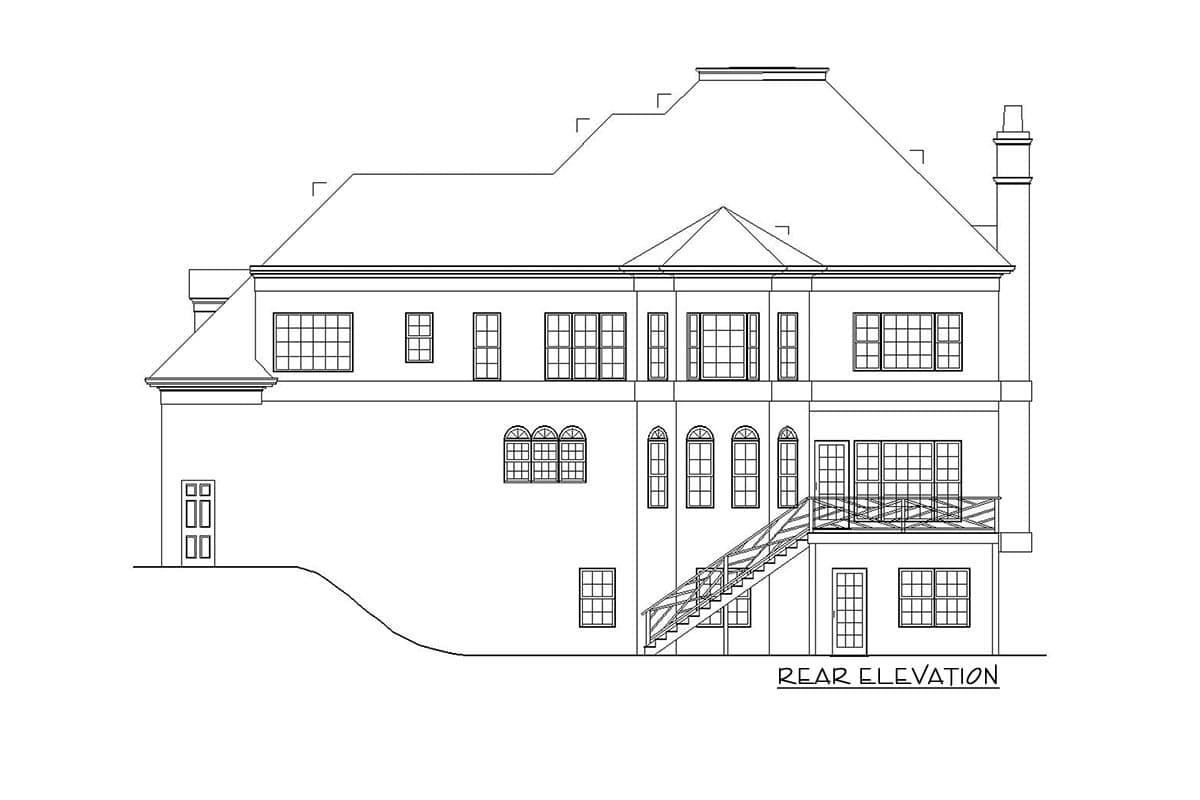

  • Front and Rear Elevations - The front and rear elevations may be on separate pages depending on the size of the house.  This page comes with exterior dimensions and notes required to complete construction.  This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations - The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan - This drawing, usually at 1/4”=1’-0” scale, will be a bird’s eye view of the home.  It will show the ridges, hips, and valleys.  This page will show a beautifully designed roof.
  • Cross-Sections - Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations - Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes.  Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified.  After framing and sheet rock installation sizes of walls may change slightly.  The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stylish and Graceful 2-Story House Plan with 4 Upstairs Bedrooms - 2996 Sq Ft

  • 2,996

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,996 sq. ft.
  • 1st Floor: 1,437 sq. ft.
  • 2nd Floor: 1,559 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 4"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 10' 0"
