Plan 22325DR Stylish Contemporary Triplex House Plan

3,588 3 34' 0" 36' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Stylish Contemporary Triplex House Plan

Plan 22325DR

  • 3,588

    Heated s.f.

  • 3

    Units

  • 34' 0"

    Width

  • 36' 0"

    Depth

  • Stylish and contemporary, this triplex house plan includes three dwelling units with each occupying a single level. With the trend toward densification, this unit allows three units to occupy a single lot and provides independence and convenience for each unit.
  • Each unit features kitchen with island, private laundry, two bedrooms and generous bathroom with independent soaker tub and generous shower. Each dwelling is designed to include a 12'x8' covered deck.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

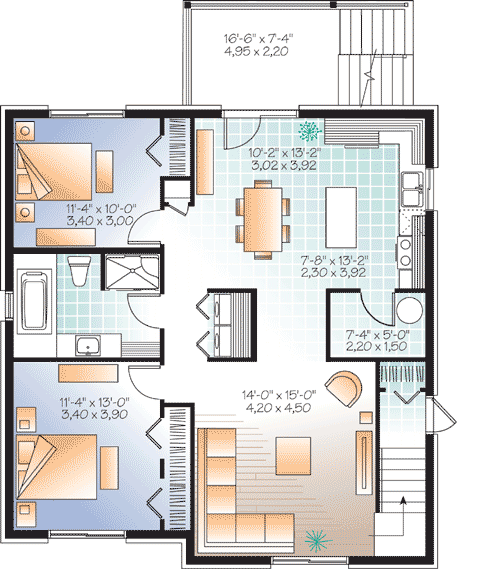

Stylish Contemporary Triplex House Plan - 22325DR floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

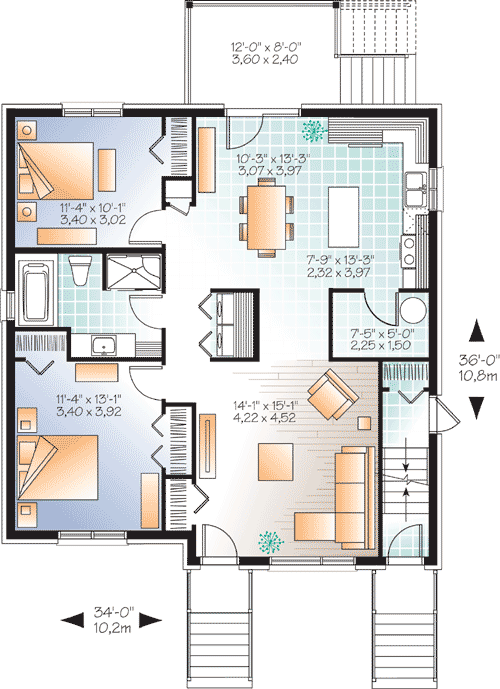

Stylish Contemporary Triplex House Plan - 22325DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

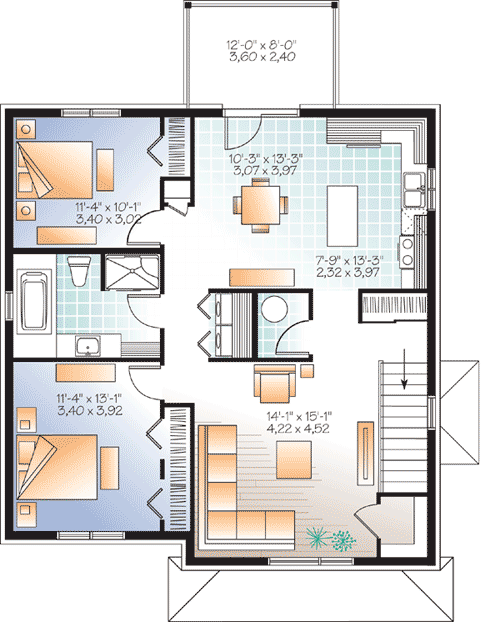

Stylish Contemporary Triplex House Plan - 22325DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,588 sq. ft.
  • Lower Level: 1,196 sq. ft.
  • 1st Floor: 1,196 sq. ft.
  • 2nd Floor: 1,196 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 36' 0"
  • Max ridge height: 30' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

Stylish Contemporary Triplex House Plan

  • 3,588

    Heated s.f.

  • 3

    Units

  • 34' 0"

    Width

  • 36' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $2,255
  • 3 Sets + PDF $2,380
  • CAD + PDF - Single-Build $2,855
  • View all purchase option online

About This Plan

  • Stylish and contemporary, this triplex house plan includes three dwelling units with each occupying a single level. With the trend toward densification, this unit allows three units to occupy a single lot and provides independence and convenience for each unit.
  • Each unit features kitchen with island, private laundry, two bedrooms and generous bathroom with independent soaker tub and generous shower. Each dwelling is designed to include a 12'x8' covered deck.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,588 sq. ft.
  • Lower Level: 1,196 sq. ft.
  • 1st Floor: 1,196 sq. ft.
  • 2nd Floor: 1,196 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 36' 0"
  • Max ridge height: 30' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 22325DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22325DR
|
Need Help? 800-854-7852
|
Plan 22325DR
