Stylish Craftsman with Three Bedrooms

1,690 3 3 2 2
Pageloader

Stylish Craftsman with Three Bedrooms

Plan 64418SC

  • 1,690

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

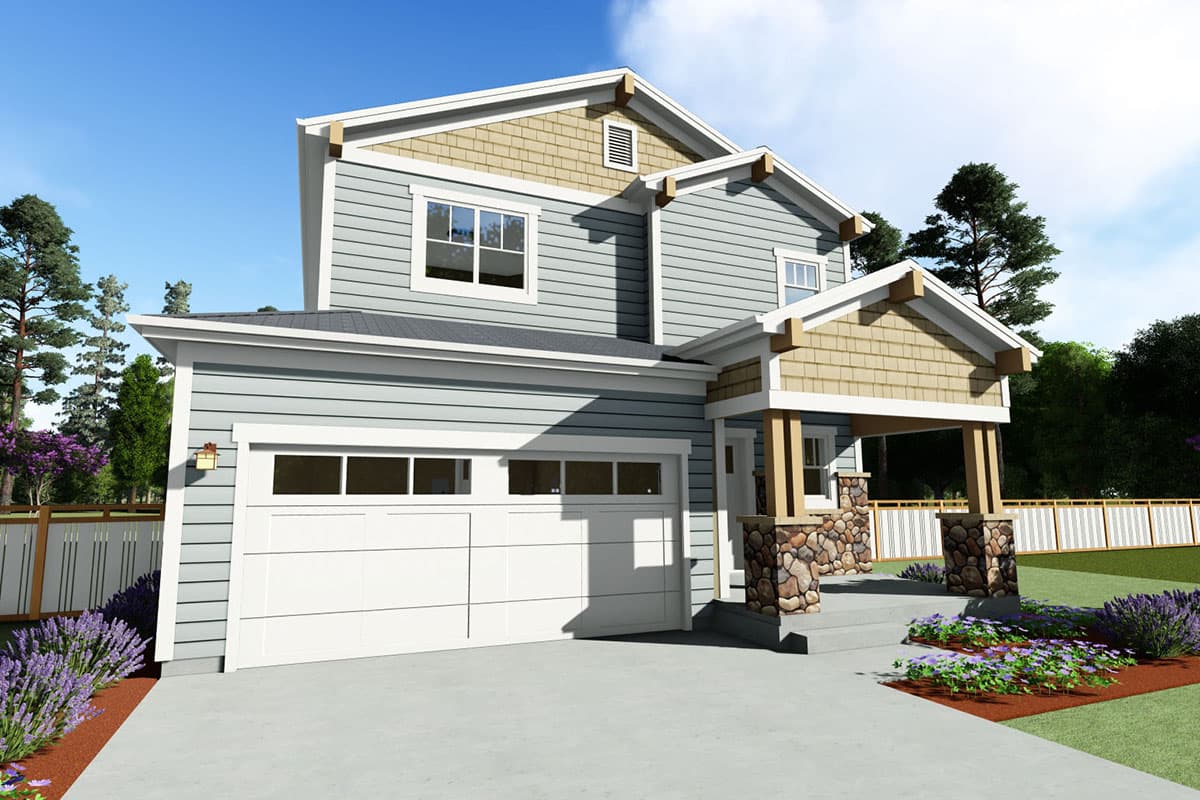

  • A mix of shakes, stone and shingles plus wood trim artfully blend together to give you this Craftsman house plan.
  • With its big open living area tucked away in back of the home, the views run from the kitchen island to the dinette and on back to the living room fireplace.
  • Sliding glass doors take you out to the patio that gives you room to grill.
  • All the bedrooms are upstairs and there's even a second floor laundry room off the hall bathroom.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Floor Plan

Plan details

Architectural Style



Stylish Craftsman with Three Bedrooms

  • 1,690

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $950
  • PDF - multi-use $1,050
  • CAD $1,150
  • CAD - multi-use $1,250
  • View all purchase option online

About This Plan

  • A mix of shakes, stone and shingles plus wood trim artfully blend together to give you this Craftsman house plan.
  • With its big open living area tucked away in back of the home, the views run from the kitchen island to the dinette and on back to the living room fireplace.
  • Sliding glass doors take you out to the patio that gives you room to grill.
  • All the bedrooms are upstairs and there's even a second floor laundry room off the hall bathroom.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

Floor Plans

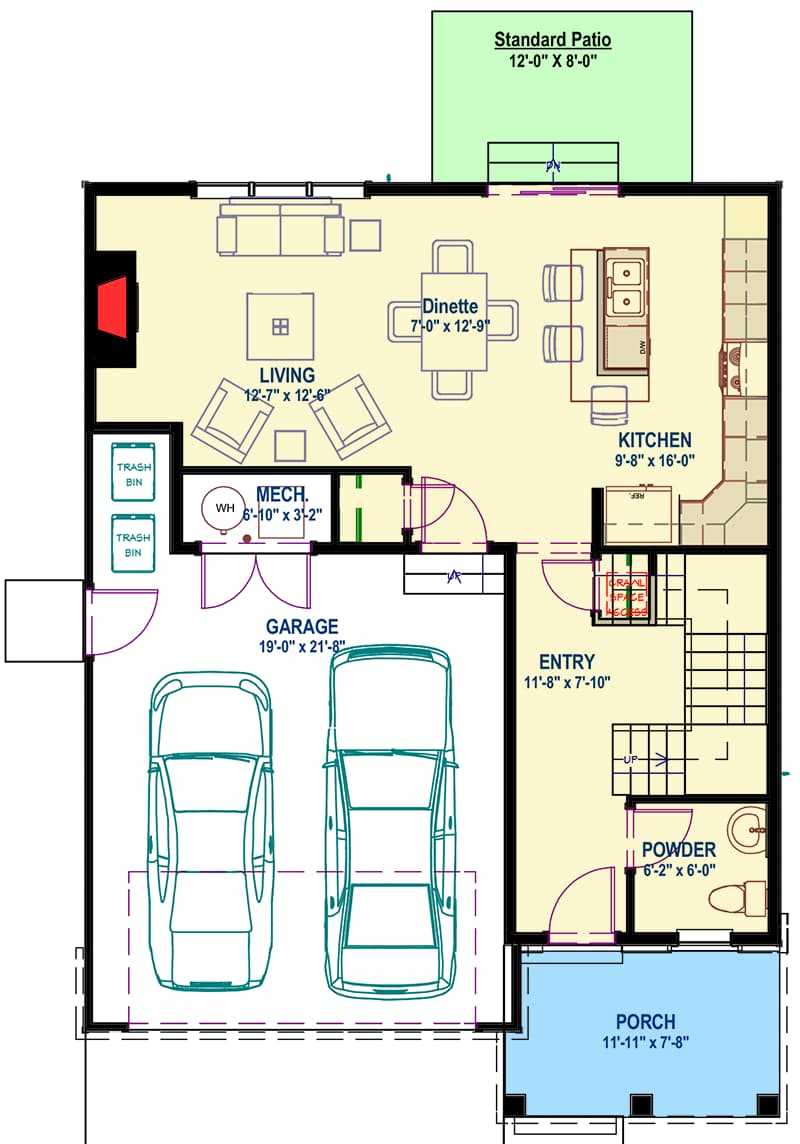

  • Main Level

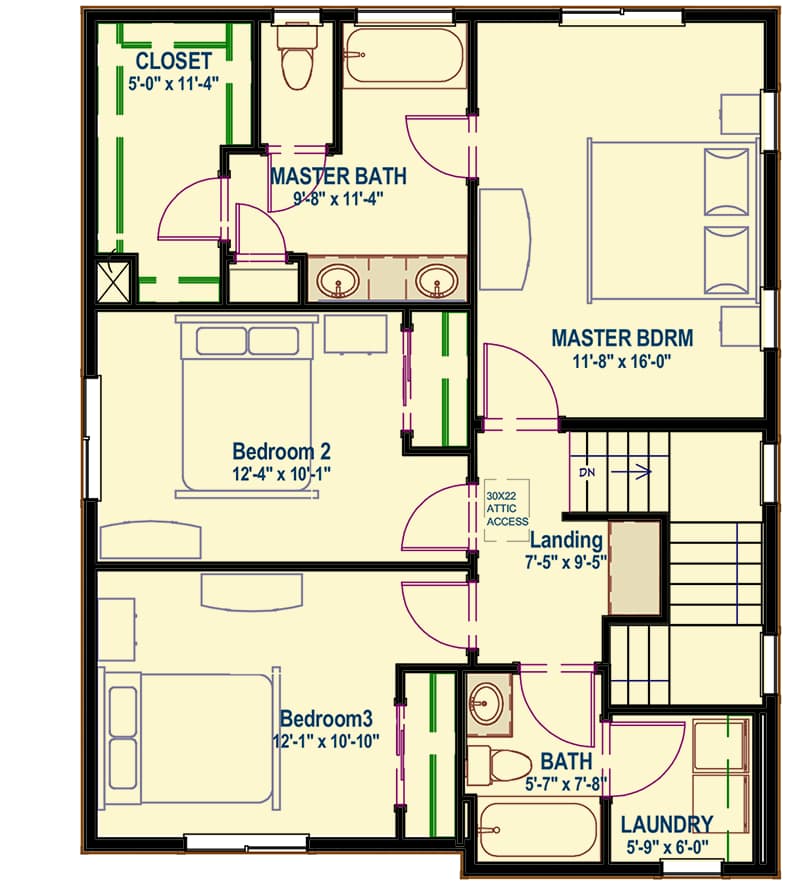

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,690 sq. ft.
  • 1st Floor: 713 sq. ft.
  • 2nd Floor: 977 sq. ft.
  • Porch, Front: 86 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 44' 0"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 452 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

  • Bungalow
  • Craftsman
  • Northwest

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • PDF
