Plan 62530DJ
Stylish Ranch Home Plan
Heated S.F.
2,070
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • An open staircase rail off the foyer makes this stylish Ranch home plan feel even larger.
  • From the foyer you can see all the way back to the great room and dining room.
  • The fireplace warms the whole area and can be seen from the kitchen too, thanks to the open floor plan.
  • A walk-in pantry and big island will delight homeowners.
  • The master suite is off by itself for privacy and has a tray ceiling, private bathroom and large walk-in closet.Across the home, two family bedrooms share a hall bathroom.
  • Even the mudroom gets special treatment with its bench and locker area.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stylish Ranch Home Plan

  • 2,070

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

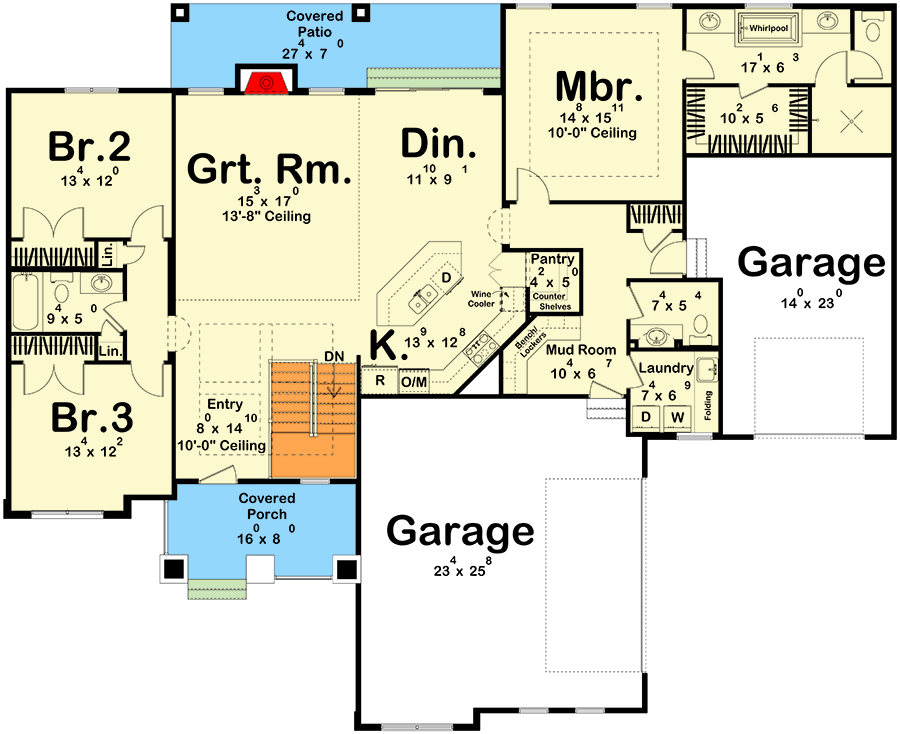

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,070 sq. ft.
  • 1st Floor: 2,070 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 60' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 991 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
