Stylish Split-Level Home Plan

Plan 3694DK

  • 1,499

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • From the foyer of this stylish split-level home plan, you can go down to the lower level or up to the main living area.
  • An open rail in the family room overlooks the stairs and makes the room feel larger.
  • Vaulted ceilings in the family room and master suite draw your eye upwards.
  • The kitchen and breakfast nook have access to the rear deck with lots of windows to bring in light.
  • There is plenty of storage, including 208 square feet behind garage, 195 square feet to the right of the stairs on the lower level, and 208 more square feet in the rec room.

This plan includes the following elements:

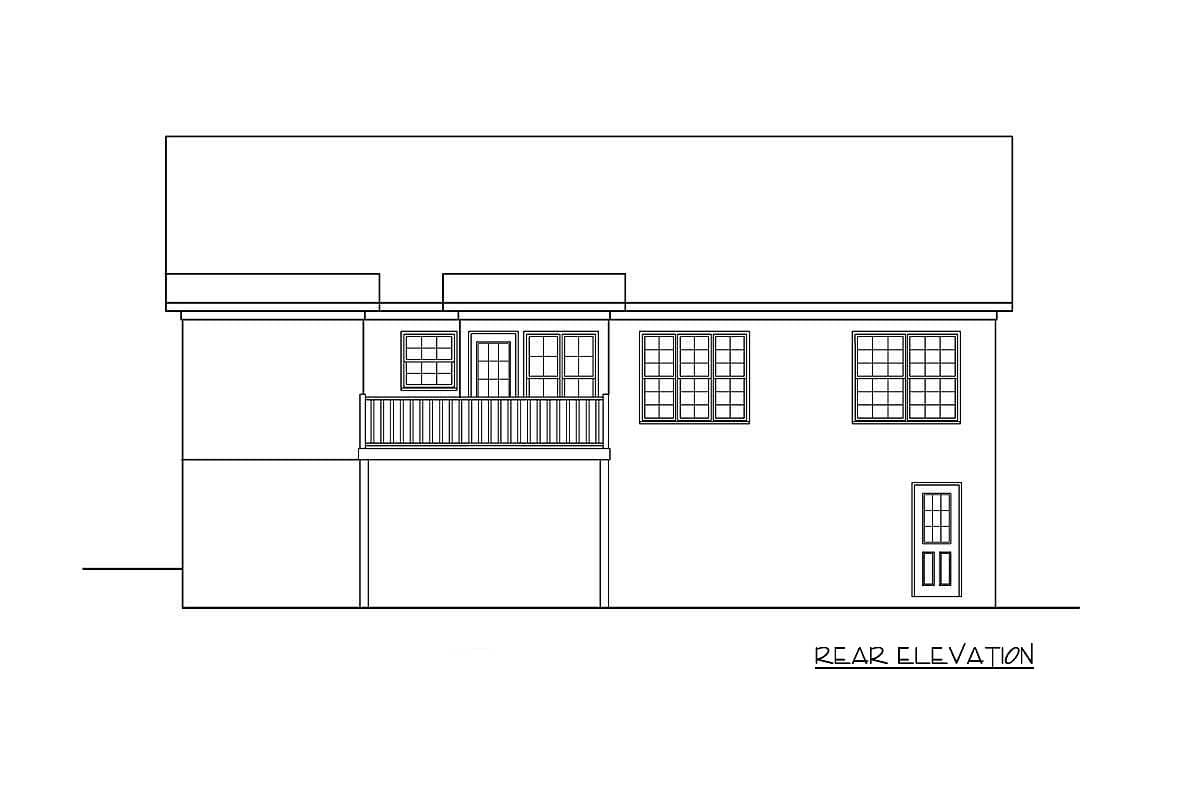

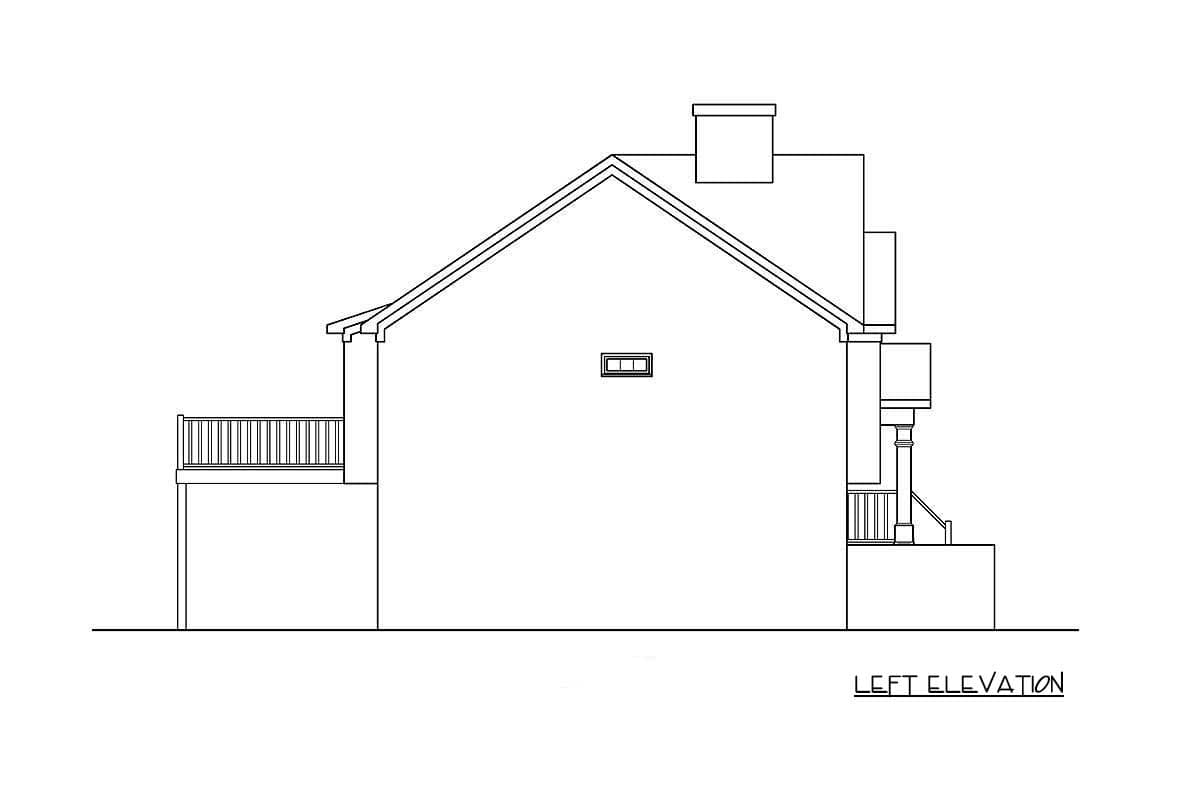

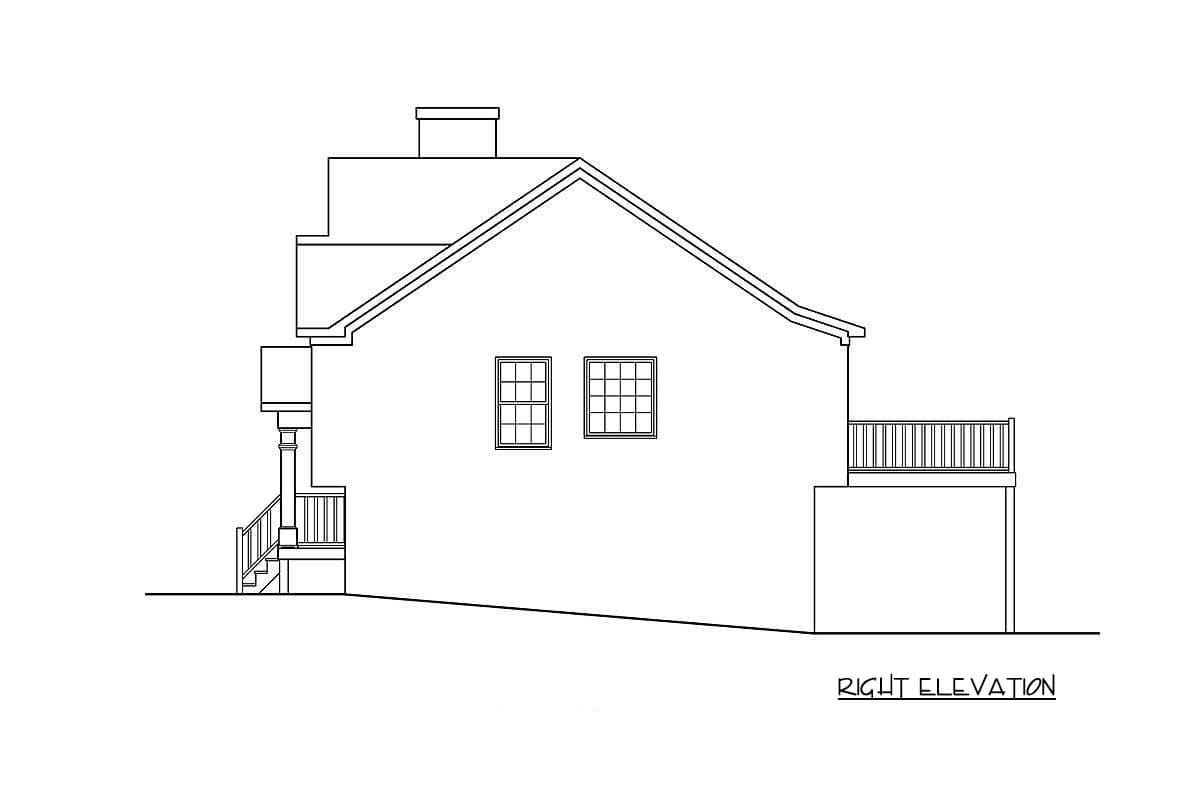

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

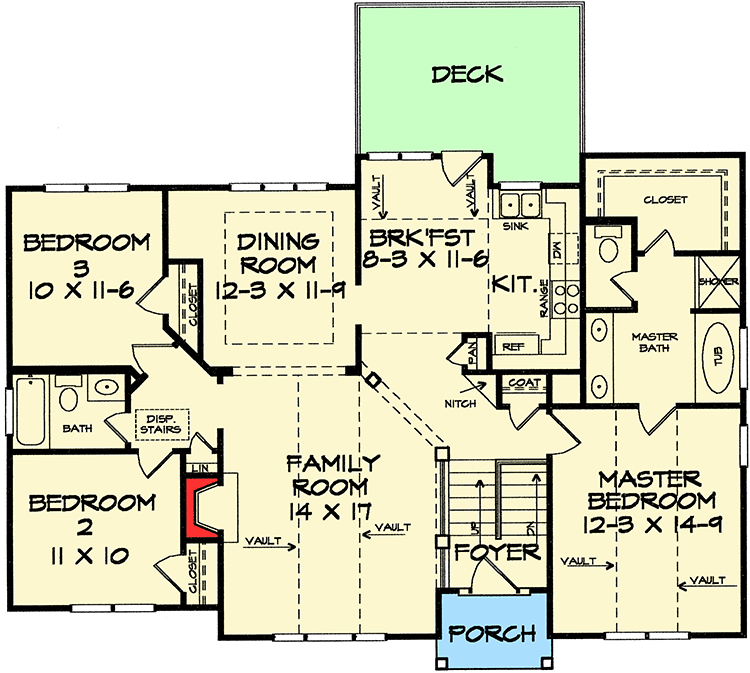

Stylish Split-Level Home Plan - 3694DK floor plan - Main Level

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

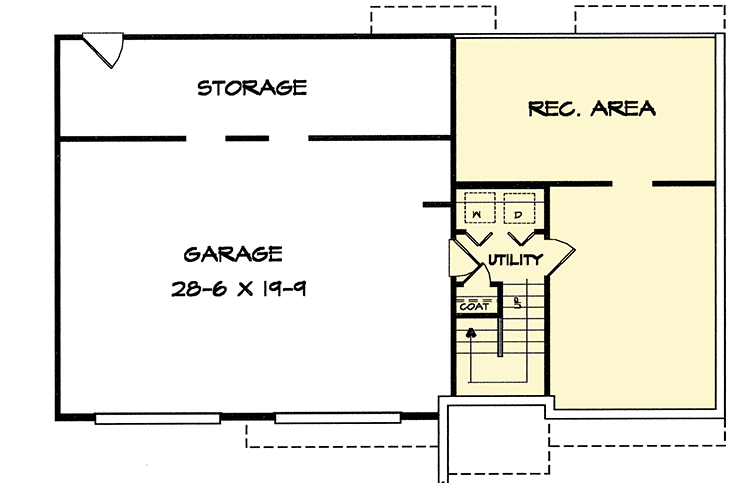

Stylish Split-Level Home Plan - 3694DK floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,499 sq. ft.
  • Lower Level: 54 sq. ft.
  • 1st Floor: 1,445 sq. ft.
  • Entry: 32 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 6"
  • Depth: 32' 0"

Garage

  • Type: Drive Under
  • Area: 591 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Special features

Plan Collections

Stylish Split-Level Home Plan

  • 1,499

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $795
  • 8 Sets $950
  • PDF Light $1,100
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • From the foyer of this stylish split-level home plan, you can go down to the lower level or up to the main living area.
  • An open rail in the family room overlooks the stairs and makes the room feel larger.
  • Vaulted ceilings in the family room and master suite draw your eye upwards.
  • The kitchen and breakfast nook have access to the rear deck with lots of windows to bring in light.
  • There is plenty of storage, including 208 square feet behind garage, 195 square feet to the right of the stairs on the lower level, and 208 more square feet in the rec room.

Floor Plans

  • Main Level

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,499 sq. ft.
  • Lower Level: 54 sq. ft.
  • 1st Floor: 1,445 sq. ft.
  • Entry: 32 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 6"
  • Depth: 32' 0"

Garage

  • Type: Drive Under
  • Area: 591 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Framing Type: Stick
Plan 3694DK
View this and more for this plan by visiting www.architechtecturaldesigns.com/3694DK
|
