Plan 29892RL
Substantial and Spacious European House Plan - 5687 Sq Ft
Heated S.F.
5,687
Beds
6
Baths
6.5 - 7.5
Stories
2
Cars
3
Floor Plan

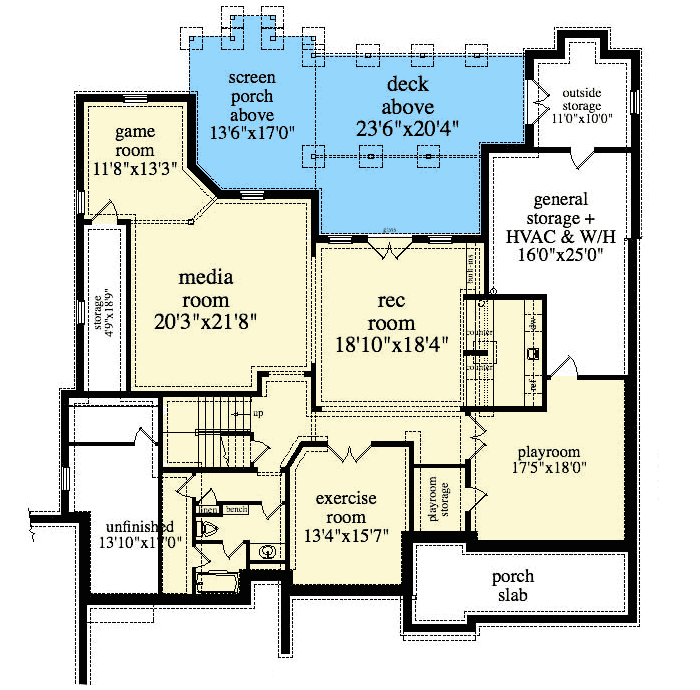

Optional Lower Level
Reverse Floor Plan
Substantial and Spacious European House Plan - 5687 Sq Ft - 29892RL floor plan - Optional Lower Level
Plan Details
  • This spacious European house plan has it all, from six bedrooms to an open floor plan to a spectacular master suite and a second floor media room.
  • There's even room to expand by finishing the optional finished lower level.
  • Built-ins throughout the home add a custom touch and the large screened porch comes with an outdoor fireplace.
  • Interior columns keep the sight lines open and allow the kitchen to become the command center where you can see everything that's going on.
  • Windows on three sides fill the breakfast nook with light.
  • A relaxing retreat awaits homeowners in their luxurious first floor master suite that includes a vaulted sitting room with its own fireplace.
  • The master walk-in closet is huge and has a built-in island complete with a bench seat.
  • On the second floor, bedroom six is enormous and could serve as a top notch in-law suite.
  • The media room/playroom is raised two steps up from the bedroom level and every bedroom has a walk-in closet and private bathroom.
  • Need even more space? Finish the optional lower level to gain an additional 2,380 square feet with a fabulous entertaining space and exercise room.
What's Included

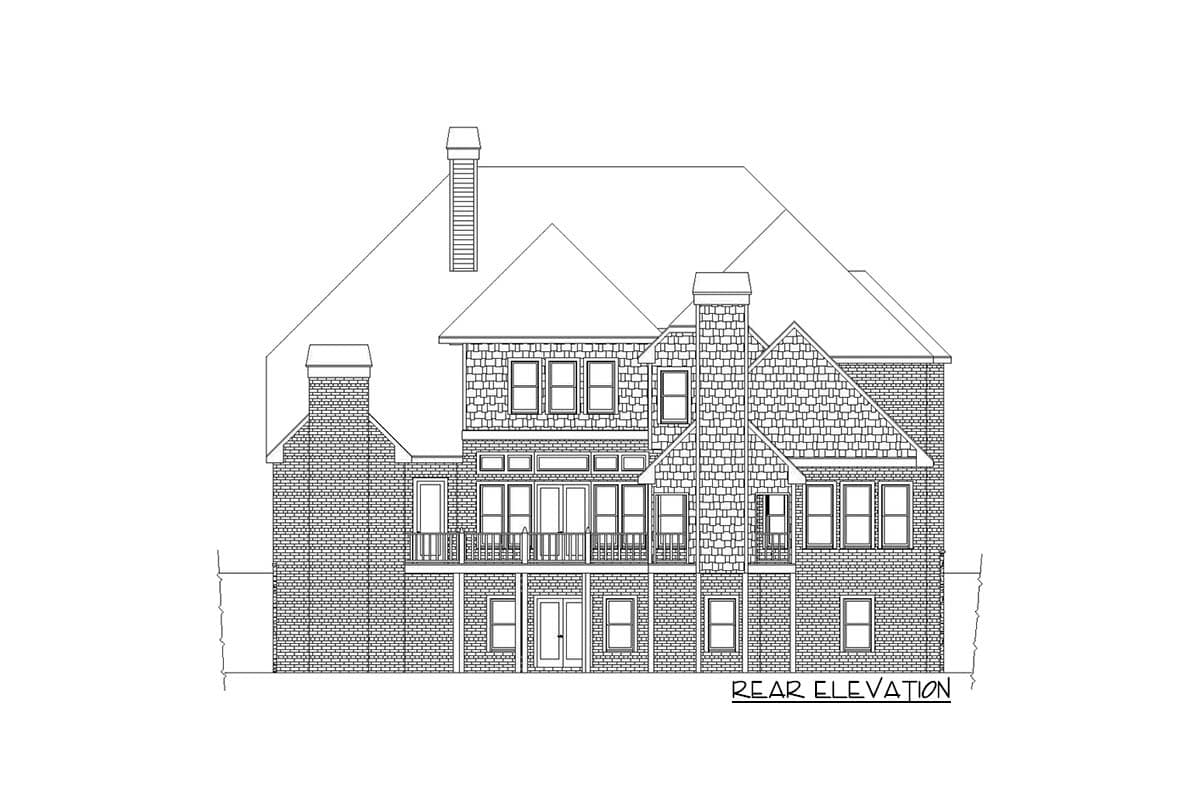

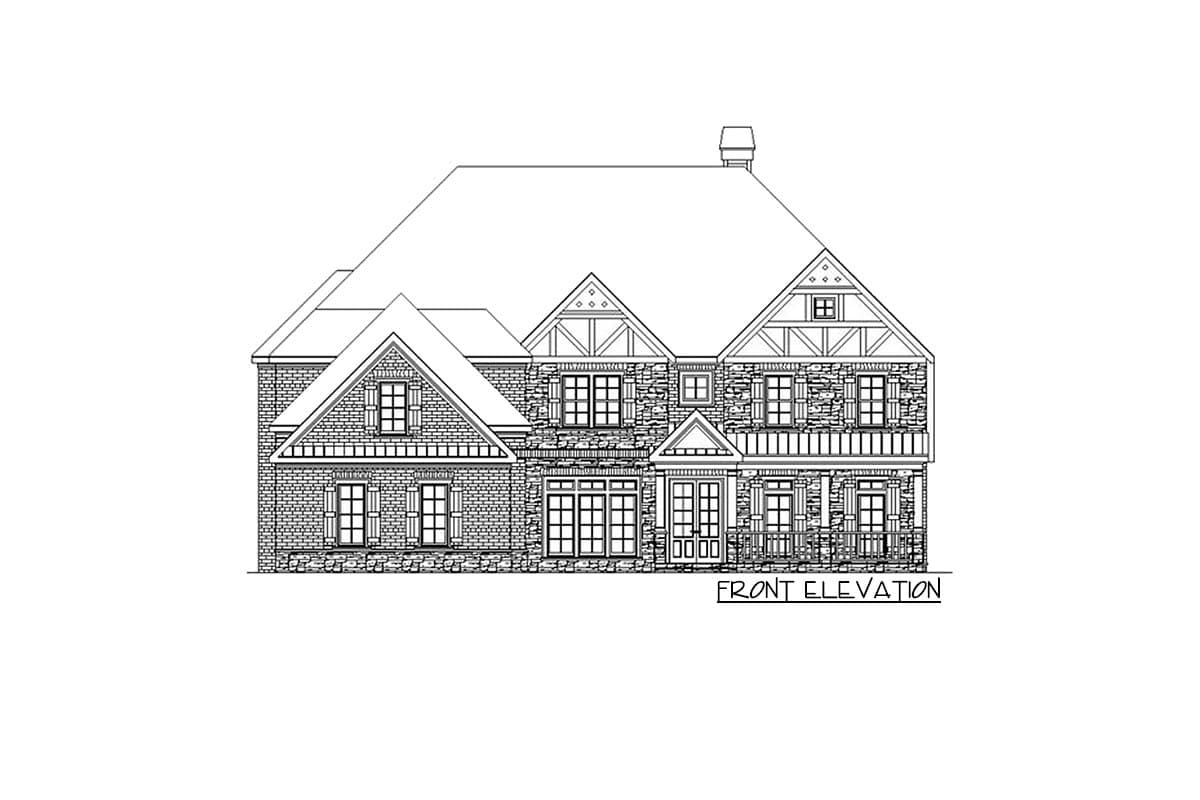

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Substantial and Spacious European House Plan - 5687 Sq Ft

  • 5,687

    Heated s.f.

  • 6

    Beds

  • 6.5 - 7.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

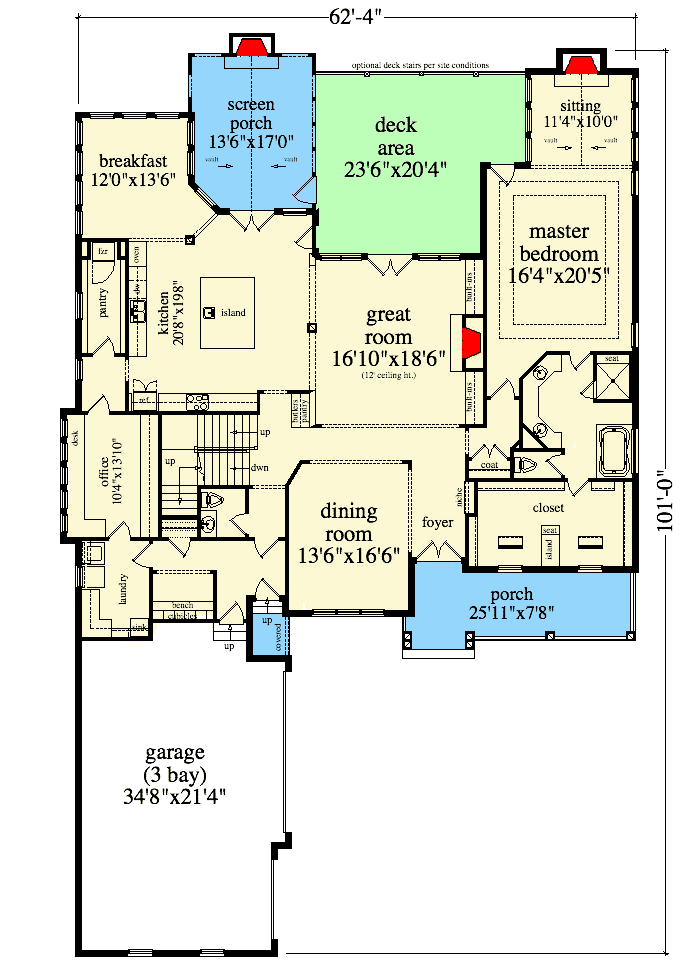

  • Main Level

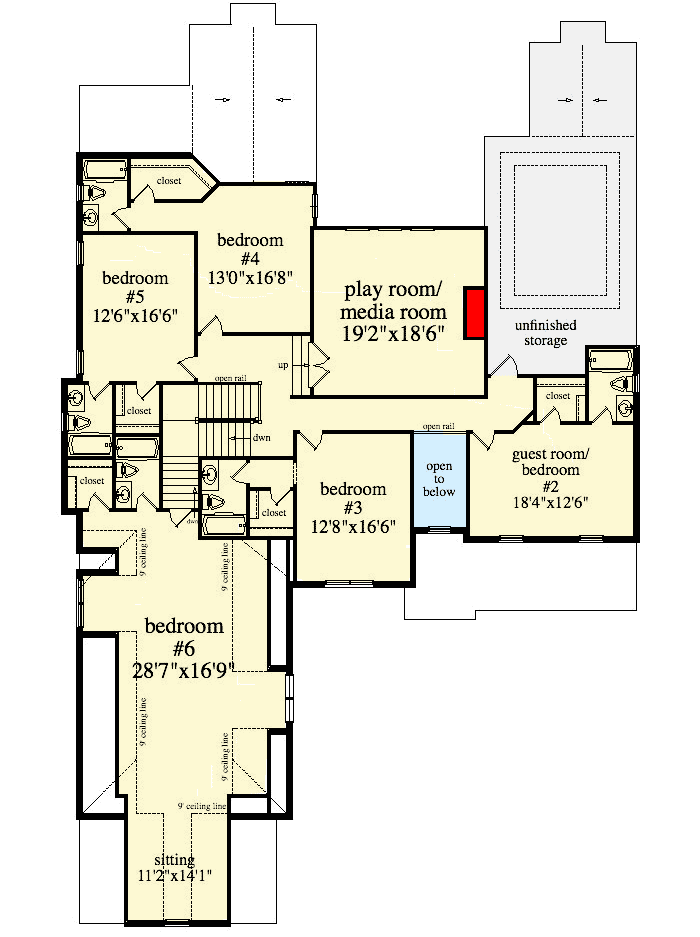

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,687 sq. ft.
  • 1st Floor: 2,979 sq. ft.
  • 2nd Floor: 2,708 sq. ft.

Dimensions

  • Width: 62' 4"
  • Depth: 101' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6 or 7
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Substantial and Spacious European House Plan - 5687 Sq Ft

  • 5,687

    Heated s.f.

  • 6

    Beds

  • 6.5 - 7.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Substantial and Spacious European House Plan - 5687 Sq Ft

  • 5,687

    Heated s.f.

  • 6

    Beds

  • 6.5 - 7.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 5,687 sq. ft.
  • 1st Floor: 2,979 sq. ft.
  • 2nd Floor: 2,708 sq. ft.

Dimensions

  • Width: 62' 4"
  • Depth: 101' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6 or 7
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
