Plan 31509GF

Suburban Craftsman House Plan

Name: Plan 31509GF: Suburban Craftsman House Plan
Brand: Architectural Designs
SKU: 31509GF
Price: 903.13 USD
Availability: InStock

Heated S.F.

3,057

Beds

3 - 4

Baths

2.5 - 3.5

Stories

Cars

Floor Plan

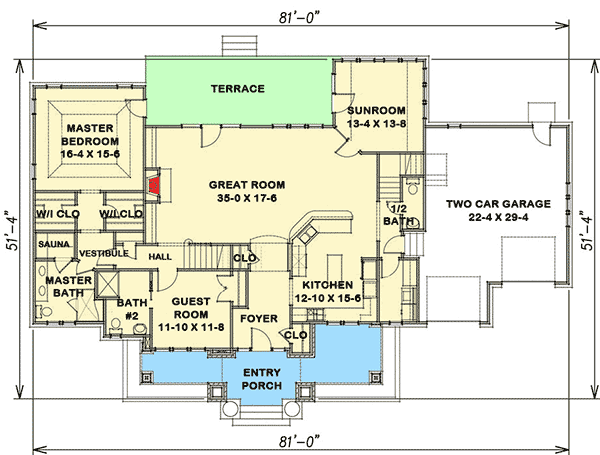

Main Level

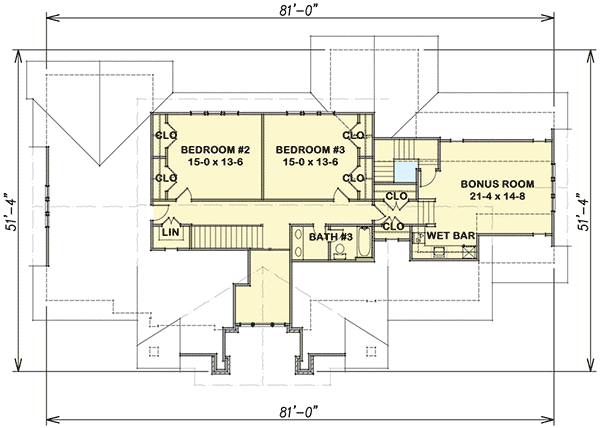

2nd Floor

Plan Details

Solid brick columns support the porch overhang in this Craftsman house plan that has a touch of Contemporary style.
The great room has a wall of glass along the back of the home with a door leading out to the terrace.
The home also comes with a bright and cheerful sunroom that makes a terrific reading nook.
In the kitchen, the sink is placed on the peninsula eating bar facing the great room so you can feel a part of family activities.
A luxurious first floor master suite is appointed with a tray ceiling, access to the terrace and a heavenly sauna for those cold winter days and nights.
A first floor guest suite is joined by two more bedrooms up on the second floor.
Note the walk-in linen closet that is sure to be appreciated.
Bonus space includes a wet bar and two closets for storage.
The roof has an 8:12 pitch.

Unit Unit 2

Heated Area

2,302Sq. Ft.

Unit Unit A

Heated Area

2,202Sq. Ft.

What's Included

Cover Sheet: Shows typical notes and requirements.

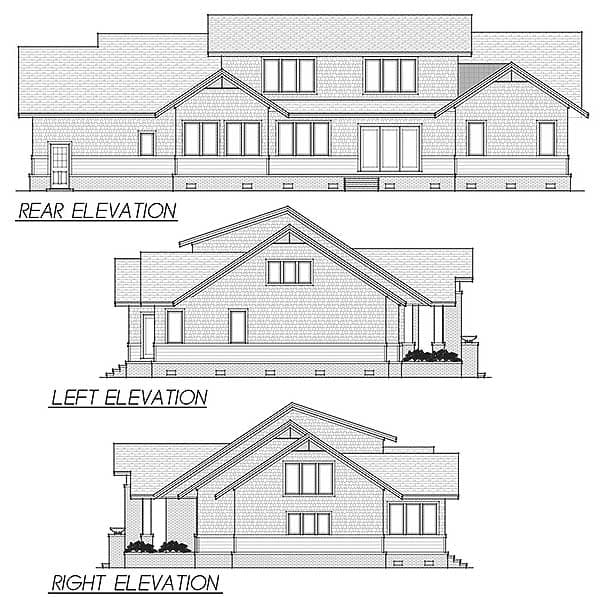

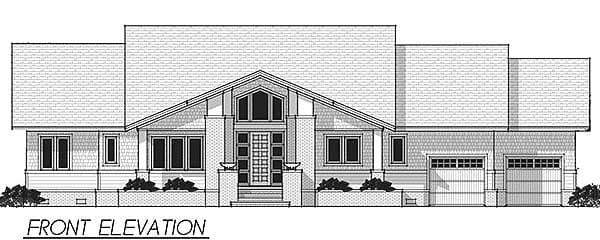

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Typical wall section
Typical stair section (if applicable)
Typical shelving and cabinet details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
Energy calculations - handled locally when required
Electrical Layout - handled by your builder and subcontractor
