Plan 72635DA
Sun Room and Den
Heated S.F.
2,762
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Small panes of glass fill generously-sized window openings to give this home an intriguing Georgian look. Gridded garage doors echo that theme.
  • This single-level plan offers plenty of room for an active family.
  • Double doors in the vaulted foyer open into a vaulted dining room with a roomy step-in storage closet to one side. This space links with the vaulted living room further back.
  • A 10-foot-high display shelf provides definition at the juncture of the two spaces.
  • The living room can also be entered by proceeding straight ahead along the foyer, passing through an arched opening and under a similar display shelf there.
  • Banks of windows fill most of the rear wall in the living room and nook. An arched window crowns a wide trio of windows, near a gas fireplace that fits neatly into one corner.
  • A sun room and den/home office fill out the opposite side of the of this expansive space, while the kitchen sits at its heart.
  • Standing by the kitchen sink or working at the peninsular counter, you have a panoramic view of the entire area, as well as the partially covered patio outside. The cook top is built into a central island, and a roomy walk-in pantry nestles in one corner. A large utility room with a toilet is nearby, along with a door to the three-car garage.
  • Bedrooms fill the right wing. The owners' suite boasts two large walk-in closets, a posh bathroom and direct patio access.
  • This home can be easily adapted for wheelchair accessibility and is also suited for retirees.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

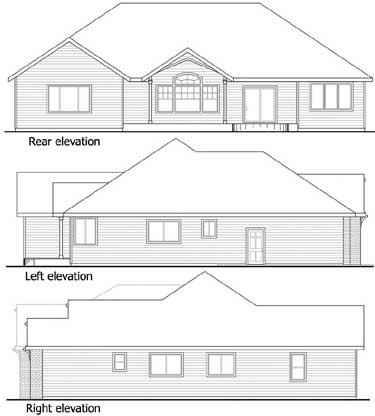

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

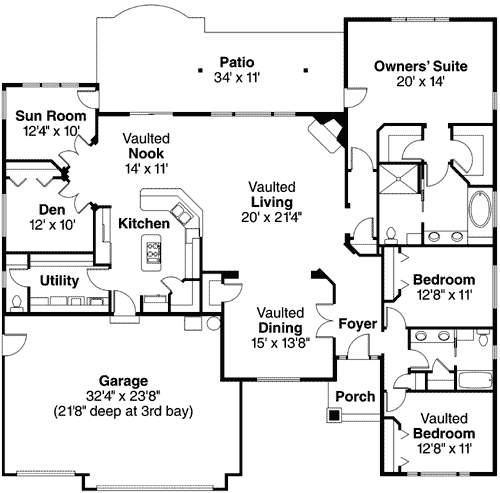

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
