Plan 9529RW

Sunken Family Room and a Children's Retreat

Heated S.F.

6,336

Beds

5

Baths

5.5+

Stories

2

Cars

4

What's Included

Floor Plan

Main Level

Reverse Floor Plan

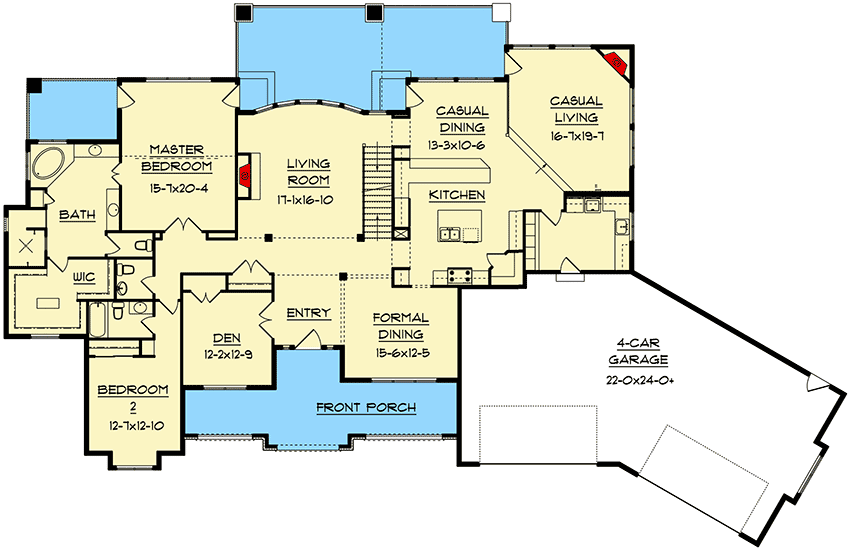

Sunken Family Room and a Children's Retreat - 9529RW floor plan - Main Level

Second Level

Reverse Floor Plan

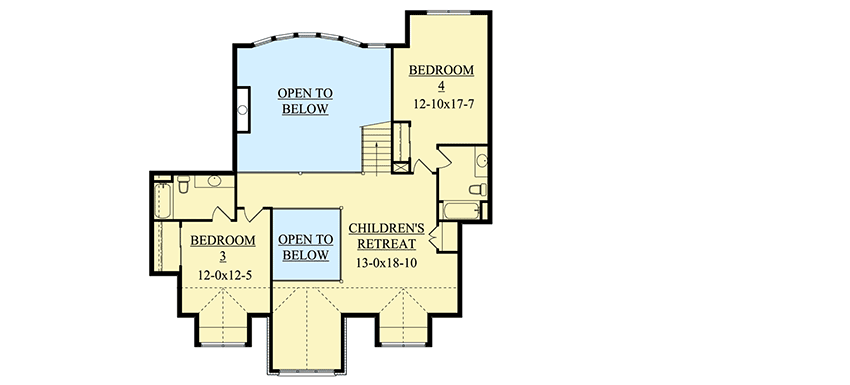

Sunken Family Room and a Children's Retreat - 9529RW floor plan - Second Level

Lower Level

Reverse Floor Plan

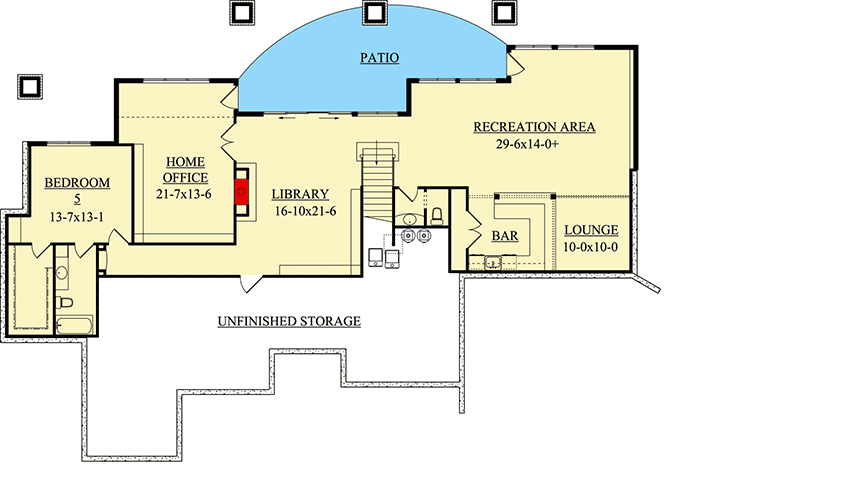

Sunken Family Room and a Children's Retreat - 9529RW floor plan - Lower Level

Plan Details

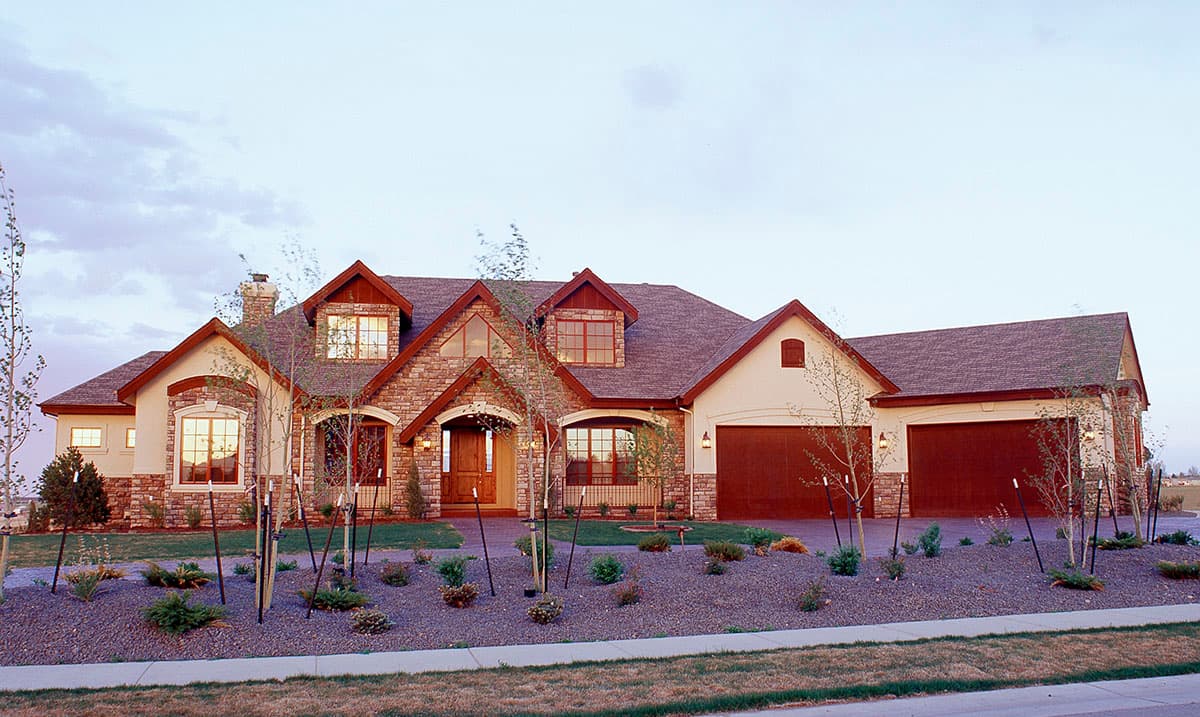

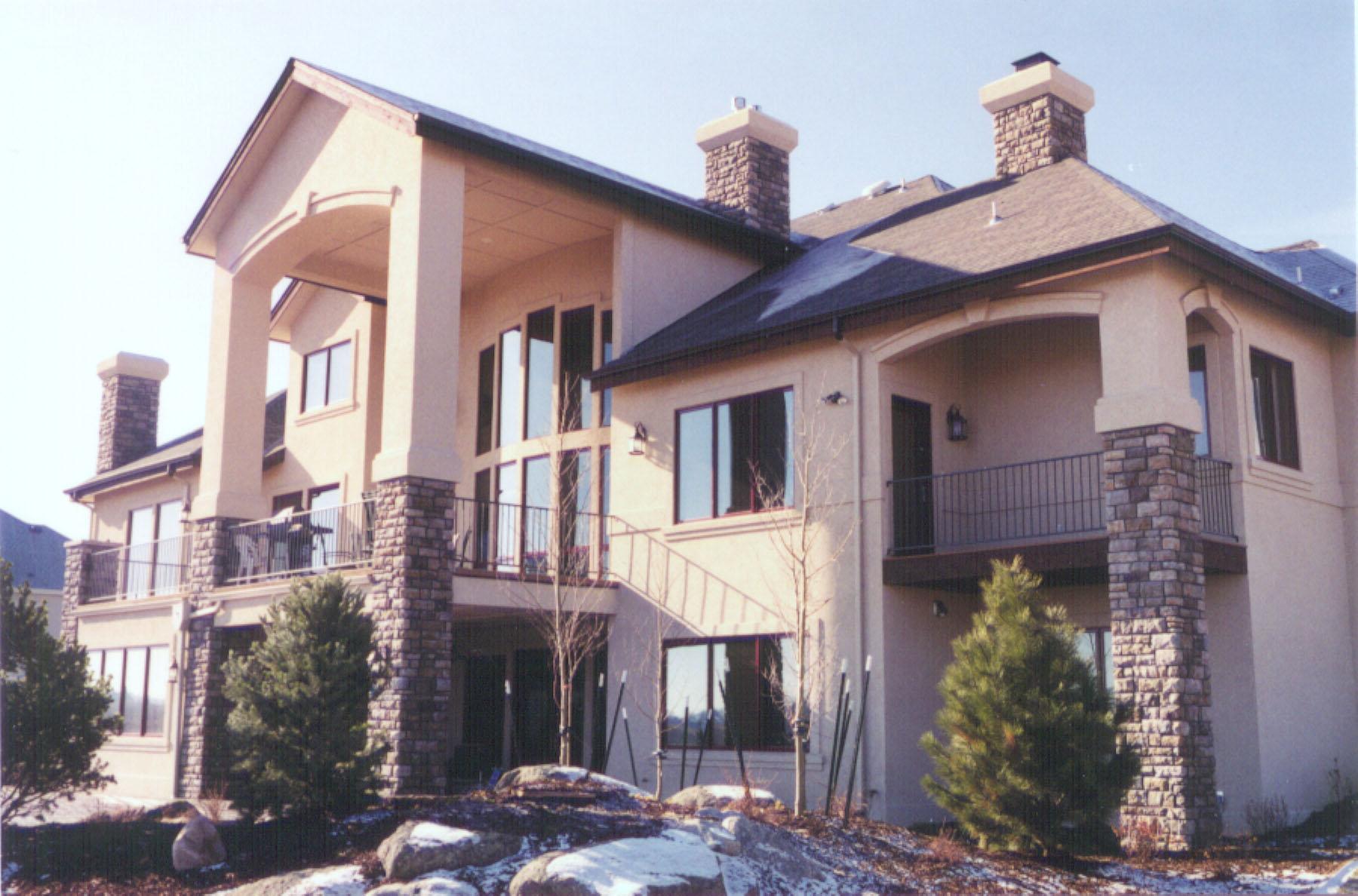

This gorgeous family home has stone accents and two dormers that give it curb appeal.
Designed for a large family, this home boasts five bedrooms and five full bathrooms plus two half baths spread out over three levels.
From the foyer you can see straight back to the huge bow window in the living room with fireplace.
In the informal section of the home, a fabulous sunken family room with corner fireplace awaits your family.
Even the laundry room is spacious with lots of counter space.
A vaulted ceiling tops the main floor master suite that has its own private covered porch.
Other amenities include a huge master bath and walk-in closet divided into compartments.
The second level features two large bedrooms and a deluxe children's retreat.
Or you can have the kids play in the enormous recreation area on the ground level complete with lounge and large wet bar.
Both the library and home office on this level are huge and a private guest suite would make wonderful in-law accommodations.

What's Included

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Square Footage Breakdown

Total Heated Area:

6,336 sq. ft.

Lower Level:

2,058 sq. ft.

1st Floor:

3,119 sq. ft.

2nd Floor:

1,159 sq. ft.

Beds/Baths

Bedrooms:

5

Full bathrooms:

5

Half bathrooms:

2

Foundation Type

Standard Foundations:

Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

115' 0"

Depth:

74' 0"

Max Ridge Height:

32' 3"

Garage

Type:

Attached

Area:

1289 sq. ft.

Count:

4 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch:

10 on 12

Secondary Pitch:

12 on 12

Framing Type:

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands

Two Story Great Room

Plan Collections

Premium Collection
