Plan 36358TX
Super-Sized Family Room
Heated S.F.
3,988
Beds
3
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • The crown jewel of this amazing European home plan is the massive family room that stretches out for 31'. Built-ins, a fireplace and a piano bay enhance this space that is open to the kitchen with its walk-in pantry.
  • The first floor master suite is tucked away in the rear of the home for quiet and privacy. Homeowners will enjoy the huge compartmented walk-in closet.
  • Each of the bedrooms upstairs has its own bathroom, tray ceilings and access an upstairs balcony.
  • Even the game room has an elegant tray ceiling.
  • Step down to the huge, vaulted bonus room that overlooks the front of this lovely home plan.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Super-Sized Family Room

  • 3,988

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

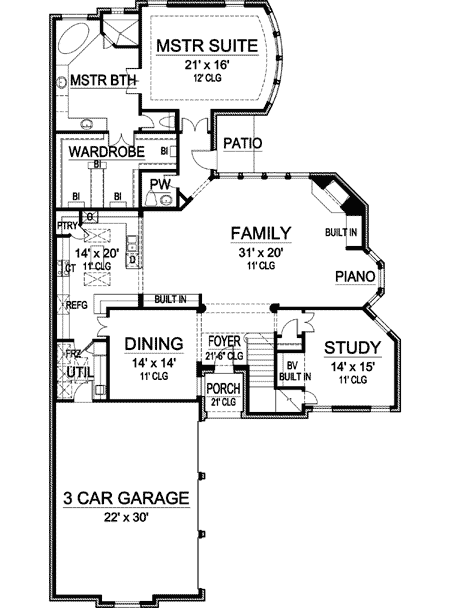

  • Main Level

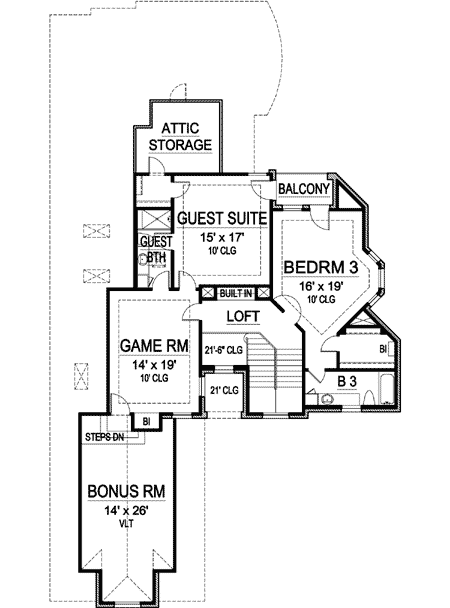

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,988 sq. ft.
  • 1st Floor: 2,694 sq. ft.
  • 2nd Floor: 1,294 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 94' 0"
  • Max ridge height: 40' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Super-Sized Family Room

  • 3,988

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Super-Sized Family Room

  • 3,988

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,988 sq. ft.
  • 1st Floor: 2,694 sq. ft.
  • 2nd Floor: 1,294 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 94' 0"
  • Max ridge height: 40' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

    Main Level

    2nd Floor
