Plan 81263W
Sweeping Raised Porches
Heated S.F.
2,203
Beds
3
Baths
2.5
Stories
2-3
Photos
What's Included
Plan Details
  • Sweeping front and rear raised covered porches, delicately detailed railings and an abundance of fireplaces give this farmhouse its character.
  • Designed to accommodate a relatively narrow building site, the efficient floor plan delivers outstanding livability for the active family.
  • Both the formal living room and dining room have corner fireplaces, as does the family room.
  • The large tiled country kitchen has an abundance of work space, a planning desk and easy access to the utility room.
  • On the second floor, you'll find the master retreat charmed with yet another fireplace and an expansive bathing and dressing suite.
What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

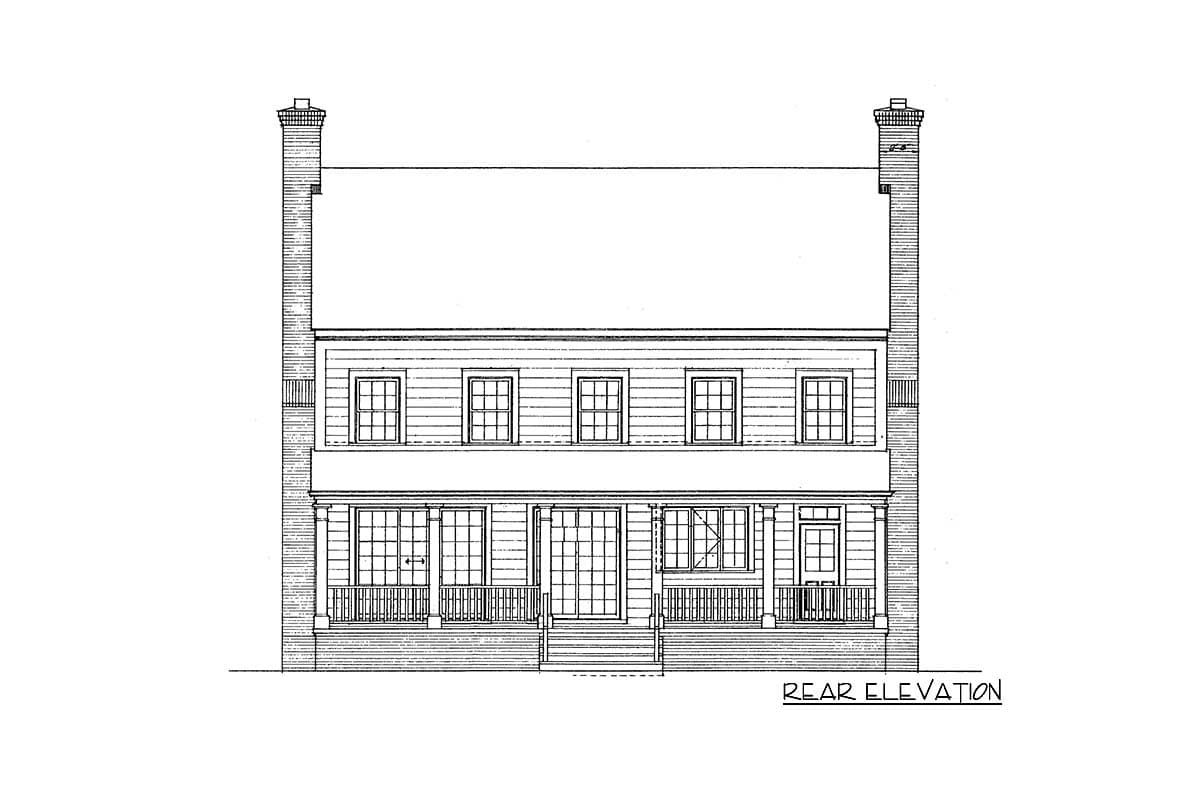

  • Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sweeping Raised Porches

  • 2,203

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2-3

    Floors

Floor Plan

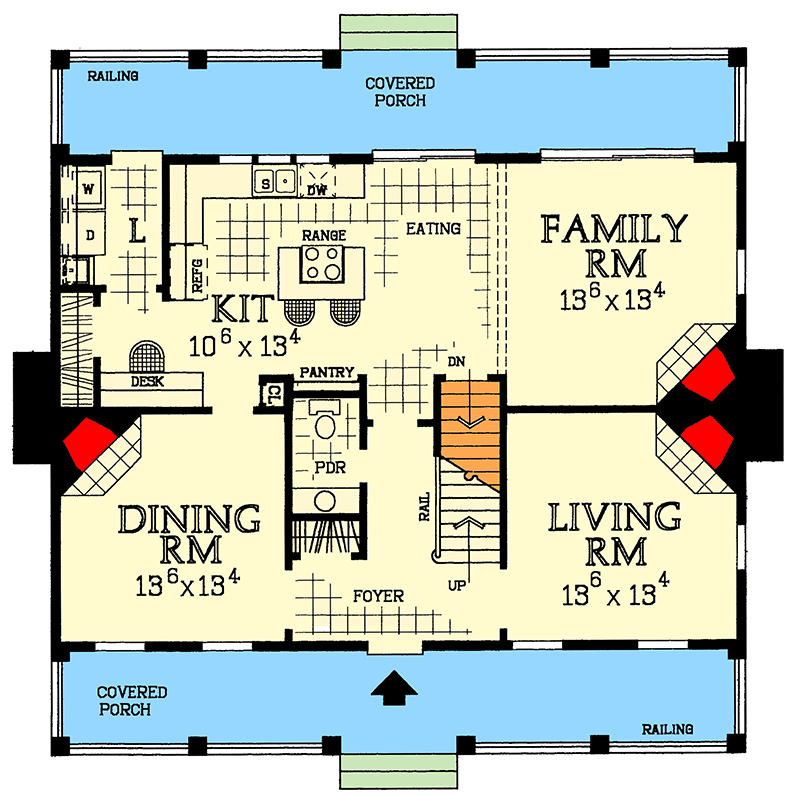

  • Main Level

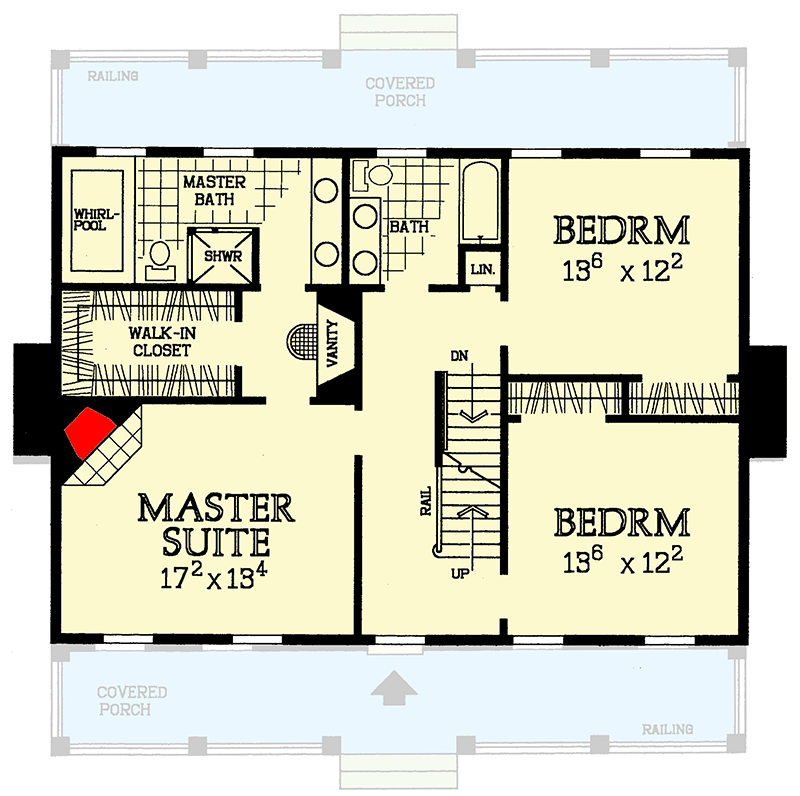

  • 2nd Floor

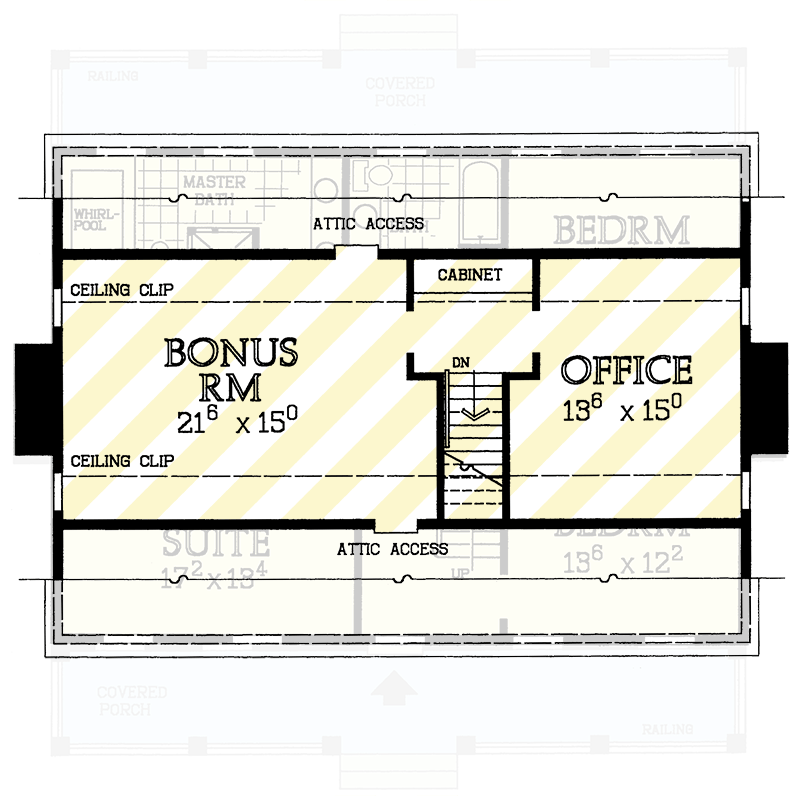

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,203 sq. ft.
  • 1st Floor: 1,120 sq. ft.
  • 2nd Floor: 1,083 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
